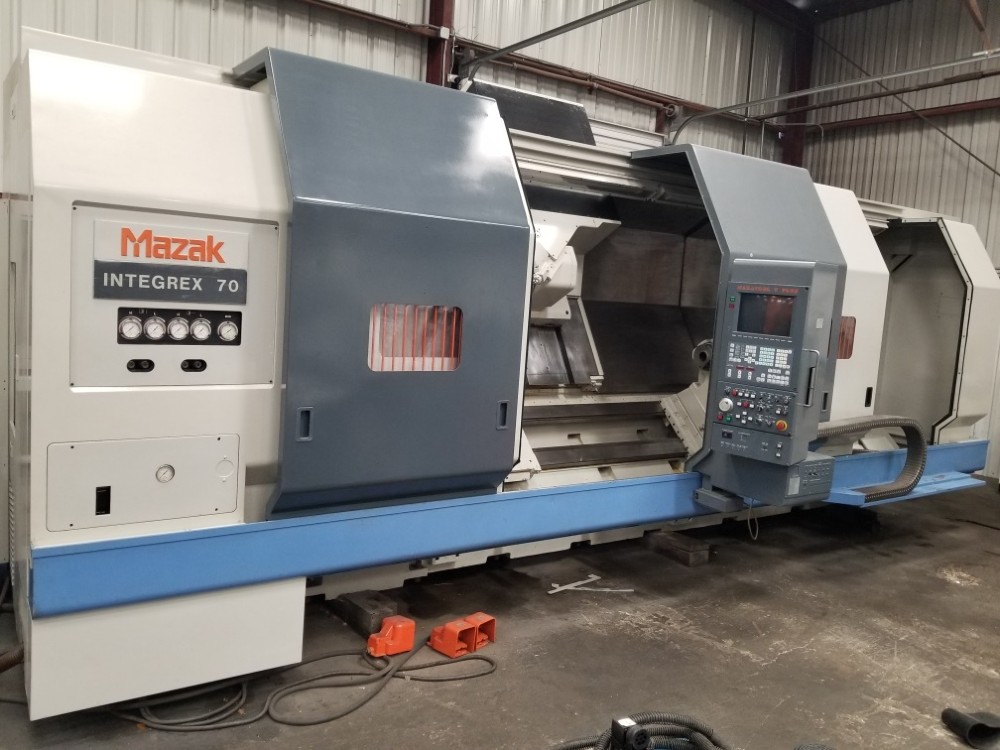

Mazak #Integrex-70, T-Plus Control, 32" swing, 121" centers, new 21" chuck, 15 HP milling, 60 HP

MAZAK INTEGREX 70Y CNC LATHE

Specifications:

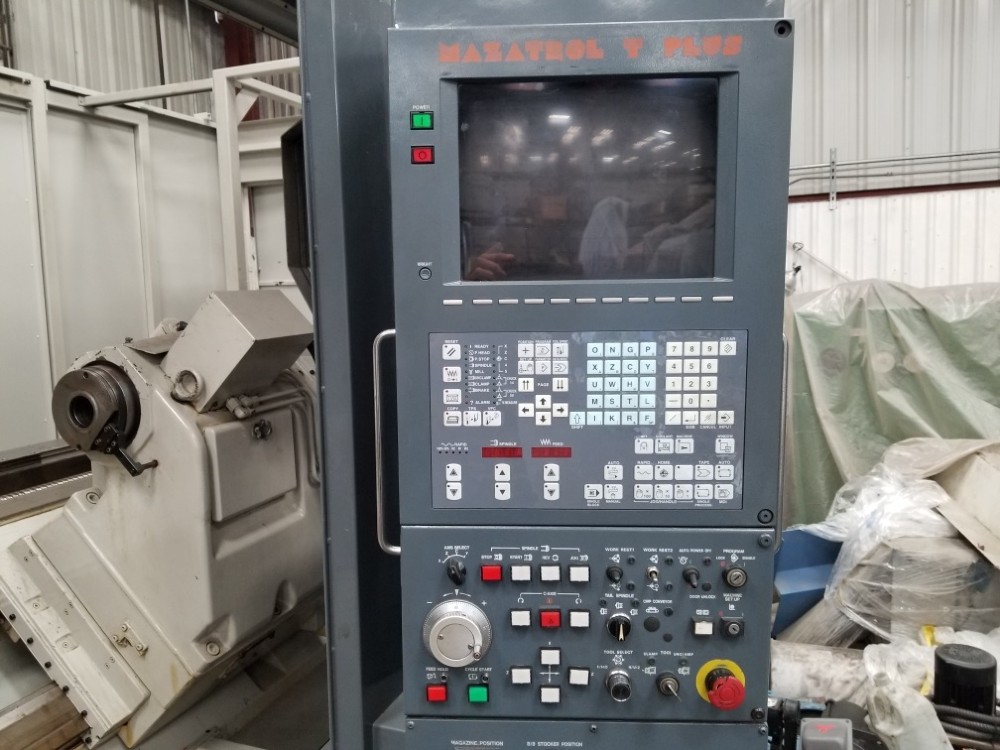

CNC Control Mazatrol T-Plus Y-axis control

Serial Number/YOM 162134826/1998

Model 70Y (not a YB, doesn’t have the $ 27,000 head as part of the

Tooling package).

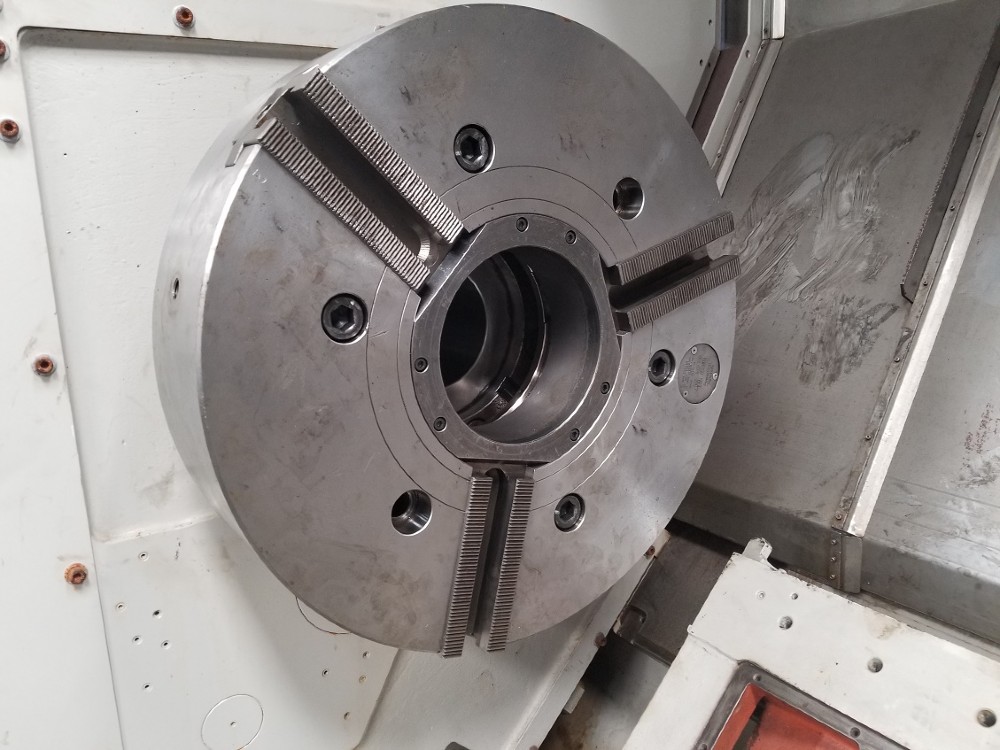

Chuck NEW Samchully 21” 3-Jaw Hydraulic Chuck

Maximum Swing Over Bed 36"

Maximum Swing Over Cross Slide 30.3"

Maximum Turning Diameter 32"

Maximum Distance Between Centers 121"

Spindle Speeds 0 - 750 RPM

Spindle Bore 6.5"

X-Axis Travel 27.5"

Z-Axis Travel 121"

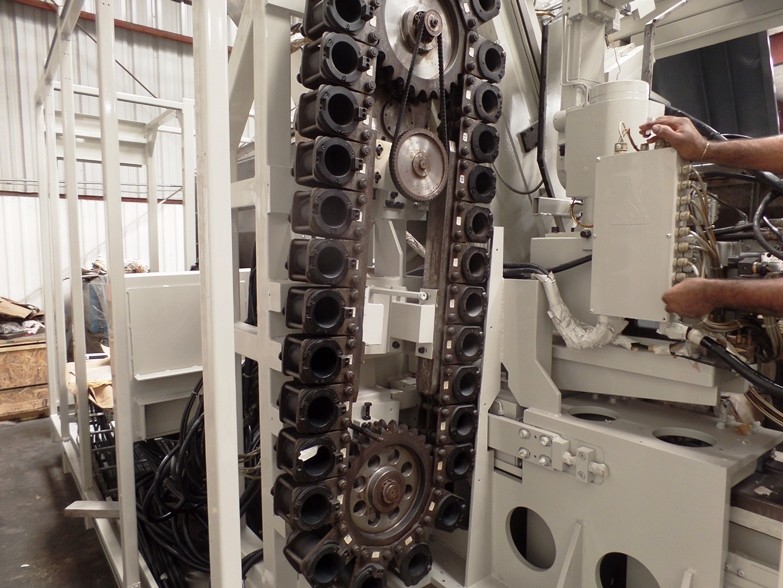

Tool Stations 30 ATC

Rapid Traverse Rate:

X- Y-Z Axis 472, 315,590 IPM

Rotary Tool Spindle Speed 18 - 3,000 RPM

Rotary Tool Motor 15 HP

Rigid Tapping Yes

Coolant Yes, thru milling head

Chip Conveyor Yes

Spindle Motor 60 HP

Machine Weight 68,000 lbs.

Manuals Yes

Tooling Minimal

Dimensions, Lathe Body 27’ 6” L-R, x 10’ 7” F-B x 9’ H

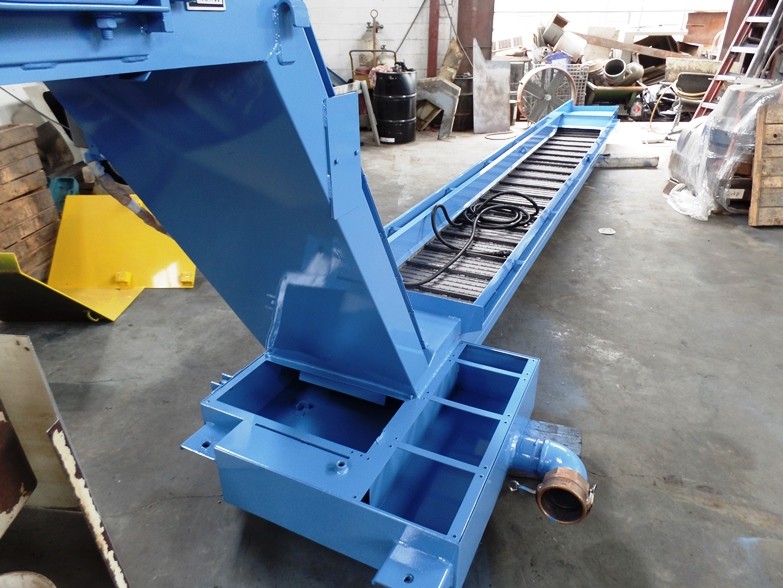

Dimensions, Chip Conveyor 25’ 6” L x 4’ W x 5’ 5” H

Equipped With: Hydraulic Tailstock, Milling, Chip Conveyor, Coolant, Splash/Chip Guards,

Spindle Chiller, Overload Detection and Transformer.

Dimensions: Spindle Chiller: 30” W x 22” L x 51” H. Hydraulic Unit: 34” W x 25” L x 29” H. Transformer: 34” W

x 30” L x 29” H. Box-misc. spares and manuals: 36” W x 36” L x 30” H.

Houston, TX. (Rigger required to load). Subject to Prior Sale.

Condition: Good. I bought this lathe from Lufkin Industries in Lufkin, TX. They made trailers and pump

jacks. GE bought them 8-10 years ago and basically sent all the manufacturing to China. 5,000 employees

became 300 or less. This lathe sat idle for several years. I have spent about $ 45,000 changing out the weird
