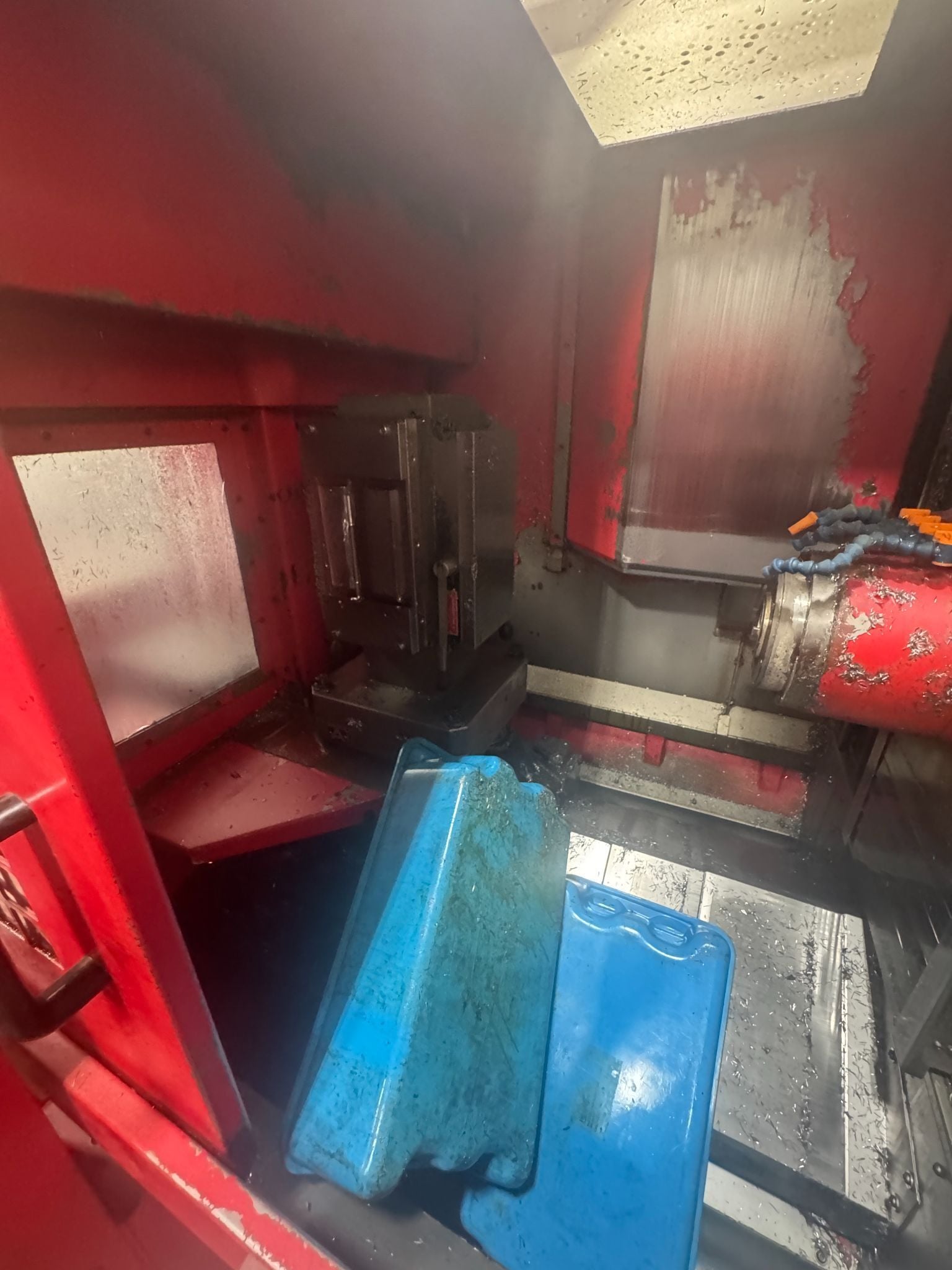

Matsuura #ES-450H, CNC horizontal machining center, 1997

$8,000 USD

Request Formal Quote

SPECS:
-19,634 APPROX. RUN TIME

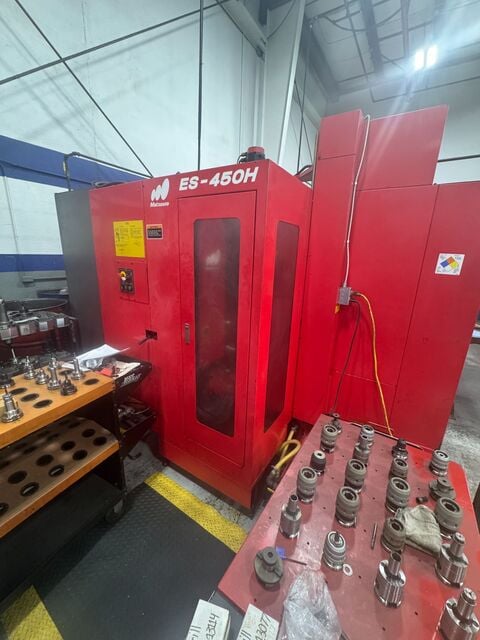

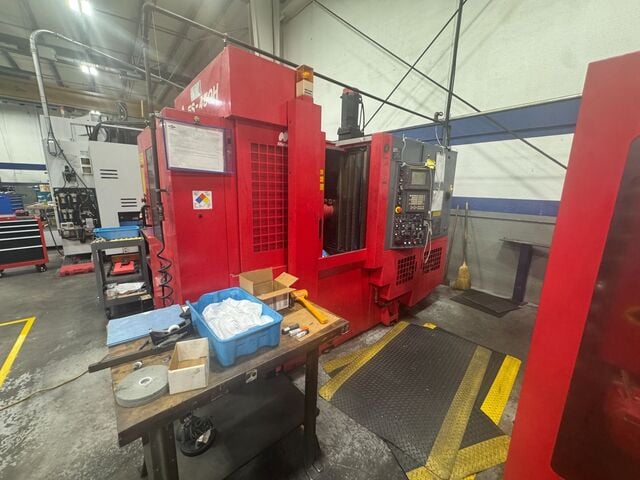

-1997 MATSUURA ES-450H CNC HORIZONTAL MACHINING CENTER
-MANUFACTURED BY MATSUURA MACHINERY CORP., JAPAN

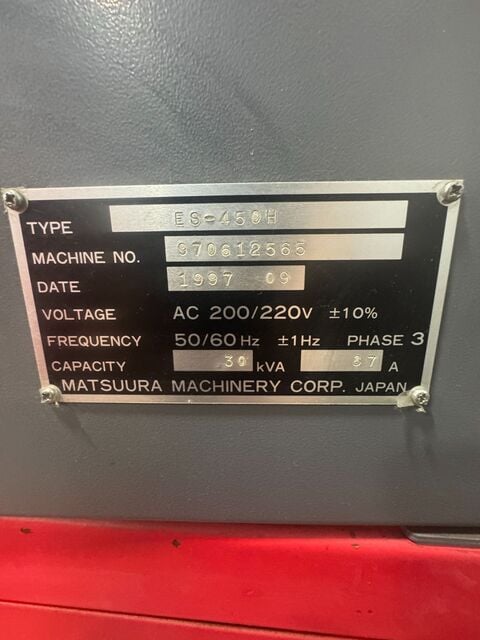

-MACHINE NO. 970612565
-MFG DATE: 09/1997

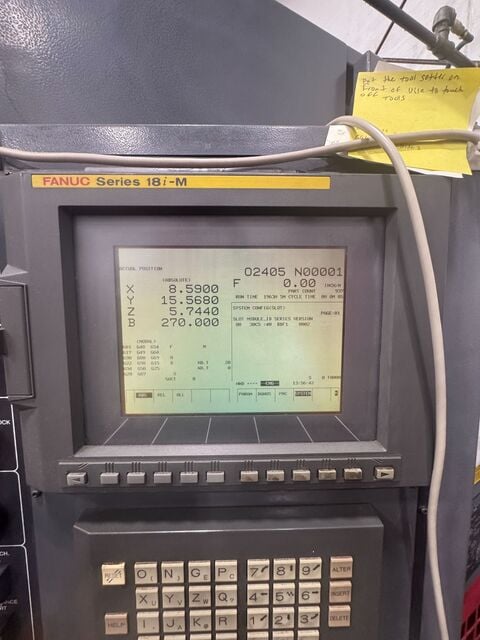

-FANUC SERIES 18i-M CNC CONTROL
-CONTROL SHOWN POWERED ON
-CONTROL DISPLAYS APPROXIMATELY 19,634 HOURS RUN TIME
-4-AXIS HORIZONTAL MACHINING CENTER
-X-AXIS TRAVEL: 17.71" / 450 MM
-Y-AXIS TRAVEL: 15.74" / 400 MM
-Z-AXIS TRAVEL: 15.74" / 400 MM

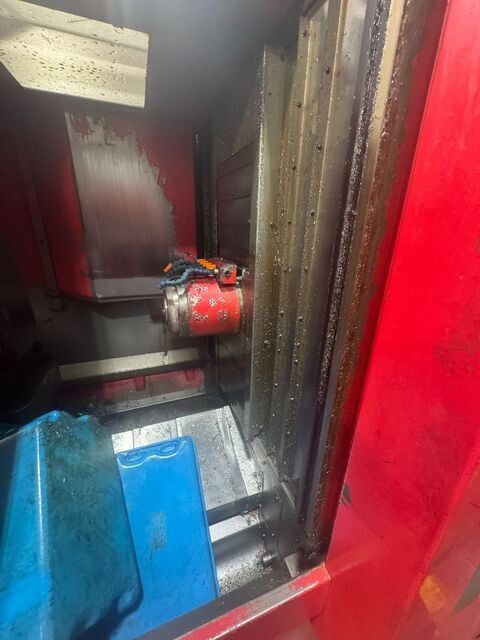

-TWIN PALLET SYSTEM

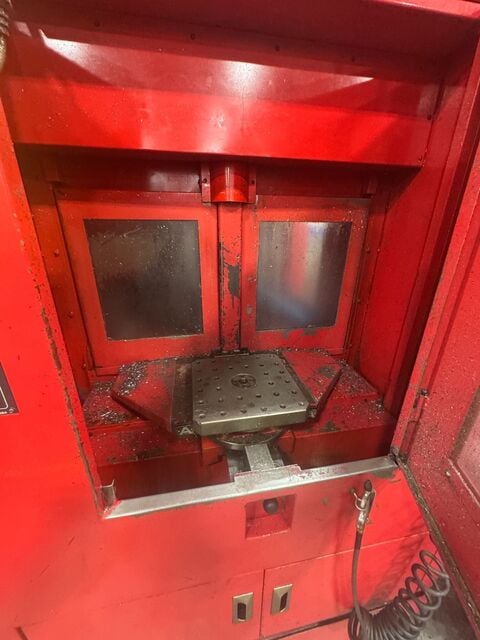

-PALLET SIZE: 11.8" × 11.8" / 300 × 300 MM
-PALLET INDEXING: 1 DEGREE
-MAX PALLET LOAD: 440 LBS / 200 KG
-SPINDLE SPEED: 5010,000 RPM
-BT40 SPINDLE TAPER
-10 HP / 7.5 HP AC MAIN MOTOR
-30-POSITION AUTOMATIC TOOL CHANGER
-RAPID TRAVERSE: 1,181 IPM
-MAXIMUM FEED RATE: APPROX. 393.7 IPM
-APPROX. 2.5 SECOND TOOL-TO-TOOL CHANGE
-APPROX. 6 SECOND CHIP-TO-CHIP TIME
-MAX TOOL DIAMETER: 3.5" / 5.9" WITH ADJACENT POSITIONS EMPTY
-MAX TOOL LENGTH: 11.8"
-MAX TOOL WEIGHT: 17.6 LBS
-COOLANT SYSTEM
-FULL MACHINE ENCLOSURE
-200/220V AC
-3 PHASE
-50/60 HZ
-30 KVA
-87 AMP
-APPROXIMATE MACHINE WEIGHT: 12,566 LBS
-APPROXIMATE DIMENSIONS: 127" × 80.2" × 94.2"
-USED INDUSTRIAL CONDITION WITH NORMAL PAINT WEAR, CHIPS, COOLANT RESIDUE AND SIGNS OF PRODUCTION USE
MATSUURA ES-450H CNC machine in used condition. Ideal for metalworking applications, this high-performance unit offers reliability and precision. Perfect for shops seeking quality equipment from a trusted manufacturer.
MATSUURA ES-450H
