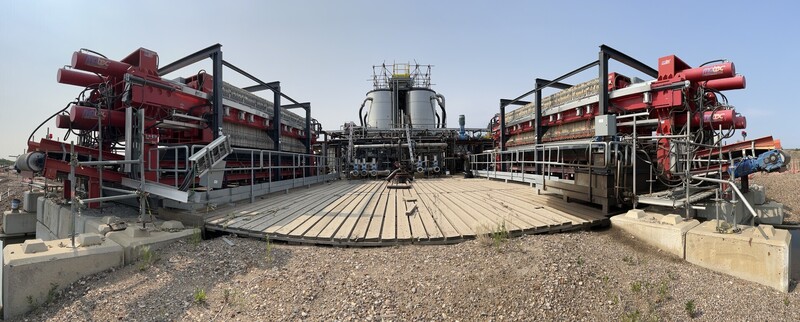

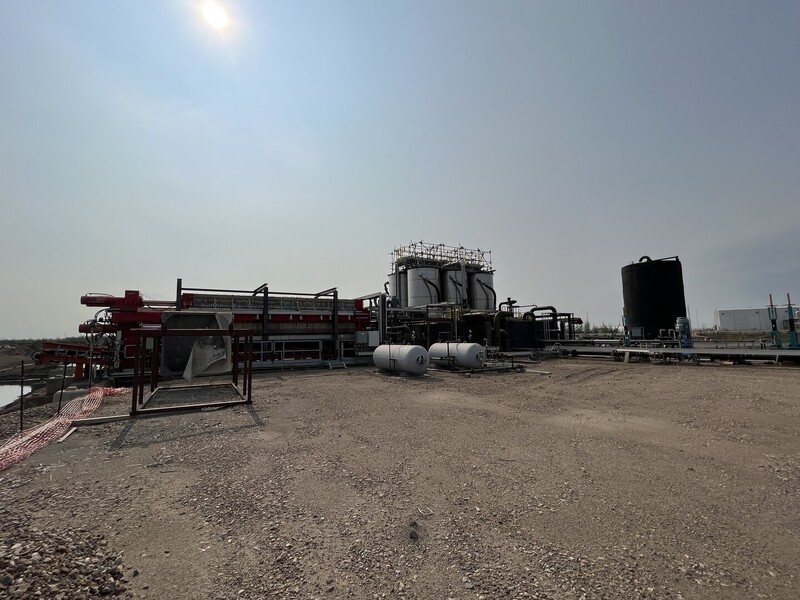

135.04" x 559.45" Matec #Magnum FP2000X2000, filter press system, 2018, (2 available)

$1,699,200 USD

Request Formal Quote

SKU: 114324

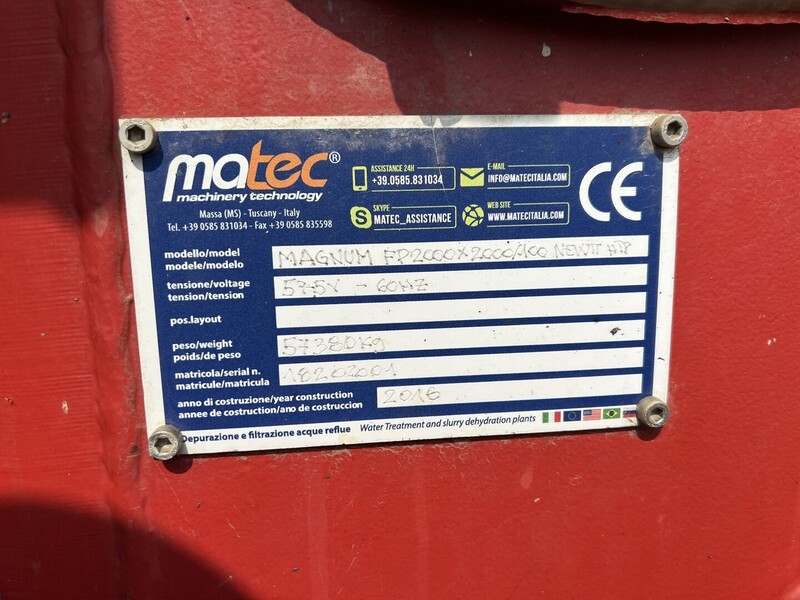

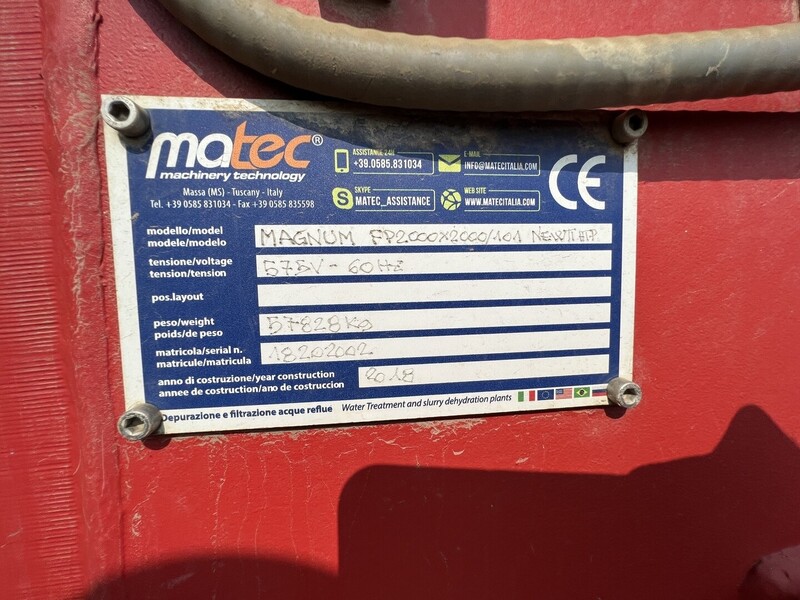

Model: MAGNUM FP2000X2000
Year: 2018
Condition: Used
S/N: 18202001 - 18202002
Additional Description:
Filtration Process
- The actual filtration process occurs in the filter pack, consisting of a customized set of plates.
- The cloths and under-cloths cover the filtrating surface of the plate, which has small projecting cylinders forming drainage channels.
- Once the filter pack is completely sealed, the filtration process begins from the head plate with the feed pump injecting the sludge into the filter plates chambers.
- The cake will form uniformly all across the filtrating surface and is ready for discharging once the required moisture level has been reached.
Magum Filter Presses
- Qty: 2
- System Voltage: 575 V, 60 Hz
- Length: 14210 mm
- Width: 3430 mm
- Foot Wheelbase Length: 12070 mm
- Foot Wheelbase Width: 1356 mm
- Total Height: 3795 mm
- Weight: approx. 57500 kg each
- Chamber Volume: 115 L
- Capacity Per Cycle: 11500 L
- Cu. m/h (2 cycles): 23.00
- Ton/h (2 cycles): 42.55
- Cu. m/h (3 cycles): 34.50
- Ton/h (3 cycles): 63.83
Model: MAGNUM FP2000X2000/100 NEWTT HTP
- 100 plates CH32,5 (plates CH30 (recessed) e CH35 (membrane))
- Closed loop discharge
- New TT
- Centralina
- Shakers
- Real Wash
- Core blow
- Drip tray
- Framing of the structure
- Pressure: 21 bar
- Tension: 575V 60Hz
- PLC: Allen Bradley
Model: MAGNUM FP2000X2000/101 NEWTT HTP
- 101 plates CH30 (Plates both CH35 e CH25) Membrane
- Open discharge
- New TT
- Hydraulic unit
- Shakers
- Real Wash
- Core blow
- Manifold discharge with valves and tray
- Framing of the structure
- squeezing kit (pump + piping)
- Pressure: 21 bar
- Tension: 575V 60Hz
- PLC: Allen Bradley
NOTE: The ton/h and cu. m/h data above are calculated on a material specific weight of 1.85 and a 35 mm cake thickness
Additional

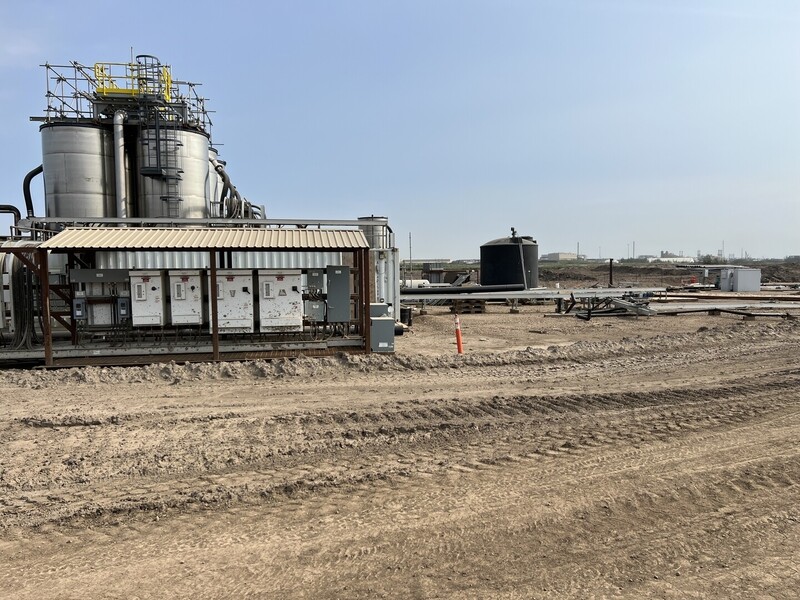

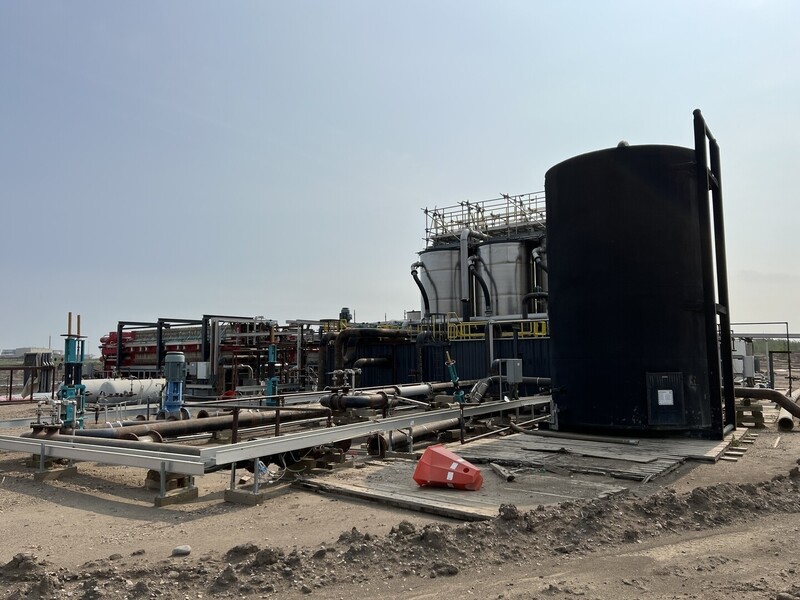

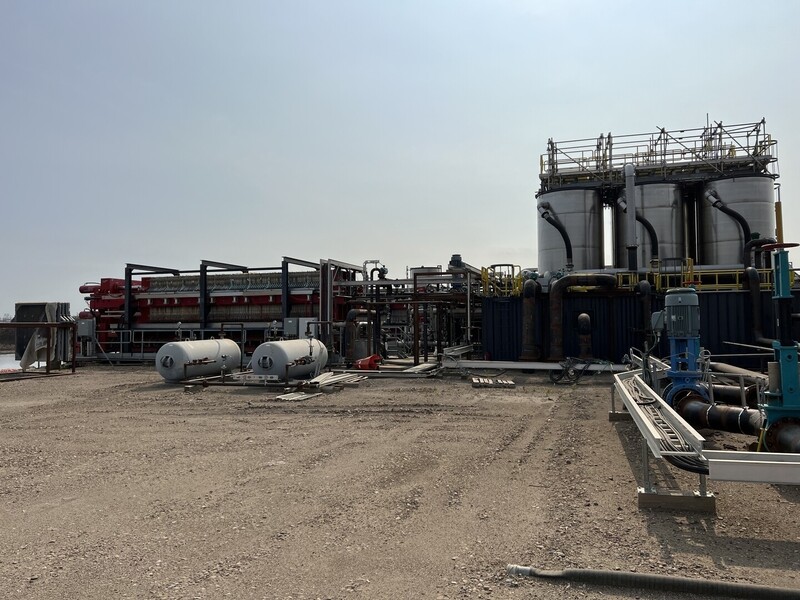

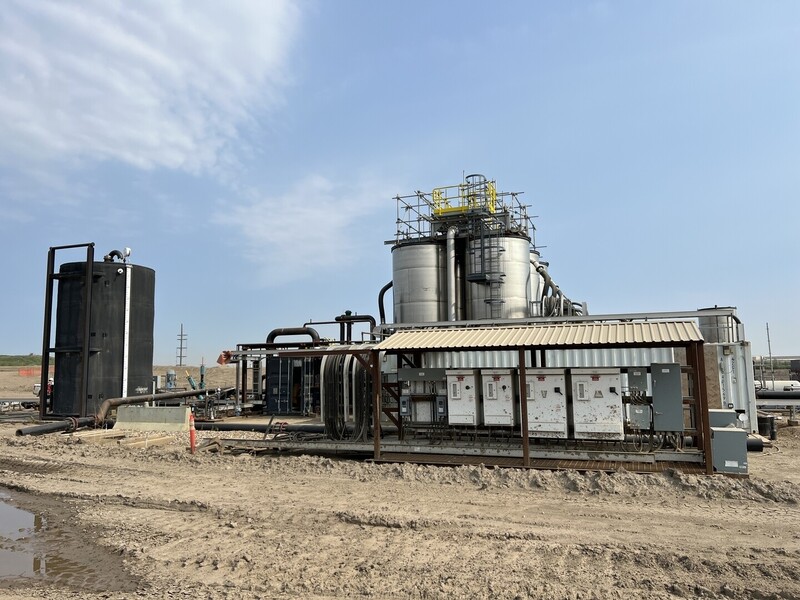

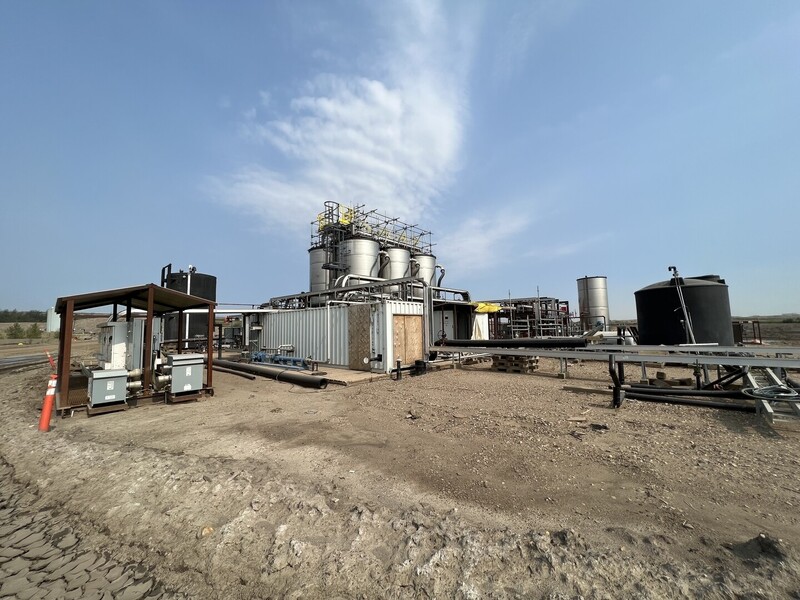

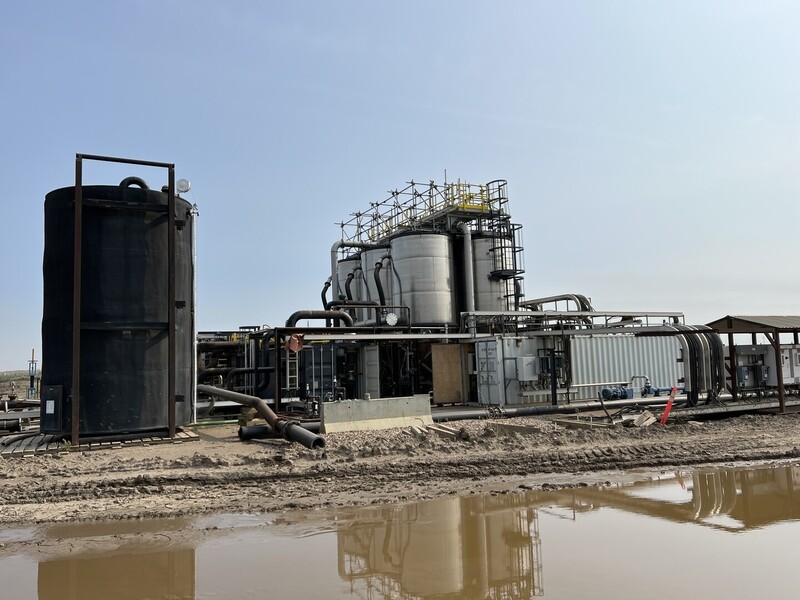

- 6 - Stainless steel tanks
- 1 - Smaller stainless steel tank
- 2 - Large receiver air tanks (2019)
- 1 - Bilton insulated tank, large
- 1 - Bilton insulated tank, small
- Pumps & actuators
- All electrical / transformers
