Mappi MP-1532-DX, Glass Tempering Furnace, Right handed, 59" x 118" size, 0.16" - 0.75" thick, 2003

$422,750 USD

Request Formal Quote

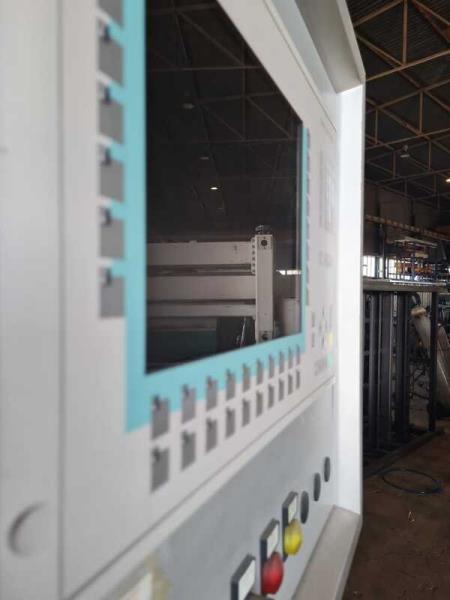

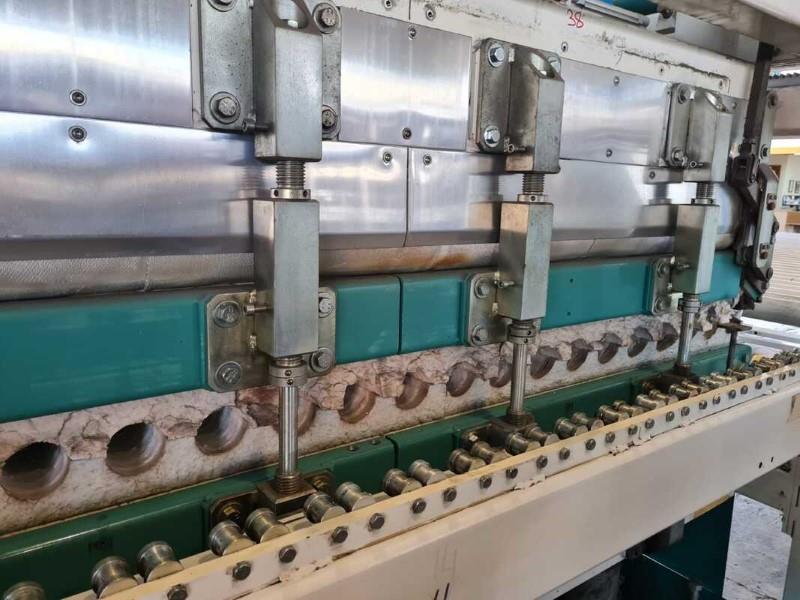

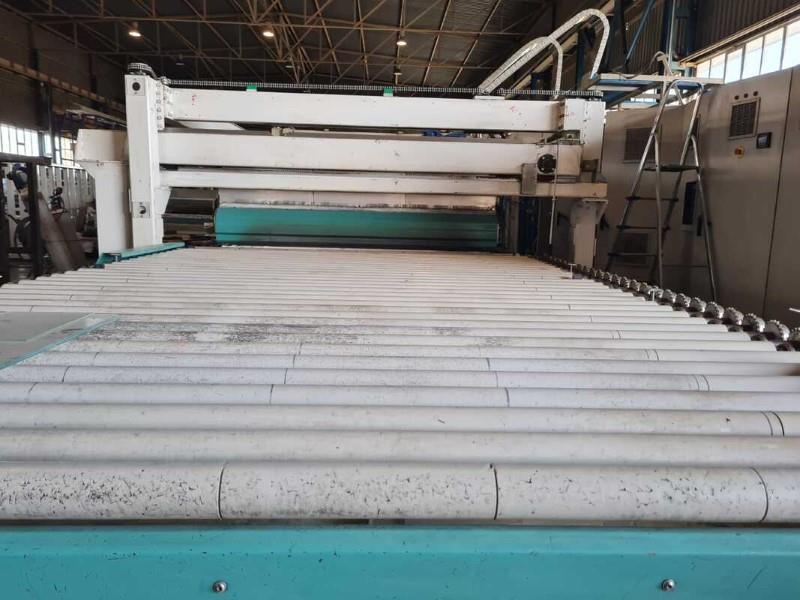

MAPPI MP 1532-DX Flat Tempering Furnace For Low-E Glasses - 1500 x 3200 mm (60" x 126") - Right to LeftTempering Furnace utilizes an optimized heating system with convection, which additionally heats the top of the glass for convection purposes.The most important of these are individual heating element controls, individual operation of the furnace modules, and a high-efficiency quench system. Low-E glass has a microscopically thin, transparent coating, much thinner than a human hair, that reflects long-wave infrared energy (or heat). Low-E can also reflect significant amounts of short-wave solar infrared energy. This Entire Tempering Line Consists Of The Following Equipment Components: ● Infeed and Outfeed Conveyors With Lifting Tables ● Heating Station ● Quenching Station ● Electrical Components Control Station ● PC Based Operator Control ModuleFeatures: ● Type of glass: reflective, enameled, silk-screened and machined ● Heating areas: 60 ● Glass discharge section ● Loading section with rubberized rollers ● Variable speed fan for the glass tempering section, with valves and connection pipes on the outlet ● HDIC helpdesk integrated connection with the Assistant ServiceSpecifications: - Right-handed model - Min. glass size: 160 x 160 mm (6,30" x 6,30") - Max. glass size: 1500 x 3200 mm (60" x 126") - Glass thickness: 3.8 - 19 mm (0.16" - 0.75") - Tempering range per thickness: 3.8- 19 mm (715 C - 660 C) - Overall dimensions (Machine):- Length 17 m - Width 5 m - Height 3.5 mNOTE: In very good condition and still in production!NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full-Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
