Manncorp #MC392V2-V, Pick & Place Machine for PCB assembly, 2012, MC392V2-V

Manncorp MC392V2-V Pick & Place Machine for PCB assembly, 2012:

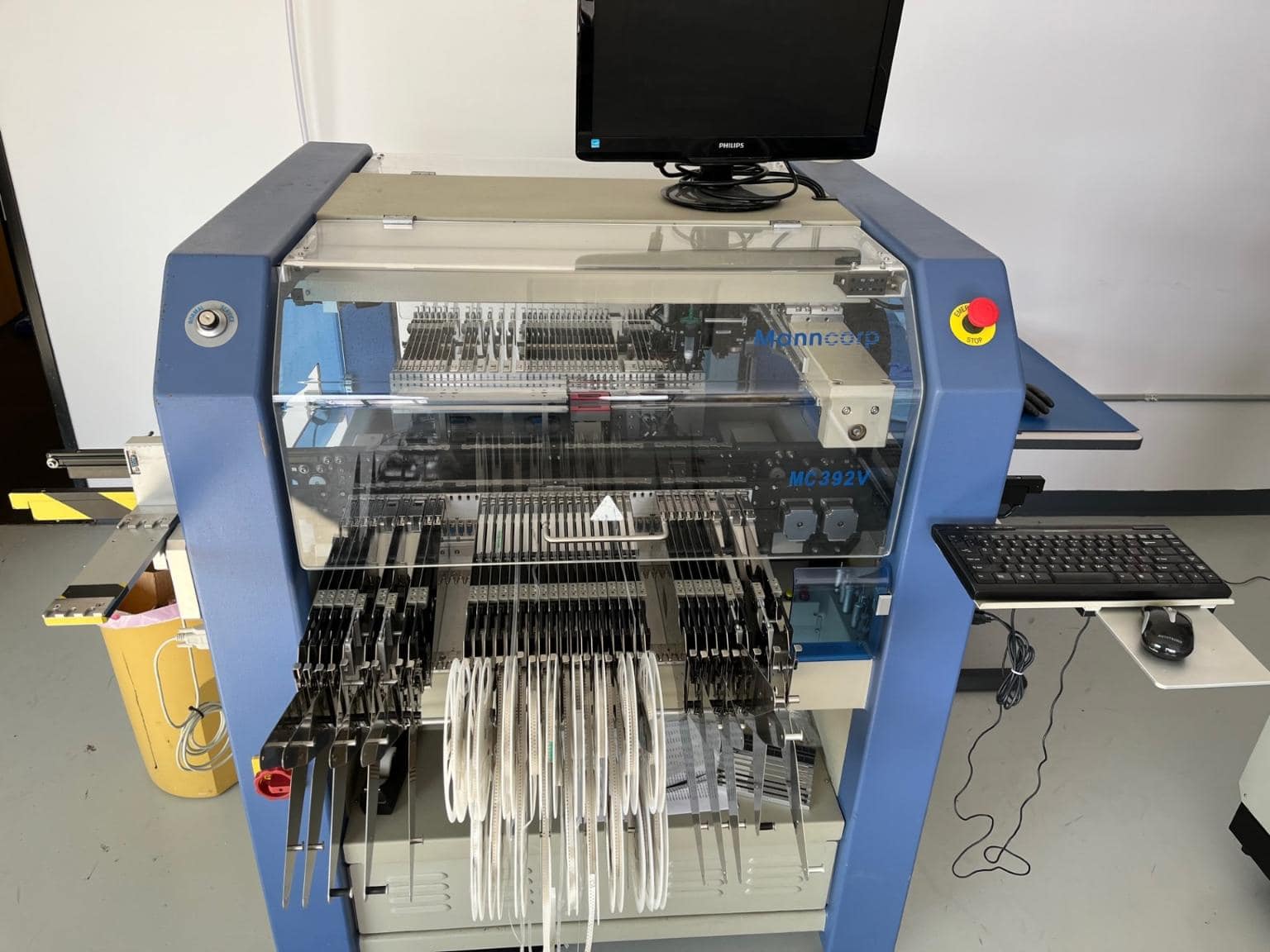

The dual-head MC392 pick & place machine is ideal for high-mix, low- to mid-volume manufacturing environments. It holds up 160 Smart Ports for tape and stick feeders, plus has space for cut tape strips and waffle trays, allowing more parts to be kept resident on the machine for faster job changeovers. High-quality components and a sturdy build achieve placement accuracy of 30 µm, 3 Sigma at placement rates reaching 6,400 cph.

Electrical requirements:
– Voltage: 200 – 230 VAC
– Power: 2400W

Air pressure requirements: 5.5 bar

Includes standard features:
– Welded steel frame construction
– Standard optics package with Cognex® on-the-fly vision alignment camera mounted on head and stationary, upward-looking vision alignment camera, covering component range from 0201s to 100 x 150 mm. (01005
capability available as option.)
– High-precision ball screw X-Y drive
– Closed-loop AC servo motor control
– High-resolution linear encoded X-Y drive mechanism
– 15-position tool holder
– Reference camera for fiducial recognition and teaching
– Windows®-based advanced pick and place control software with standard component library, universal CAD conversion, Virtual PCB Simulator, Smart Feeder Optimization and more
– Offline programming capability
– Computer controller with flat-screen LCD display, keyboard and mouse
– Network adapter

Included accessories:
– (41) KFTA2-8MM HS: 8mm half-step smart feeder
for MC392 Pick&Place
– (4) KFTA2-12MM: 12mm smart feeder for MC392
– KFTA2-24MM: 24mm smart feeder for MC392
Pick&PlacePick&Place- Head mounted dispenser for epoxy/solderpaste
– 8 mm tapes, max. 3.3 mm tape thickness
– 8mm half-step smart feeder for MC392 Pick&Place
– 8mm half-step smart feeder for MC392 Pick&Place, 2nd gen
– 12 mm smart feeder for MC392, max. 7 mm tape thickness
– 12 mm smart feeder for MC392, max. 7 mm tape thickness, 2nd gen
– 16 mm smart feeder for MC392, max. 12 mm tape thickness
– 24 mm smart feeder for MC392, max. 12 mm tape thickness
– 24 mm smart feeder for MC392, max. 12 mm tape thickness, 2nd gen
