Mamata #PSM5-35, 5-Lane Vertical Stick Pack, Vffs Machine, 80 CPM, aluminum, AISI 304 & 316, 2023

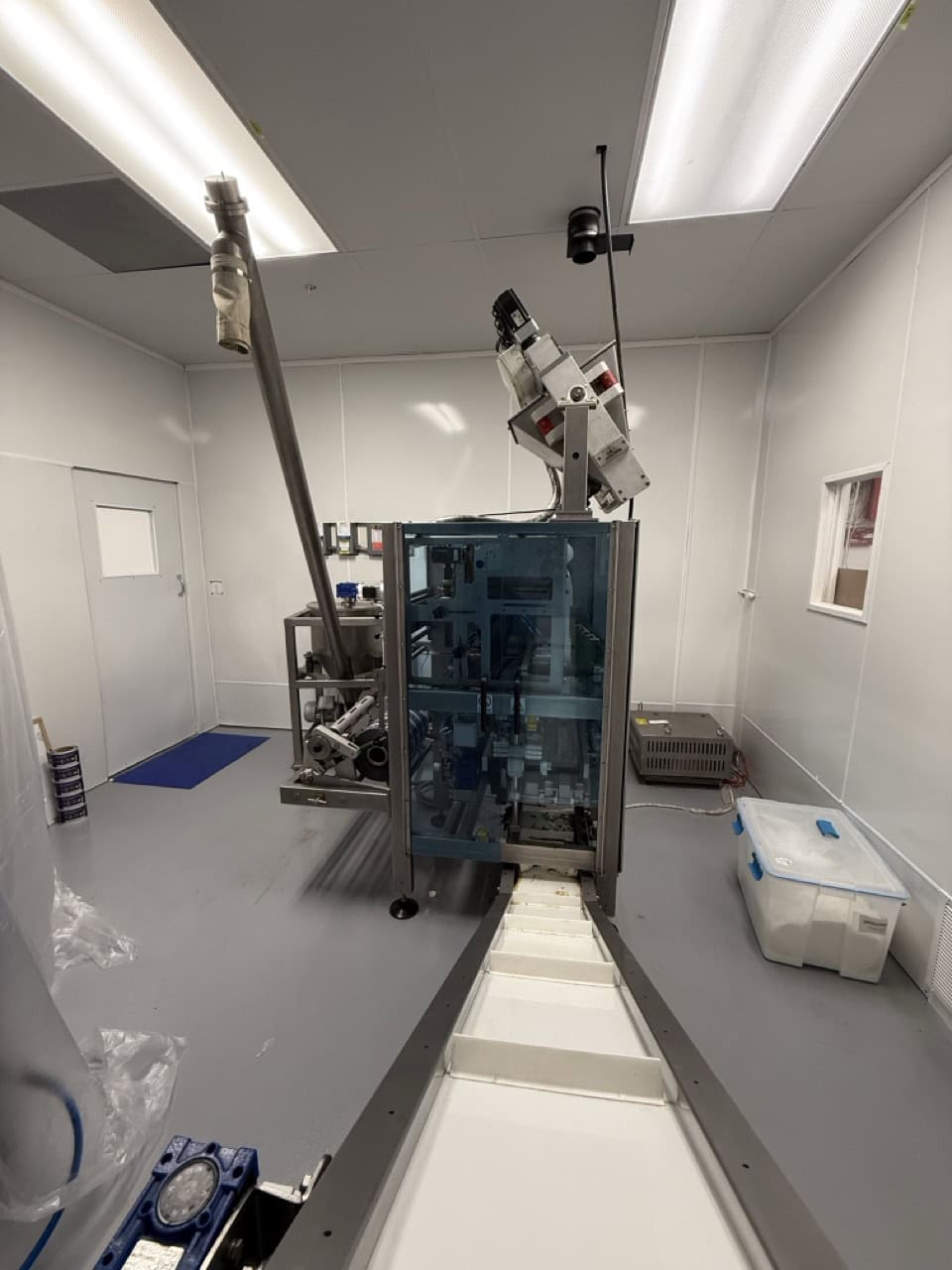

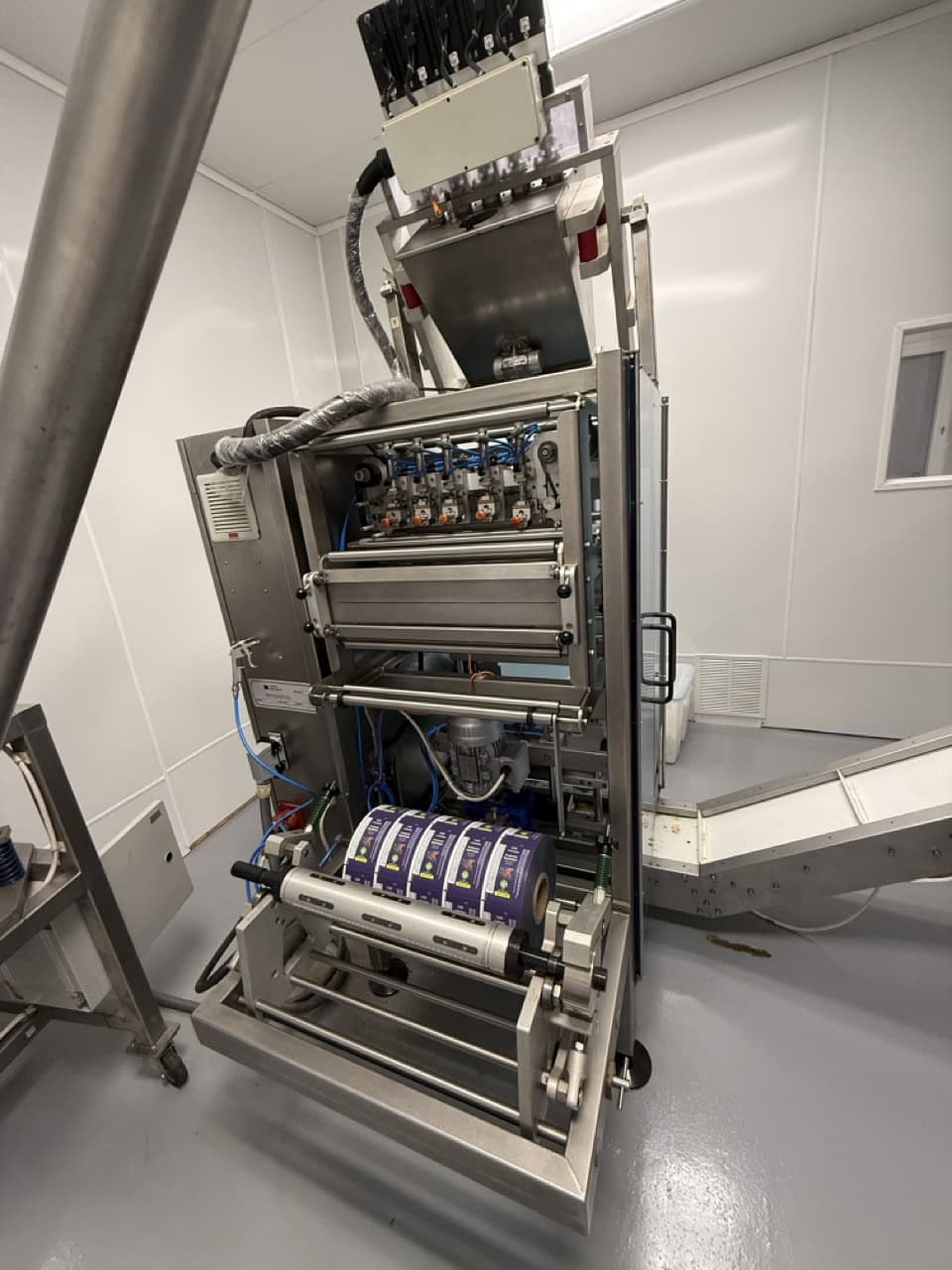

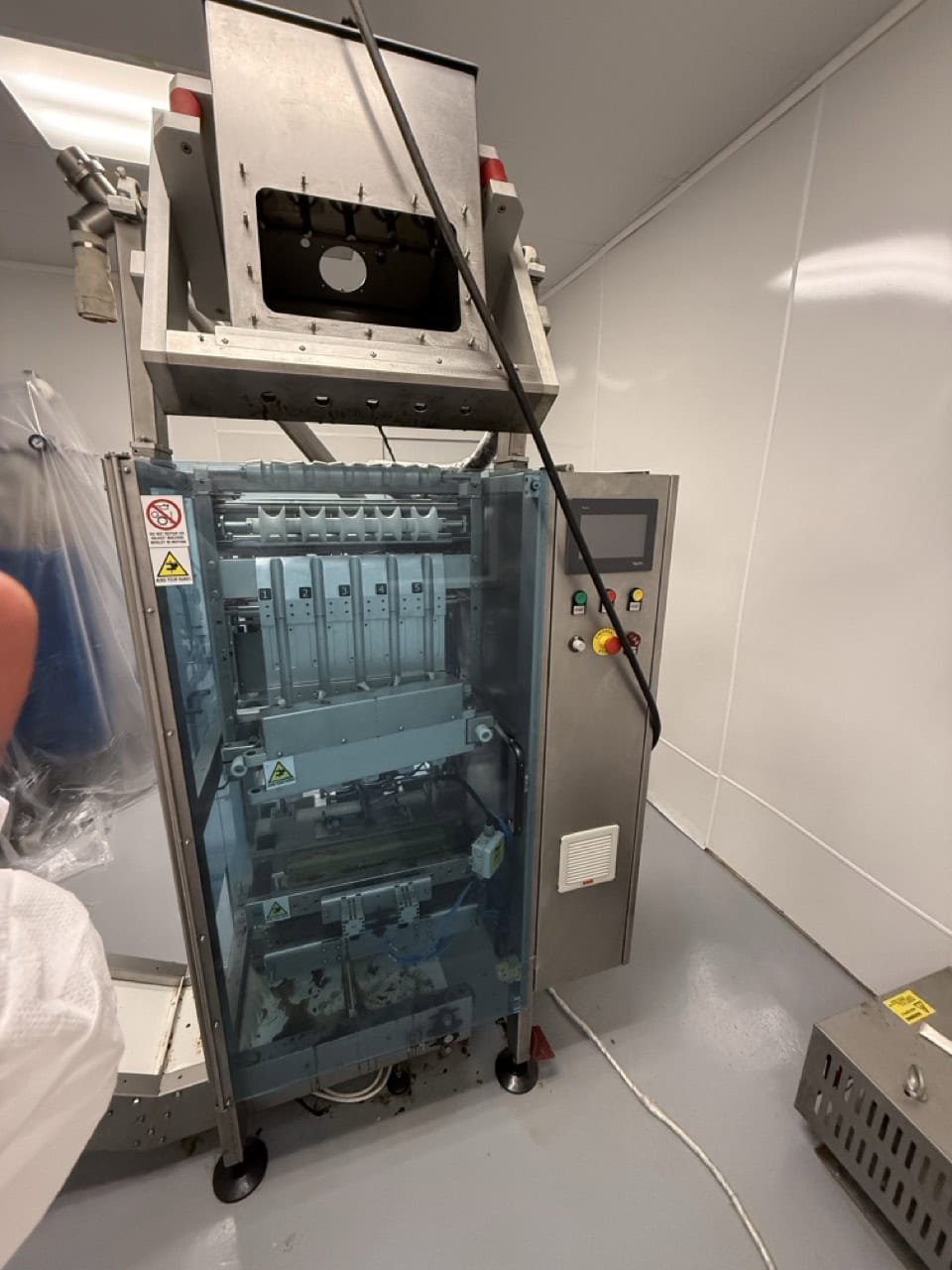

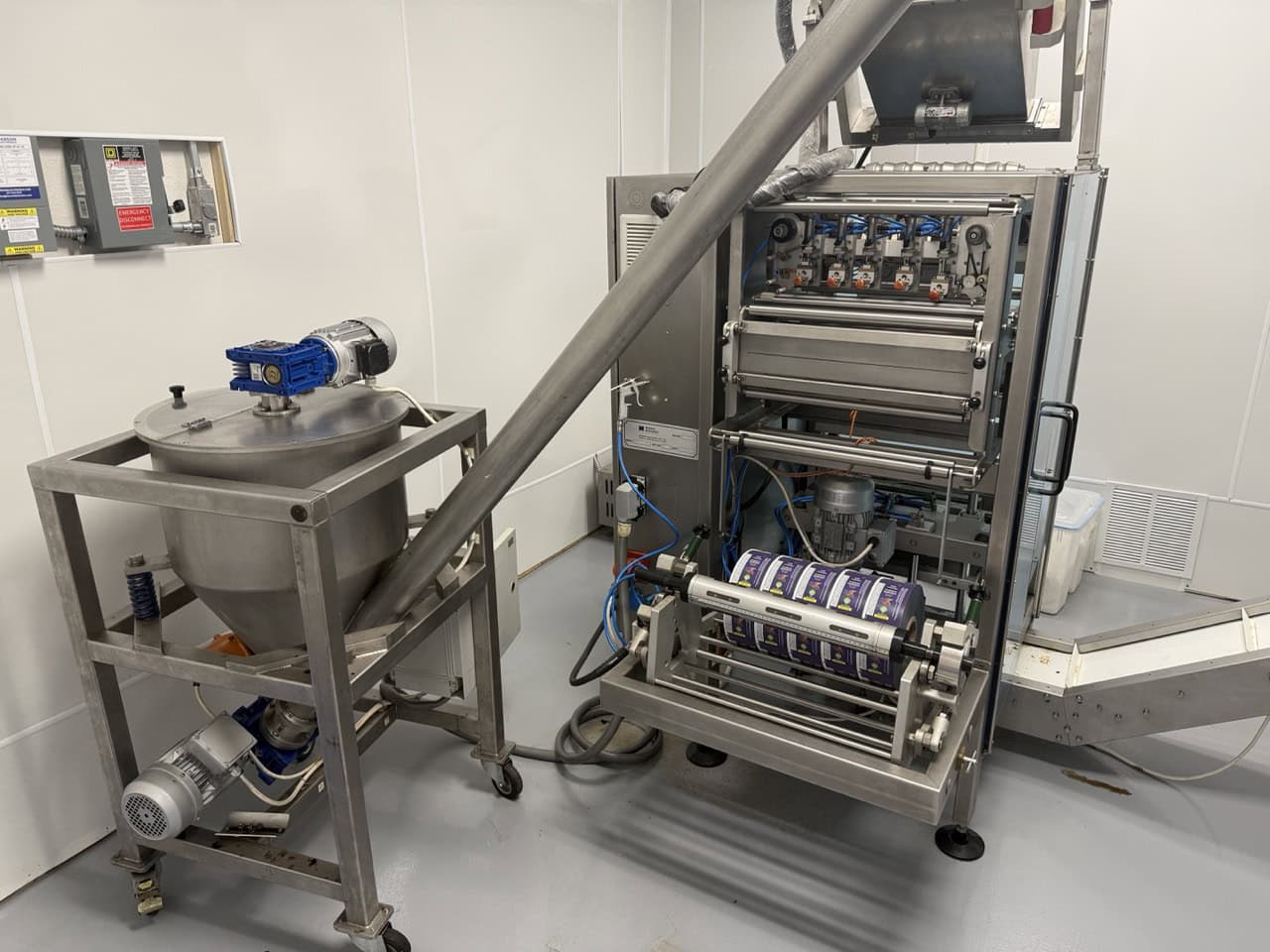

Used Mamata PSM5-35 5 Lane Stick Pack VFFS machine, 2023:

Previously used for packaging 10-15 gram fill powdered stick packs of electrolyte powder

– Maximum cycle rate: 80 cycles per minute
– Laminate / Film Specifications: Polyester Laminates (Metallized and Non Metallized), Coated Paper, Aluminum foil
– Film Thickness: 60 mic
– Type of Sachet: Center Seal Pillow pack
– Sachet Dimension (Width x Height): 35mm*125 mm
– Seal Width: 10 mm (+/- 6 mm)
– Reel Width: 600 mm

Standard Machine information:
– Product weight: 10-15 grams (adjustable)
– Stick width: 35 mm (fixed)
– Stick length: between 40-200 mm (adjustable)
– Maximum capacity: up to 150 pieces/min. (changes according to product)
– Cutting type and easy notch: Zigzag Blade inside the Jaw / side
– notch and straight sealing
– Film width: 240-400 mm.
– Maximum film diameter: 400 mm
– Film type: heat/sealable
– Machine parts: The metal parts of machine made of aluminum and AISI 304, 316 materials

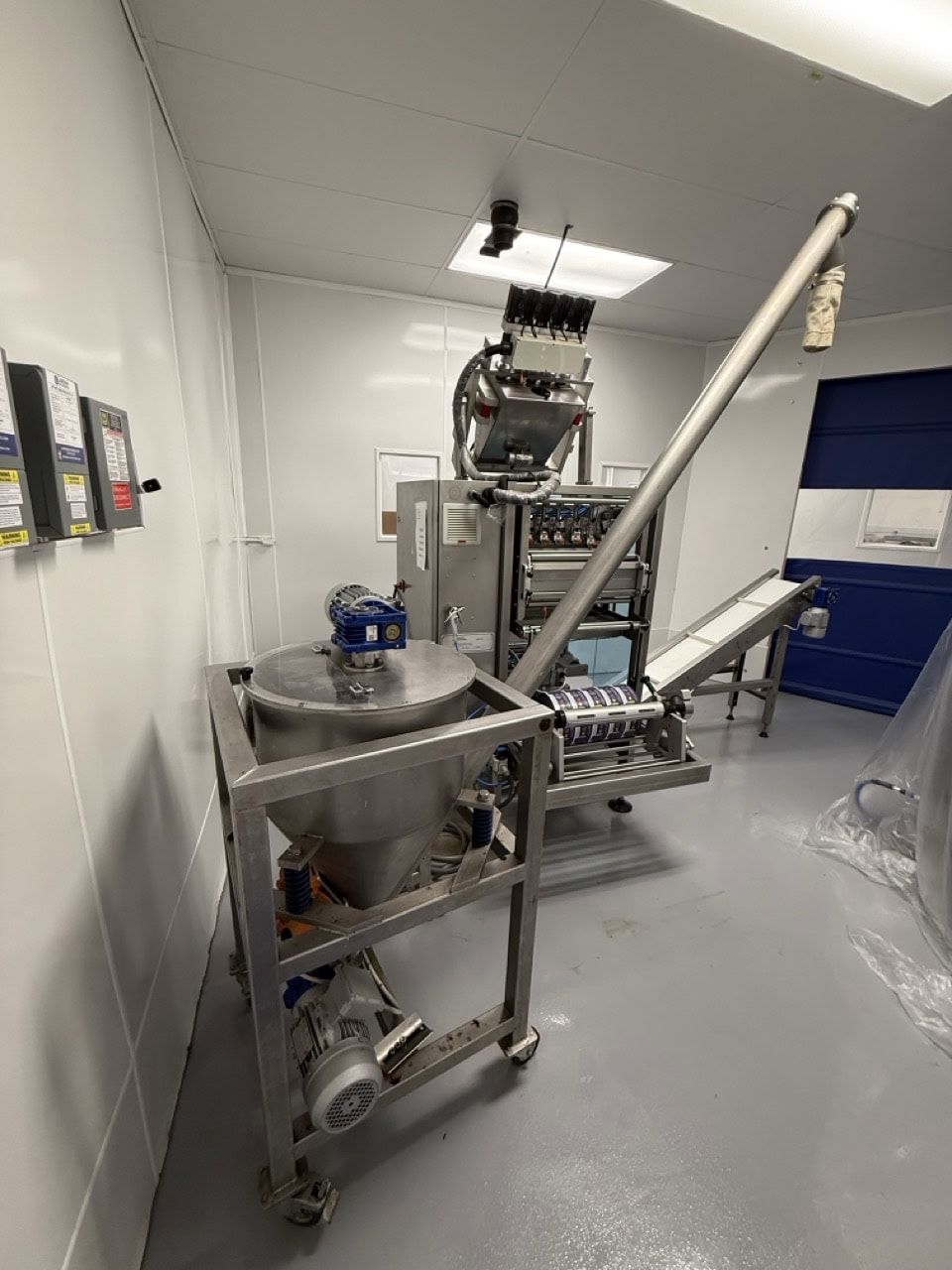

Custom designed Servo Auger Based Dosing System (5 Lane) Dosing system consisting of:

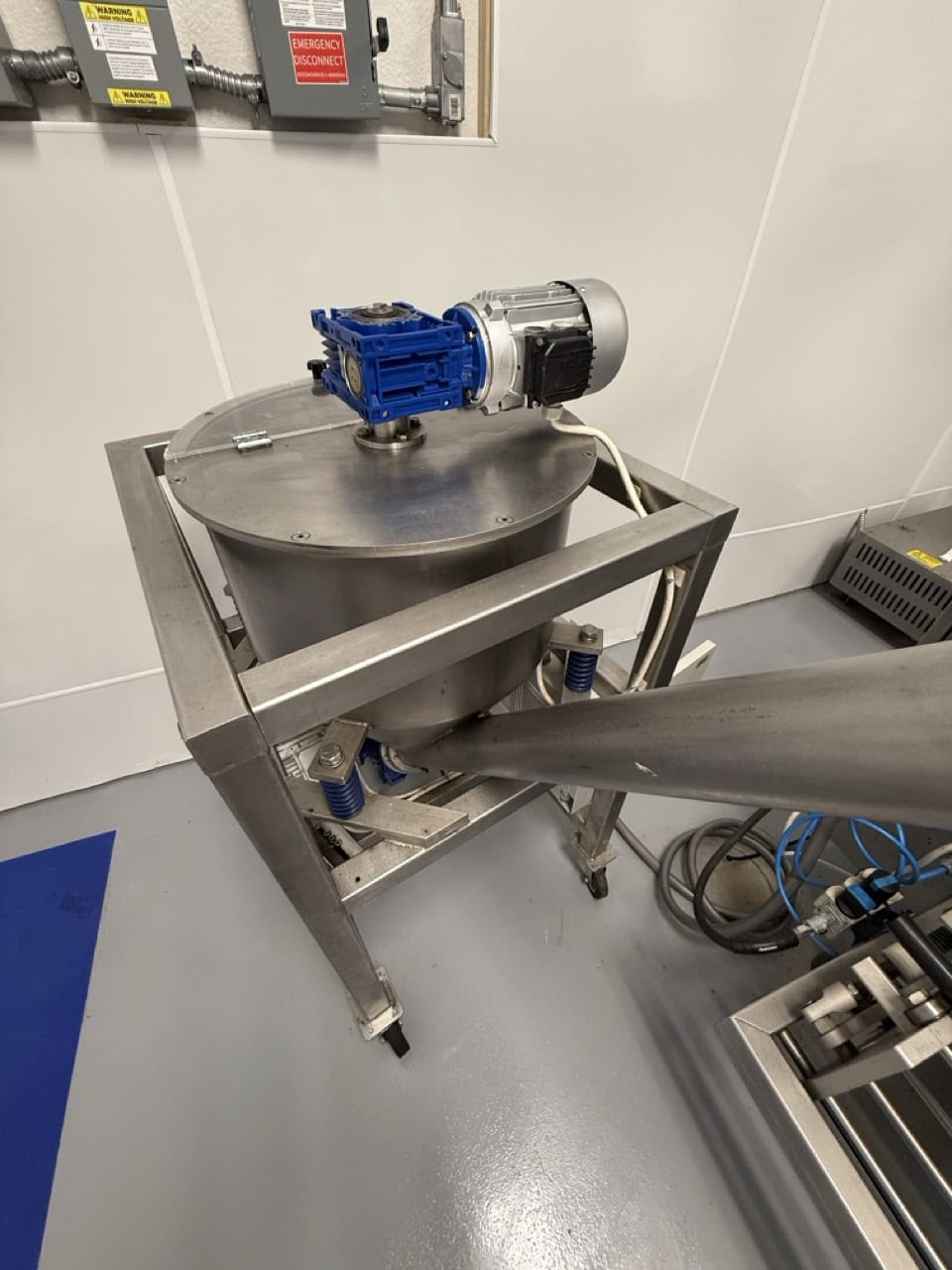

– Stainless Steel Hopper SS with 50 Liter, with visual window
– Individual Servo based Auger filling system for non-freeflow powder.
– Complete with Electrical, Electronic and Pneumatic Interlocks
– Necessary Internal Hoses and Connectors. – Fill Tubes
– 1 Set (5 nos) as per your dosage requirement.
– Internal piping for dust extraction. (vacuum system not included)

System specifications:
– Control: Programmable logic controller with external Panel
– Servo based drive
– Intermittent motion
– Power Supply: AC 3 Phase 415Volt, 50 Hz
– Power: 3,87 kW/hour
– Air pressure: 6 bar
– Air consumption: 300 liter/min.
– Machine Size (W x L x H): 1200x1500x2200 mm. (approximately 47.24 x 59.06 x 86.61 inches)
– Machine weight: 620 kg (1367 lbs).
