Loadstar Sensors S-Beam Load Cell Kit RAS1-10KS-S-CO3; DI-1000U 10,000 Lb Capacity 24-bit ADC Digitization

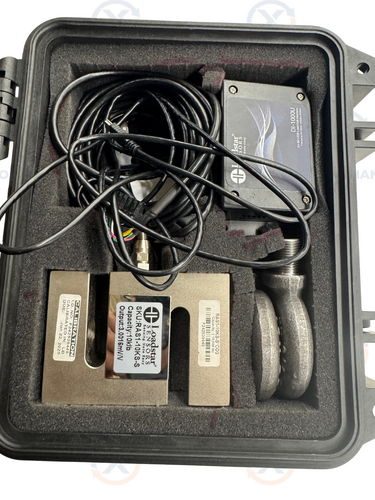

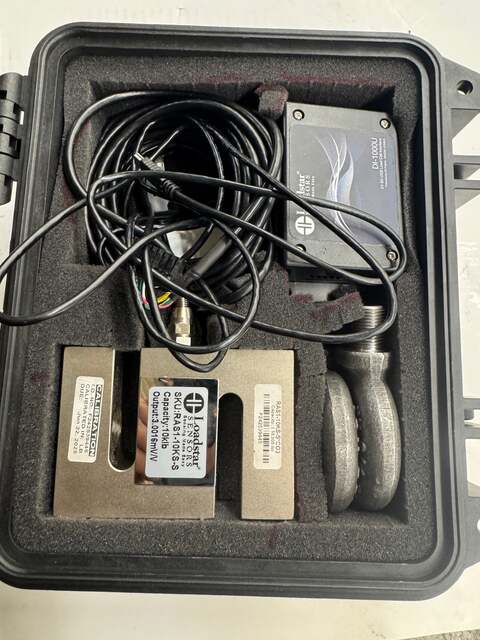

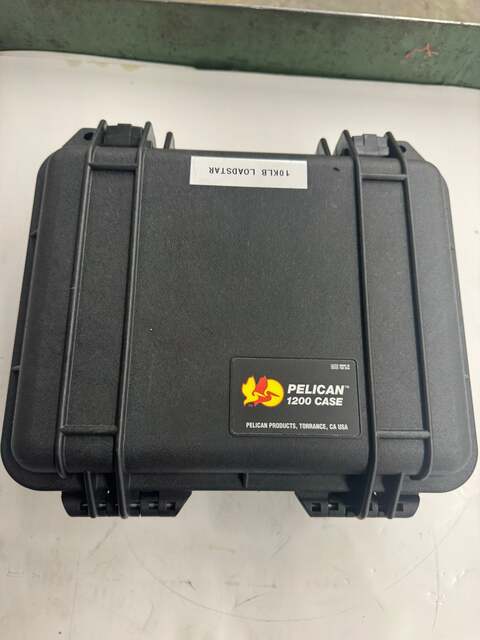

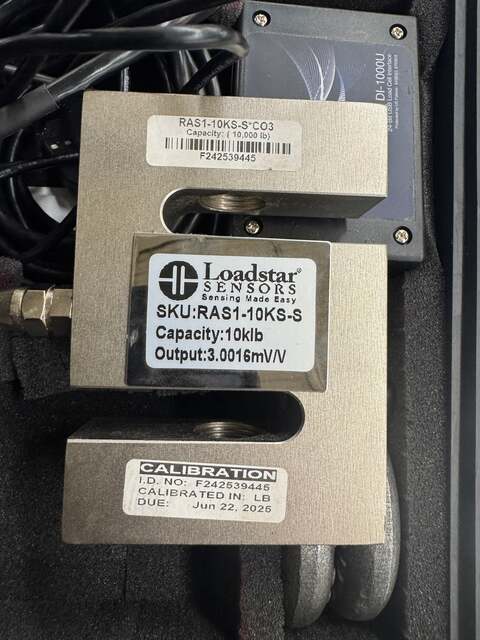

A Loadstar Sensors RAS1-10KS-S S-Beam load cell and DI-1000U 24-Bit USB Load Cell Interface kit, packaged in a Pelican 1200 hard case. The load cell carries part number RAS1-10KS-S-CO3, serial number F242539445, with a rated capacity of 10,000 lb (10 klb) and a calibrated output of 3.0016 mV/V. The calibration label confirms calibration in pounds (LB), with a due date of June 22, 2025. The DI-1000U is a 24-bit USB load cell interface manufactured by Loadstar Sensors, designed to condition and digitize analog signals from 4-wire and 6-wire strain gauge load cells and output calibrated force readings via USB to a connected PC or tablet. Together, the load cell and interface form a complete portable force measurement system capable of tension and compression measurements across a wide range of industrial applications including cable tension testing, structural load monitoring, and material characterization. The kit includes the S-beam load cell, DI-1000U interface, cabling, a shackle attachment accessory, and the foam-lined Pelican 1200 case. The Pelican case lid label reads "10KLB LOADSTAR." Calibration is due June 2025; buyers requiring a current certificate should plan for recalibration.

Stock # 0326-1195
