Loadstar Sensors S-Beam Load Cell Kit RAS1-05KS-S 5,000 Lb Capacity 16-Bit

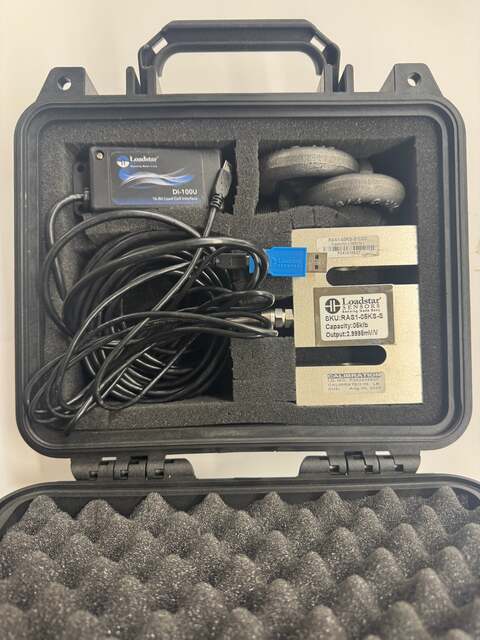

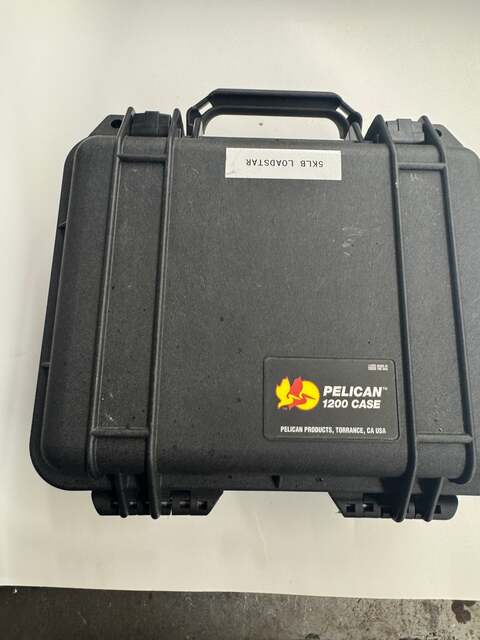

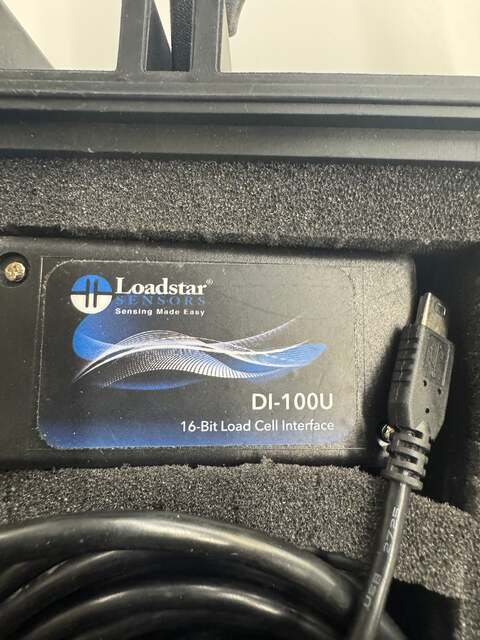

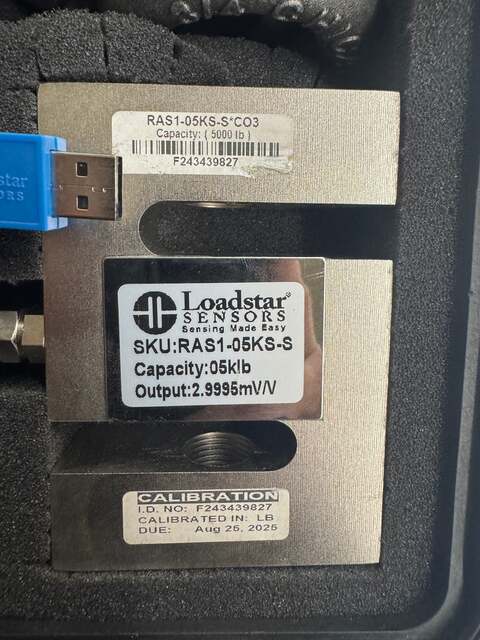

A 5,000 lb capacity S-beam load cell system from Loadstar Sensors, consisting of the RAS1-05KS-S stainless steel S-beam load cell and the DI-100U 16-bit USB load cell interface, housed together in a Pelican 1200 hard case with USB cable and accessory hardware. The RAS1-05KS-S carries serial number F243439827 and is rated at 5,000 lb (5 klb) capacity with a confirmed output of 2.9995 mV/V. The load cell is constructed from alloy steel and features threaded mounting holes at each end for in-line tension or compression measurement. The nameplate also references part number RAS1-05KS-S*CO3 on a secondary barcode label. The DI-100U provides 16-bit analog-to-digital conversion with USB output via an included S2U serial-to-USB adapter, supporting accuracies to ±0.1% of full scale and a data rate of approximately 40 Hz. The interface works with Loadstar's LoadVUE Pro software for data logging, display, and plotting on a Windows PC or tablet. The calibration sticker on the load cell shows calibration ID F243439827, calibrated in LB units, with a due date of August 25, 2025. As of the listing date, this calibration is expired. The buyer should plan for recalibration prior to use in applications requiring traceable accuracy. The Pelican 1200 case is foam-lined and includes the complete kit as photographed.

Stock # 0426-01198
