Description

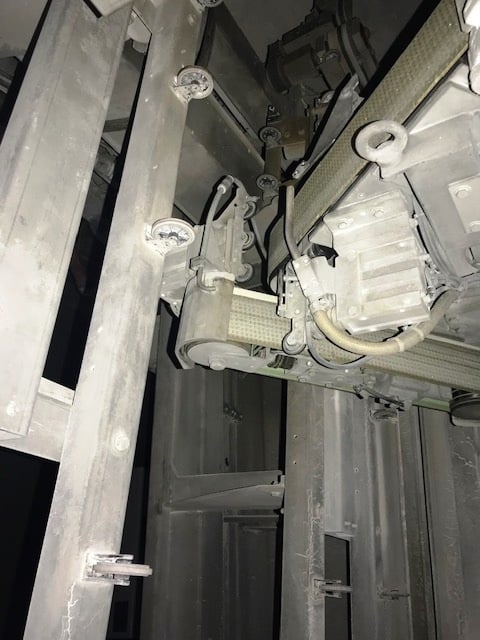

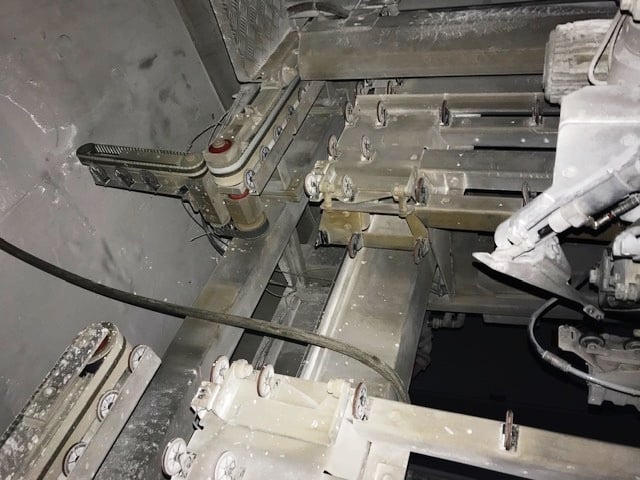

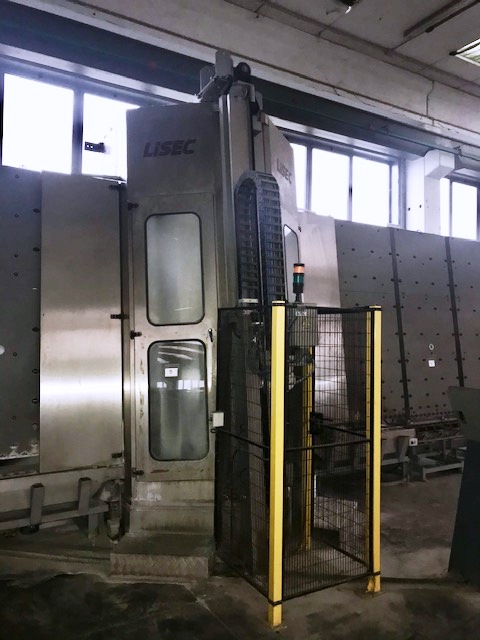

LISEC KSR-25 - Compact Vertical Glass Edge Seaming Machine for Rectangles and ShapesVertical compact grinding machine for the seaming of glass sheets on all four sides in a fully automatic cycle. The glass edges are ground by wet-diamond belts which simultaneously process the front and rear side of a glass edge.The grinding head moves on a vertical guide unit and can also rotate 360 degrees, allowing it to reach all four sides of a glass sheet. This grinding process achieves a perfect and gentle seaming of glass edges with the shortest cycle times and minimizes the quantity of required abrasive tools.The grinding belts automatically adjust to the respective sheet size and thickness. The grinding width is adjustable from 0.5 mm to 2 mm. The compact dimension of the machine results from only one grinding head processing all sides of a rectangular or shaped glass sheet. Optional equipment for flat grinding (roughening)the glass edges as well as for grinding (shaping) the corners of the glass sheet are available.Specifications: Max. glass size: 2500 x 4800 mm (98" x 189") Min. glass size: 180 x 350 mm (7" x 14")Max. glass thickness: 2.3 - 19 mm (0.09" - 0.75") auto-adjustableMax. seaming speed: 30 m/min at 2.3 - 9.2 mm Max. speed flat arrising: 30 m/min at 2.3 - 3.7 mmMax. speed flat arrising: 20 m/min at 3.7 - 5.6 mmTransport height: 520 mm (20.5")Inclination: 6Power consumption: 19.3 kWDimensions: 7350 x 4640 x 4206 mm (289" x 183" x 166")Features: ● Compact dimension - only one grinding head ● Perfect seaming in extremely short cycle times ● Complete machine body made of stainless steel ● Can easily be connected to vertical washing machines and production lines ● Best choice for high quality tempered glass ● Includes: Inlet & Outlet ConveyorsNOTE: The machine is in excellent condition and is ready for immediate delivery. Max. glass size upon demand can be prolonged up to 2700 x 6000 mm (106" x 236") NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
