Lincoln #Torchmate-X-Series, CNC Plasma Cutting Table, 5' x 10' Cutting area, 7/8" Pierce, 8 scfm @ 90 psi, 572 IPM

Description

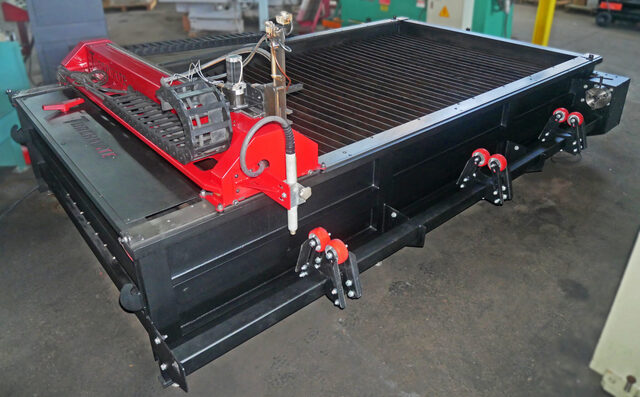

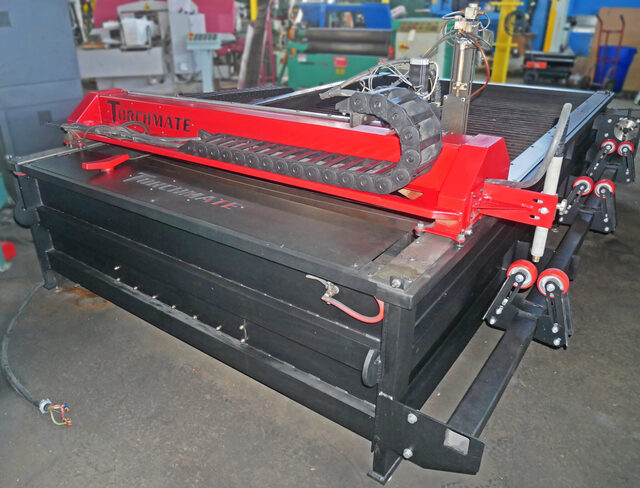

Lincoln Torchmate X 5′ x 10′ CNC Plasma Cutting Table with Pipe Cutting Attachment

Inventory # 9809

Model: X Series – Excellent Condition, Ready to Ship!

Specifications:

Cutting Area: 5′ x 10′

Input Air: 8 SCFM @ 90 PSI, dry air filtered to minimum 5 micron

Pierce: 22mm (7/8″)

Drive System:

X/Y Axis: Rack and Pinion, 5:1 Reduction

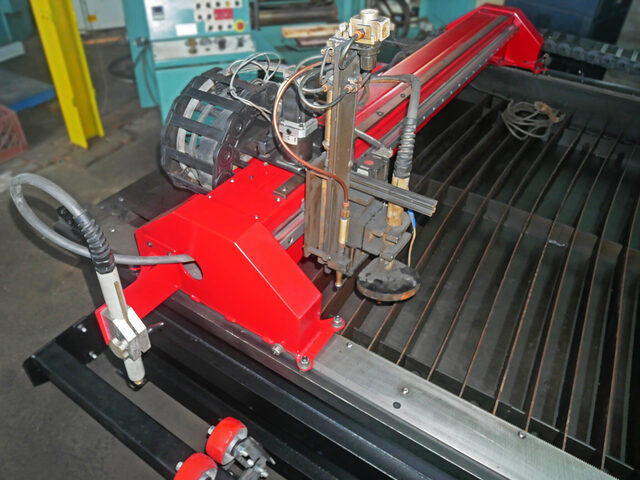

Z Axis: Ball Screw/Linear Stage

Traverse Speed: up to 572 IPM

Cut Speed: up to 572 IPM

Standard Software: Visual Machine Designer with Onboard Nesting

Standard Features:

DXF, DWG Direct Import

Adjustable Water Height on Water Table

Low Backlash 5:1 Gearboxes

Durable Finish

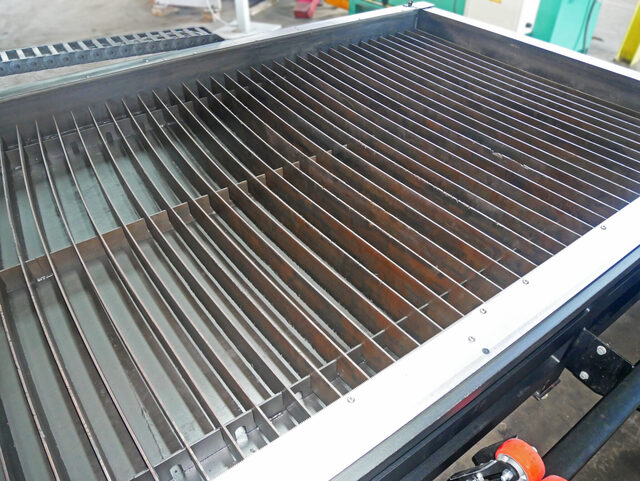

Angled Support Slats for Increased Life

Standard Equipment:

Computer with Torchmate CAD Software Installed

Hypertherm Powermax 105 Amp Plasma Power Source

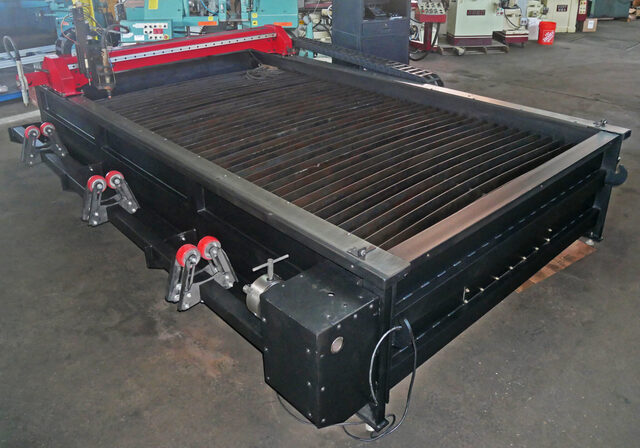

Pipe Cutting Attachment

Water Table, Gantry, and Arc Voltage Height Control

Full Cable Carrier System

Visual Machine Designer Touchscreen Interface

Mechanical Specifications:

Dimensions: 165″ x 110″ x 55″ H

Weight: approx. 3,800 lbs. (with no water)

New Replacement Cost with Pipe Cutting Attachment: $150,000.00+

FOB Our Baltimore, MD Warehouse
