For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
Description

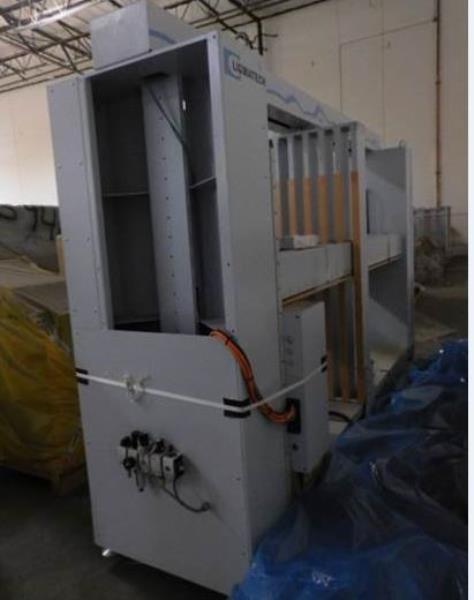

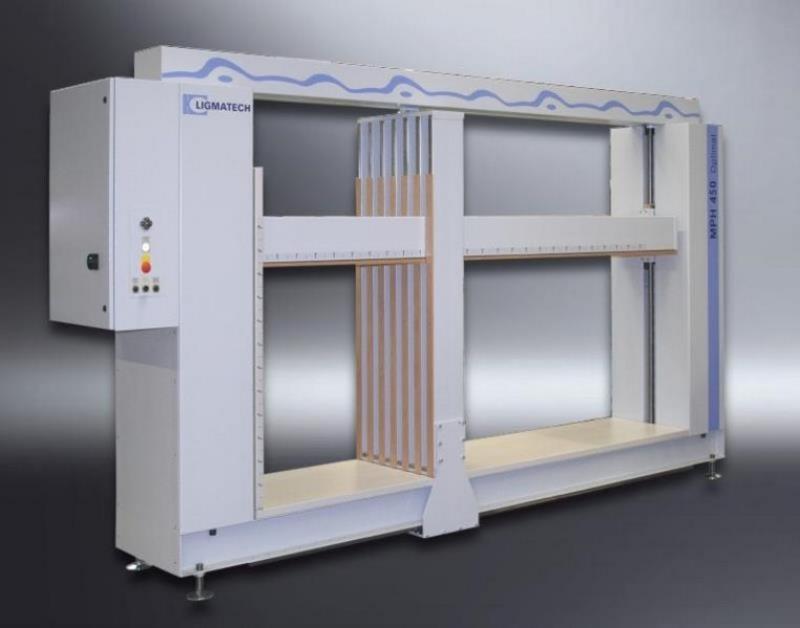

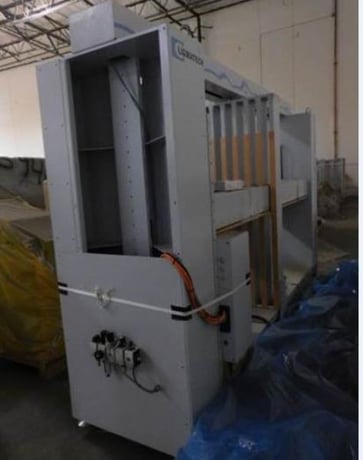

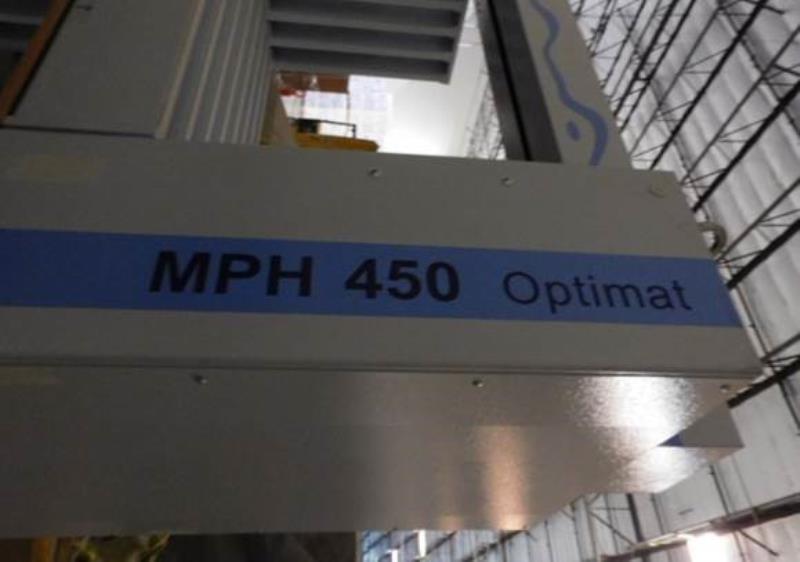

LIGMATECH MPH 450/25/09 CASE CLAMP (SEMI-AUTOMATIC)The LIGMATECH MPH 450/25/09 is a manually operated case clamp. Because of the machines unique design, set up for different size cases is virtually eliminated. The MPH-450 incorporates (2) sets of steel pressure beams, one set horizontal and one vertical. As a result of their alternating construction these beams provide contact all across both sides of the case.Specifications: Vertical & Horizontal Beams with Variable Pressure Capacity (2) Selectable clamping speeds (fixed): 22 mm/Sec (4.9 fpm) and 50 mm/Sec (9.8 fpm)Working Capacity: Case Length: 2,540 mm (100") max & 250 mm (9.8") min Case Height: 1,397 mm (55") max & 150 mm (5.9") min Case Depth: 914.4 mm (36") max & 250 mm (9.8") minOptions Include:Built in dwell timer & foot pedal activated pneumatic popup rollers to aid in loading/unloading.
Get Your Price from Ex-Factory!
