LH Research Power Supply MM23-E0868/115

"The LH Research Mighty-Mite MM23-E0868/115 is a triple-output industrial power supply rated at 375 watts output and 750VA input. The nameplate confirms input voltage of 115VAC at 47 to 63 Hz. The three DC output rails are V1 at 5VDC and 75 amps, V2 at 15VDC and 8 amps, and V3 at 15VDC and 8 amps. Part number on the nameplate label reads 845696-100, and the serial number is t8300733 J.

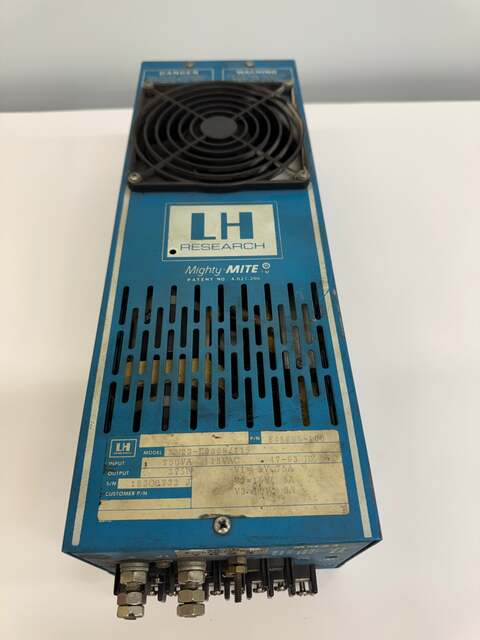

The unit is housed in LH Research's characteristic blue-painted steel chassis with a top-mounted cooling fan and louvered side ventilation panels. Output terminals for the high-current 5V rail are large stud-type connections, while the lower-current V2 and V3 rails use screw terminal blocks. The front panel provides separate adjustment trimmers for V1, V2, and V3 output voltage, an I1 current limit adjustment, and an ON/OFF terminal connection. Additional terminal designations visible on the panel include AC input connections, power fail output, and remote sense connections for each output rail.

LH Research Mighty-Mite MM23-series power supplies were widely used in industrial computing, CNC control systems, and other demanding applications requiring a high-current 5V logic rail alongside dual symmetric 15V rails. The MM23-E0868/115 is a discontinued model. P/N 845696-100, model MM23-E0868/115."

Stock # 0226-690
