Lapp Hook-Up Wire 4520002 14 AWG, 2.5 mm, 100 m

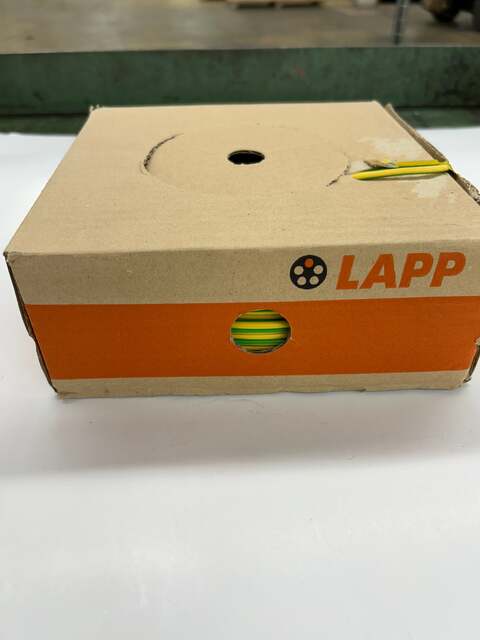

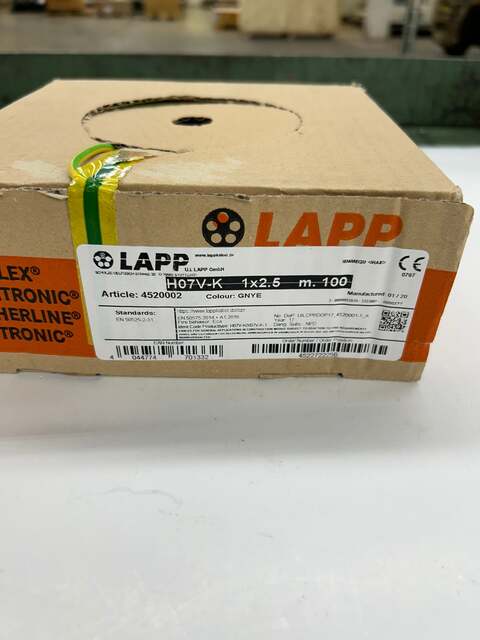

The Lapp OLFLEX H07V-K, part number 4520002, is a single-core HAR-certified hook-up wire rated at 450/750V AC, supplied on a 100-meter (328 ft) cardboard dispenser spool. Conductor cross-section is 2.5 mm² (14 AWG), constructed with Class 5 fine-stranded bare copper per IEC 60228 and VDE 0295, insulated with flame-retardant PVC per EN 50363-3 in the standard green/yellow ground identification color (GNYE). Type designation H07V-K meets harmonized European HAR certification per EN 50525-2-31, with CE marking and compliance to EN 50575 and A1:2016. The wire carries a voltage rating of 750V and a test voltage of 2500V. Operating temperature range for fixed installation is -40°C to +70°C. Outer diameter is approximately 3.4 to 4.1 mm. Manufactured 01/2020 per the label. The H07V-K construction is intended for protected stationary installation inside conduits, cable ducting systems, and on or under plaster, and is commonly used for control cabinet wiring, panel wiring, machine wiring, and MRO replacement in European-standard or export-bound electrical equipment. This box is factory sealed with the wire visible through the side opening of the dispensing carton. Article number 4520002, EAN 4044774701332.

Stock # 0326-1072
