Description

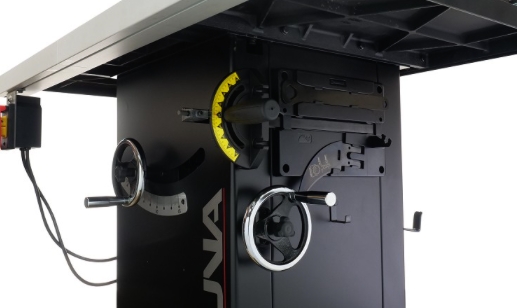

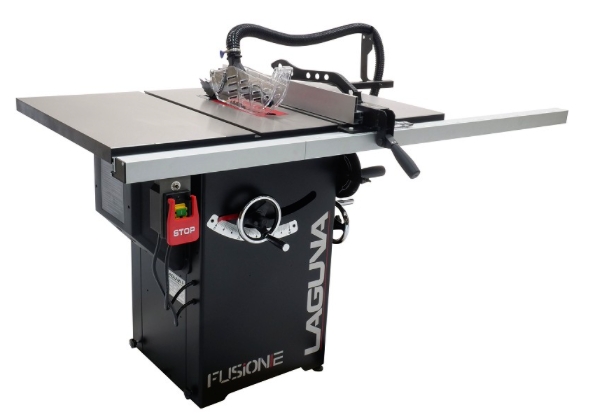

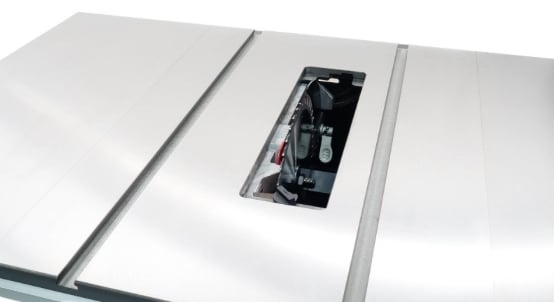

- Laguna Model Fusion F2 Tablesaw
- The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms. All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner. - robust and versile fence - cabinet mounted trunnion - mechanically assisted blade movements - hybrid cabinet saw with trunnion that rides on two solid steel 1" posts
- Machine Specifications
- Power Requirements: 110V-1PH-60HZ*
- Amperage (FLA) :14 AMP
- Motor Power: 1.75 HP
- Motor Speed: 3450 RPM
- Starter Switch: Magnetic
- Plug Included: 5-15
- Circuit Breaker Req.: 110V - 25 AMP
- Receptacle Req. : 5-15
- Blade Size: 10"
- Vertical Cut Height: 3 1/8"
- 45 Cut Height: 2 1/8"
- Tilt: 0-45 Left
- Min. Kerf: 3mm ~1/8" (actual: 0.1875")
- Max. Kerf (Dado Blade): 13/16"
- Arbor Speed: 4500 RPM
- Arbor Diameter: 5/8"
- Mitre Slot: 3/4" to 1" T Throat Plate: Zero Clearance Square Composite, w/ adjustment
- Fence: Double Rail Cam Action
