For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description
| KP 70 | KP 100 | KP 150 | KP 200 | |
|---|---|---|---|---|
| Working Area | ||||
| Pressure force | 77 t | 110 t | 165 t | 220 t |
| Stroke | 19.7 in | |||
| Stroke speed | 0.08 in/s | |||
| Rapid Feed | ||||
| Rapid feed | 43 in/min | 52 in/min | 47 in/min | 47 in/min |
| Drive Capacity | ||||
| Motor rating hydraulic pump | 2 Hp | 5.4 Hp | 4.3 Hp | 10.1 Hp |
| Measures and Weights | ||||
| Weight | 2,420 lbs | 3,520 lbs | 6,600 lbs | 9,460 lbs |

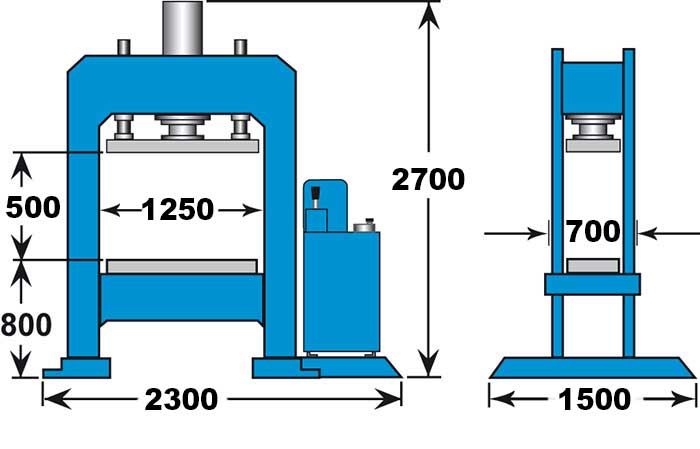

| Overall dimensions (length x width x height) | 67x28x89 in | 75x34x91 in | 91x60x103 in | 91x60x107 in |
- Strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
- Also suitable as try-out press

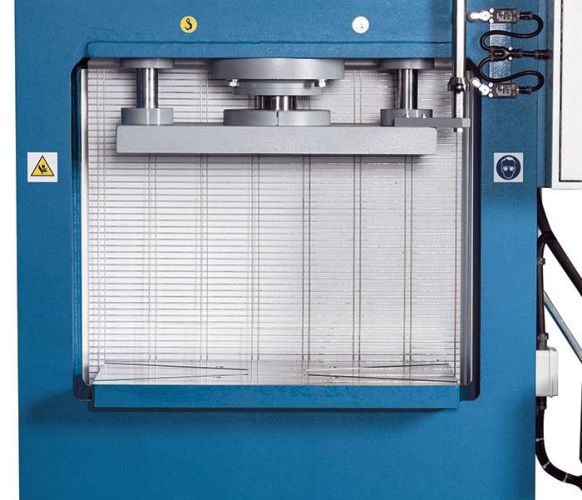

- Ram plate and large work table with T-slots for tool clamping
- Firmly bolted work table
- Adjustable end stop
