For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description
| KMT B 1253 | KMT B 1254 | KMT B 2052 | KMT B 2053 | |
|---|---|---|---|---|
| Working Area | ||||
| Structural steel plate thickness | 0.03 - 0.12 in | 0.03 - 0.16 in | 0.03 - 0.08 in | 0.03 - 0.12 in |
| Working length | 49 in | 49 in | 81 in | 81 in |
| Cutting angle | 2 deg | 2.4 deg | 2 deg | 2 deg |
| Strokes per minute (automatic mode) | 30 | |||
| Knife length | 53 in | 53 in | 83 in | 83 in |
| Work table height | 33 in | |||
| Support arms | 23.62 in | |||
| Number of support arms | 2 positions | 2 positions | 3 positions | 3 positions |
| Back Gauge | ||||
| Rear stop | 25 in | |||
| Drive Capacity | ||||
| Motor rating main drive | 4 Hp | 5.4 Hp | 4 Hp | 5.4 Hp |
| Measures and Weights | ||||
| Overall dimensions (length x width x height) | 67x59x44 in | 68x63x47 in | 99x66x44 in | 99x63x47 in |
| Weight | 1,870 lbs | 2,607 lbs | 2,860 lbs | 3,344 lbs |
Machine Frame and Drive System
- The machine frame is made of a rigid, solid steel weldment
- A rubber-coated hold-down automatically fixates the plate
- A small knife angle ensures cut accuracy
Material Support
- The rigid side angle stop simplifies alignment of the plate to the cut line
- Rugged support arms ensure a good hold of large plates on the support table
Operation and Ergonomics
- Illuminated cut line ensures good visibility of marking
- The mobile control unit features a foot switch, so the operator has both hands free

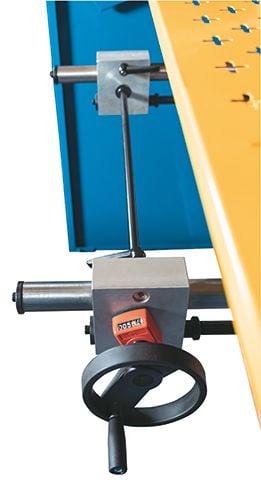

Back Gauge
- Manual back gauge with counter
- The back gauge is robust and rigid and can handle any challenges in everyday operations
- The work area at the back gauge is covered with safety panels
- foot pedal
- side angle stop
- support arms
- automatic hold-down
- cut-line lighting
- manual rear stop
- operator instructions
Get Your Price from Blumberg Machinery Co!
