Click to zoom in
For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description
| KHT H 3006 NC | KHT H 2006 NC | KHT H 2506 NC | KHT H 3008 NC | KHT H 3010 NC | KHT H 3013 NC | KHT H 4006 NC | KHT H 4010 NC | KHT H 4013 NC | |
|---|---|---|---|---|---|---|---|---|---|
| Working Area | |||||||||
| Plate thickness (max.) | 0.24 in | 0.24 in | 0.24 in | 0.31 in | 0.39 in | 0.51 in | 0.24 in | 0.39 in | 0.51 in |
| Working length | 121 in | 82 in | 102 in | 121 in | 121 in | 121 in | 161 in | 161 in | 161 in |
| Cutting angle | 0.3 - 2 deg | 0.3 - 2 deg | 0.3 - 2 deg | 0.3 - 2 deg | 0.3 - 2 deg | 0.3 - 2.3 deg | 0.3 - 2 deg | 0.3 - 2 deg | 0.3 - 2.3 deg |
| Hold-down | 13 positions | 10 positions | 12 positions | 16 positions | 16 positions | 16 positions | 20 positions | 20 positions | 19 positions |
| Hold-down capacity | 17.6 t | 16.5 t | 16.5 t | 22 t | 22 t | 41.8 t | 27.5 t | 27.5 t | 49.5 t |
| Throat | 6 in | ||||||||
| Strokes per minute | 7 | ||||||||
| Table size | 173x23x34 in | ||||||||
| Back Gauge | |||||||||
| Rear stop | 39 in | ||||||||
| Feed speed X-axis | 3.9 in/min | ||||||||
| Front Support Arms | |||||||||
| Number of support arms | 3 positions | 2 positions | 3 positions | 3 positions | 3 positions | 3 positions | 4 positions | 4 positions | 4 positions |
| Length of support arms | 35 in | ||||||||
| Drive Capacity | |||||||||
| Motor rating main drive | 14.8 Hp | 14.8 Hp | 14.8 Hp | 29.5 Hp | 29.5 Hp | 40.2 Hp | 14.8 Hp | 29.5 Hp | 40.2 Hp |
| Hydraulic tank volume | 40 gal | 40 gal | 40 gal | 66 gal | 66 gal | 66 gal | 40 gal | 66 gal | 66 gal |
| Measures and Weights | |||||||||
| Overall dimensions (length x width x height) | 154x82x77 in | 111x83x71 in | 134x82x74 in | 155x84x84 in | 154x84x89 in | 156x85x89 in | 195x83x82 in | 196x86x91 in | 197x87x94 in |
| Weight | 15,400 lbs | 10,780 lbs | 12,540 lbs | 18,700 lbs | 20,900 lbs | 25,300 lbs | 21,340 lbs | 30,250 lbs | 36,080 lbs |

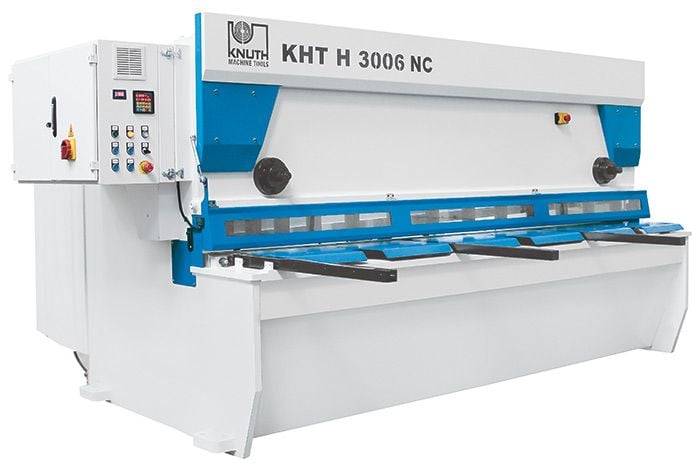

The new KHT H NC series features high machining quality and reliability, is easy to handle and provides superior cutting performance
Machine Frame
- The machine frame is made of a high-precision, stress-relieved steel weldment and features rigid sliding block guides
- Motorized adjustments of kerf and knife angle allow for ideal settings optimized for the sheet metal plate to be processed
- All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
Material Support
- The large work table features roller balls and a rigid lateral angular stop for easy handling and safe plate alignment
- Long, sturdy support arms safely hold large plates
Hydraulics
- Polished pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life
- Cylinder bodies are forged from high-strength SAE 1040 material
- During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line
Back Gauge and Control
- Linear guides and preloaded ball screws are mounted in a protective enclosure
- The user-friendly NC positions the back gauge precisely for single cuts or for program runs
Equipment
- Upper and lower knives suitable for stainless steel
- The machine is operated via a foot pedal with emergency stop switch, and the pedal can be located wherever it is most convenient
Safety
- Safety concept based on the latest CE standards
- BRL 401.2 NC control unit
- motorized kerf adjustment
- motorized back gauge
- Motorized cut angle adjustment
- Foldable finger guard
- Shadow graph display of cut line
- support arms, 39"
- foot pedal
- standard upper and lower knife
- operator instructions
