Description
Description:
Specifications:
CENTER HOLE DIAMETER (MM) 400H7
THROUGH HOLE DIAMETER (MM) 345
CENTER HEIGHT (MM) 310
CLAMPING METHOD HYDRAULIC-
CLAMPING TORQUE (AT HYDRAULIC 3.5MPA) (N.M) 6100
MOTOR AXIS REDUCED INERTIA (KG.M2) 0.0025
SERVOMOTOR (FOR FANUC SPECIFICATION) IF12/4000-B
TOTAL REDUCTION RATIO-
ADDITIONAL AXIS SPECIFICATION 1/180
M SIGNAL 1/180
MAX. TABLE ROTATION SPEED-
FANUC SPECIFICATIONS (MIN-1/AT MOTOR 2000 MIN-1) 11.1
M SIGNAL SPECIFICATIONS 8.33 (AT MOTOR 1500MIN-1)
ALLOWABLE WORK INERTIA (KG.M2) 12.29
INDEXING ACCURACY (SEC) 20
REPEATABILITY (SEC) 4
MASS OF PRODUCT WEIGHT (KG): 350
MANUAL TAILSTOCK (AS AN OPTION, SEE PAGE 115) - TS500RN
Get Your Price from Machinery Resources Intl!
Buyers Who Viewed This Listing Also Viewed:
12.2" Haas #TR-310-P4, rotary trunnion table, for Haas NextGen vmc, 2019
Category: Rotary Tables
Seller: Clark Machinery Sales LLC
Location: Hunt Valley, MD
Mfr: Haas
Model: TR-310-P4
Year: 2019
2019 HAAS TR310, TABLE WIDTH. 12.2", TABLE LENGTH. 12.2", MAX WEIGHT ON PLATTER. 500 lb, PART SWING MAX. 31", A-AXIS TILT INDEXING. +/- 120 DEGREES, A-AXIS TILT SPEED. 50 DEGREES SEC, B-AXIS INDEXING (ROTARY). 999.999 DEG, B-AXIS ROTARY SPEED. 50 DEG PER SEC, Weight. 2105 LBS, VERION P4, NOTE: THIS HAAS TR-310 ...more
W.B. Knight Machinery Company Powered Rotary Table Serial 51111
Category: Rotary Tables
Seller: MRO Exchange
Location: Fairfield, IL
Mfr: Knight
Used in heavy machining environments alongside horizontal boring mills and large vertical lathes, this W.B. Knight Machinery Company powered rotary table s a cast iron construction with a 4-jaw faceplate configuration and an integral hydraulic power unit with an electric drive motor mounted to the side housing. W.B. ...more
Haas #TR-210, rotary table, 2009
Category: Rotary Tables
Seller: Bay Area CNC Machinery
Location: Walnut Creek, CA
Mfr: Haas
Model: TR-210
Year: 2009
Manufacturer Haas, Model TR-210, Year 2009, Condition Used.

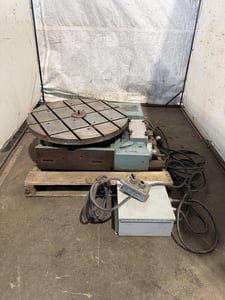

24" Knight, rotary table
