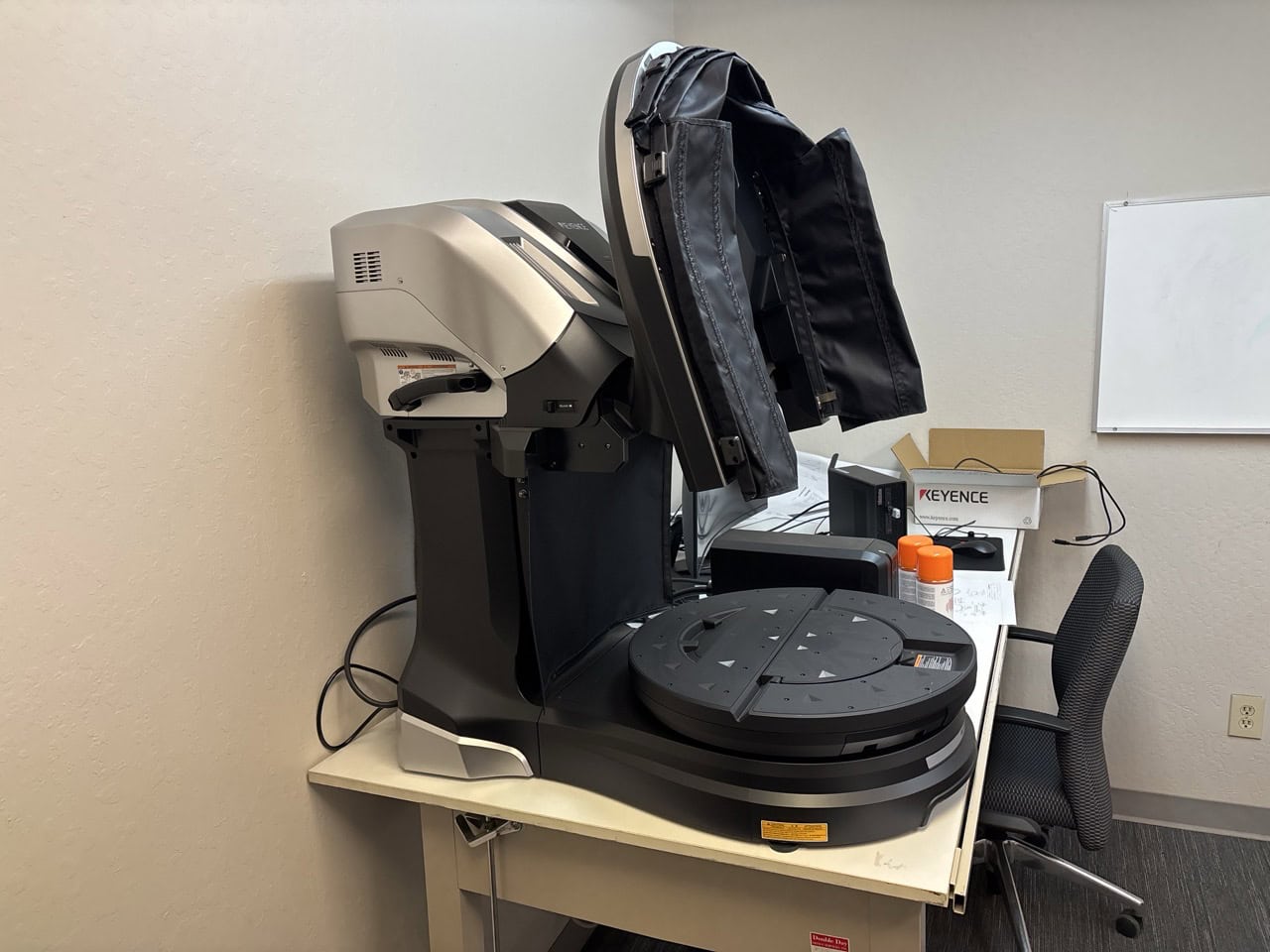

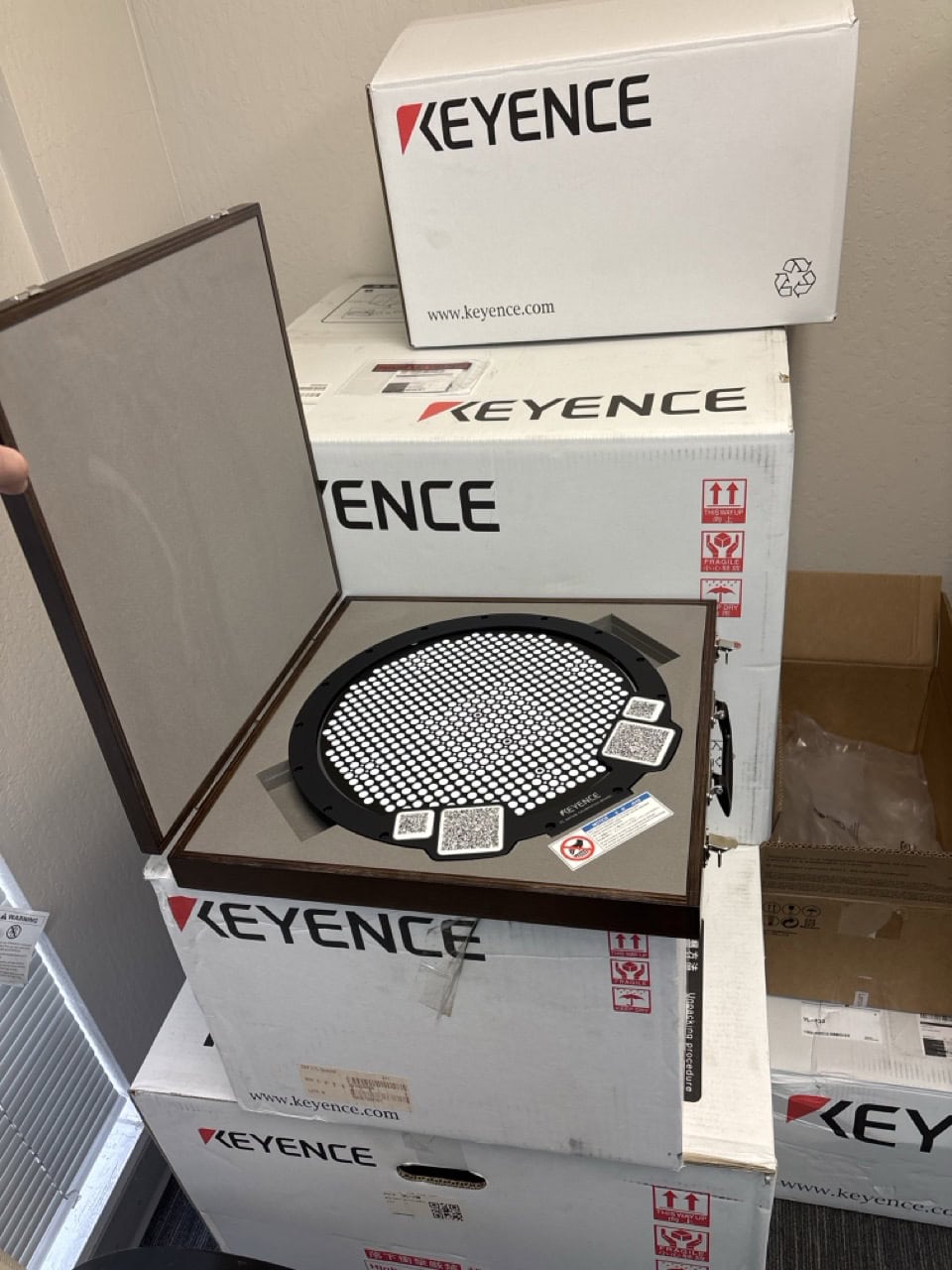

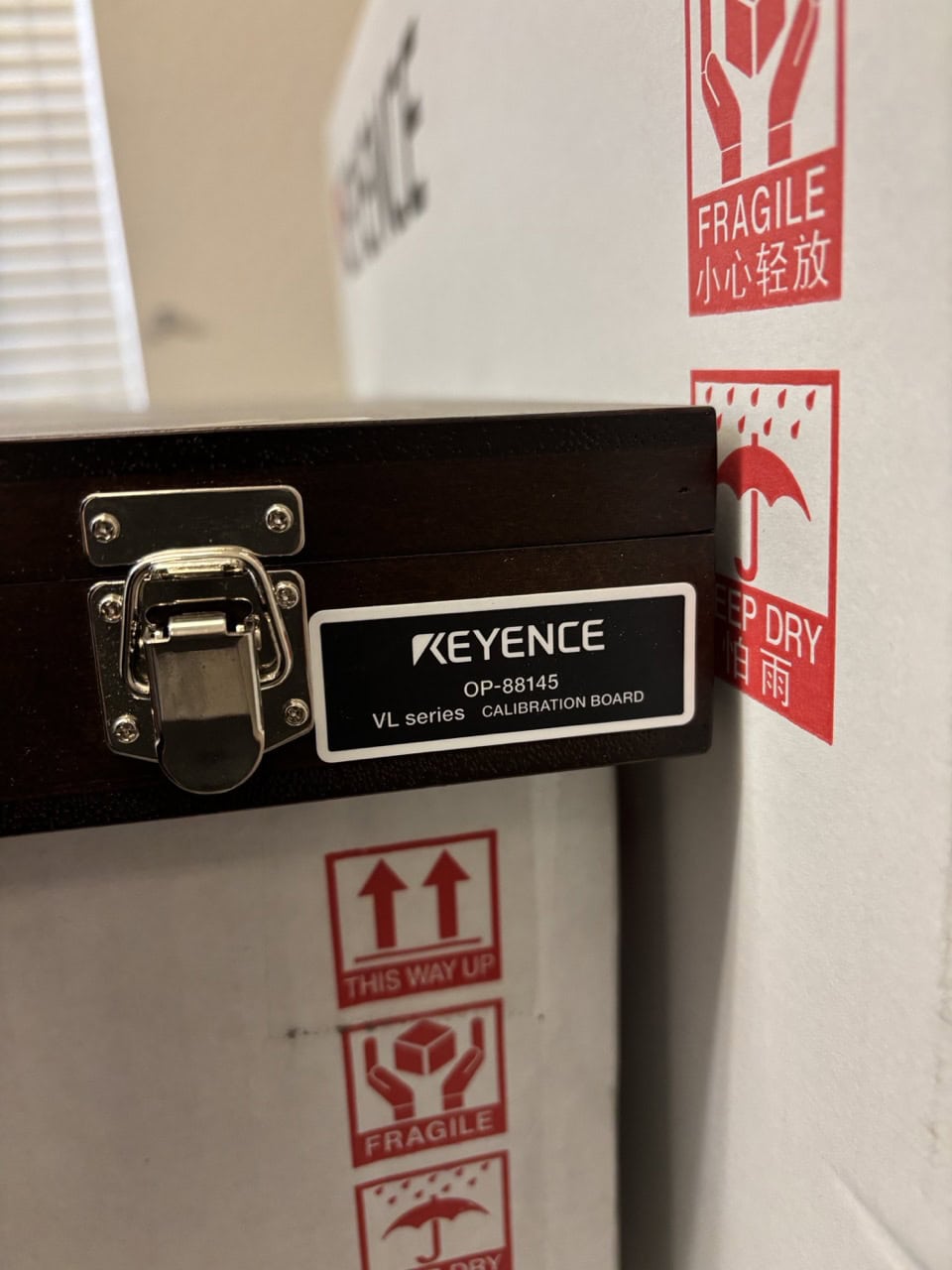

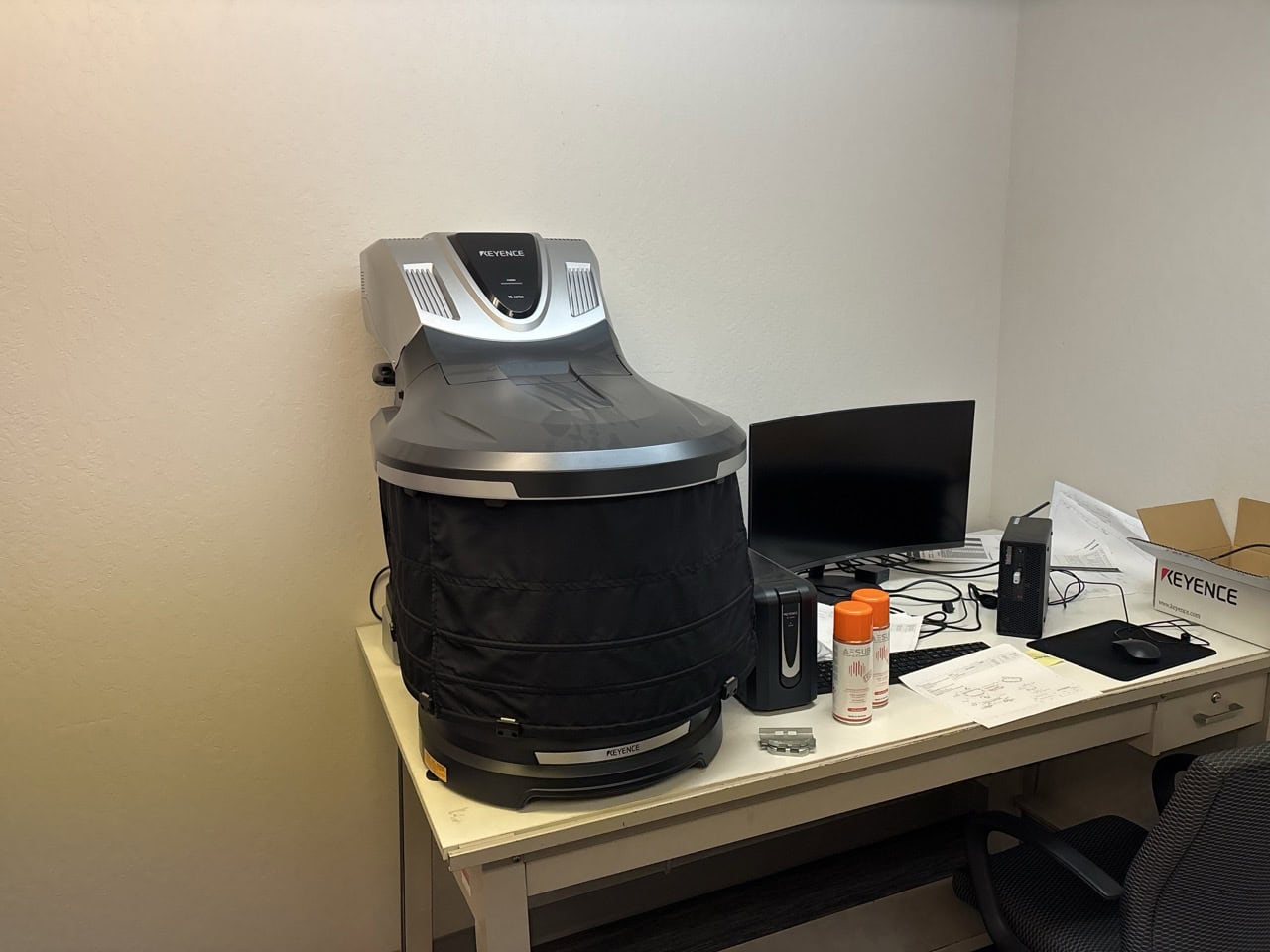

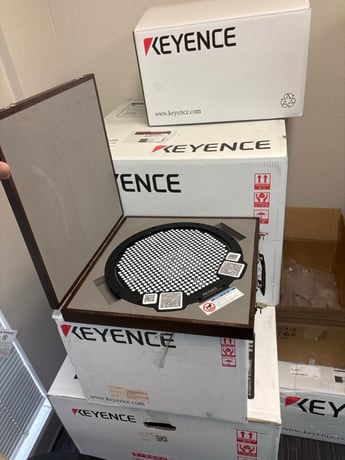

Keyence #VL-770, 3d Scanner Cmm, Fully Equipped, Low Hrs, OP-88145 calibration board, 2023

Measurement Unit: VL-770
Controller: VL-700
Stage: VL-750, VL-730
Optical Transmitter System: High-brightness dual projector module
Optical Receiver System: Low/high magnification offset dual optical module with wide dynamic range
Light Sources: Blue LED for measurement, RGB LEDs for color texture
Captured Data Format: Full-color textured 3D mesh data
Repeatability (): 2 m
Measurement Accuracy: ±10 m
Measurement Resolution: 9 million points
Measurement Modes: Low magnification (High speed, Normal, Fine), High magnification (Normal, Fine)

Measurement Range:
Low magnification: ø11.81″ × H 7.87″ (wide field)
High magnification: ø2.76″ × H 1.97″ (high resolution)

Stage Configuration:
VL-750: Motorized XY stage mechanism
VL-730: Motorized stage mechanism
Stage Top Panel Size: ø19.69″
Stage Rotation: 360° (infinite rotation)
Stage Movement Range: VL-750: ø7.87″

Tilt Mechanism: Up to 45°
Load Capacity: 110.23 lbs
Control PC: Dedicated PC specified by Keyence
Power Supply: 100 to 240 VAC ±10%, 50/60 Hz
Power Consumption: Controller/Measurement unit: 320 VA, Stage: 80 VA

Environmental Resistance:
Ambient Temperature Range: 59.0 to 86.0°F
Ambient Humidity Range: 20 to 80% RH (no condensation)

Weight:
Controller: 8.16 lbs
Stage: 57.32 lbs (VL-750), 47.84 lbs (VL-730)
Light-blocking cover: 12.13 lbs (VL-750), 10.80 lbs (VL-730)

Equipped With:

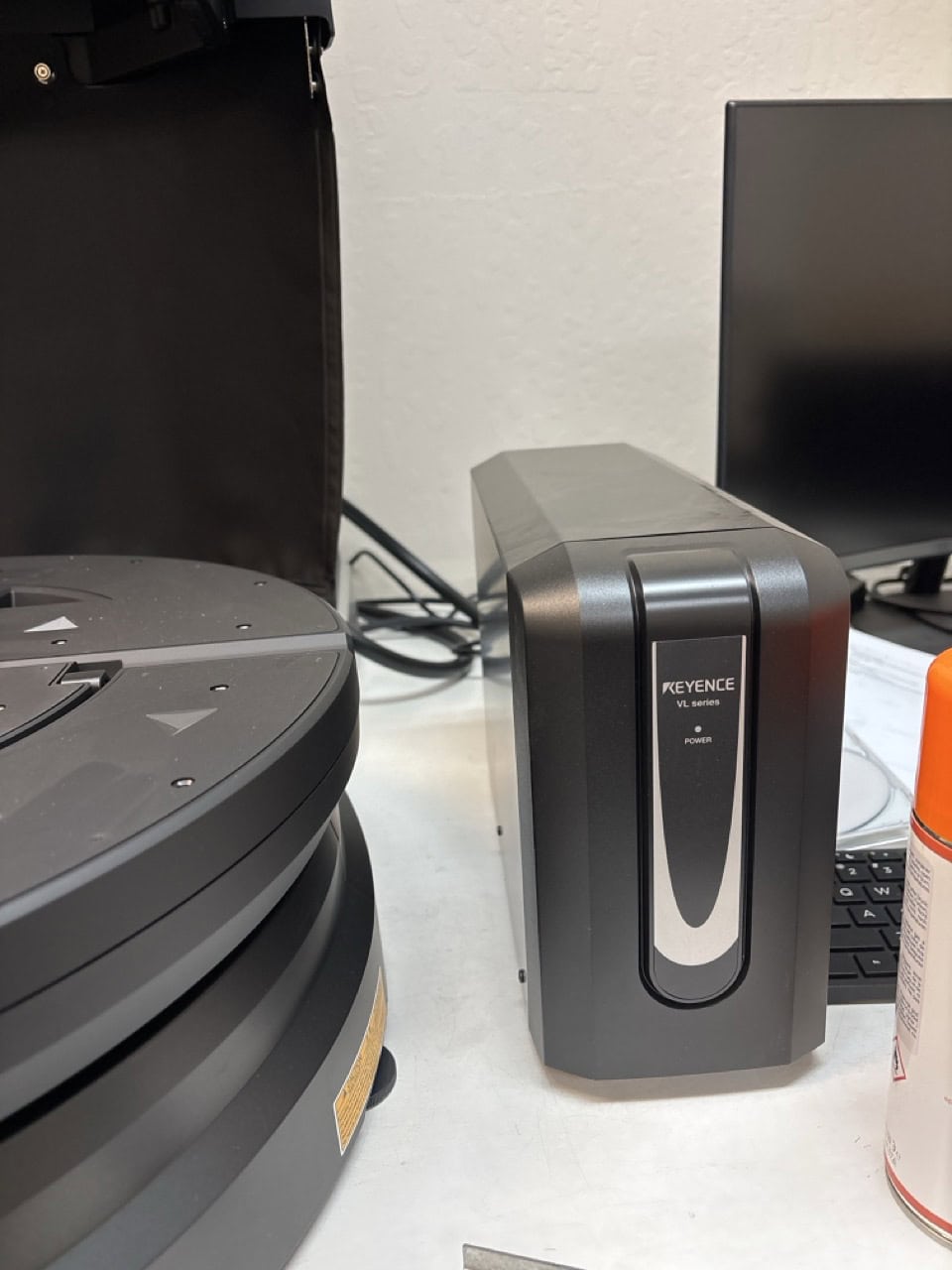

VL700 Measurement Controller
VL Support Package
VL 730 Measurement Stand
VL-C33 Light Blocking Curtain
VL-H3G Software
