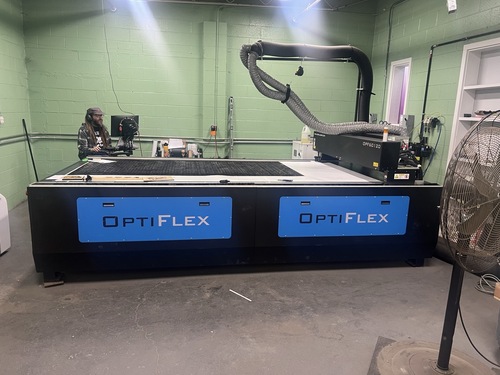

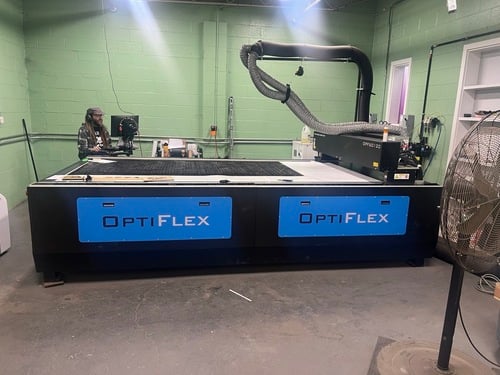

Kern #Optiflex-OPF60120, Co2 Laser Cutting & Engraving System, 5' x10' Table, LightWAVE KT500, 500 watt, 2023

2023 Kern OptiFlex OPF60120 industrial CO2 laser cutting and engraving system equipped with a 500-watt KT500 laser source, large-format 60″ x 120″ work area, HyperDual servo motion and precision capabilities for processing acrylic, wood, plastics, textiles, foam and select thin metals.

Specification Details
Manufacturer Kern Laser Systems

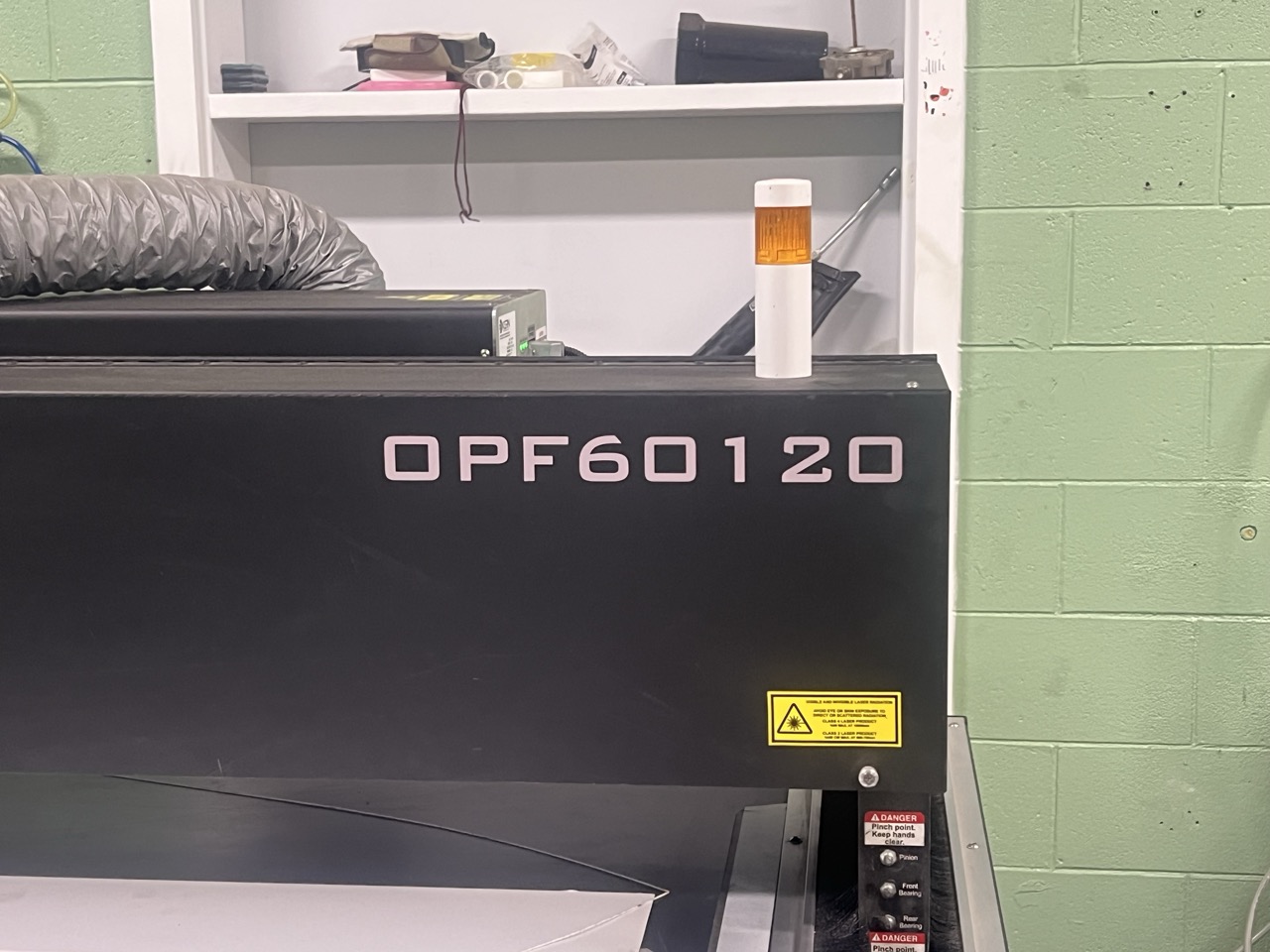

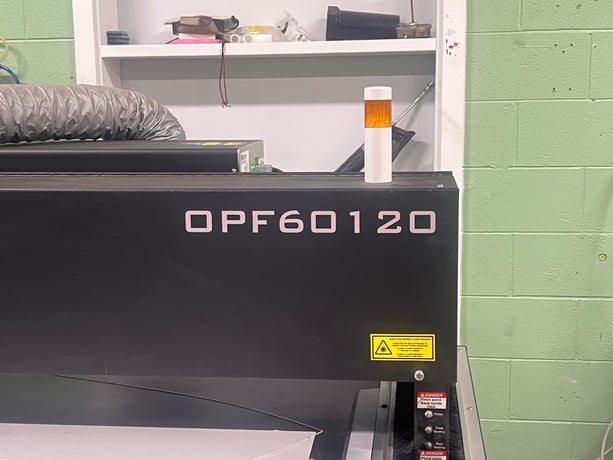

Model OptiFlex OPF60120
Machine Designation 60120-KT500 OPF
Year 2023
Machine Type CNC CO2 laser cutting and engraving system
Laser Source Kern LightWAVE KT500
Rated Laser Power 500 watts
Typical Peak Power At least 1,200 watts
Laser Wavelength 10.6 µm standard; other configurations may be available

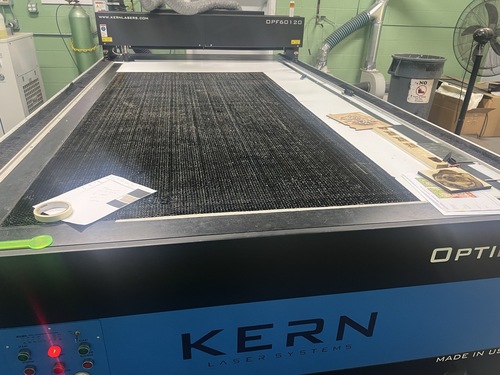

Working Area 60″ x 120″
Metric Working Area 1,524 x 3,048 mm
Number of Controlled Axes 3
Maximum Material Clearance Approximately 2″–3″, depending on gantry configuration
Positioning Accuracy ±0.002″ under mapped-table conditions
Repeatability ±0.0005″
Motion System Kern HyperDual servo-driven motion package
Drive Design Rack-and-pinion system with dual Y-axis servo motors
Table Type Vacuum cutting table; installed surface should be confirmed
Maximum Table Load Approximately 2,205 lb. / 1,000 kg
Laser Classification Class 4 CO2 laser
Control Software Kern KCAM laser cutting and engraving software
Cooling System Closed-loop water chiller
Material Handling Large-format flat-sheet processing
Suitable Materials Acrylic, wood, MDF, plastics, rubber, foam, textiles, leather, paper, cardboard and select thin metals
Electrical Supply Available in 230V single-phase, 230V three-phase or 480V three-phase configurations; verify machine data plate
Approximate Machine Width 82″ / 2,083 mm
Approximate Machine Length 157″ / 3,988 mm
Approximate Machine Height 53″ / 1,346 mm
Approximate Machine Weight 5,500 lb. / 2,495 kg
