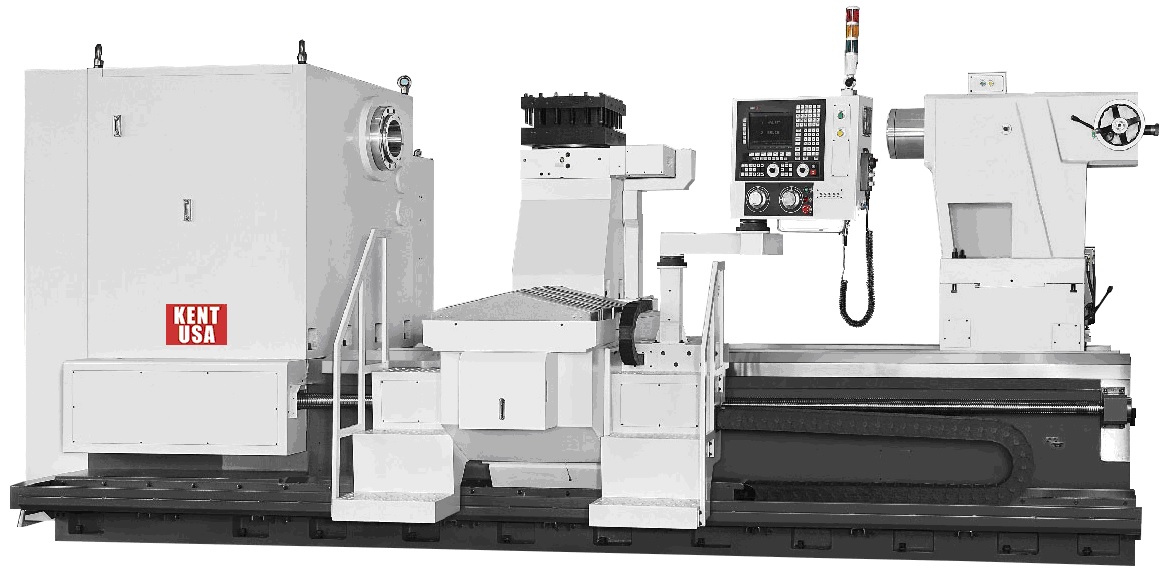

Kent #CMD-70320, CNC oil country lathe, 70" swing, 8.3" bore, 4-Jaw chucks optional, Fanuc 0i-TD, 1.3 HP, new, #12882

• CNC controller: FANUC 0i-TD or FAGOR 8055i
• AC spindle motor
• Auto lubrication system
• Coolant system
• Spindle Oil Cooler
• H4 or V8 hydraulic turret
• Chuck guard and Turret guard, Control Panel Moving Along with Carriage
• Rear Splash Guard and Chip Conveyor (DBC8 meter)
• Adapter sleeve and Tool centers
• Motorized Tailstock with rotary quill
• Leveling bolts & Pads
• Tool box with oiler, spare fuse, paint & tools
• Operation & Service manual

OPTIONAL ACCESSORIES

• 40" 4-Jaw Chuck (Steel body, Taiwan)
• 40" 4-Jaw Chuck (Cast iron, Taiwan)
• 50" 4-Jaw Chuck (Steel body, Taiwan)
• 50" 4-Jaw Chuck (Cast iron, Taiwan)
• 55" 4-Jaw Chuck (Steel body, Taiwan)
• FANUC Controller, FANUC motor 45KW ' 60KW
• Electrical Transformer $4,650

  Steady Rest for Full Length Cross-slide

• Steady Rest (200-430mm) for Full Length Cross-slide
• Steady Rest (350-580mm) for Full Length Cross-slide
• Steady Rest (500-880mm) (2 sets of shafts) for Full Length Cross-slide $10,750
• Steady Rest (850-1080mm) for Full Length Cross-slide

  Steady Rest for Half Length Cross-slide

• Steady Rest (200-430mm) - C-shape type for Half Length Cross-slide
• Steady Rest (350-580mm) - C-shape type for Half Length Cross-slide
• Steady Rest (570-800mm) - C-shape type for Half Length Cross-slide

SPECIFICATIONS

Swing over bed: 70 1800 mm

Swing over cross slide(full/half length): 49 /55 1250 mm /1400 mm

Distance between centers: 315 8000 mm

Bed width: 53 1345 mm

Spindle bore: 8.3 210 mm

Spindle nose: A2-15

Spindle speeds (4 Steps): 5-460 RPM

Controller/Spindle motor: Fanuc(45KW)or(75KW with inverter)

Ball screw diameter: X-axis : 50mm with 1:2 gear set,

Z-axis : Rack and Pinion

Cutting speed per revolution X-axis: 0.001-250mm

Cutting speed per revolution Z-axis : 0.001-400mm

Max, x-axis travel(full/half length): 49/28 1250mm/720mm

Max, z-axis travel(full/half length): 299/315 7600mm/8000mm

Tailstock spindle travel/Quill: 11.8 / 11.4 300mm/ 290mm

Tailstock spindle taper: MT#7

X-axis servo motor: 22i (4.0 KW)

Z-axis servo motor: 30i (7.0 KW)

Coolant pump motor: 1.3 HP 1 KW

Machine Packing Dimension: 37 X 10.9 X 9.2 11.3m X 3.3m X 2.8m

Machine Weight: 122,357 lbs 55500 kgs
