Kason #K60/72-1FBD-SS, Vibrobed fluid bed dryer, 60" diameter, 304 Stainless Steel, 2000 lbs./hr., 0.5 MM BTU gas air heater, 250°F, 460 V., 3 Ph.

$250,000 USD

Request Formal Quote

Used Fluid Bed Dryer For Sale
PRICE: $250K
Electric (can be converted)
Plug & play including ducting and Myers quick-clean 8" clamp
No negative collector, can be added
Setup help included
DESCRIPTION
This Kason fluid bed dryer comes from an agglomeration drying line and is optimal for any agglomerated powders such as dairy proteins, calcium carbonate, and charcoal. It was originally spec'd for whey protein (WPI) and had a maximum throughput of 2000 lbs./hr. when taking moisture content from 30% to 10% or 10% to 0.5%. Because this is a more difficult application than most, it can be considered to have a max throughput of 2,000lbs./hr.

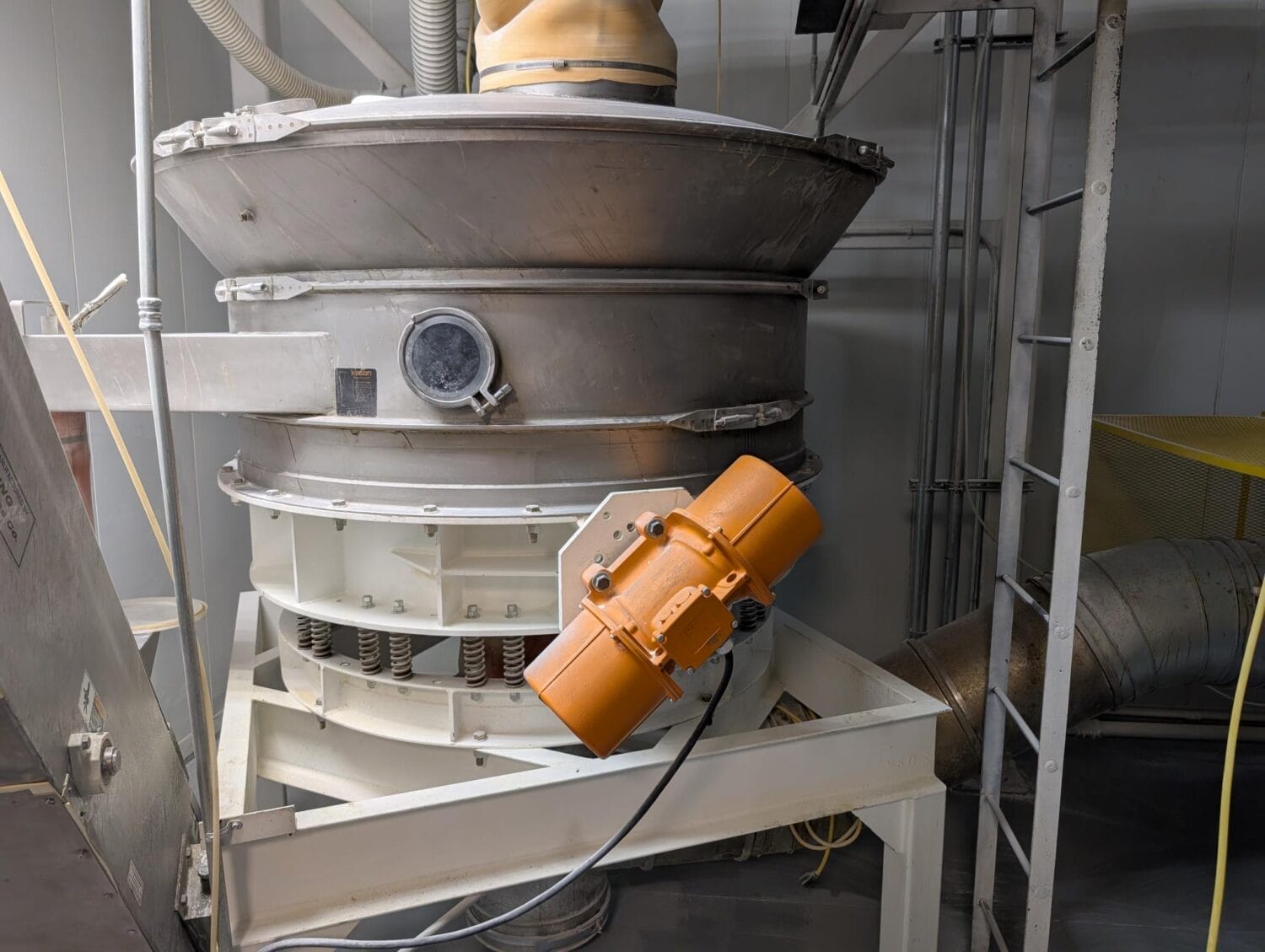

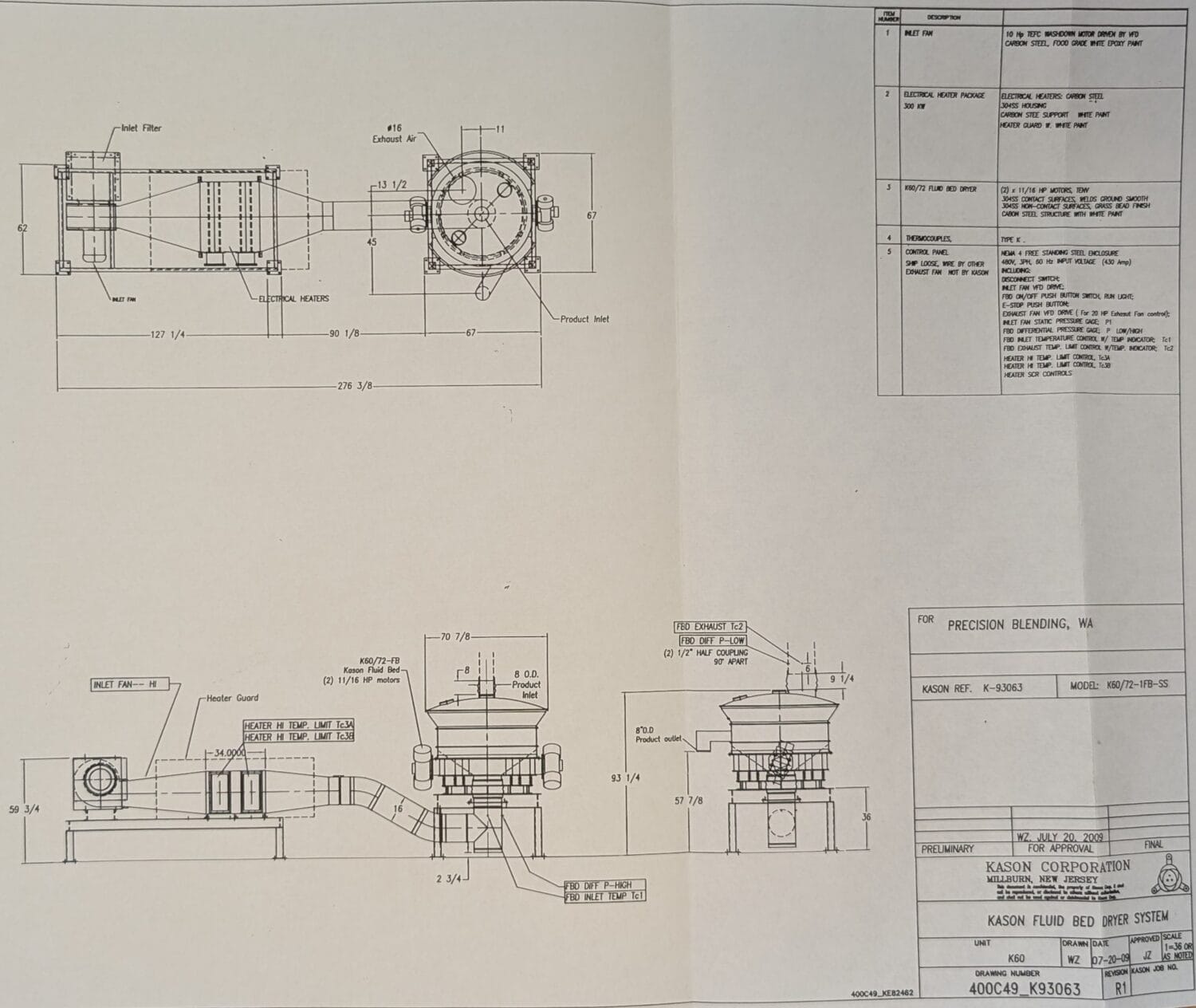

DRYER SPECS: Model K60/72-1FBD-SS, 60 diameter Vibrobed Fluid Bed Dryer 8 diameter product discharge spout An adjustable weir (with plough) will be provided to vary bed depth, and to control retention time 304 stainless steel material contact parts 304 stainless steel Dust Cover with 8 diameter inlet port, a 12 diameter exhaust port, and one (1) inspection port will be included The assembly will include all necessary clamp rings, gaskets, etc. and will be mounted on stainless steel vibration isolating springs and a carbon steel base assembly Vibrated by two (2) externally mounted 460 volt, 3 phase, 60 Hz Kason vibrator motors with adjustable amplitude of Vibration High temperature gaskets High temperature flexible connector between Fluid Bed Dryer and heater duct work

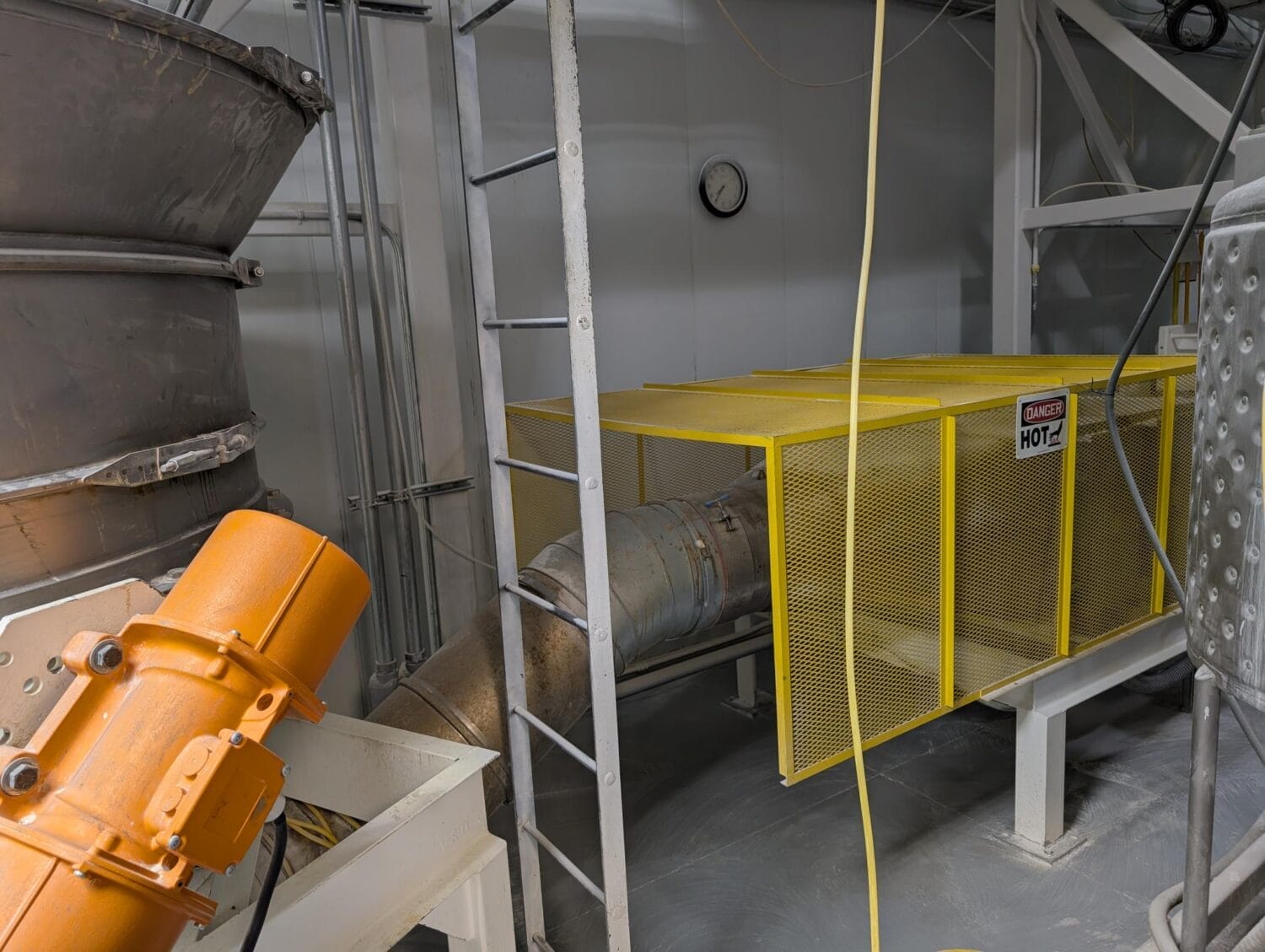

INDIRECT FIRED NATURAL GAS BURNER AIR HEATER PACKAGE: 0.5 million BTU Up to 250F temperature for drying (adjustable) Stainless steel housing Burner control (burner starter) Temperature sensors, included Pressure regulators Flame detector Start switch Support structure for the heat exchanger: Food grade epoxy coated carbon steel
DUCT WORK AND TRANSITION:ONE SET OF STAINLESS STEEL DUCT WORK, Including: Between filter housing and inlet fan Between inlet fan and Fluid Bed Dryer Clean-out port below the Fluid Bed Dryer
SUPPORT STRUCTURE: One support structure in white painted carbon steel

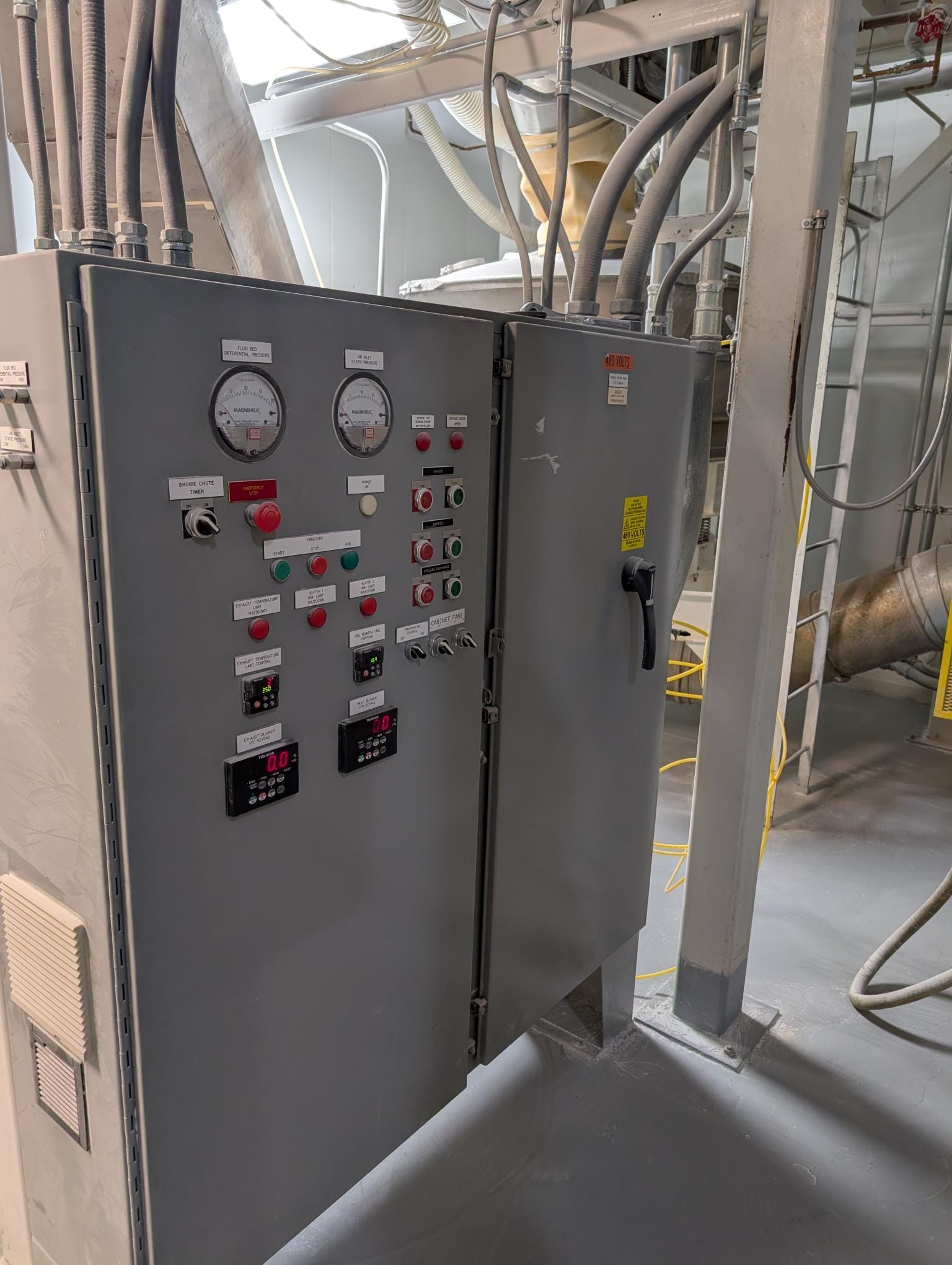

ELECTRIC CONTROL PANEL:
One Only NEMA 4X Electric Control Panel, including:
Variable Frequency Drives (VFD) for the inlet fan Digital Temperature read-outs for the inlet and outlet air streams Motor starters and relays Static pressure gauges for the inlet fan Differential pressure gauge for the Fluid Bed Dryer Emergency Stop (E-stop) Main power disconnect
