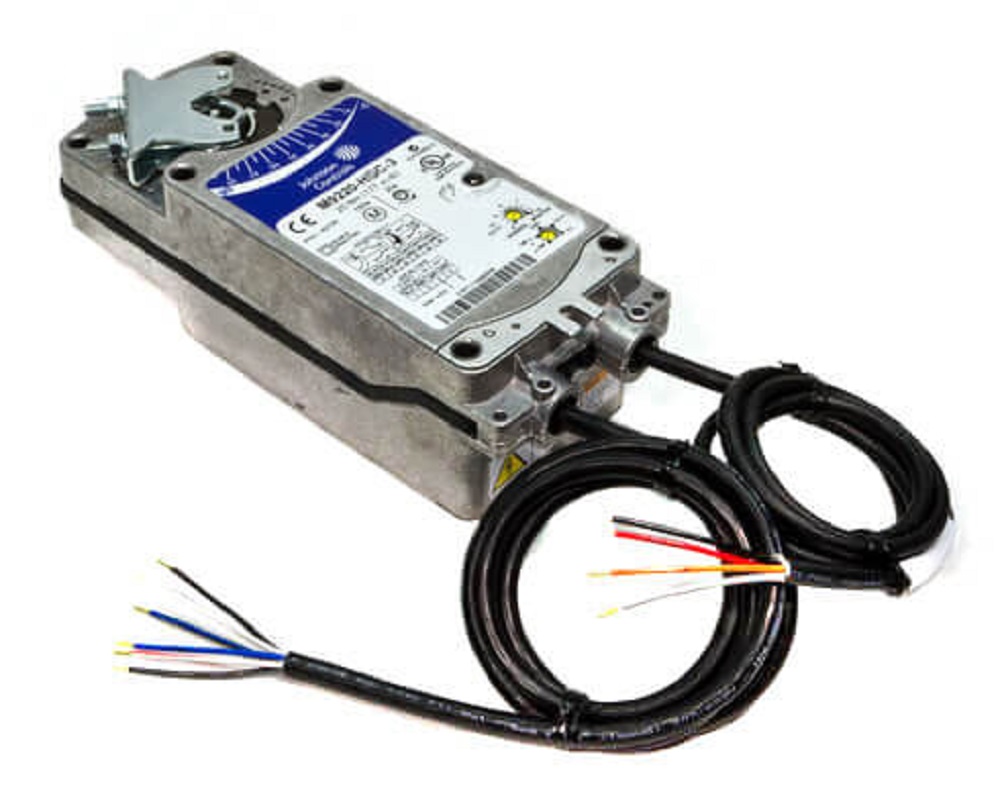

Johnson Controls M9220-HGC-3 24V Proportional Spring Return Actuator

Johnson Controls M9220-HGC-3 24V Proportional Spring Return Actuator - Johnson Controls M9220-HGC-3 24V Proportional Spring Return Actuator, w/ Adj. Zero and Span (177 lb-in) - These bidirectional actuators do not require a damper linkage, and are easily installed on dampers with 1/2 to 3/4 in. or 12 to 19 mm round shafts, or 3/8 and 1/2 in. or 10, 12, and 14 mm square shafts using the standard shaft clamp included with the actuator. An optional M9220-600 Jackshaft Coupler Kit is available for 3/4 to 1-1/16 in. or 19 to 27 mm round shafts, or 5/8 and 3/4 in. or 16, 18, and 19 mm square shafts. A single M9220-xxx-3 Electric Spring Return Actuator provides a running and spring return torque of 177 lbin (20 Nm). Two or three models mounted in tandem deliver twice or triple the torque (354 lbin [40 Nm] or 531 lbin [60 Nm]). Integral line voltage auxiliary switches are available on the xxC models to indicate end-stop position, or to perform switching functions within the selected rotation range. - Johnson Controls - Johnson Controls - M9220-HGC-3 - M9220-HGC-3
