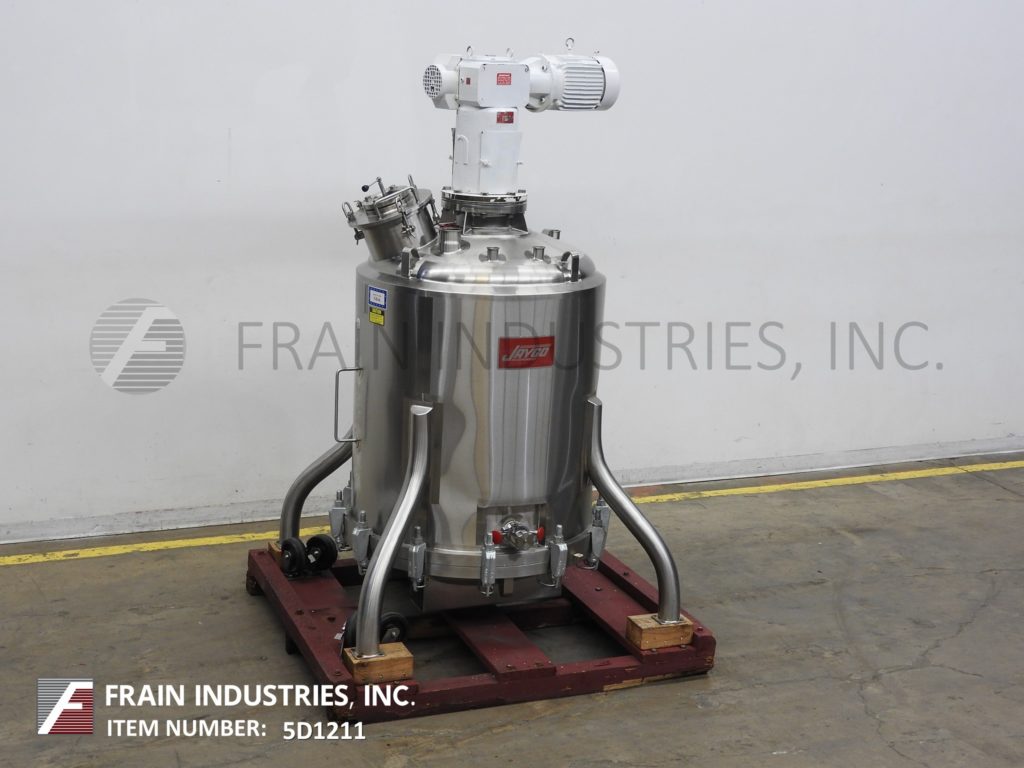

132 gallon Jaygo #APF, 500 liter insulated agitated self contained press/vacuum filtraion & drying system, 316L Stainless Steel, dome top, dish bottom, 45 psi

Jaygo Model APF, (Agitation Pressure Filter), 500 liter, 316L stainless steel, insulated, agitated, self contained, pressure / vacuum filtration and drying system. Internal pressure rated with amount of product per hour – depending on materials and application. Vessel dimensions: 55" OD dome top, 42" straight wall, with top mounted 5 Hp motor drive supporting bottom sweep agitation, (1) 7" OD / 4" ID flanged top port has and (1) 12" OD flip-up cover, (1) 7" OD / 4" ID flanged sight port, 2" OD / 1½" ID Tri-Clamp inlet and 3" OD / 2½" ID Tri-Clamp side bottom sanitary discharge with 16" floor clearence. Flanged removable bolt down, dish bottom and is fork lift removable, for ease of maintenance and installation of bottom filter cloth. Mounted on (4) stainless steel legs with locking casters.

Sanitary Ports:
(2) 4"
(2) 2"

Nat’l Brd: 418

Vessel
MAWP: 45 psi @110 Deg F
MDMT: -20 Deg F @ 45 psi

OAD: 54" L x 54" W x 88" H Without Casters
94" H With Casters
