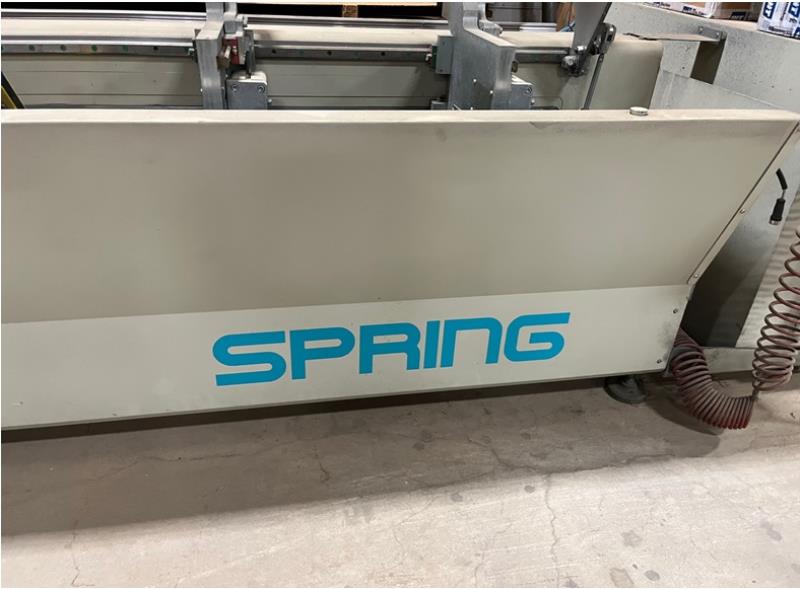

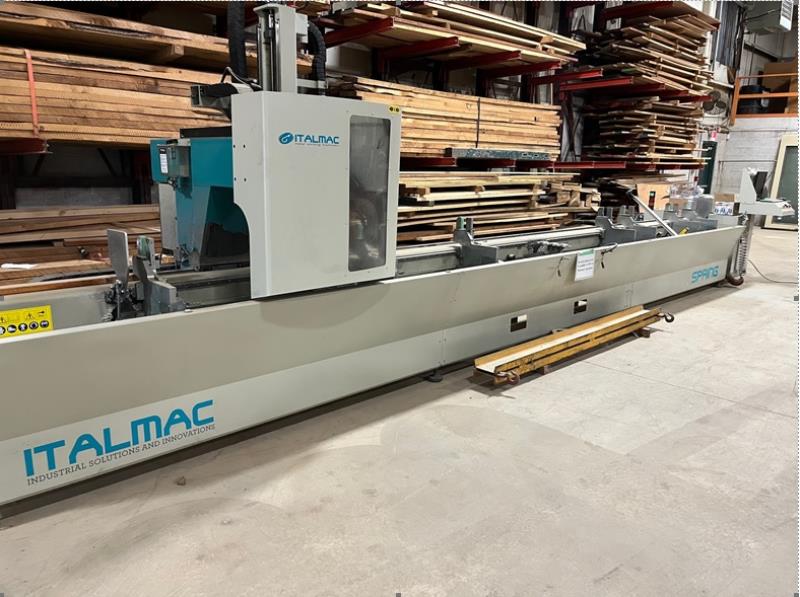

Italmac #Spring-7000-4A, Profile Machining Center, 7000 mm bed length, 7000 mm X, 220 mm Y, 230 mm Z, 80 - 55 - 30 MPM (X - Y - Z), 2015

Estimated monthly payment valid upon approved credit.

Request Formal Quote

ITALMAC SPRING 7000 - 4A CNC Machining Center For Aluminum And Steel Profiles - 7 Meter (23')CNC machining center with 4-axis control - designed for drilling, milling, end milling and thread cutting at any angle from 0 to 180 in aluminum, light steel and light alloys. The center allows you to process (2) workpieces in (2) independent working areas ("pendulum mode"), and in one integrated working area.The machining center has an 5-seat tool magazine that goes with the machining head and can also be equipped with a saw blade. It is also possible to use the machine in alternating machining mode to maximize production with “simultaneous"; profile switching. Specifications: Cutting bed length: 7,000 mm (276")X-axis (Longitudinal): 7000 mm (276") Y-axis (Cross): 220 mm (8.7")Z-axis (Vertical): 230 mm (9")Axis speed: [X-axis] 80 m/Min – [Y-axis] 55 m/Min – [Z-axis] 30 m/MinAxis Acceleration: [X-axis] 3 m/Sec - [Y-axis] 3 m/Sec - [Z-axis] 3 m/SecNumber clamps: (8) ManualTool storage: (5) Positions tool holder fixed on the carriage Adjustable spindle RPM: 0 - 18,000 RPMTool Holder: HSK F63 DIN 69871Dimensions: 8900 x 1900 x 2000 mm (350" x 75" x 79") Weight: 2200 kG (998 Lbs)Optional: Saw blade diameter: 500 mmSaw blade speed: 2,250 RPMFeatures: Capability for series production as well as for special applicationsSafety shieldsEquipped with digital display as standardAir Coolant systemPneumatic horizontal clampsSoftware single cut, minimum cut, oversize cut, and step-by-step cutsIndustrial PC with 17" LED color screenNOTE: Machine is in excellent condition and ready for immediate shipment. NOTE: EX-FACTORY offers “Full Service Logistics"; from Suppliers to your Door.
