Advanced #AE-500NX-1KV, inverters, large transformer, recombiners

We have the following Solar equipment currently running and producing power. These are coming offline this month (June 2026), available only due to repurpose of land.

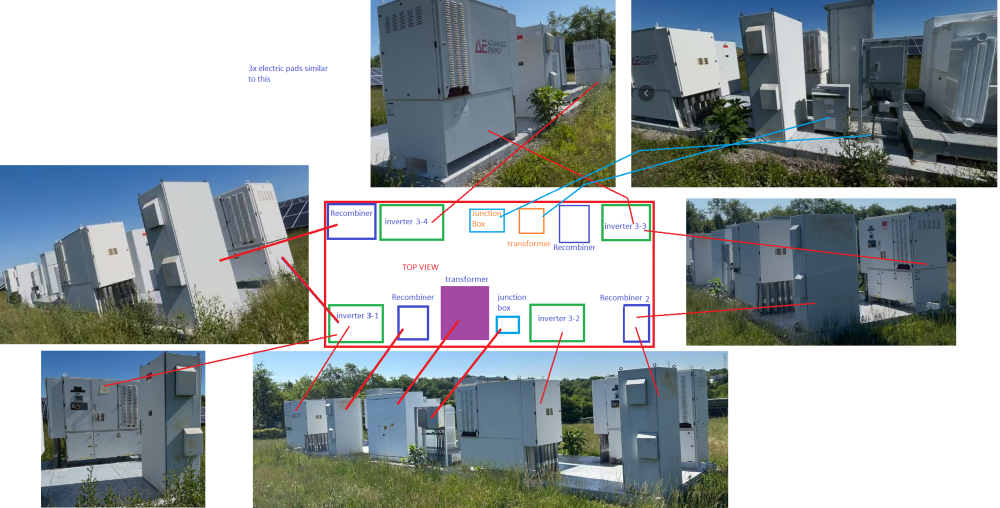

3 pads are duplicates

Each PAD contains:
4x inverters 500kw (see below for more info) see link for pictures
https://drive.google.com/drive/folders/1MONUp9nymkr7L6WTK1u52hxWgIORcm3d?usp=drive_link

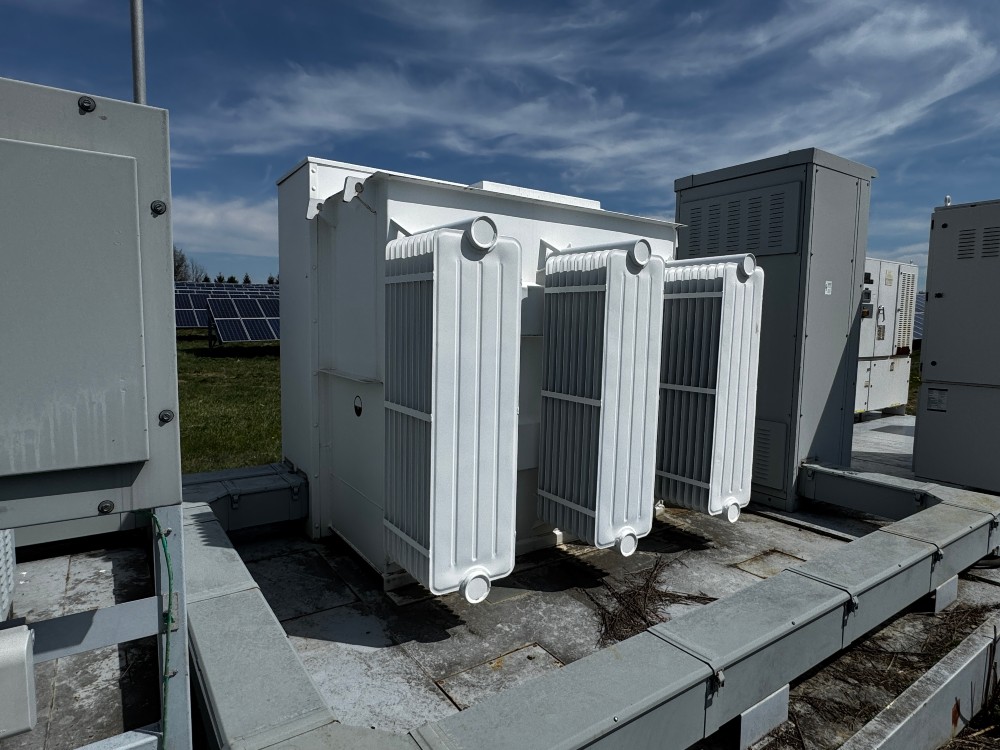

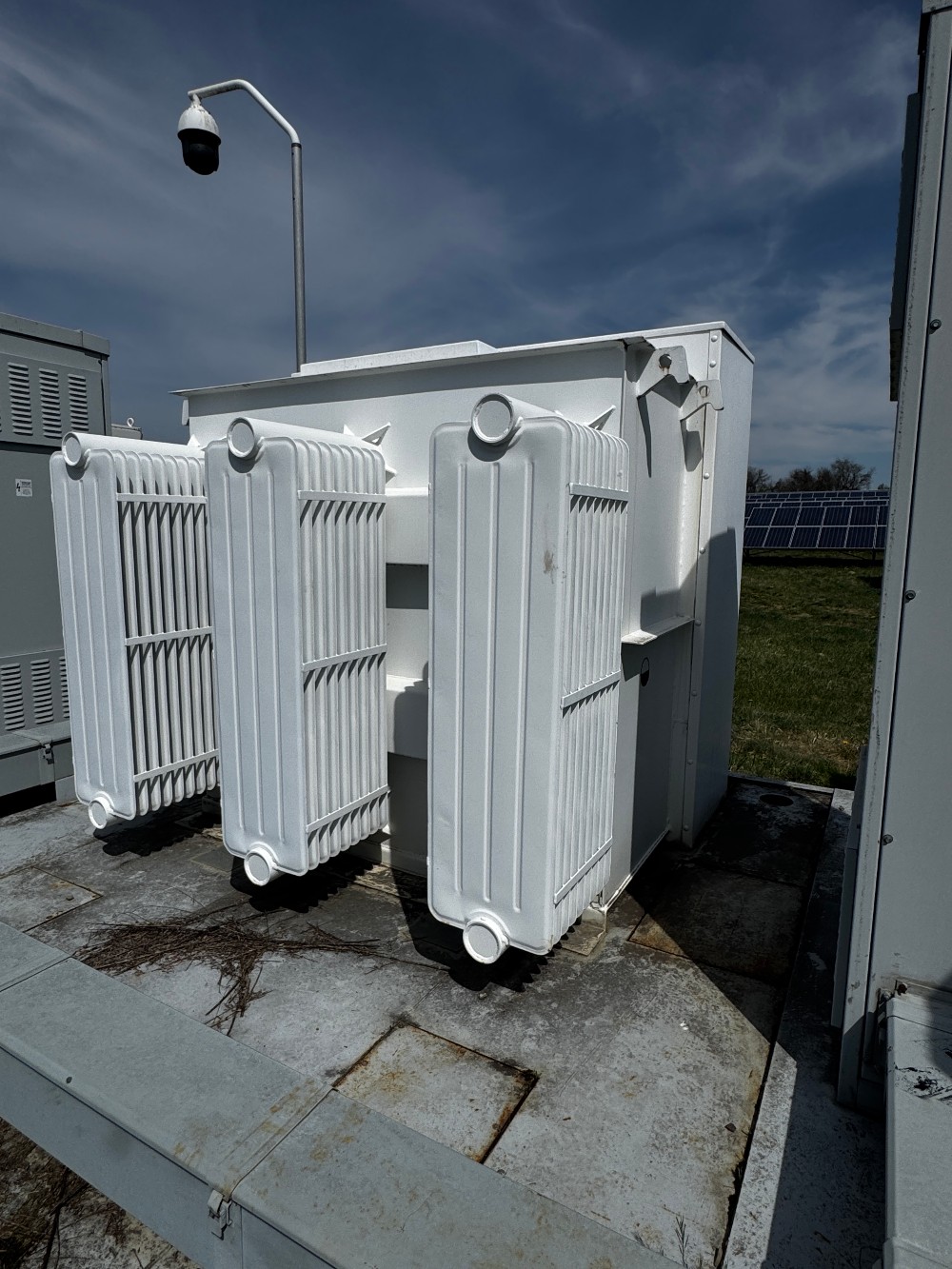

1x large transformer approx 500-750 kva (de-energize pending on details)
https://drive.google.com/drive/folders/1Ir-mirB2JWB9Ohg6U3MGNmTB0vYVIsnW?usp=sharing

4x Recombiners (de-energize pending on details)
https://drive.google.com/drive/folders/1BnnqW_ijxqEu6_COfSjGbZMjrNNzKHIB?usp=drive_link

Ancillary items also available - disconnects, junction boxes, frames.

Inverter info:

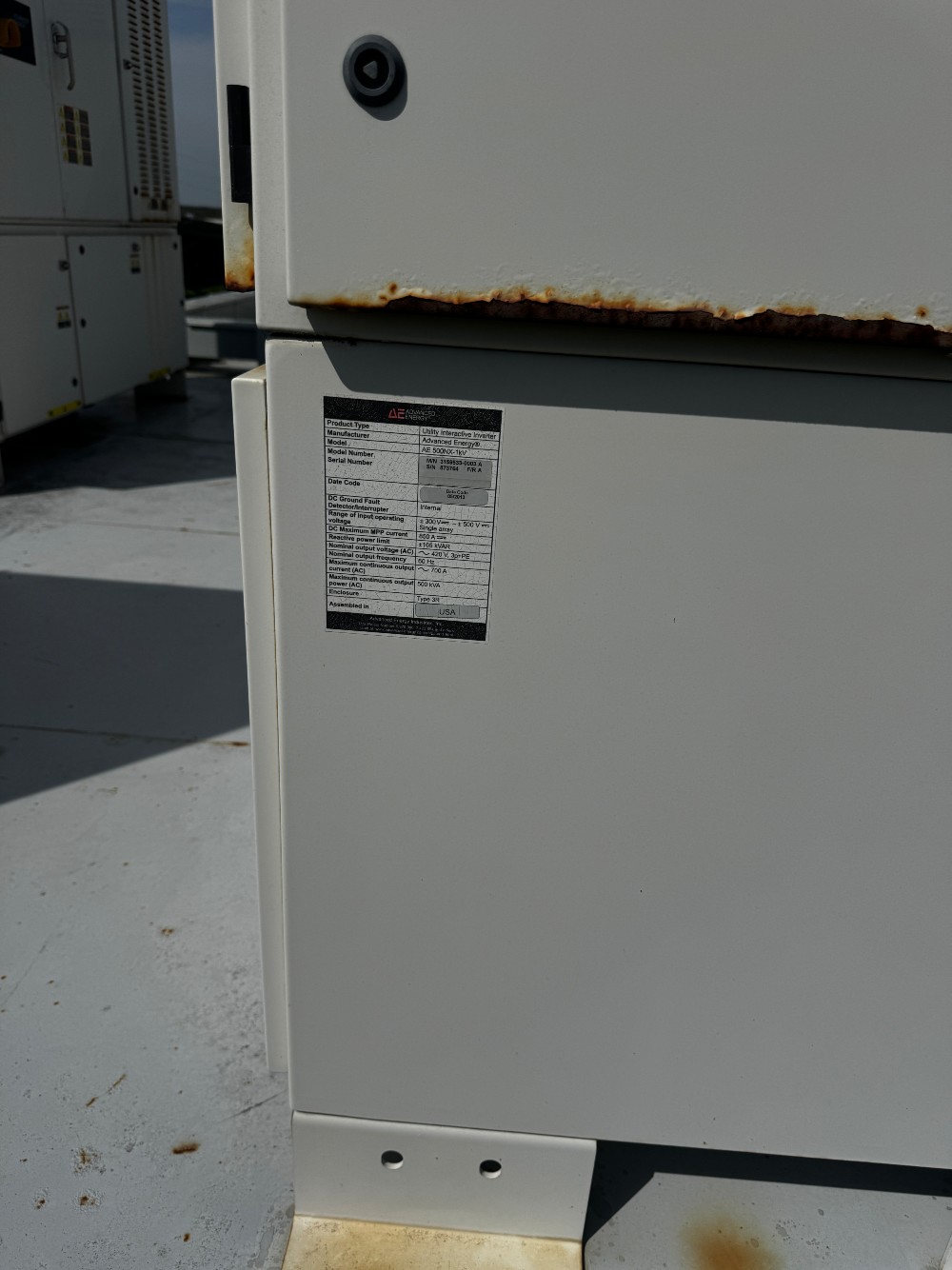

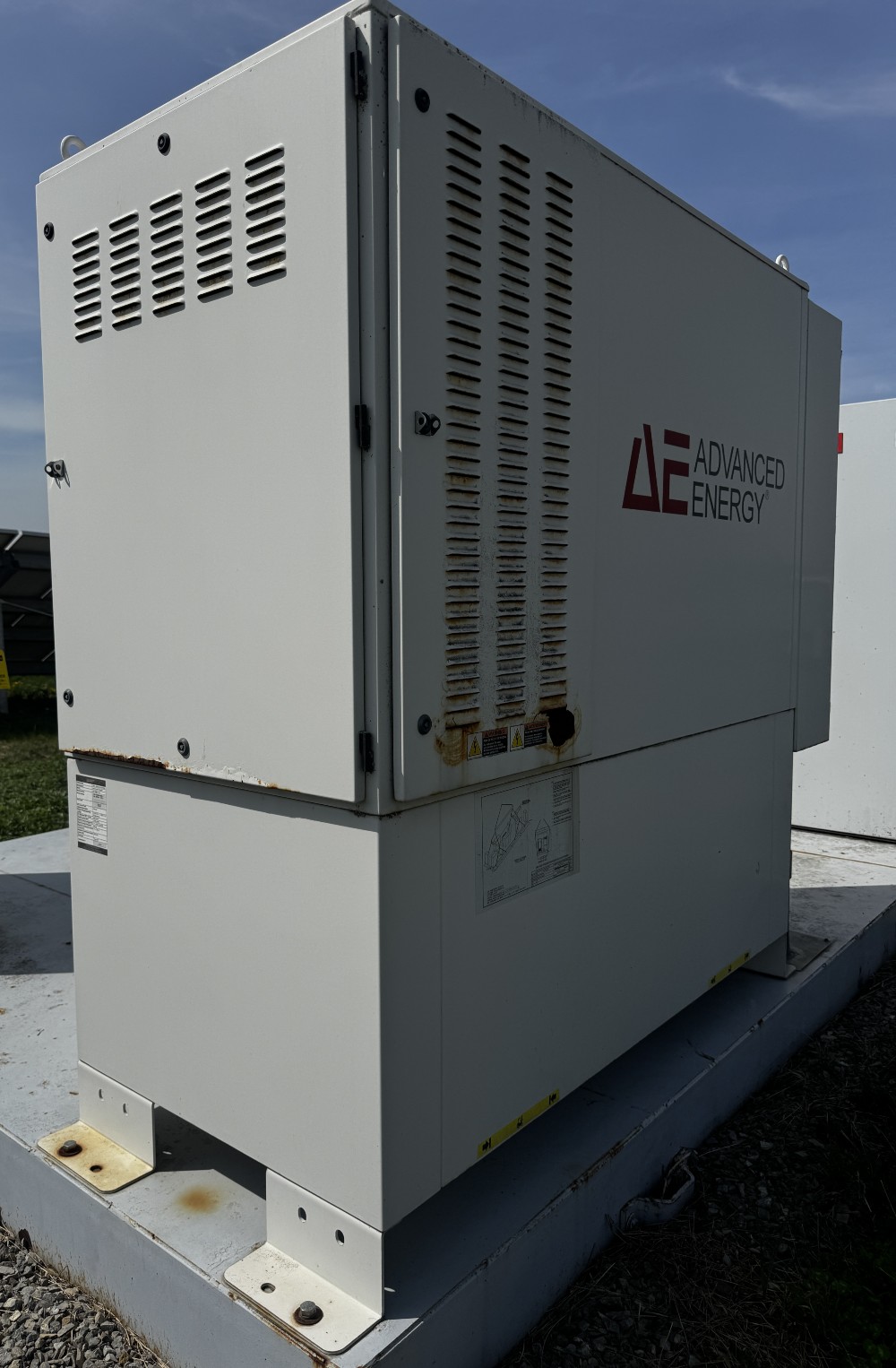

Advanced Energy AE 500NX-1kV 500 kVA Utility-Scale Solar Inverter
Item: Utility-Scale Solar Inverter
Manufacturer: Advanced Energy
Model: AE 500NX-1kV
Type: Utility Interactive Inverter
Serial Number: 872450
Date Code: 05/2013
Country of Assembly: USA
Electrical Ratings
.Maximum Continuous Output Power: 500 kVA (approximately 500 kW)
.Output Voltage: 420 VAC, 3-Phase
. Output Frequency: 60 Hz
. Maximum AC Output Current: 700 A
. DC Input Voltage Range: ±300 to ±500 VDC
. Maximum MPP Current: 850 A
.Enclosure: NEMA Type 3R (Outdoor Rated)
