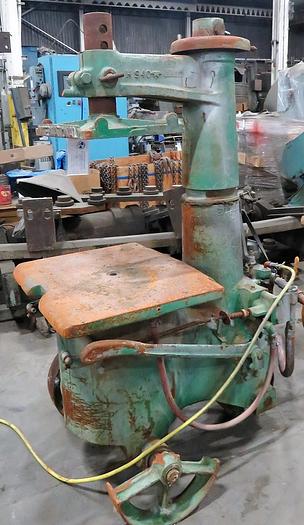

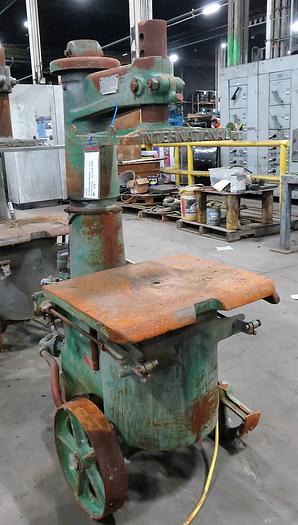

International #LVJS, Molding Squeezer, 14" Cylinder, 16,000+ LB Force, 24" x 24" Table, 12" Draw

$4,130 USD

Request Formal Quote

THE INTERNATIONAL LVJS MOLDING SQUEEZER IS A HEAVY-DUTY FOUNDRY MACHINE DESIGNED FOR EFFICIENTLY CREATING COMPACTED SAND MOLDS THROUGH A JOLT-SQUEEZE ACTION. THIS ROBUST MODEL IS ENGINEERED TO PROVIDE UNIFORM SAND DENSITY, ESSENTIAL FOR PRODUCING HIGH-QUALITY CASTING MOLDS. A KEY TECHNICAL SPECIFICATION IS THE 14-INCH DIAMETER OF THE PRIMARY SQUEEZE CYLINDER, WHICH GOVERNS THE MACHINE'S MAXIMUM VERTICAL COMPACTION FORCE. OPERATING ON STANDARD PNEUMATIC PRESSURES, THIS UNIT IS TYPICALLY CAPABLE OF GENERATING A POWERFUL SQUEEZE FORCE THAT CAN EXCEED 16,000 POUNDS WHEN UTILIZED AT AN 80 PSI LINE PRESSURE, ACCOMMODATING VARIOUS MOLD DENSITY REQUIREMENTS. WHILE SPECIFIC CONFIGURATIONS MAY VARY, THE MACHINE COMMONLY FEATURES A WORK TABLE SIZE IN THE RANGE OF 24 INCHES BY 24 INCHES, MAKING IT SUITABLE FOR MEDIUM-TO-LARGE FLASK DIMENSIONS. FURTHERMORE, THE LVJS MODEL IS EQUIPPED WITH A MECHANICAL DRAW SYSTEM, TYPICALLY OFFERING UP TO 12 INCHES OF PATTERN DRAW, FACILITATING THE EASY REMOVAL OF THE PATTERN FROM THE COMPACTED SAND MOLD WITHOUT DAMAGE. THIS UNIT IS A CRITICAL COMPONENT IN HIGH-PRODUCTION MOLDING LINES, VALUED FOR ITS RELIABILITY AND CONSISTENT PERFORMANCE IN DEMANDING FOUNDRY OPERATIONS.
