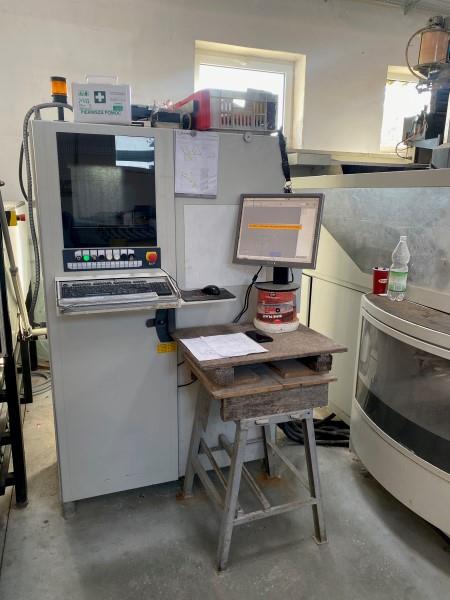

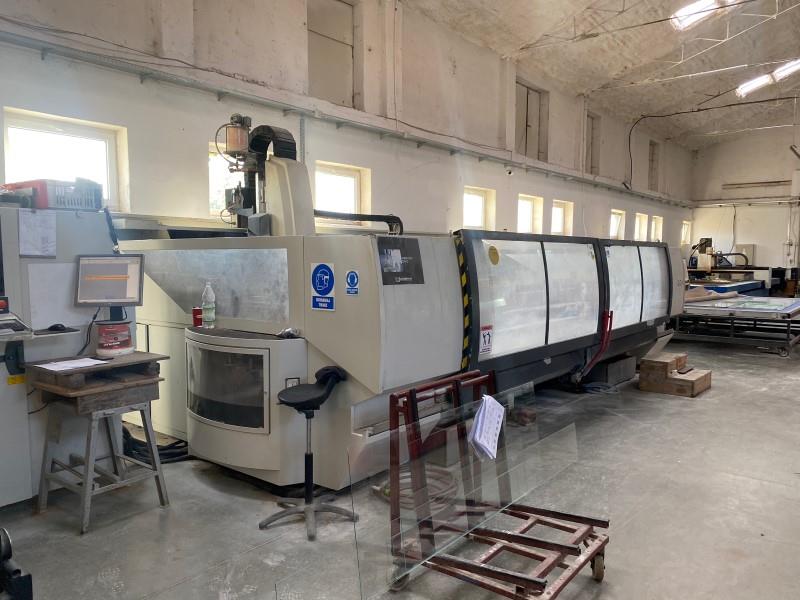

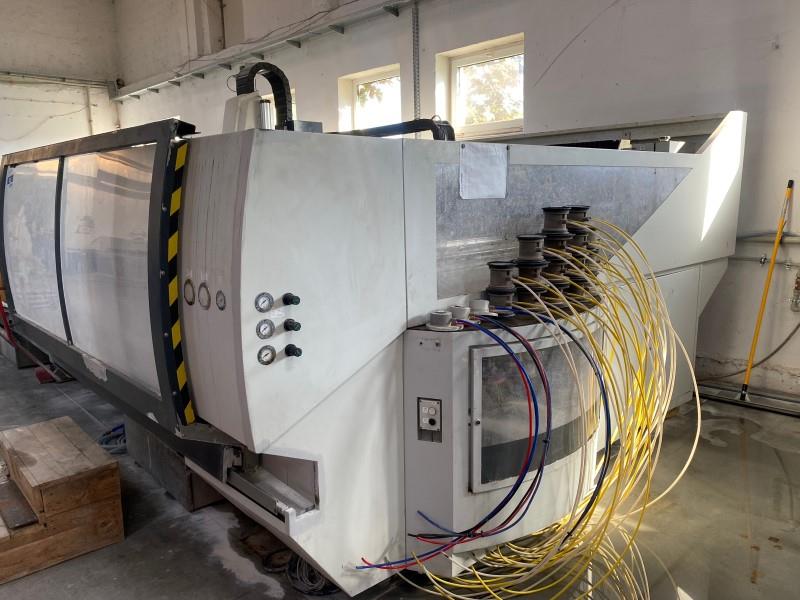

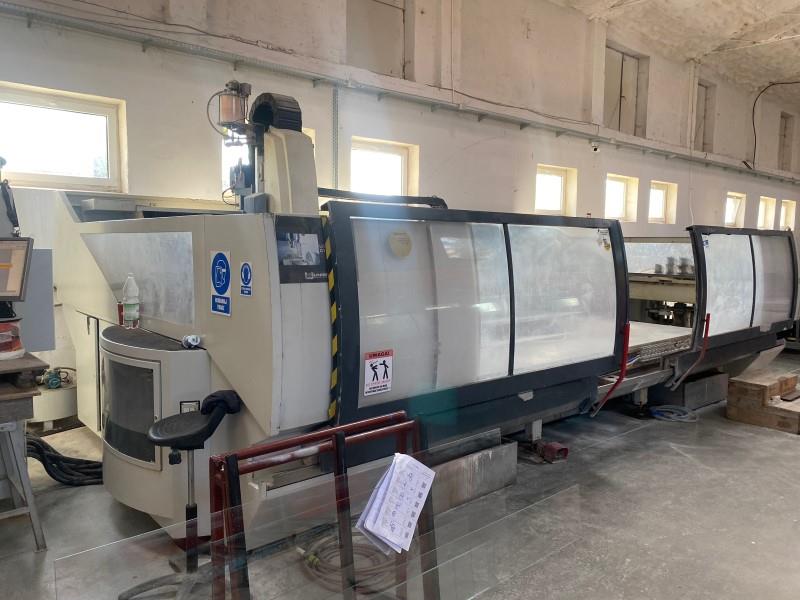

Intermac #Master-45-Aperta, CNC glass work center, 90" x158" cap., PLC, 7-bar, 12000 RPM, (2) 14 pos. rotary tool holders, 2006

Estimated monthly payment valid upon approved credit.

Request Formal Quote

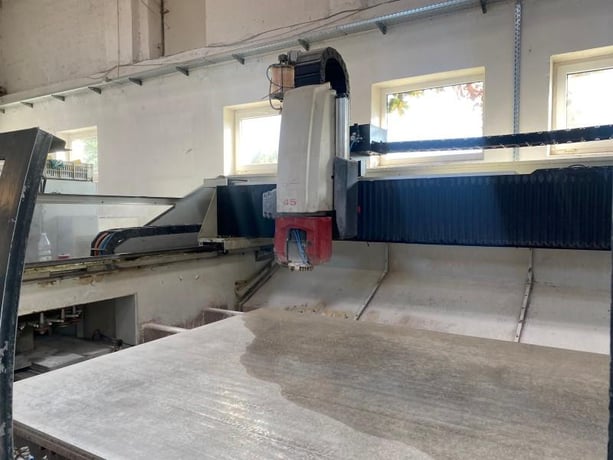

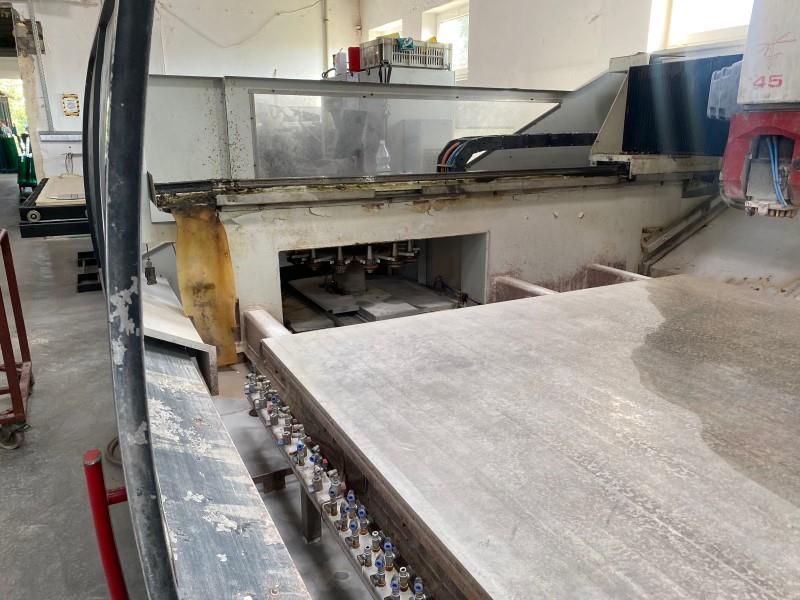

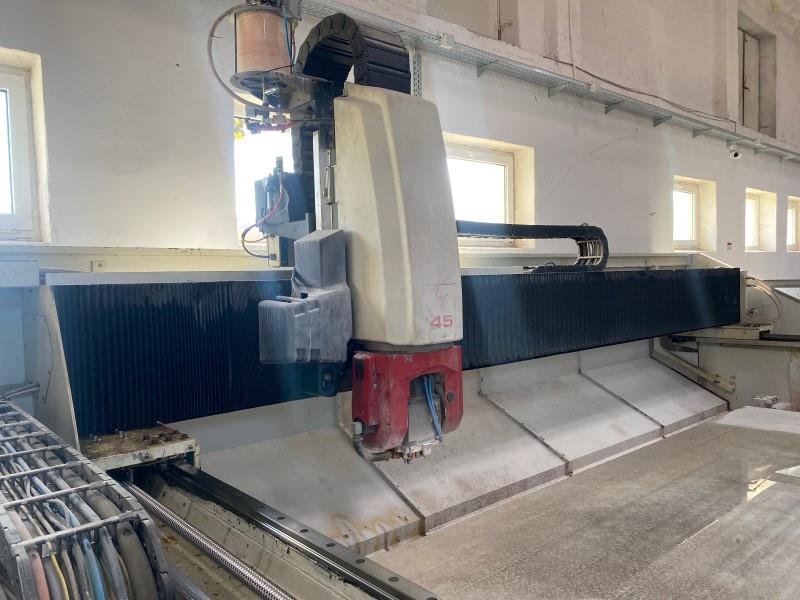

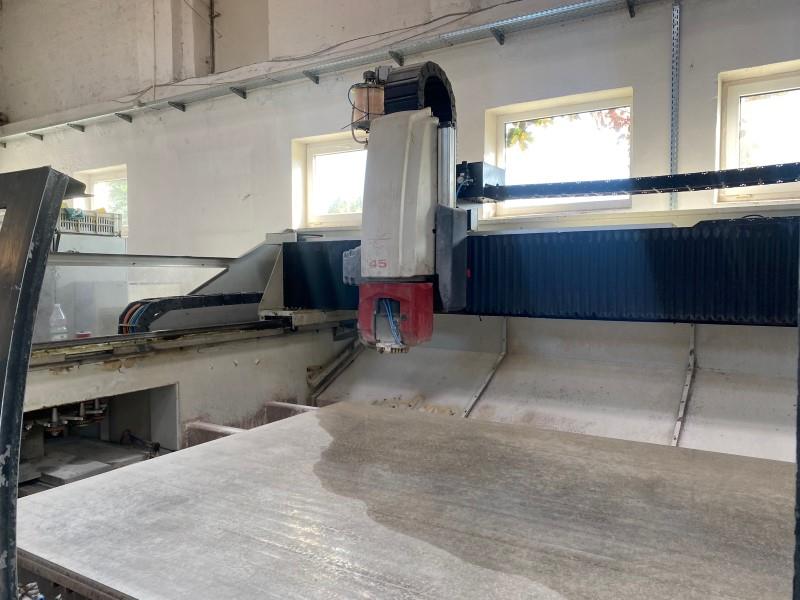

INTERMAC MASTER 45 APERTA 5-Axis CNC Working Center - 2300 X 4060 mm (90" X 158")PLC Controlled Work Center with (5) controlled axis for milling, drilling, grinding, polishing, engraving and carving marble, stone, and glass products. Particularly suited for the production of bathroom unit tops, shower enclosures and glass for domestic appliances.Gantry type 5-axis work center for automatic cycle machining operations such as V-grooves, offset grooves and concave grooves of different widths. The computer controls speed and polishing wheel wear.The table is equipped with a system for positioning and fixing the panels to be treated with a series of vacuum cups with a double vacuum circuit, which makes it possible to easily and reliably lay up the panels for machining without the need for mechanical fixing with screws. The vacuum system for supplying vacuum power to the suction cups and positioning stops is a "Liquid Ring" pump with a capacity of 75 cubic meters per hour and requires no maintenance. The system has the ability to control the work of vacuum cups and stops, while the surface of the working area is divided into two independent areas. Suction cups are fastened with quick-change couplings.The Electro spindle is equipped with an internal compressed air circuit. All moving parts are located above the level of the lubricating fluid. The electro spindle is equipped with a dual cooling system: internal, on clean water, a cooling tool directly from the inside, and an external cooling system with a circulating liquid that is filtered automatically, ejected out of the holes located around the tool. Specifications:Max. sheet dimension: 2300 X 4060 mm (90" X 158")Air pressure: 7 barAir consumption: 250 liters/Min Water consumption: 6.5 liters/Min Water pressure: 2.5 barPower: 25 kWElectro-spindle RPM 0 - 12000 RPMDimensions: 4420 x 7455 x 3380 mmWeight: 7711 kG (17,000 Lbs.)Features:● Grinding (rectilinear and / or curvilinear) of the edge of the sheet.● Cut with cutter (straight and / or curved).● Drilling and / or countersinking● Writing on the leaf surface ● Liquid ring vacuum pump and tank● Centralized automatic lubrication system● Water collection and recycling system● (2) 14 Position Rotary Tool Holders● PC with axis drive XP 615, IWNC interface, Ethernet card, Integrated Modem● 15″ Color Monitor, CD-ROM drive● CAD-CAM software - ICAM 3D Software● Additional options included for: Engraving, Bevelling, CuttingNOTE: Machine in very good condition with low run hours and is ready for immediate delivery. NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Suppliers to your Door. …Packaging, Loading, Freight, Insurance (door to door) ....Full servi
