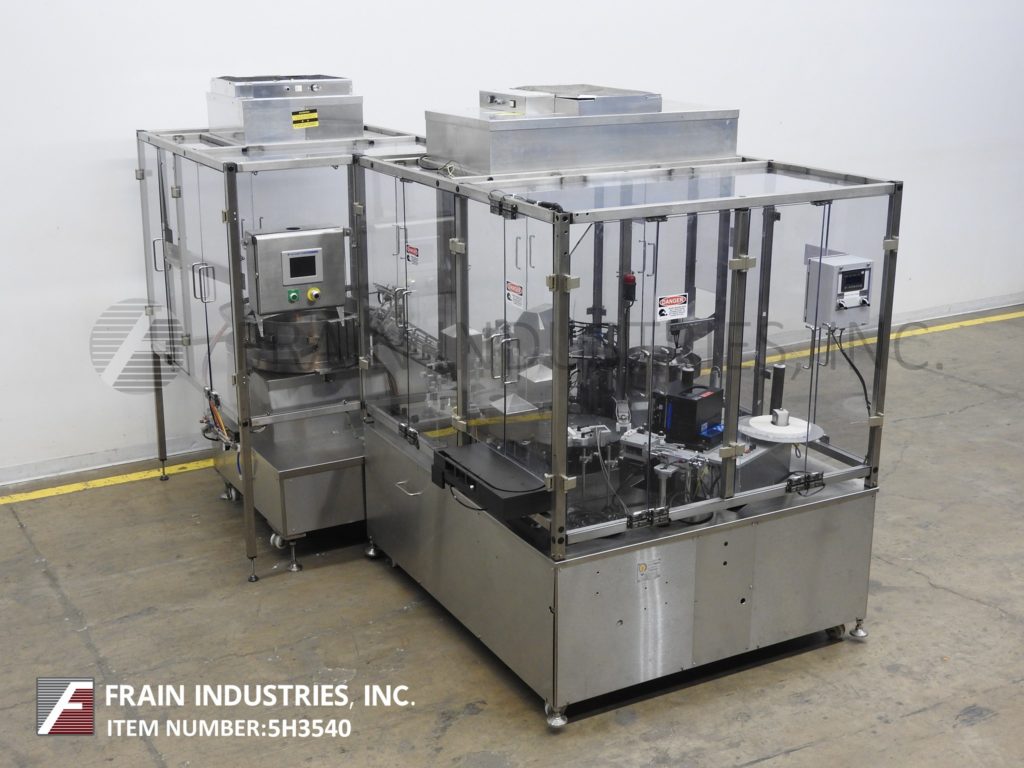

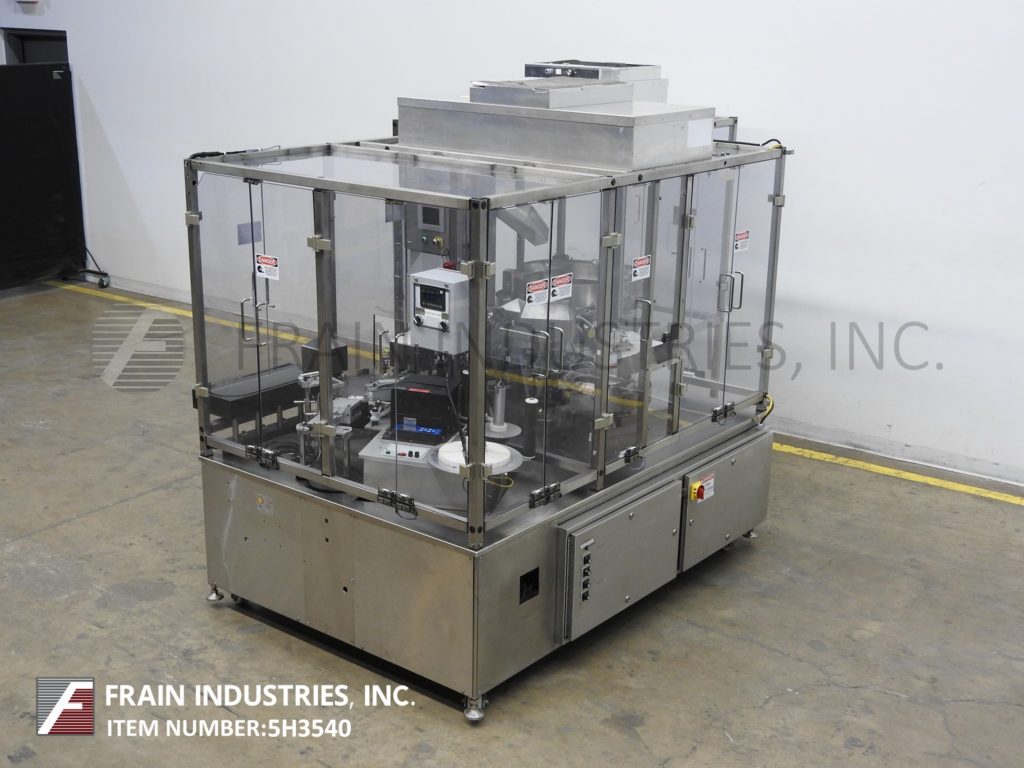

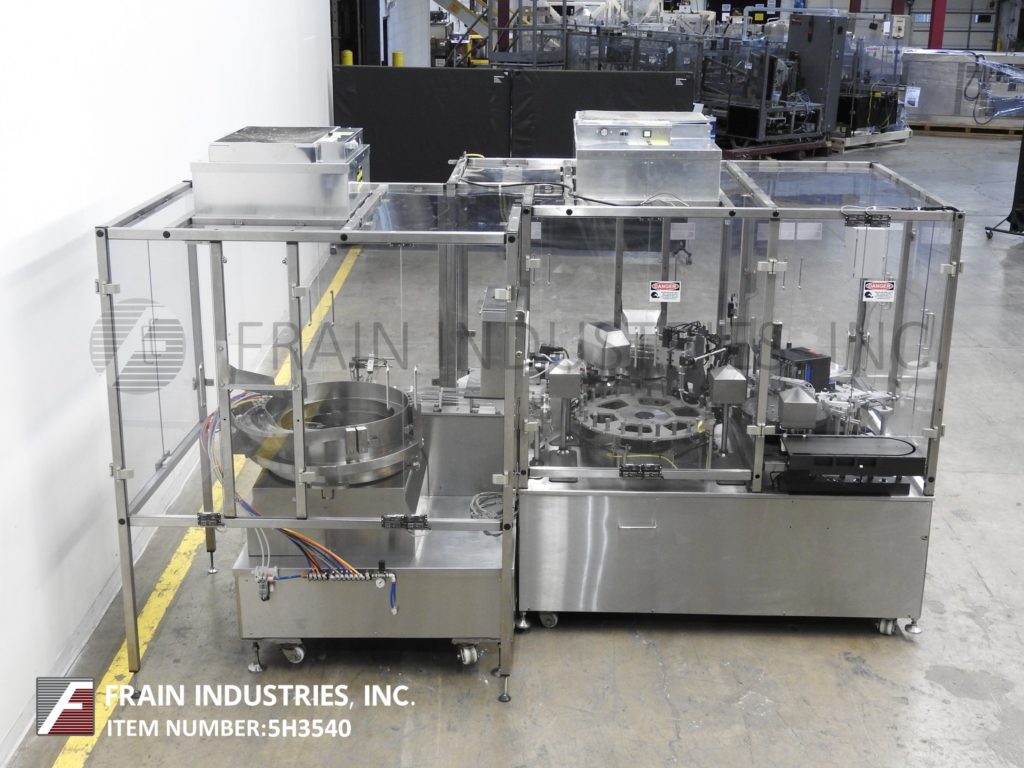

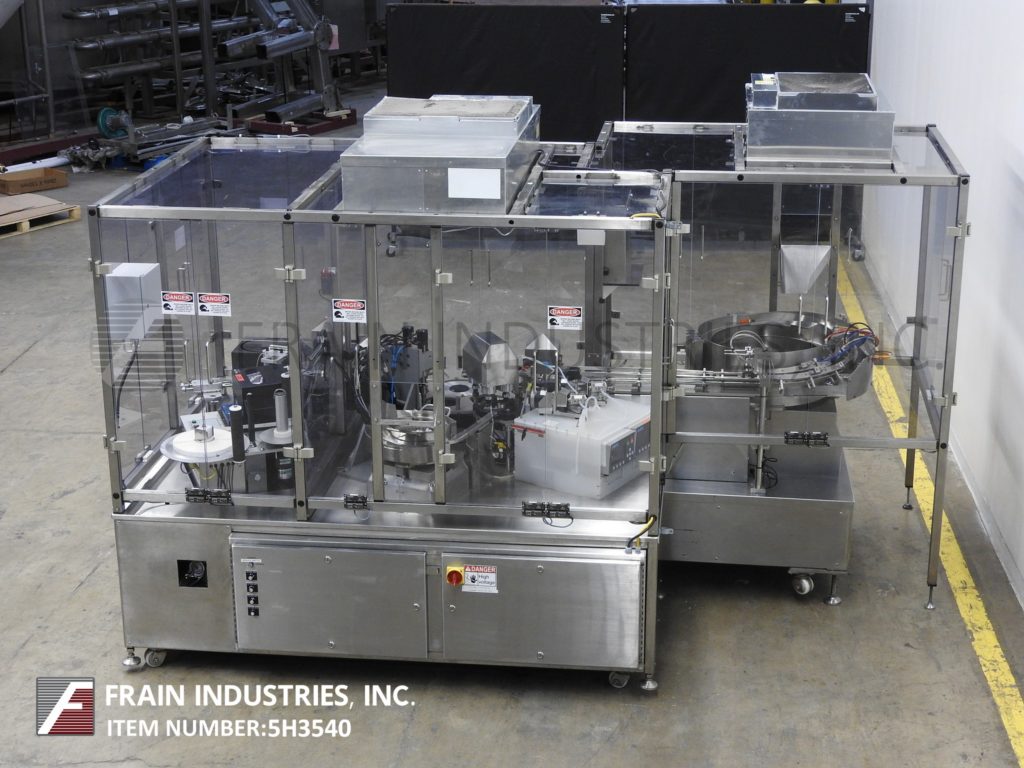

Intellitech Monoblock #AFSM1500, 2-up, automatic, continous motion, Stainless Steel, rotary filler, capper, print & apply wrap labeler, monoblock system

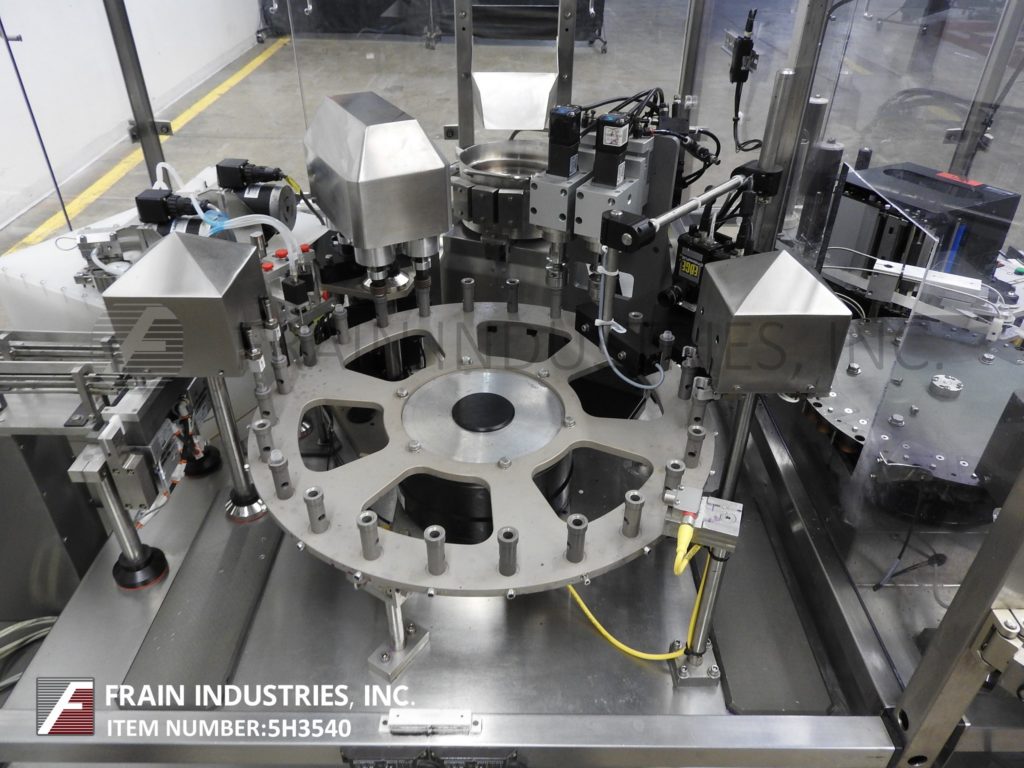

Intellitech Model AFSM1500, 2-Up, automatic, continous motion, stainless steel, rotary filler, capper, print and apply wrap labeler, monoblock system with number of containers per minute – depending on materials and application. Container size: Diameter and Height per appliaction. (last running 1.5mm micro tubes). Equipped with 30" OD vibratory container feed bowl with 42" long dual container feed chutes to 25" OD turret with (24) stations set on 3" centers. Stations 1 and 2 container cleaners, stations 3 and 4 dual bottom up fill, with Ivek pump and no container / no fill, 16" OD vibratory cap bowl with 24" long cap feed chute to stations 5 and 6 cap place, stations 9 and 10 cap tighten, stations 11 and 12 cap vision check, stations 13 and 14 double tube gripper discharge to 16" OD turret print and apply wrap label section, has LSI label system with panel view controller and Sato print engine. Control panel has PLC controller and A/B panel view touch pad controls, with vial bowl and vial track, cap bowl and cap track power on / off switch and start, stop, e-stop push button controls. Mounted on stainless steel base frame with Class 100 enclosure and has HEPA filtration system, UV germicide lighting, polycarbonate doors and magnetic interlocked safety switches and leveling legs.

OAD: 128" L x 96" W x 80" H
