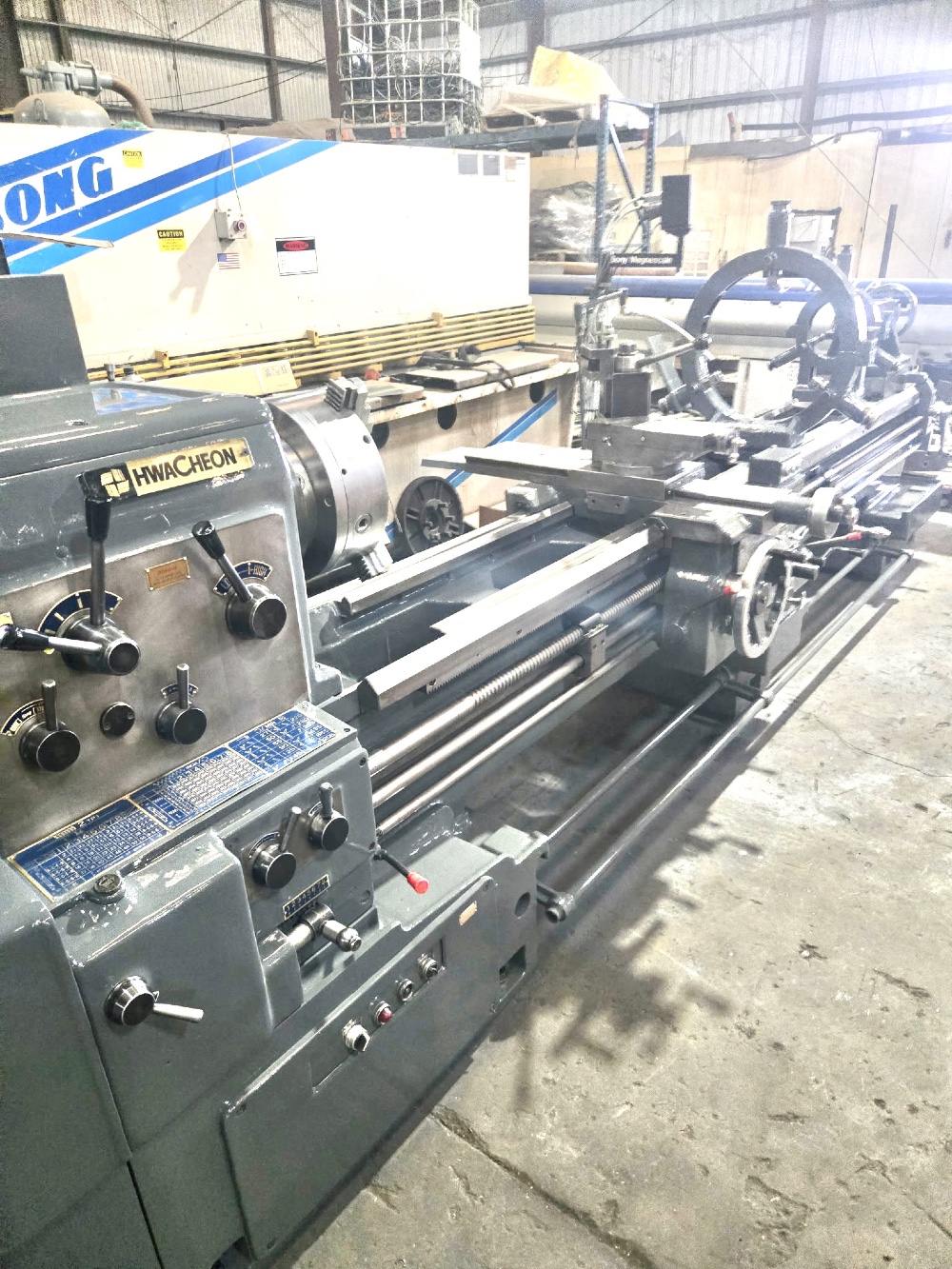

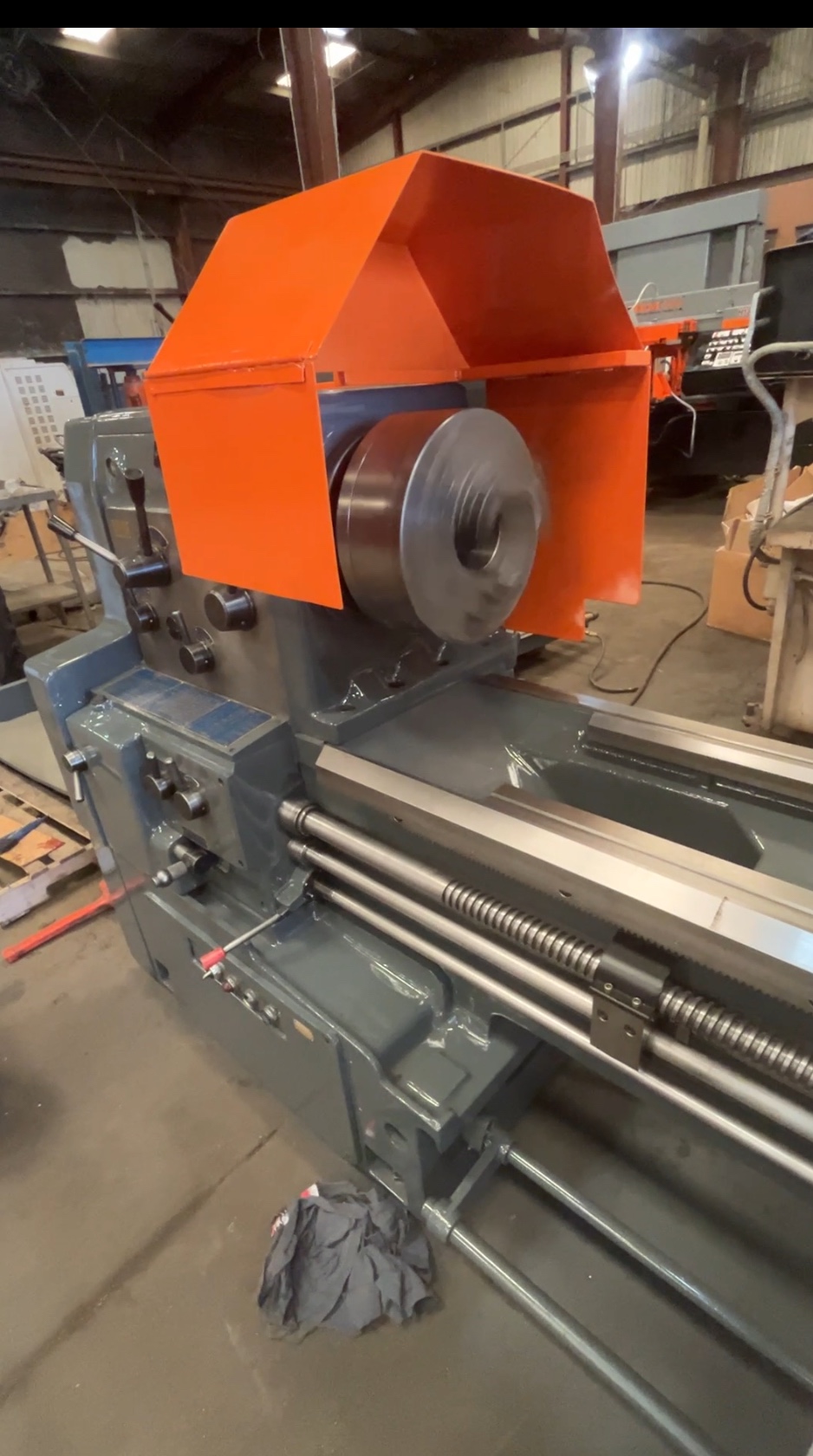

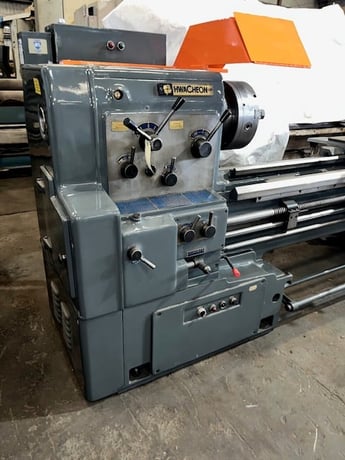

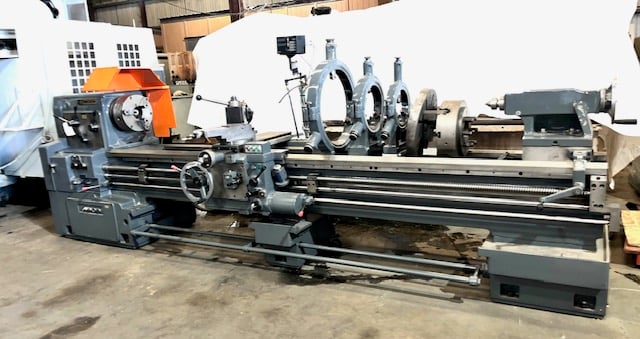

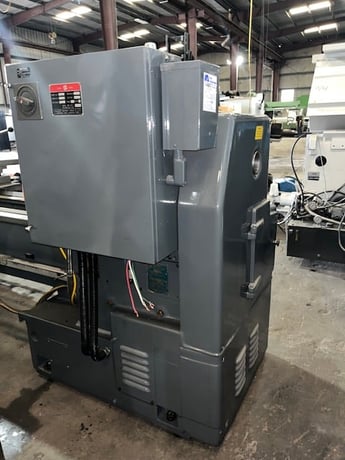

24" x 118" Hwacheon #HL-630, precision engine lathe, Sony 2-Axis digital read out, like new

WHACHEON HL 630

Precision Engine Lathe

2-Axis Sony DRO

With Rapid Traverse

Swing 24.8”

Centers 120"

Spindle Bore 3"

Power 15 hp

RPM 1,205 RPM

Swing Over Cross Slide 19.7"

Capacity:

Swing Over Bed......................................... 24.8”

Swing Over Cross Slide.............................14.96 "

Swing Over Gap.........................................Non Gap

Distance Between Centers.......................118.11"

Spindle:

Spindle Nose.............................................A-8"

Spindle Bore..............................................3.03"

Taper Of Spindle Bore...............................MT No.7

Taper Of Center..........................................MT No.5

Range Of Spindle Speeds (12)...................27-1,205 RPM

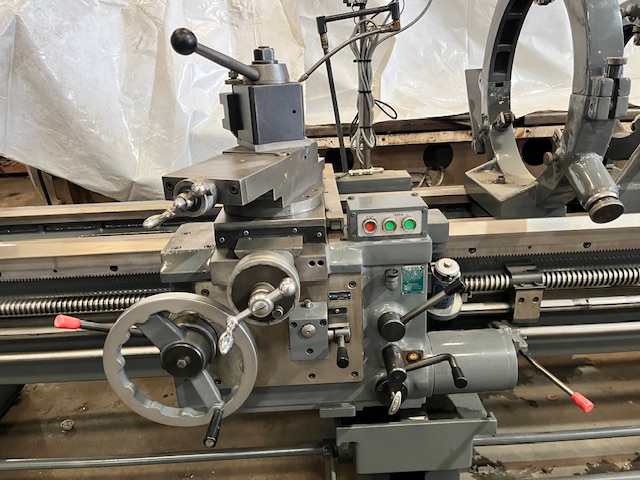

Carriage:

No. Of Feed Changes..................................40 Step

Longitudinal Feed (Z-Axis).........................0.0015"~0.0216 IPR

Cross Feed (X-Axis)....................................0.0016~0.0228 IPR

Cross Slide Travel.......................................13.35"

Compound Rest Travel...............................6.69"

Bite Holder Size..........................................1.25"x1.25"

Threads:

Lead Screw (Dia. x Pitch)...........................1.57" x 0.47"

Inch Threads................................................56~2 TPI

Metric Threads.............................................0.0196"~0.55"

D.P. Threads..................................................1~7 MP

Tail Stock:

Spindle Travel...............................................5.90"

Taper Of Center.............................................MT No. 5

Bed:

Width Of Bed..................................................20.07"

Length Of Bed................................................175.27"

Motor:

Main Spidle Motor..........................................15 HP

Coolant Pump Motor......................................0.13 HP

Tank Capacity:

Coolant............................................................200 Gal.

Machine Size:

Dimension (L x W x H)....................................186.22" x 60.78" x 57.75"

Net Weight.......................................................10,185.35 Lbs.

Equipped With:

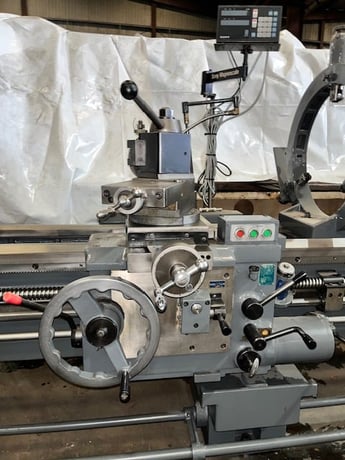

Sony 2-axis full length Digital Readout System

Aloris Tool Post

• Chucks

3-JAW , 4-JAW And Faceplate

Coolant Equipment:

Two Removable Chip Pans

Two Removable Sub-Coolant Pans , Coolant Pump, piping and nozzle

Thread Dial

Rapid Traverse

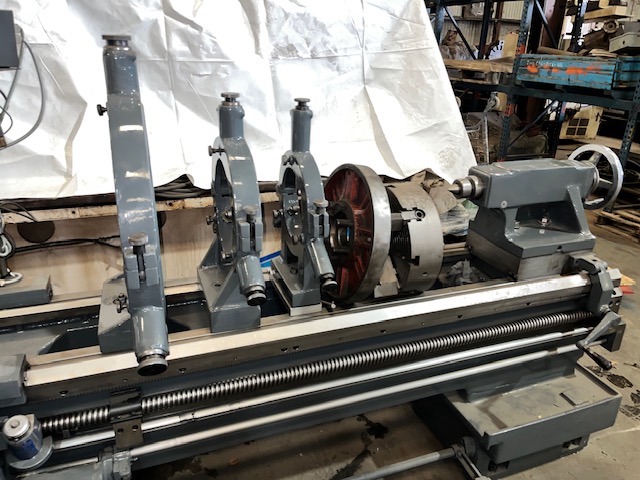

(3) Steady Rest’s (with Over sized : 11"~17")

10 leveling pads

Disc Brake W/ dual length foot brake lever

Excellent Condition

Built in Korea to Japanese Standards
