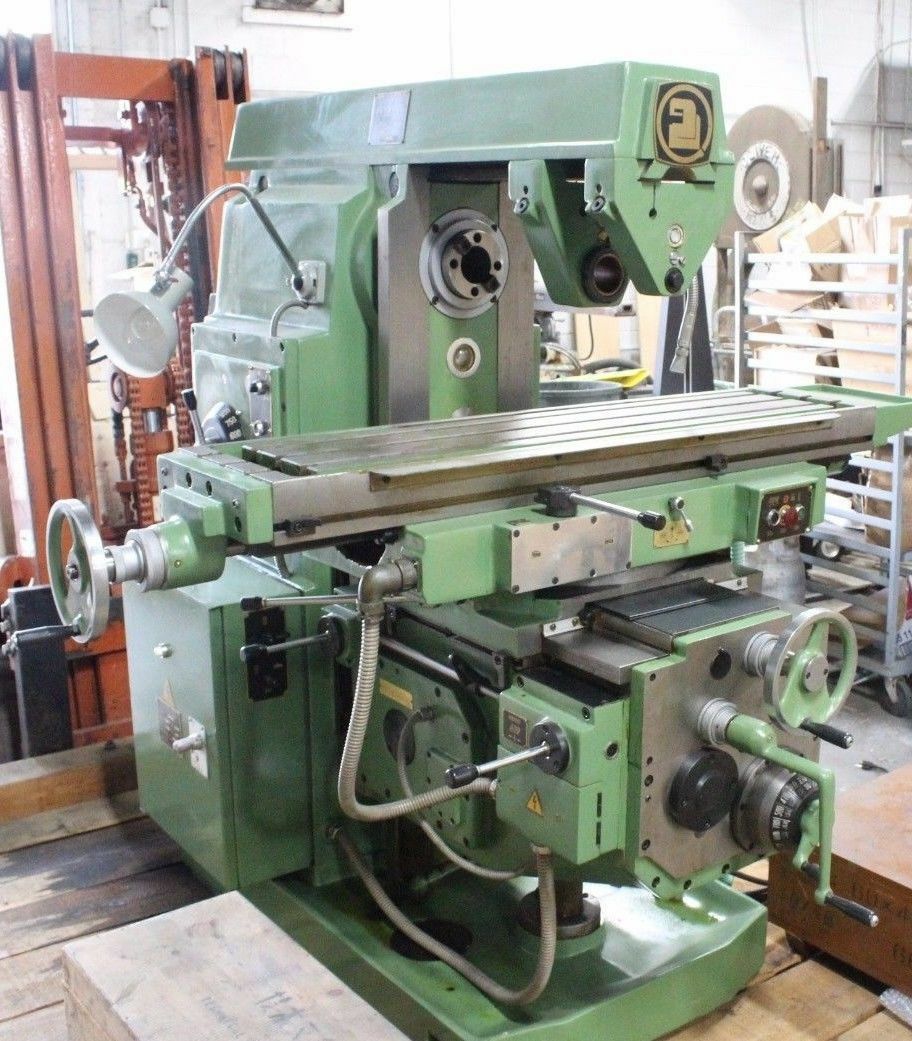

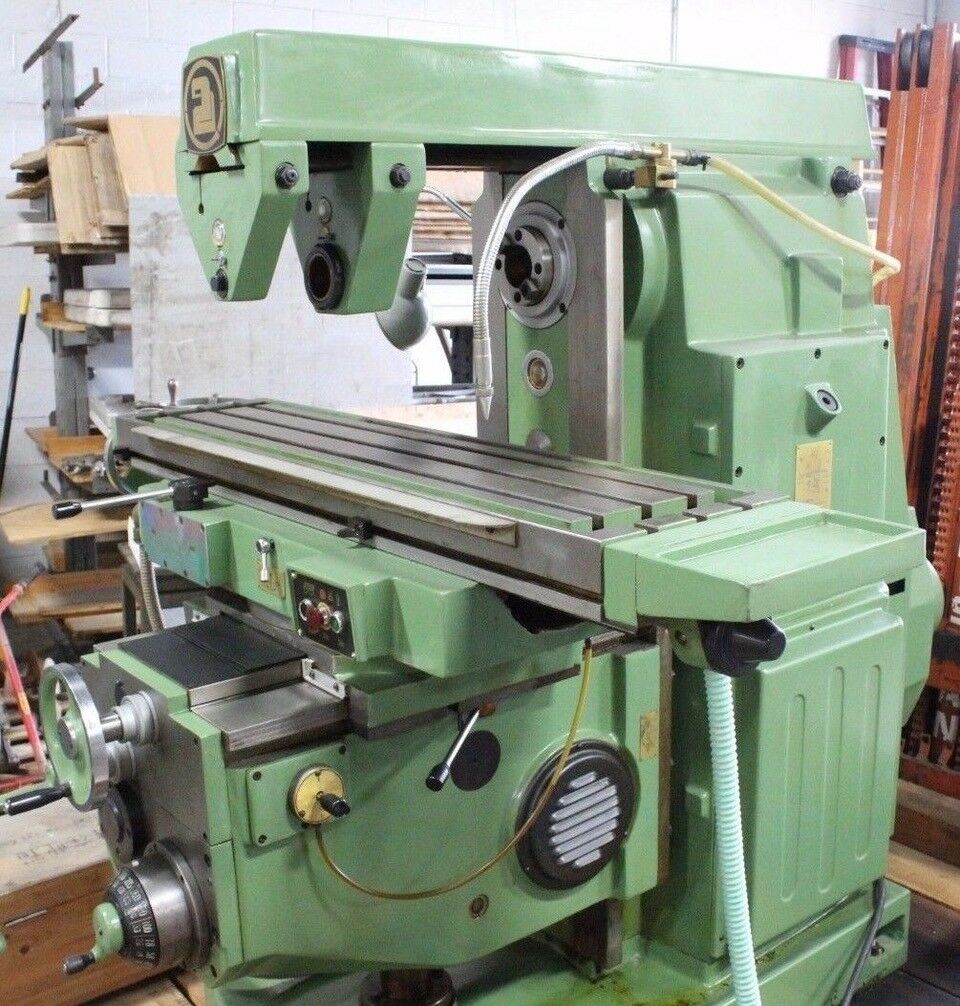

Horizontal Milling Machine, 13" x 52" Table, 45 deg. Table Swivel angle, 18 Spindle Speeds, 30-1500 RPM, 220 V

Milling Machine, (NEW) horizontal, X,Y & Z power & rapid feeds AND Universal Table

Table size . . . . . . . . . . . . . . . . . . 13 x 52 in. (320 x 1320mm)
Table Swivel angle . . . . . . . . . . . 45°
Spindle Taper. . . . . . . . . . . . . . . . # 50
Power feeds: . . . . . . . . . . . . . . . . all 3 axes, X, Y and Z
Rapid traverse: . . . . . . . . . . . . . . Yes, as above
No. of spindle speeds: . . . . . . . 18
Spindle speed range: . . . . . . . . . 30 – 1500 rpm
Lubrication pump . . . . . . . . . . . . Yes
Coolant pump system . . . . . . . . Yes
Electrics . . . . . . . . . . . . . . . . . . . 220V 3ph.
Weight (net) . . . . . . . . . . . . . . . . 6600 lb. (3000 kg.)

EQUIPPED

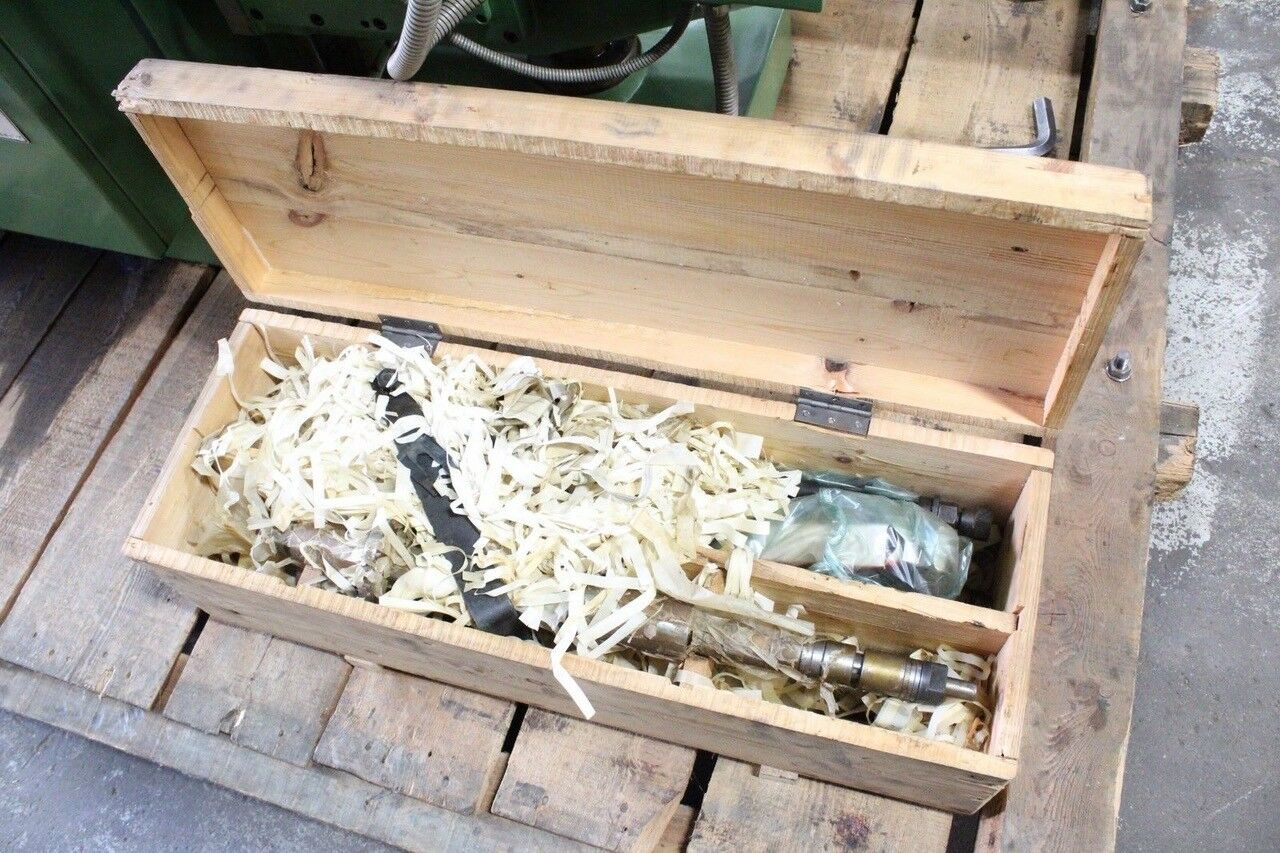

Box 1- 2 Milling arbors (2 sizes) with spacers, bushing and wrench, New
Box 2- assorted other tooling, New
2 Arbor supports, with oil reservoir and site glass (installed)
Work lamp (installed)
Lubrication pump (installed)

Price, (New, $21,000) FOB, PA location . . . . . . . REDUCED, now only $8,900 (or best offer)

NOTE:
This machine was purchased in new-unused condition to do a specific job – namely to cut three parallel slots, 5 mm wide and 3 in deep in milds steel stock.(MS). However the contract was cancelled before the machine could be put to work. It is no longer needed which is why it is now being offered at this very low price. This is essentially a “new” machine. Yes it IS made in China, but by a reliable mfr of both conventional and CNC milling machine, since 1952. They holds high quality certificates from the Ministry of Industry!

WE can send you a color .pdf from the mfr. if you like.

Call us anytime for more info, Toll Free at 1-888-459-4025
We’re friendly and it’s way faster than back and forth emails.

SHIPPING

We can help you find a load broker or carrier to bring this straight to your
shop door- n truck.
