For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
$118,900 USD
Finance for as low as $2,411/mth
Description

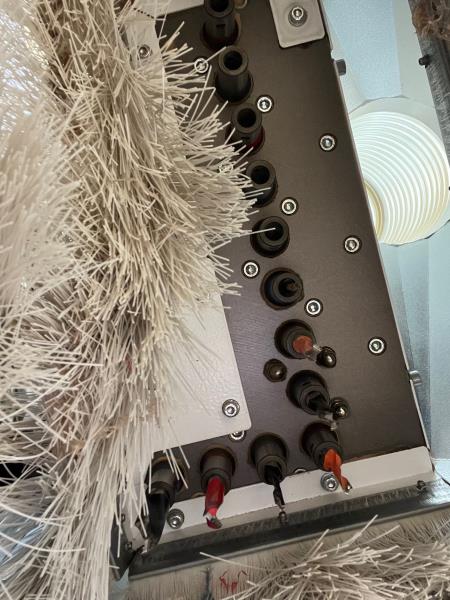

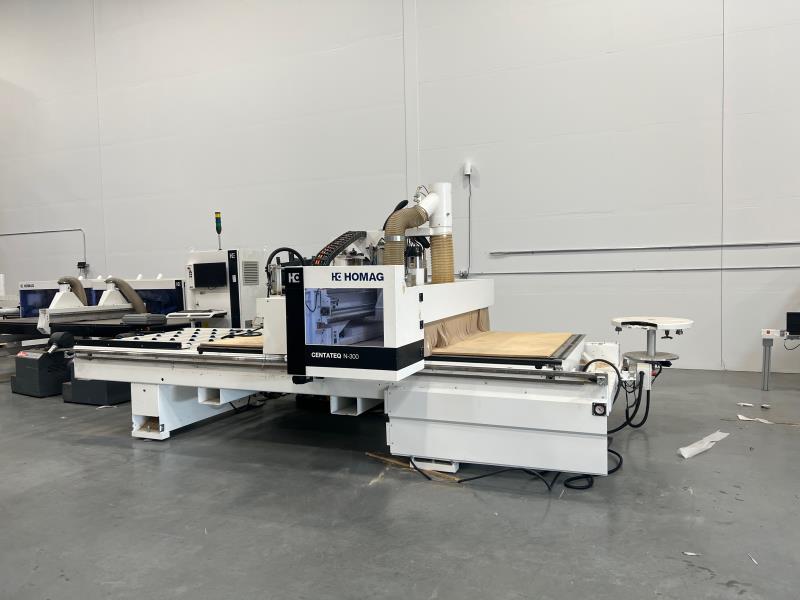

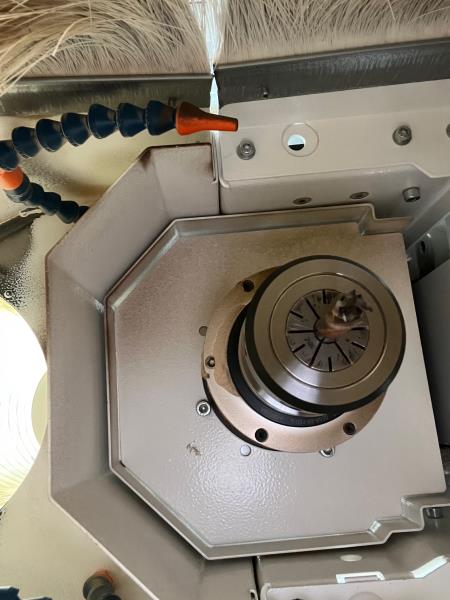

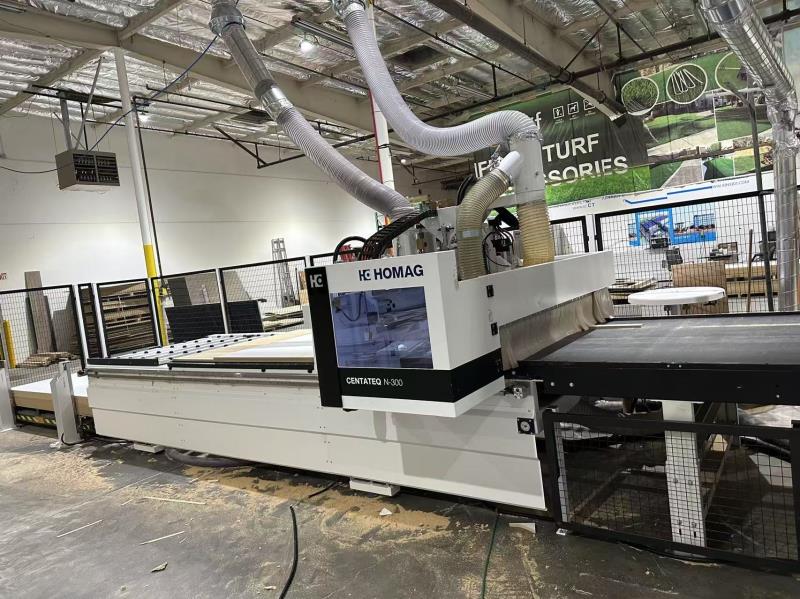

HOMAG - CENTATEQ N 300/510: Flat Table Machine (/Loading/Unloading/ATC/Boring) -- Specifications 5' x 10' Flat Table "Bridge Gantry" machine with: User-Friendly "MATRIX" grooved phenolic vacuum table. -- Working Area"X" Axis: 122" (3,100 mm); "Y" axis: 61" (1,550 mm); "Z" axis stroke Routing: 12.8" (325 mm); "Z" axis stroke boring: 7.3" (185 mm); max. material thickness: 3.9" (100 mm). -- Positioning Speed "X" Axis: 236 FPM (72 MPM); "Y" axis: 203 FPM (62 MPM); "Z" axis: 82 FPM (25 MPM). - Machine head travels on: THK Linear motion guides on all axes. -- Worktable(1) Pneumatic locator/positioning rail: "X" Axis; (1) pneumatic locator/positioning rail: "Y" Axis. - (10) NC Controlled Vacuum Table work zone. -- Boring Unit3.6 HP (2.7 kW) Motor; (12) independent vertical spindles with: "Quick-Change" drill bit holders; programmable variable speed: 1,500 - 7,500 RPM. -- Machining(1) 16 HP (12 kW) High-speed electrospindle router with: "HSK F63" Adaptor; constant duty; variable speed: 1,250 - 24,000 RPM; RH or LH rotation. - (1) 14-Position Rotary Tool Changer. -- Operator InterfacePC Front-End with: WEEKE "PC 85T" + Windows "10 PRO" + WoodWOP Operating System. 17" TFT Color graphic monitor; keyboard for data entry; PC 85T hand control pendant; CD R/W & floppy drives; EtherNET interface for LAN connection to office PC; RS-232 serial interface; USB ports. ● BECKHOFF Programmable logic control for (3/4) axes: Linear, circular & helical interpolation. ● Controller: Contained in a separate freestanding, dust-free control cabinet that can be placed at either the LH or RH side of the machine. -- Complete with: ● (2) 9 HP BUSCH "Mink MV 0312 B" Vacuum Pumps. Light curtain (machine will stop if the Operator enters the work area). Perimeter safety devices. ● Separate control cabinet. Touch-off tool length measuring device. Handheld pendant control. -- Options Include (1) NC Controlled infeed Scissor Lift table with vacuum loading; (1) Rake system; (1) NC Controlled & powered belt outfeed table with: Vacuum sweeping system. -- Actual Model: HOMAG - CENTATEQ N 300/510.
Inquire Further with Ex-Factory!
