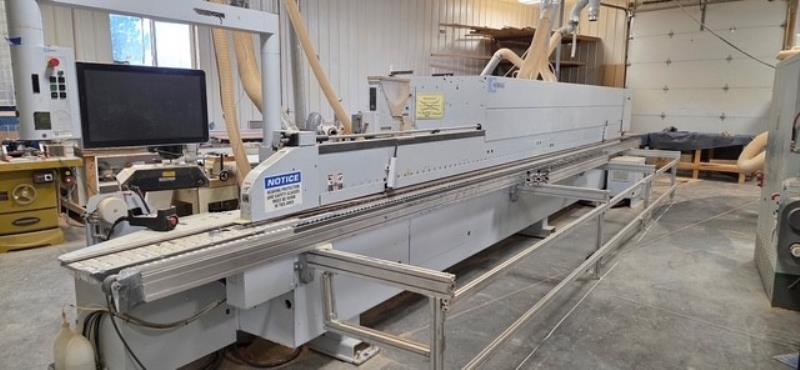

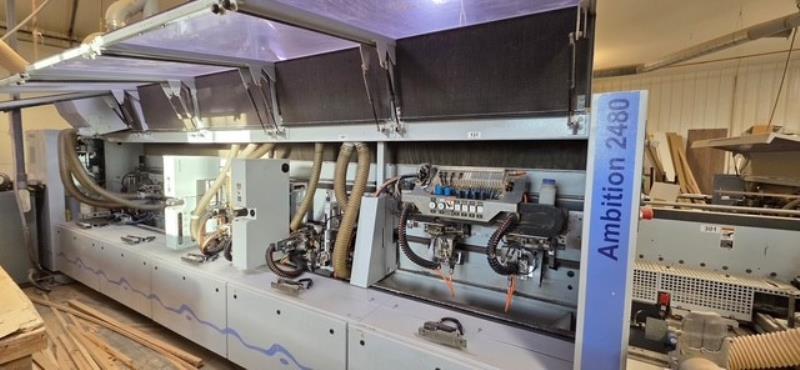

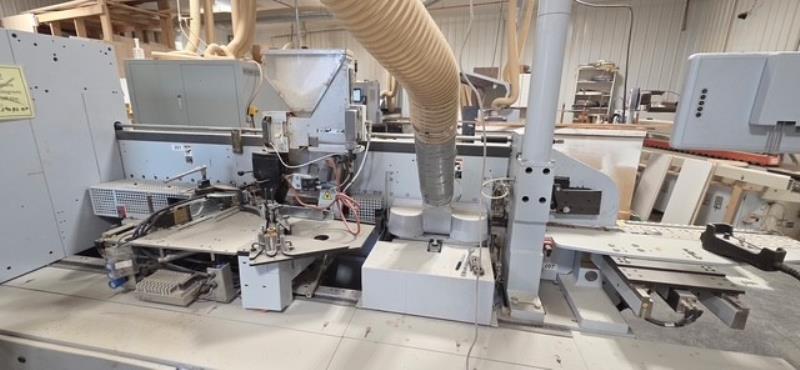

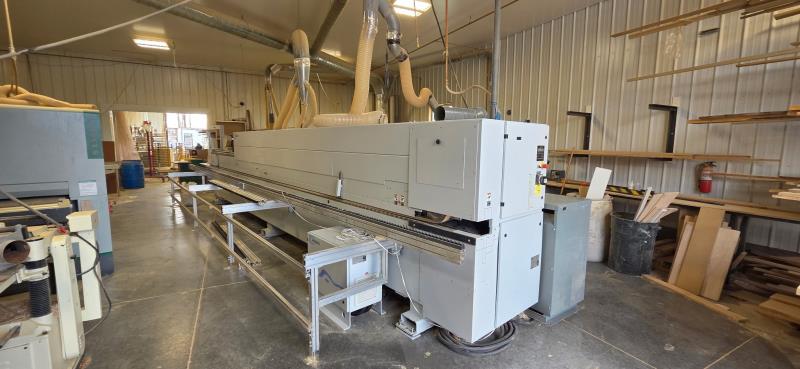

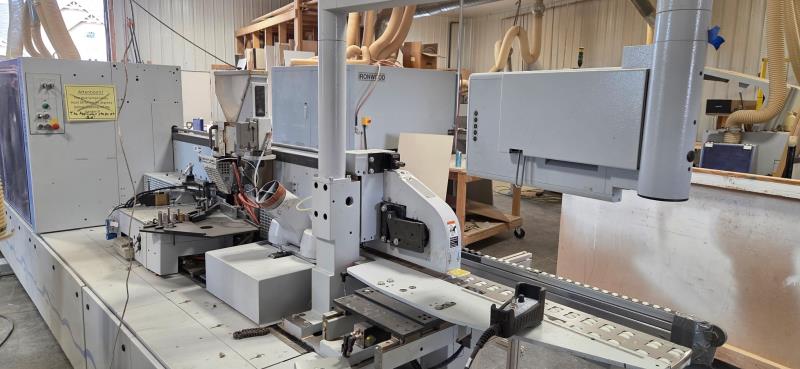

Homag #Ambition-2400, edgebander w/ pre-mill & corner rounding, 2017

HOMAG - AMBITION 2480: Edgebander (w/Premill & Corner Rounding) -- SpecificationsWorking Capacity. Coiled stock: Min./max. edge thickness 0.3 - 3 mm (0.011. - 0.118").Strip material min./max. Edge Thickness: 0.3 - 20 mm (0.011 - 0.78").Solid Wood Material min./max. Edge Thickness: 0.6 - 20 mm (0.024 - 0.78").Panel stock min/max thickness: 8 - 60 mm (0.472" - 1.574"); panel overhang: 30 mm (1.18").Min. workpiece width 2.36" (60 mm) with workpiece thickness ≤ 22 mm; 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units ● Top/Bottom spraying device prior to workpiece premilling. ● Designed for applying a separating agent for: Easier cleaning of any residual glue on the panel. -- Infeed FencePreheated, manually adjustable infeed fence with: Digital indicators. -- Premilling Station(2) 2.2 HP (3.0 kW) - 150 Hz - 9,000 RPM: Vertical jointing spindle motors; equipped with: Panel blow off device & SIKO digital counters for adjustments. -- Preheat UnitQuartz lamp for: Heating substrate edge before glue application. -- Edge MagazineMultipurpose 2-coil magazine expands capability by: Running coiled material & strips. Max. roll diameter: 400 mm & 830 mm.Magazine height adjustment. Allows greater usage of varying panel heights by raising & lowering the magazine table; allows the Operator to center the panelon the edgebanding. -- Gluing System: HOMAG Quickmelt ● Premelting Unit. QA 3: Quick Melt Overhead Unit & Heated roller applicator; digitally displayed thermostat for both upper & lower unit. ● 34 mm Dia. Glue Roller. Allows excellent control of temperature for: Optimum bonding results with individual adjustment for leading & trailing glue gates.Lower melting unit equipped with: Automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast 5-minute heat up time. -- Pressure SectionProgrammable (Servo). Automatic pressure zone adjustment: (1) Large 150 mm dia. driven; (4) 70 mm dia. idle rollers; pneumatic pressure control depending on edgebanding material used.Workstations -- End Trimming Unit: PK 25(2) 1 HP (0.8 kW) - 200 Hz - 12,000 RPM Motor ea.: Cuts excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. - Programmable (Servo). -- Rough/Pre-Trimming Unit - BF 10(2) 0.55 kW (0.74 HP) - 12,000 RPM Motors; tilting range: +/- 1 & Counterrotating to machine feed to prevent blowout.Height adjustment synchronized with: The top pressure-beam. -- 4-Motor Corner Rounding Unit: FF 32(4) 0.54 HP (0.4 kW) - 12,000 RPM; Motors to fine trim the edge overhangs at the workpiece front & rear vertical edge.Max. feed speed: 20 MPM (66 FPM) when using "Corner Rounding Unit". -- Open Space -- Profile/Bevel Scraping Unit PN 10Top & Bottom for thick PVC/ABS; electro-pneumatic positioning & pneumatically activated. Pneumatically controlled blow off nozzles. Height adjustment synchronized with: Top pressure beam. -- Flat Glue Scraper Uni
