For Sale by CNC Exchange div. Gray Machinery Co.
Surplus Record Dealer Since 1966
Location: Prospect Heights, IL
Contact Glenn Gray
Phone Number: 847...> Show Phone Number 847-537-7700
Let the seller know you found their listing on Surplus Record!
Description

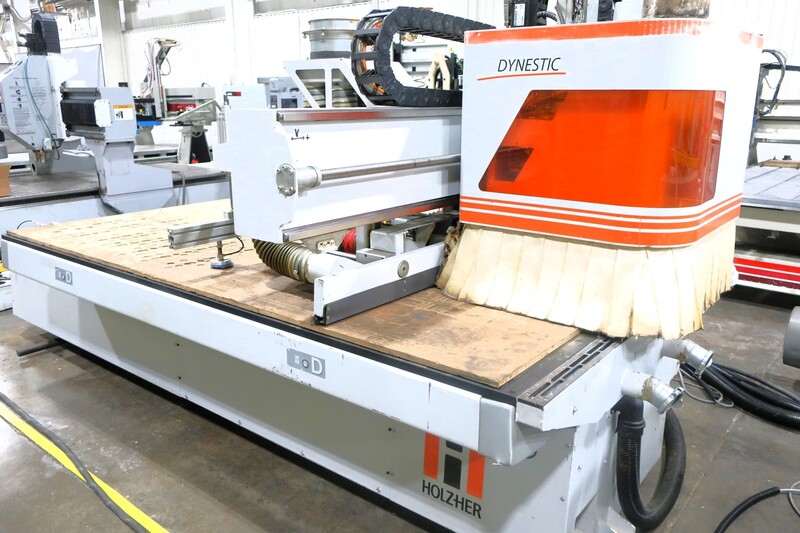

2011 HOLZHER Dynestic 7516 used CNC Router, 5' x 10' matrix table suitable for "Nested Base" manufacturing. Features include 15 HP electro-spindle, 8-position tool changer, pneumatic reference stops, and a powerful boring unit. Equipped with new, unused spindle.
-- Specifications:
5' x 10' MATRIX Table for "Nested Base" Manufacturing.
-- Working Field:
"X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm).
-- Positioning speed:
"X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM).
-- Worktable:
Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins.

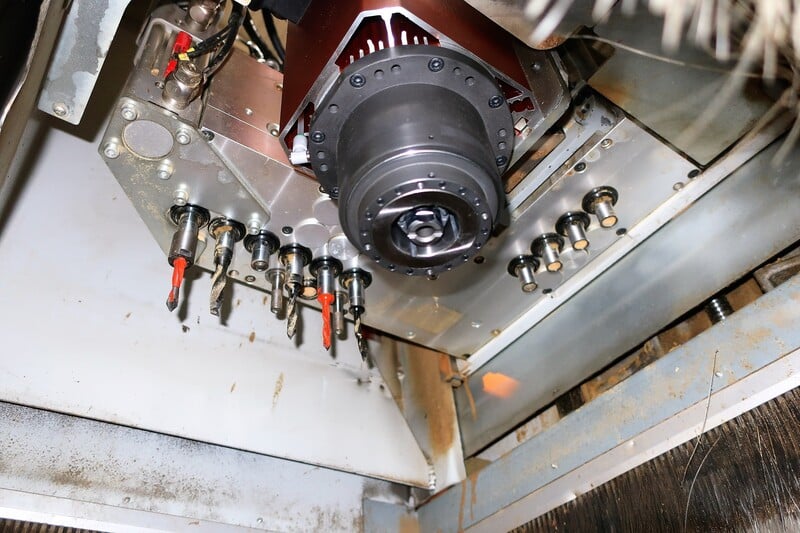

-- Boring Unit:
2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;
(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis;
-- Machining:
(1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;

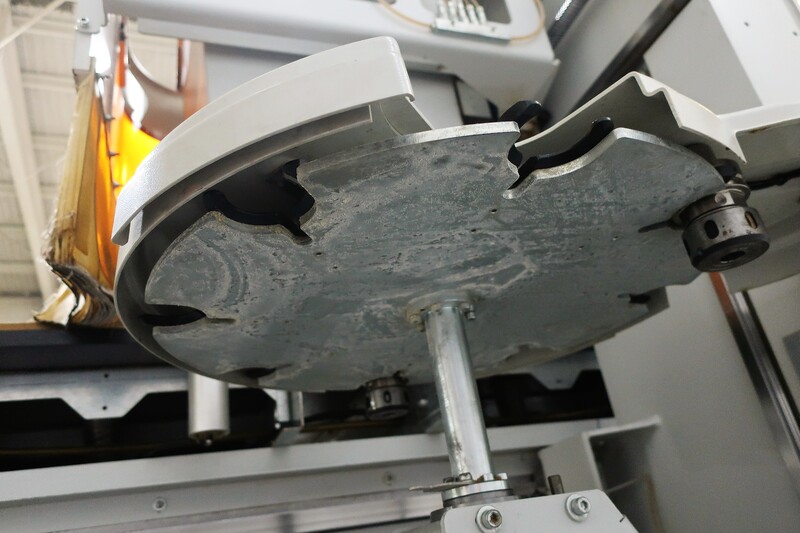

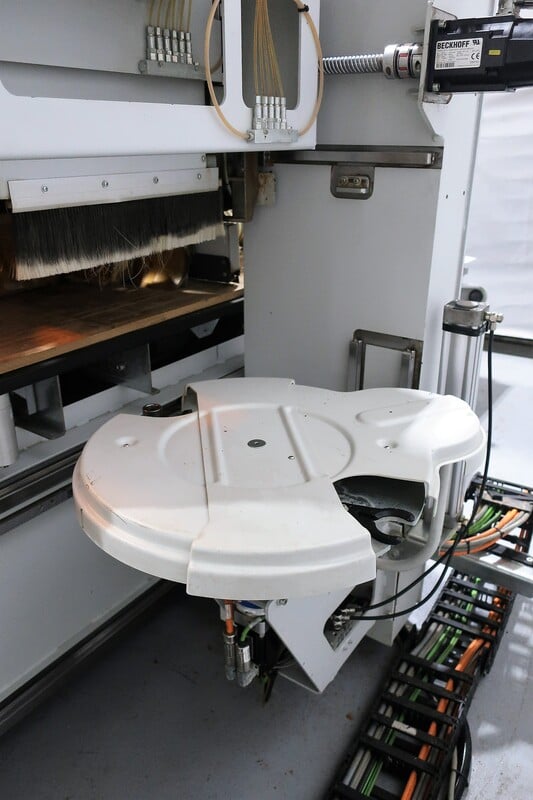

(1) 8-Position ATC. (dynamic carrousel type)

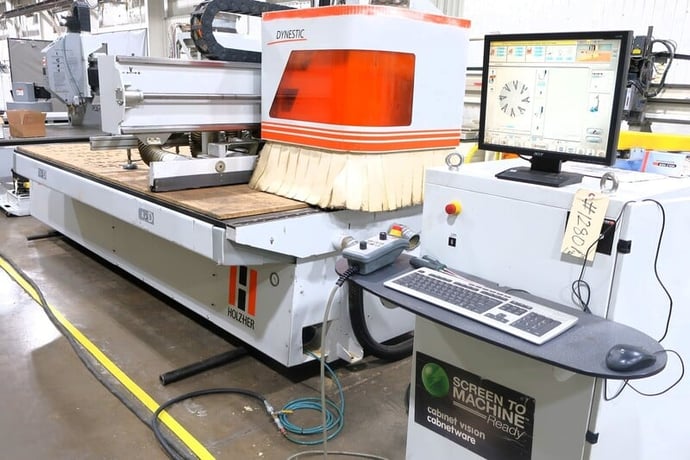

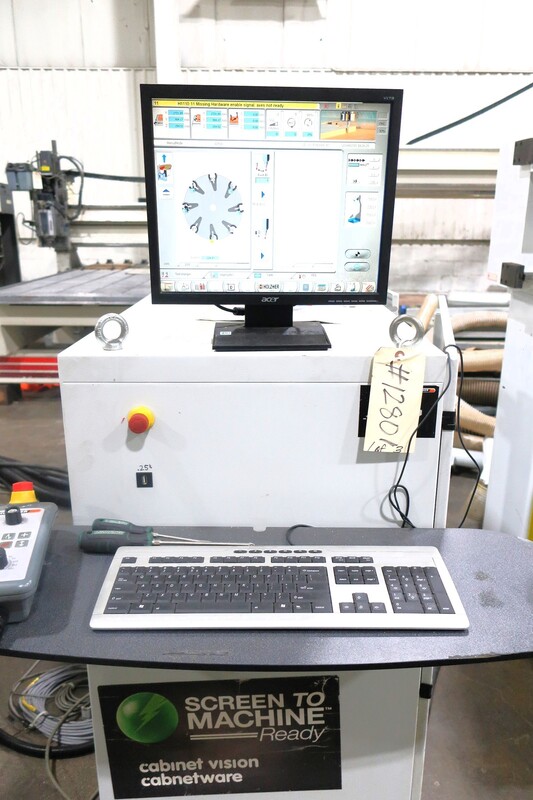

-- Operator & Machine Control:

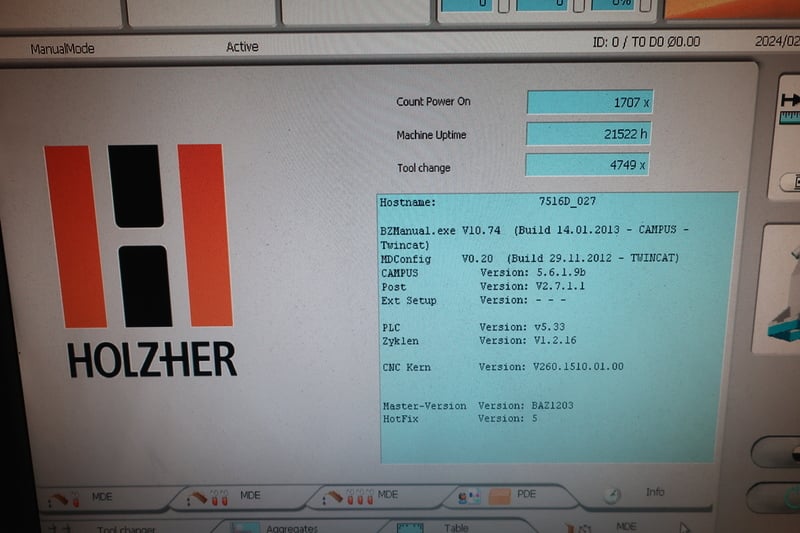

PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,
17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control;
-- Specifications:
5' x 10' MATRIX Table for "Nested Base" Manufacturing.
-- Working Field:
"X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm).
-- Positioning speed:
"X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM).
-- Worktable:
Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins.
-- Boring Unit:
2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;
(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis;
-- Machining:
(1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;
(1) 8-Position ATC. (dynamic carrousel type)
-- Operator & Machine Control:
PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,
17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control;
Get Your Price from CNC Exchange div. Gray Machinery Co.!
