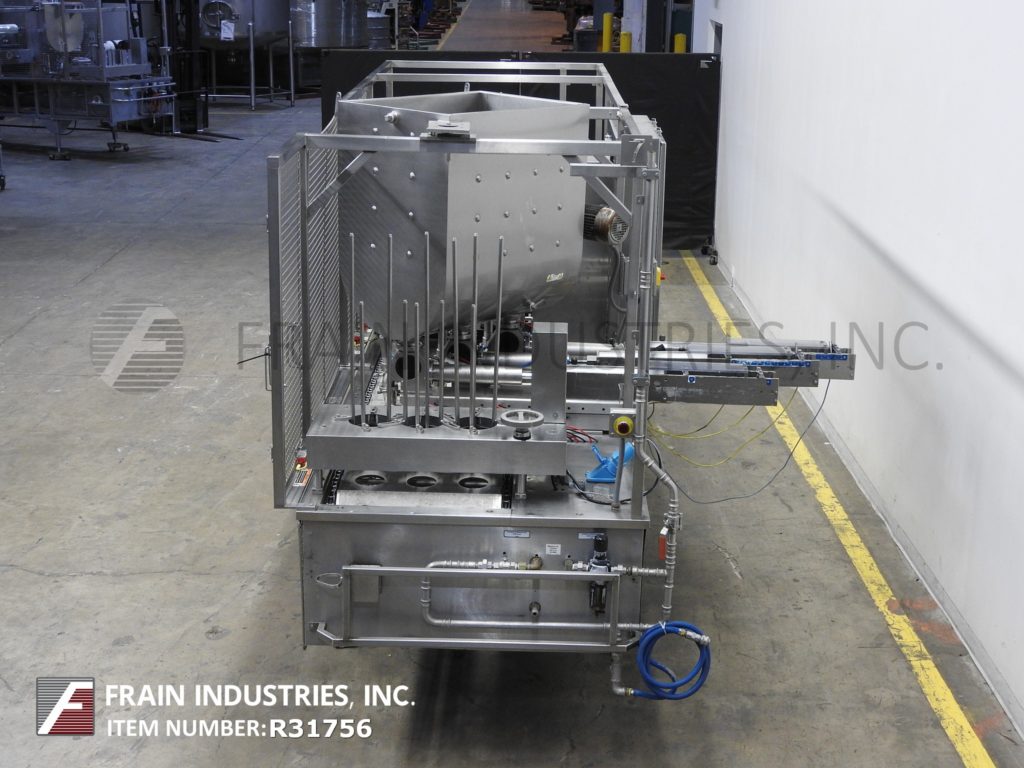

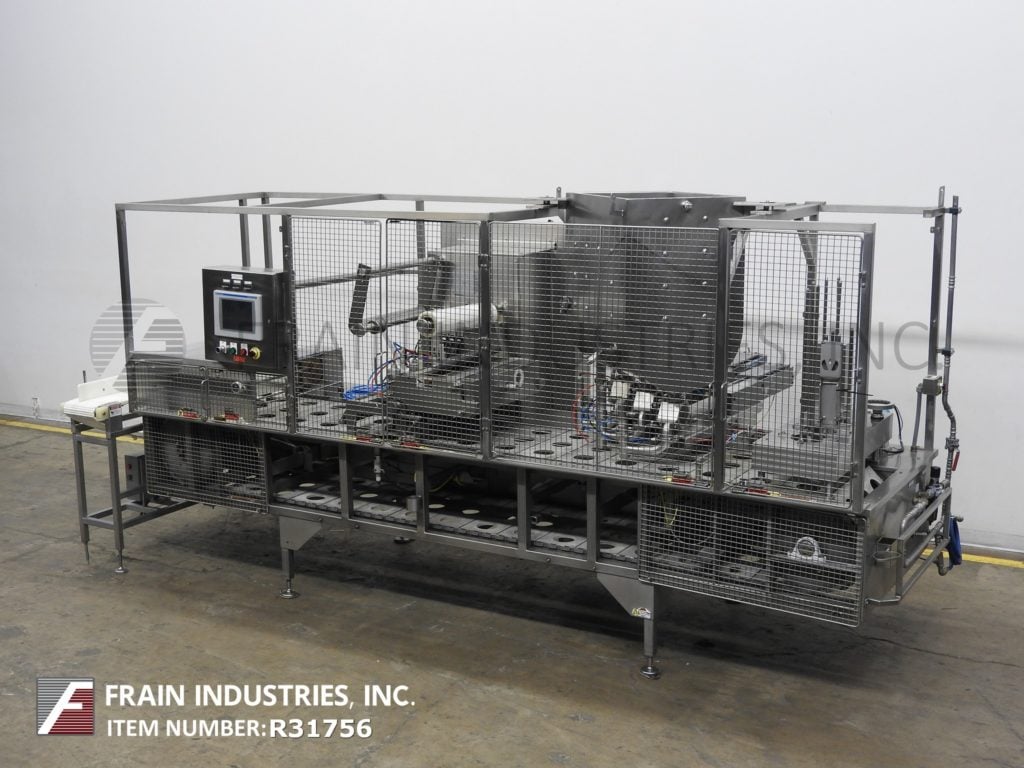

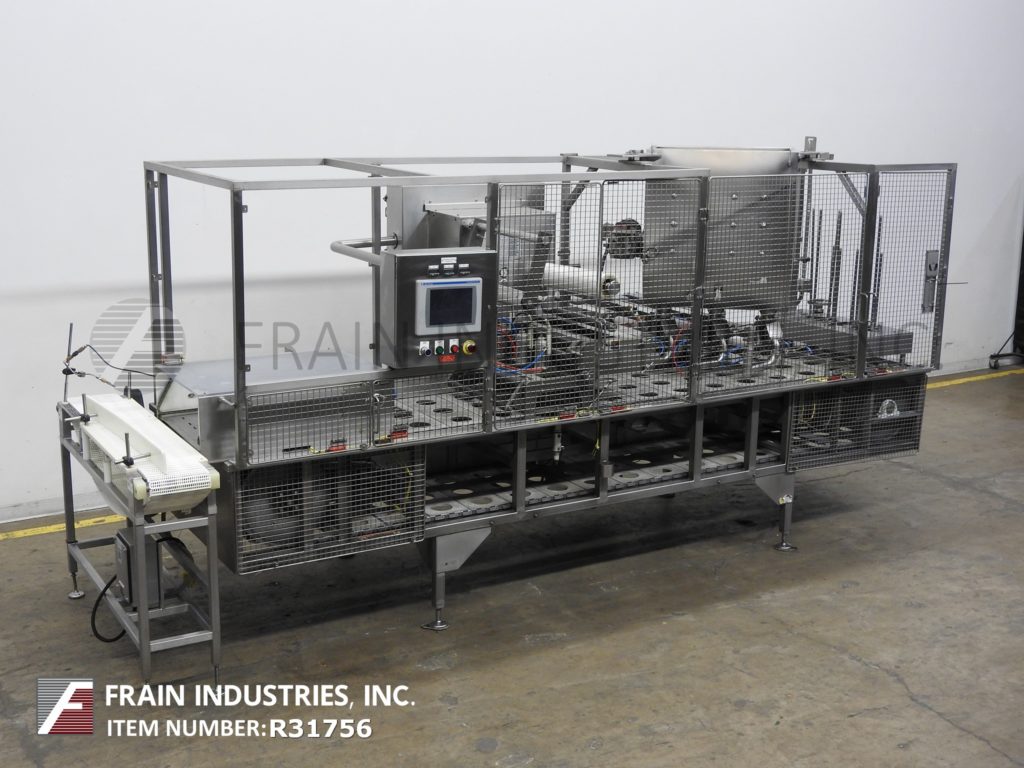

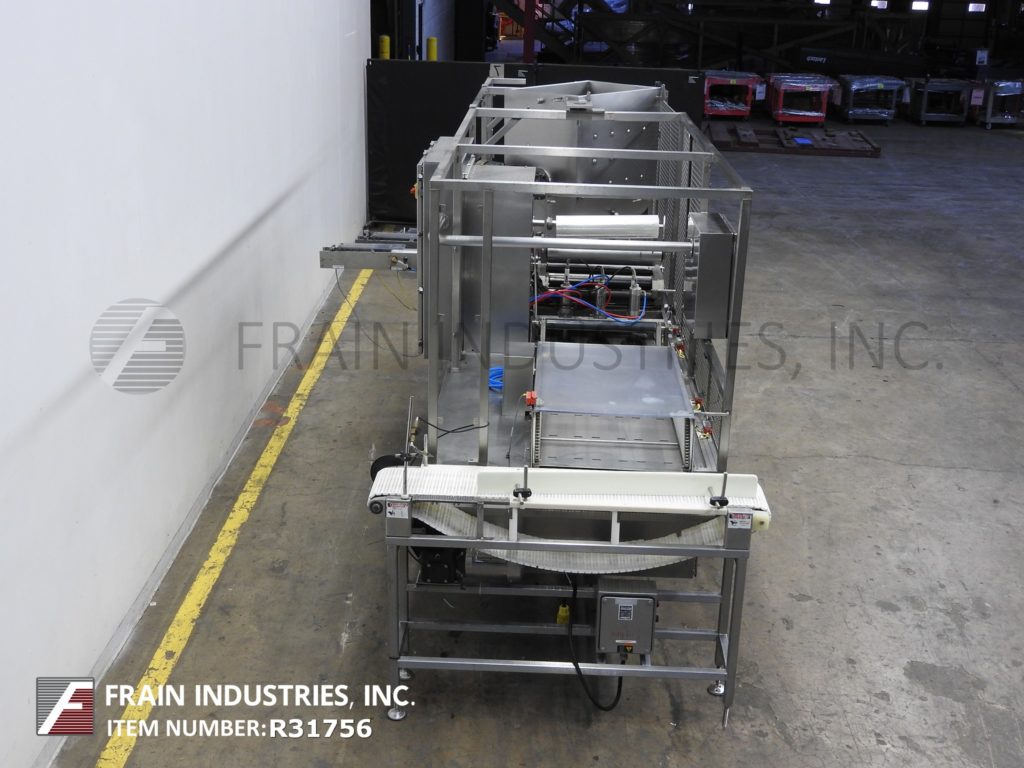

Holmatic #PR-3S, 3 lane, inline, Stainless Steel, cup filler, roll stock film sealer, 30-120 cups/minute, 180" L cup conveyor

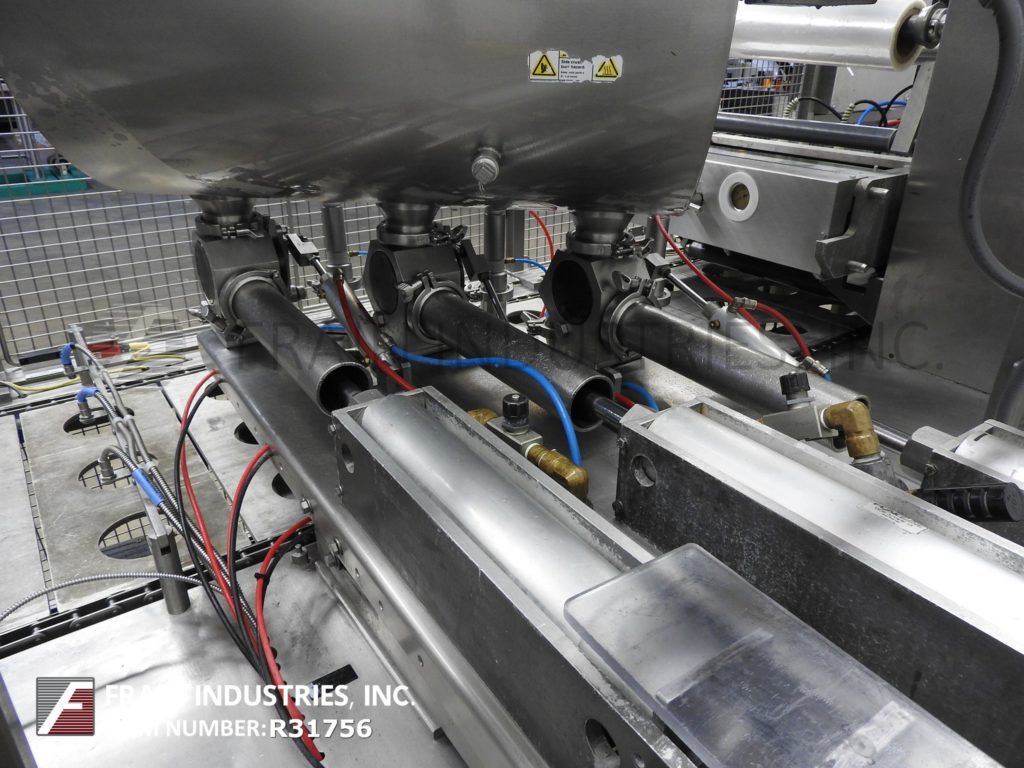

Holmatic Model PR-3S, 3 lane, inline, stainless steel, cup filler, roll stock film sealer rated from 30 to 120 cups per minute – depending on materials, application and machine configuration. Sanitary stainless steel and hard anodized aluminum construction. Container size range: 5" to 7" in Diameter; up to 7.3" in Height. Fill volume up to 90oz each head. Change parts required to accommodate different sizes. Equipped with 180" long cup conveyor has 8-3/4" long x 24" wide carrier plates currently set with (3) 4-1/4" OD cup pockets set on 9" centers, cup de-nest station, 30" long x 17" wide x 24" deep, stainless steel, jacketed, agitated product hopper, (3) head piston filler, with (3) 15" long x 2-1/4" ID pistons, and 2-1/4" OD nozzles (change part per application) no container / no fill, automatic film roll stock feeder and rewinder with die cut heat sealing stations. Control panel has A/B PLC controller with A/B onboard panelview and operator read out (3) heat seal, start, stop, e-stop controls. Mounted on stainless steel frame with cage style safety guarding. Mounted on stainless steel frame with cage style safety guarding.
Recommended for wipedown environments, applications range from hard candy to dry soup and snack foods to pet treats.

OAD: 180" L x 80" W x 90" H
