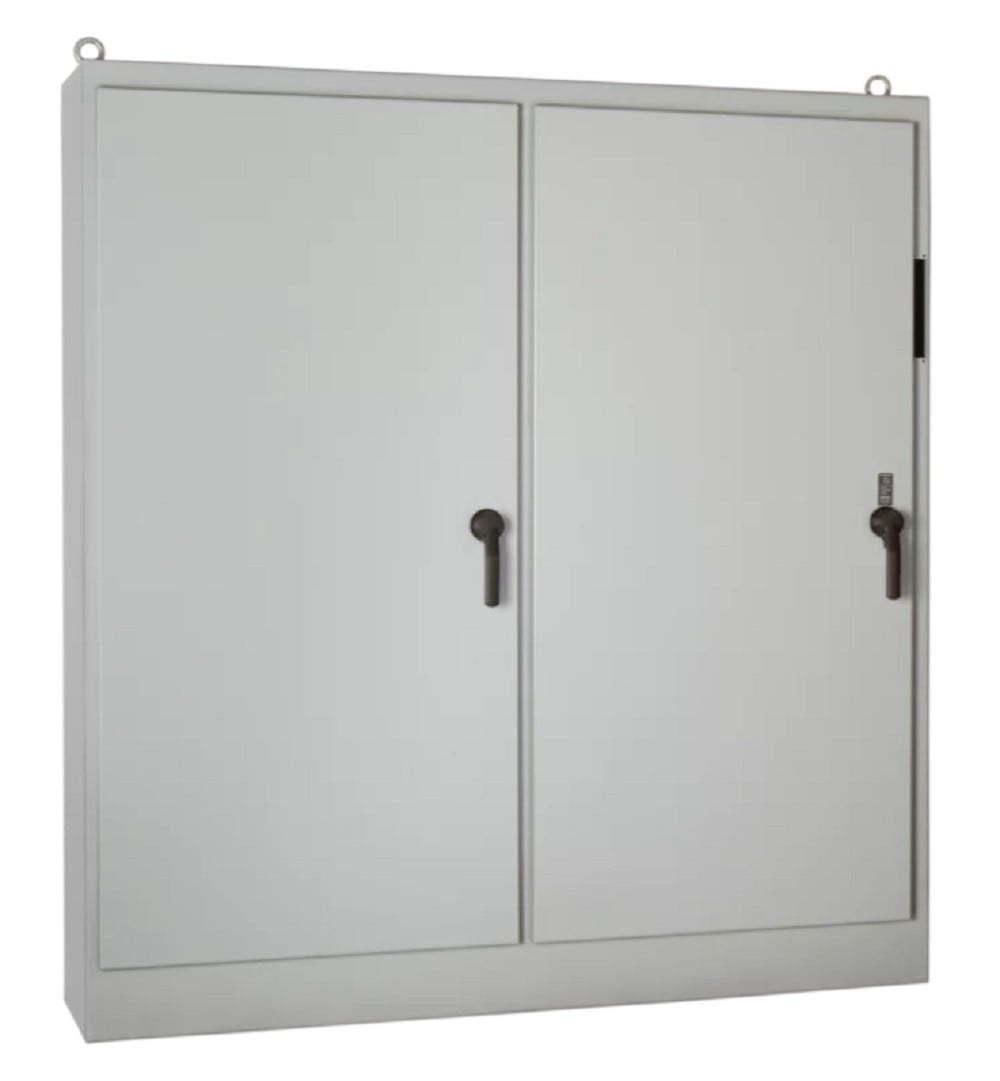

Hoffman #A84XM7818FTC, Heavy Duty Disconnect Enclosure, Type 12, 84.12" x 78.50" x 18.12", Steel, Gray, Continuously Welded Seams, NEW

Estimated monthly payment valid upon approved credit.

Request Formal Quote

. . . . . Hoffman nVent A84XM7818FTC Heavy-Duty Disconnect, White Inside Type 12, 84.12x78.50x18.12, Gray, Steel Seams continuously welded and ground smoothBody stiffeners in larger enclosures for extra rigidityBody flange trough excludes liquids and contaminantsHeavy-duty lifting eyes anchor into reinforced topRemovable centerposts permit easy panel installationConcealed, easy-to-remove hingesHeavy-duty 3-point latching mechanism operated by padlocking handle on all doorsPanel supportsData pocket is high-impact thermoplasticOil-resistant gasketMaster door is far right-hand door on all enclosuresDefeater on primary door requires a screwdriver to openMechanical interlock activated by master door prevents slave doors from being opened first; doors can be closed in any orderUniversal cutout on right flange provides mounting for most disconnect operators by using operator adaptersModels available with panel included or panel sold separatelyFTC models include removable painted 10 gauge steel panels which mount on collar studsIncludes door hardwareHeight: 84.12 in / 2137 mmWidth: 78.5 in / 1994 mmDepth: 18.12 in / 460 mmProtection Rating: NEMA Type 12; IP55Material: Mild SteelStiffener Locations: 24.00 in / 610 mmWith or Without Panel: WithPainted Panel: A84PM78Conductive Panel: A84PM78GPanel Size: 72.00 x 72.00 in / 1829 x 1829 mmExterior Color: GrayExterior Color Code: ANSI 61Finish: Powder CoatedInterior Color: WhiteThickness: 11 ga / 3.04 mmWeight: 1049 lb. Hoffman. nVent. A84XM7818FTC.
