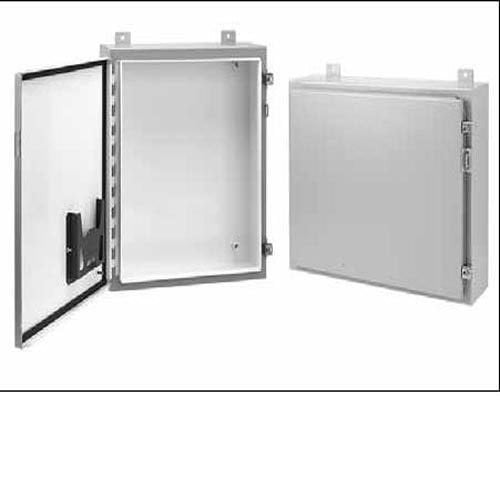

Hoffman A242412LP 28520 Single Door Wall-Mount Electrical Enclosure 24 x 24 x 12, NEW

$929 USD

Request Formal Quote

Enclosure bodies are 14 or 16 gauge steel; Doors are 14 gauge steel. Seams continuously welded and ground smooth. External wall-mounting brackets. Formed external return flanges around all sides of enclosure opening. Screw-down door clamps. INDUSTRY STANDARDS: UL 508A Listed; Type 12, 13; File No. E61997, cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File No. 42186: Type 12, IEC 60529, IP65. APPLICATION: For applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure. SPECIFICATIONS Enclosure bodies are 14 or 16 gauge steel. Doors are 14 gauge steel. Seams continuously welded and ground smooth. External wall-mounting brackets. Formed external return flanges around all sides of enclosure opening. Screw-down door clamps. Removable heavy-gauge continuous hinge pin. Hasp and staple for padlocking. Data pocket is high-impact thermoplastic. Collar studs provided for mounting optional panels. Bonding provision on door. FINISH: White inside with ANSI 61 gray finish outside. AVAILABLE: ACCESSORIES Drip Shield Kit for Type 12 Enclosures. Electric Heater. Fast-Operating Clamp Assembly. Compact Cooling Fans. Steel and Stainless Steel Window Kits. See also the Popular Cooling and Accessories tables forllowing the Standard Product table. MODIFICATION AND CUSTOMIZATION: Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information. Bulletin: A12. Hoffman. nVent. A242412LP.
