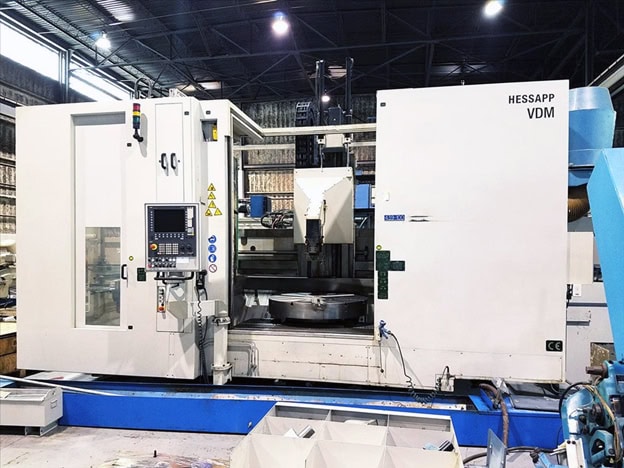

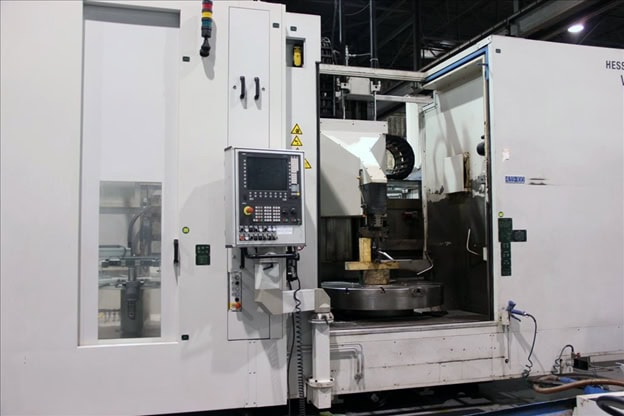

Hessapp #VDM-1200-11, CNC Vertical Turret Lathe, 630 RPM, 480 V., ATC, 2009

X -Axis Travel: 35.4” (900mm)
Z -Axis Travel: 47.2” (1,250mm)
Max Swing Diameter: 49.2″ (1,250mm)
Max Turning Diameter: 47.2” (1,200mm)
Max Workpiece Height & Chuck: 31.5″ (800mm)
Hydraulic Chuck Diameter: 47.42”
Table load capacity: 8,800 lbs (4,000 kgs)

Main Spindle (Table) Speed Range: 4.5 – 630 RPM
Main Spindle (Table) Motor: 95 HP at 100% (141 HP at 40%)
Spindle Bearings ID: 19.69″ (500mm)
X/Z Axis Rapid Traverse: 787 IPM

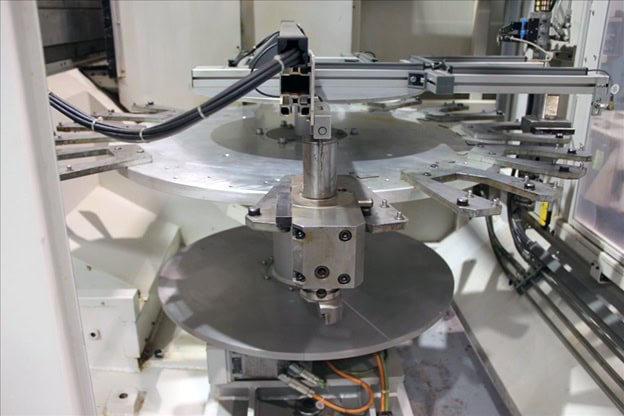

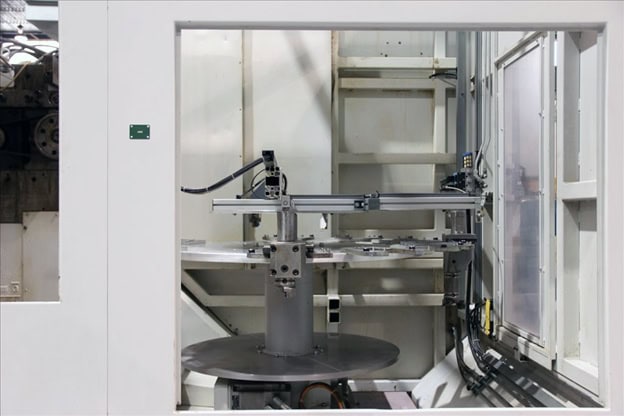

Automatic Tool Changer: 24 Position
Tooling: VDI 60

Electrical Requirements: 480 V; 3 Ph; 60 Hz

EQUIPPED WITH:

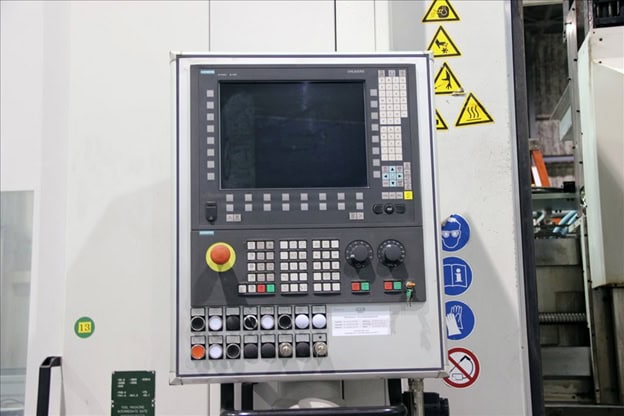

Siemens Sinumerik 840D CNC Control
Designed for Hard Steel Machining

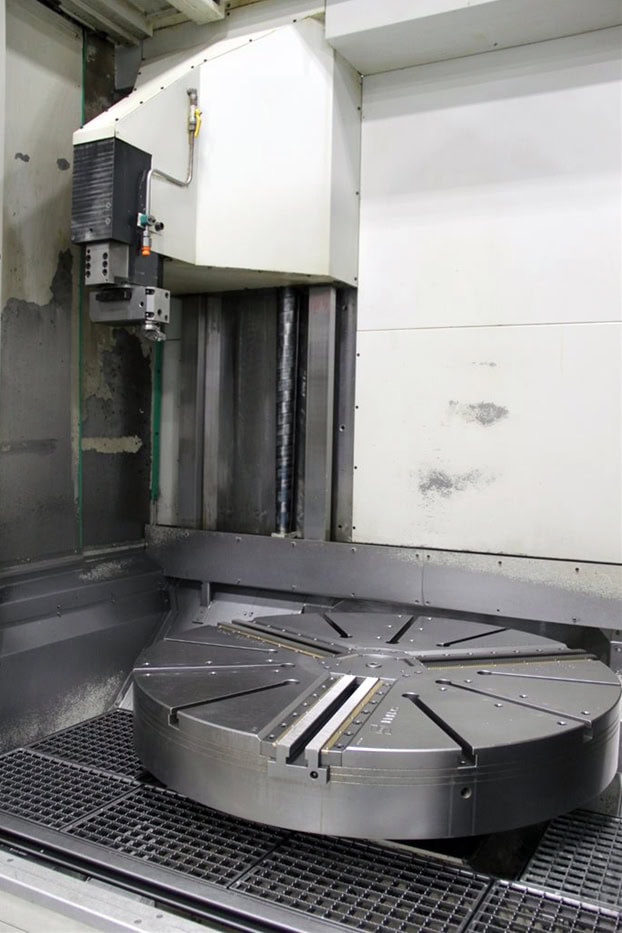

47.42” Schunk 3-Jaw Hydraulic Chuck
Hard Square Block Rail Ways
Linear Scale Measuring
Knoll KF 400/950 Recirculating Coolant Filtration System/Mist Exhaust
EMMA Air Filtration System
Coolant Chiller
Coolant Spray Gun
Full Enclosure with Interlock Door/Splash Guarding
Work Area Lighting
Separate Electric Control Panel
Separate Hydraulic Unit
DGS Hinged Belt Chip Conveyor
Leveling Pads/Jacks
All Available Manuals
New Spare Siemens Servo Motor
VDI 60 Tooling (6 Turning Holders with Machine)
