Hermle #C30U Dynamic, 5-Axis CNC vertical machining center, 75 automatic tool changer, 25.6" X, 23.6" Y, 19.7" Z, 18000 RPM, 20 HP

Inventory Number: 064435
Subject to availability, and terms & conditions of FRANKE CNC sales agreement, we offer for your consideration:

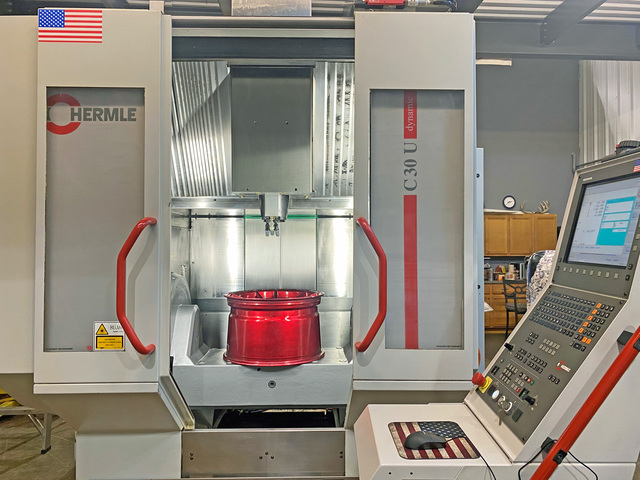

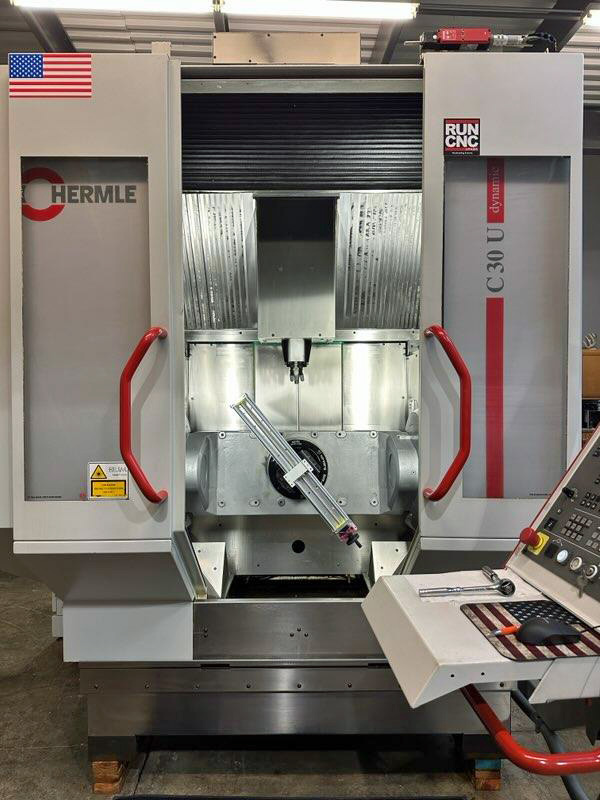

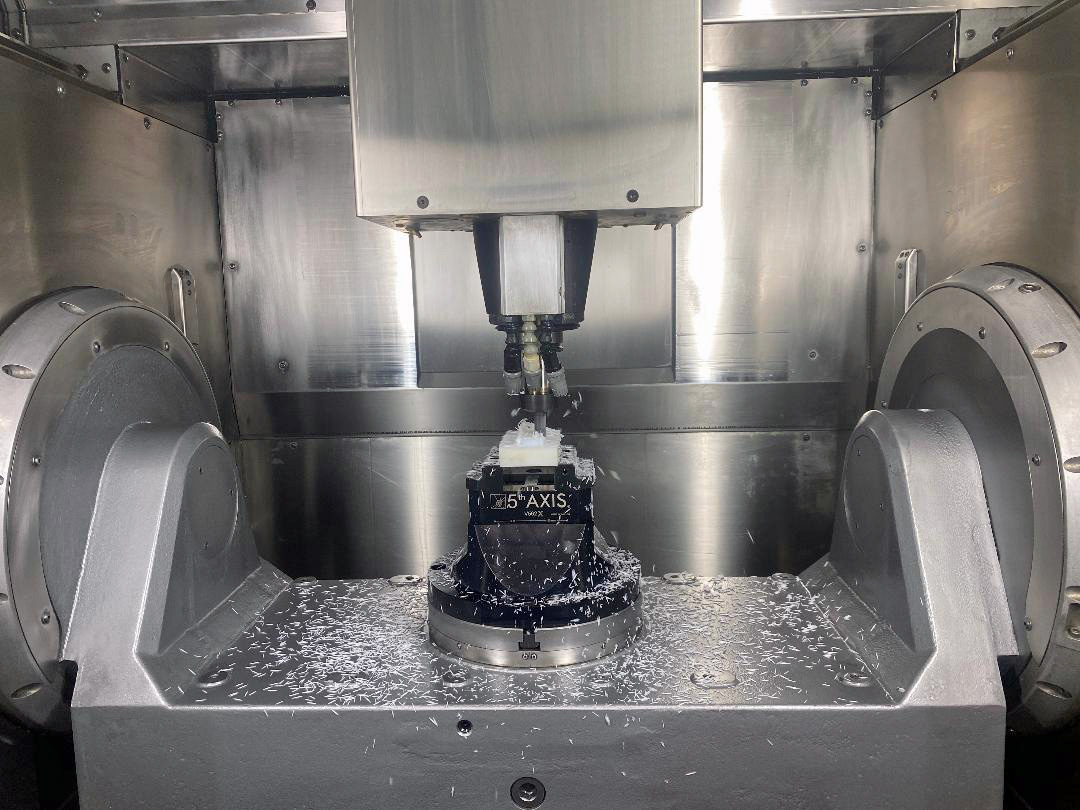

One used 2004 HERMLE C30U dynamic Full 5-Axis Simultaneous Gantry Style VMC:
May be inspected under power in our Wisconsin showroom by appointment. Fly into MKE or ORD.
Machine was produced in the Black Forest at Maschinenfabrik Berthold Hermle AG-Gosheim, Germany in 10/2004. Sold by HERMLE as a demo machine and first installed new in the USA in 2006.
Ran by only one master machinist on ultra high precision prototype parts.

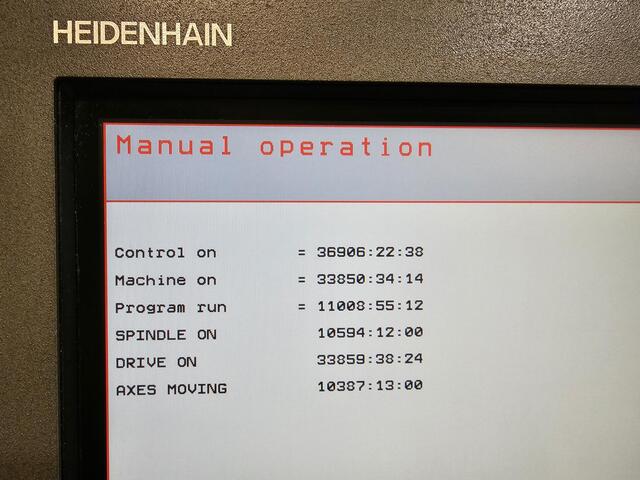

Approximately 10,594 original SPINDLE ON hours total-over the life of the machine.
This is the equivalent of approximately 5 years of use on a 1-shift basis.
HEIDENHAIN iTNC 530 CNC Control with hand-held electronic handwheel control unit
TECHNICAL DATA:
X-Axis................................................. 25.6" (650 mm)
Y-Axis................................................. 23.6" (600 mm)
Z-Axis................................................. 19.7" (500 mm)
Spindle speed range...................................... 20-18,000 rpm
Machine equipped with external spindle chiller
Spindle taper.................................................. HSK-A63
Spindle output........................................... 20 HP (15 kW)
Spindle torque....................................... 96 lb/ft (130 Nm)
Spindle diameter at the front bearings................... 2.76" (70 mm)

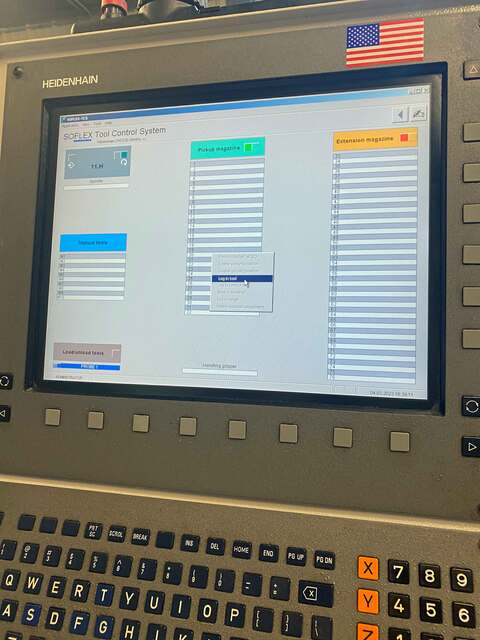

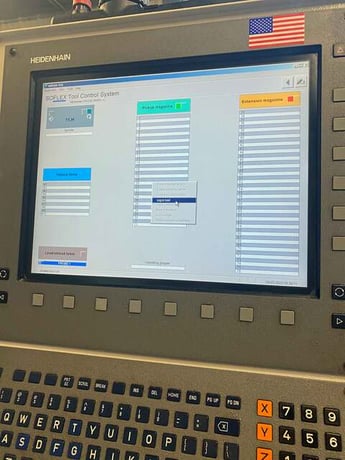

Tool Changer..................................... 32 tool pockets plus additional magazine 43 pockets=75 ATC total

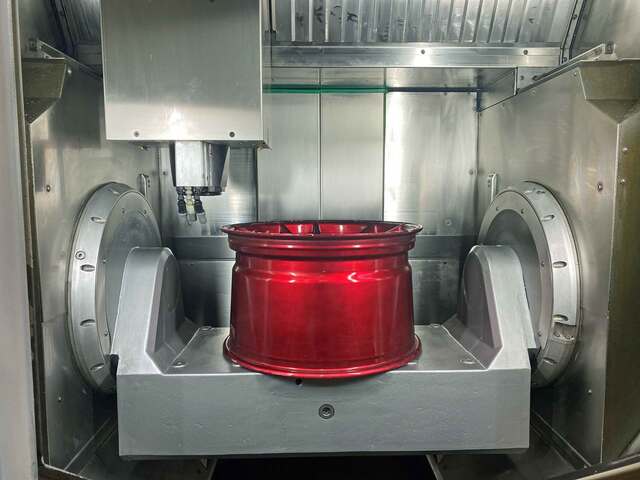

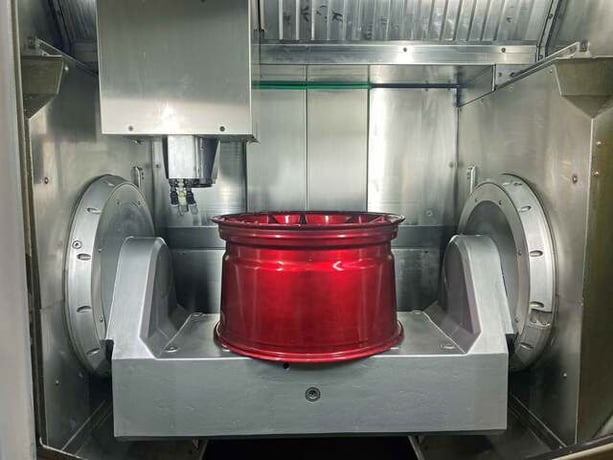

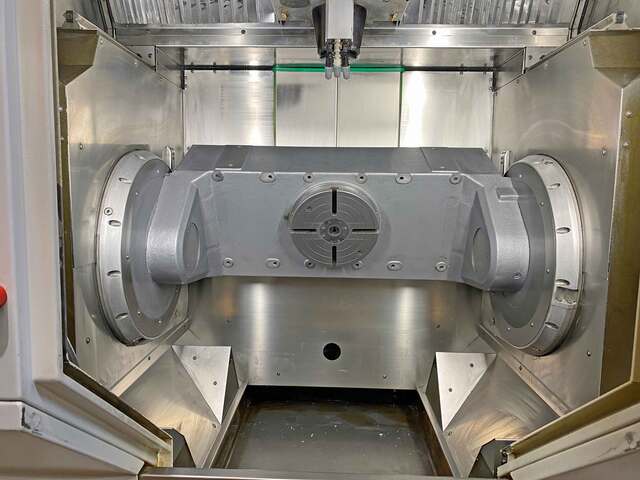

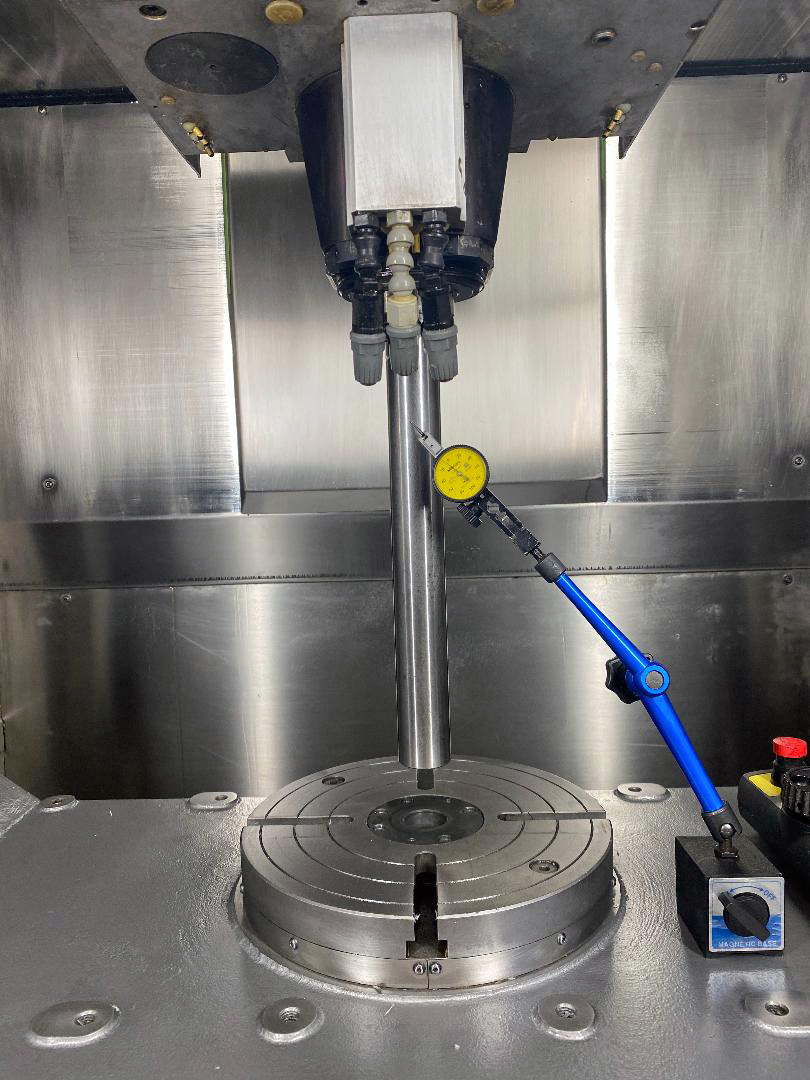

NC swivelling rotary table diameter..................... 11.02" (280 mm)

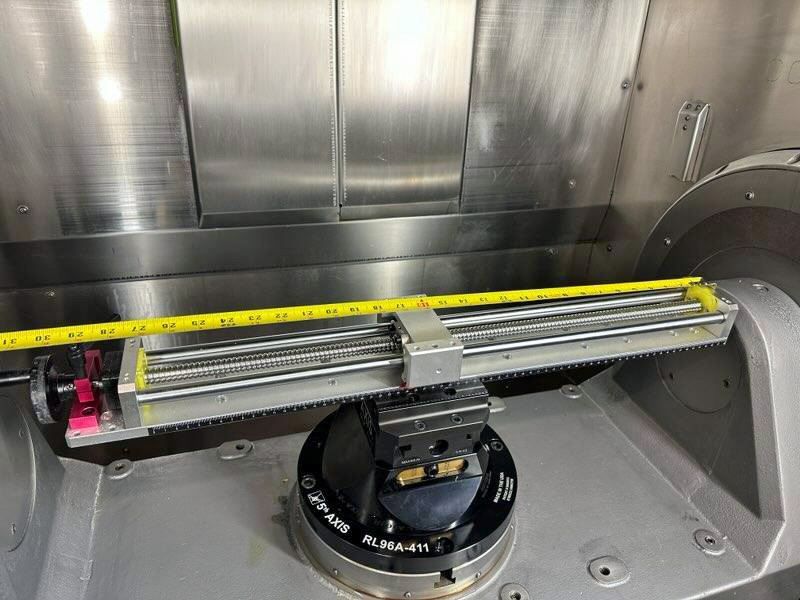

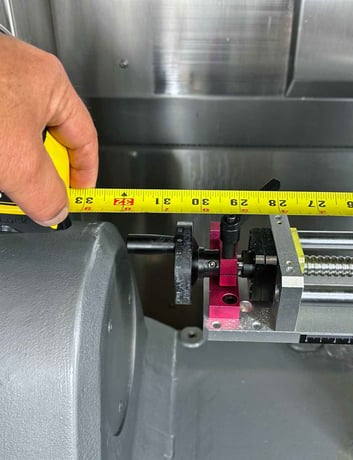

NC swivelling rotary table Fixture Table maximum swing.32 (813 mm) not included
Load capacity of NC swivelling rotary table........... 661 lbs (300 kg)
Table C-axis rotation range........ 360 x 0.001 degrees (Full 4th axis)
Table A-axis swivel range 230 degrees: +/- 115 degrees (Full 5th axis)
Speed of the tilting A-axis (dynamic)..................................... 55 rpm
Speed of the rotary C-axis...................................... 40 rpm
Holding torque A-axis (dynamic)..2,766 lb/ft (3,750 Nm)
Clamping torque C-axis.2,213 lb/ft (3,000 Nm)
T grooves in table14 H7 (4 pcs-star type)
Central boringDiameter 32 H7
DYNAMIC FEED DRIVE
Feed force.1,574 lb/ft (7,000 N)
Rapid traverse...1,772 ipm (45 m/min)
Acceleration236 inch/sec-2 (6 m/sec-2)
Diameter and pitch of the feed spindles:
X-axis 40/15 mm
Y-axis 50/25 mm
Z-axis 40/25 mm
Tool change time approximately 5.5 seconds chip to chip
EQUIPPED WITH:
Mineral casting machine base
Approximate machine weight 20,944 lb (9,500 kg)
A axis dynamic
HEIDENHAIN linear glass scales direct measuring in X/Y/Z Axes resolution 0.1 u
HEIDENHAIN rotary encoders direct measuring in 4th and 5th Axes resolution 0.1 u
Coolant tank unit
Scraper chip conveyor
Machine light
Fully enclosed cabin enclosure
Spindle air blast
Orientation spindle stop M19
Helical interpolation
Rigid tapping
RS 232 port and Ethernet port
RENISHAW infrared parts measuring touch probe
BLUM laser tool measuring of tool length, diameter, and broken tool detection
Electronic Temperature Compensation
Leveling Shoes
Ball Bar Test-at inspection
Geometry Test-at inspection
Spray pistol
Adapter for oil mist extractor
Electrical preparation for oil mist extractor
Linear scale air protection
PREP. CTS (HSKA63/18.000) Preparation for coolant thru the spindle
Books, manuals and technical documentation on hand for the machine
CONNECTION REQUIREMENTS:
Power input: 400V/60 Hz
Power required: 43 KVA
Air required: 87 PSI (6 bar)
Price quoted in United States Dollars
Purchase Point is Hartland, Wisconsin 53029
To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
PRICE QUOTED IS FOB OPEN TOP TRUCK - PURCHASE POINT, PLUS STATE & LOCAL TAXES, IF APPLICABLE.
This quote is valid for 1 week from todays date.
