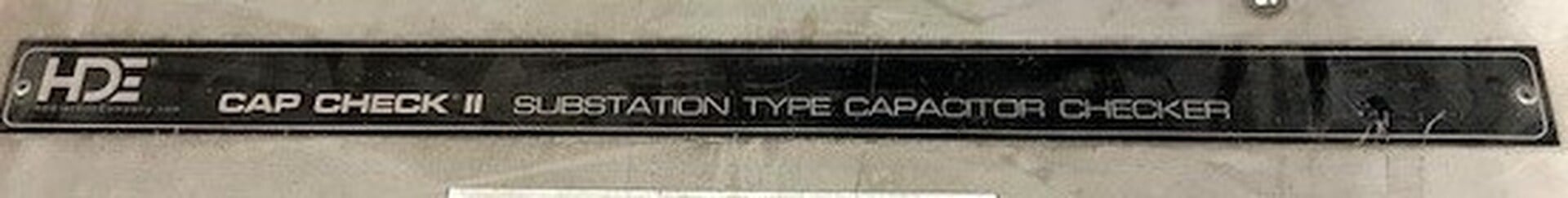

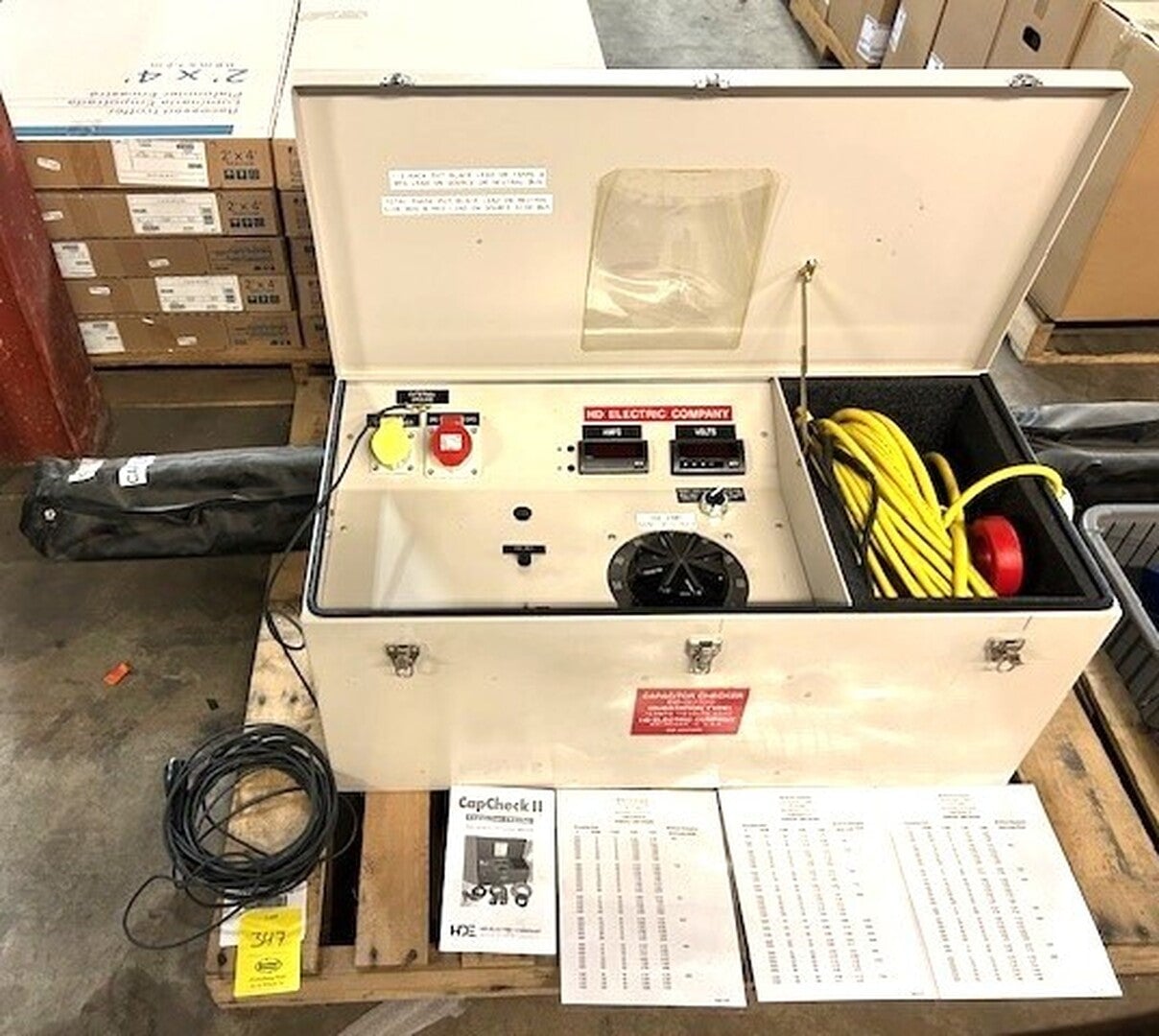

HD Electric CC-II/100, cap check ii sub station type capacitor, 115 Volts, 13 amps, 2013

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 138720

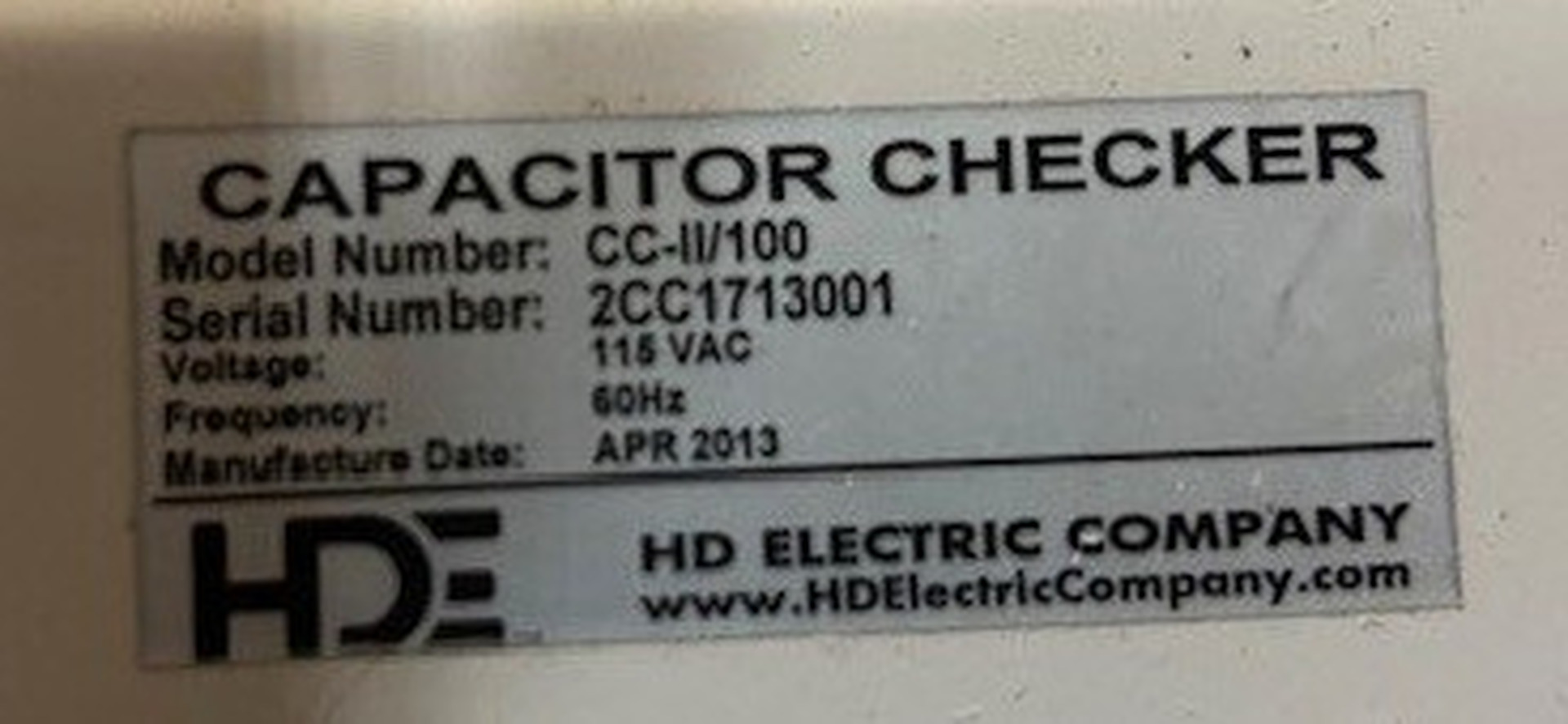

Model: CC-II/100
Year: 2013
Condition: Used
S/N: 2CC1713001
Dimensions: 6.00 (H) x 11.00 (W) x 83.00 (L) inches
Additional Description:
Electrical: 115 volts, 13 amps, 60 Hz
Includes:

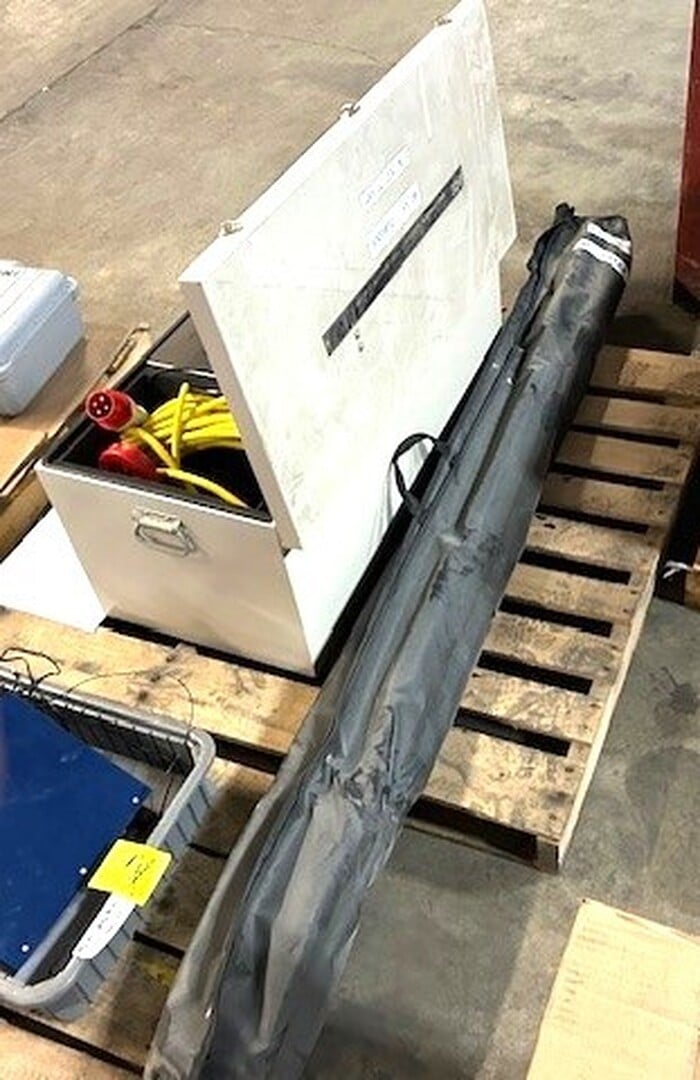

- 4 Section Hotstick
- Hotstick Carrying Bag
- Carrying Case Version (2112500004)
Features:
- Designed to enable the testing of substation racks of capacitors

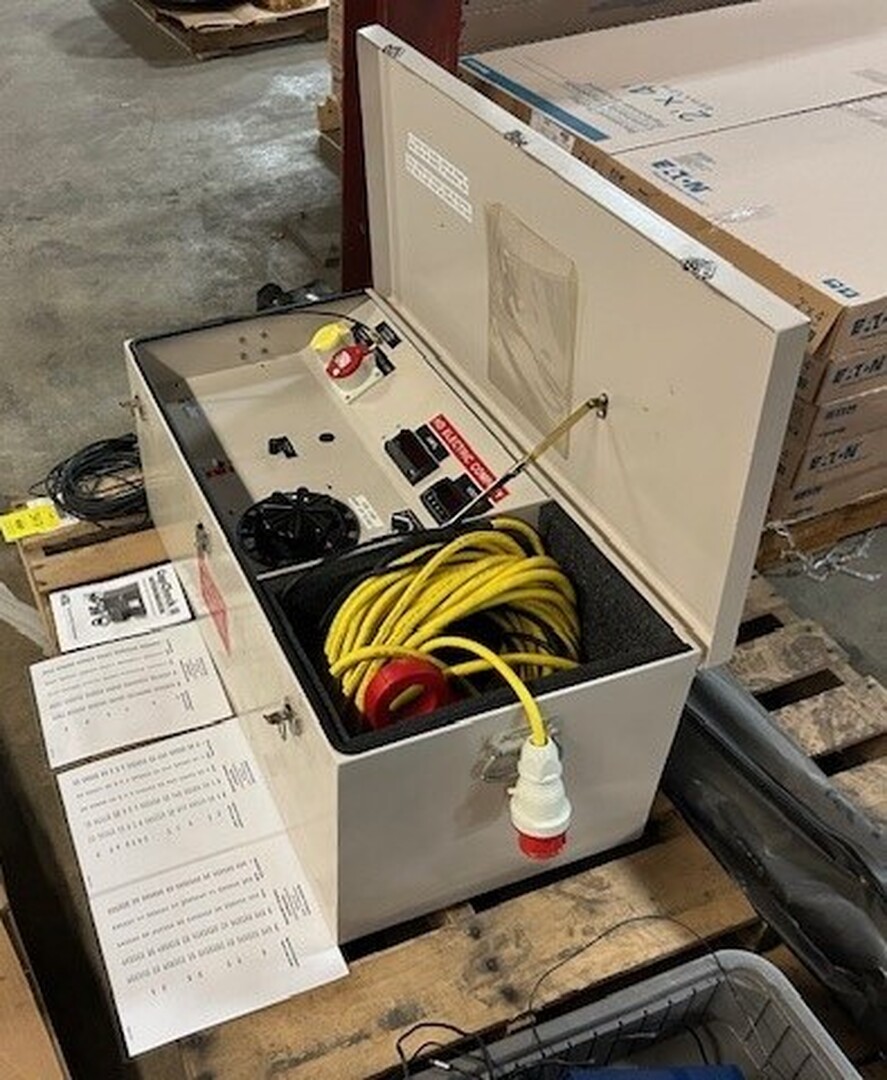

- Housed in an aluminium carry case

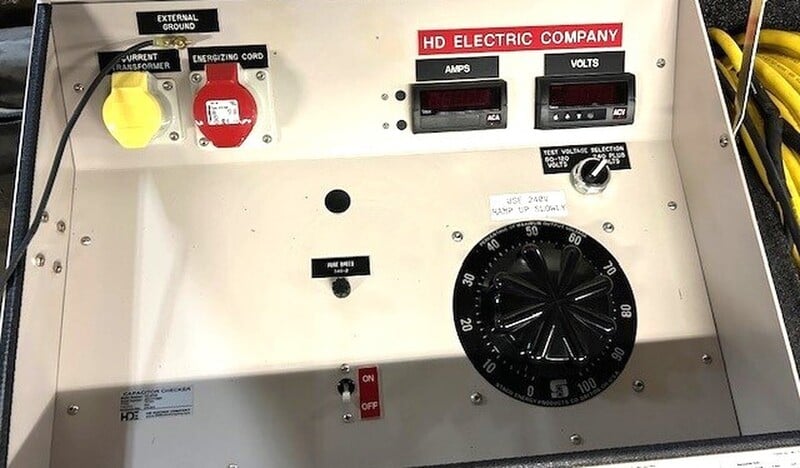

- Integrated digital voltmeter and milliammeter, variac control, and circuit breakers

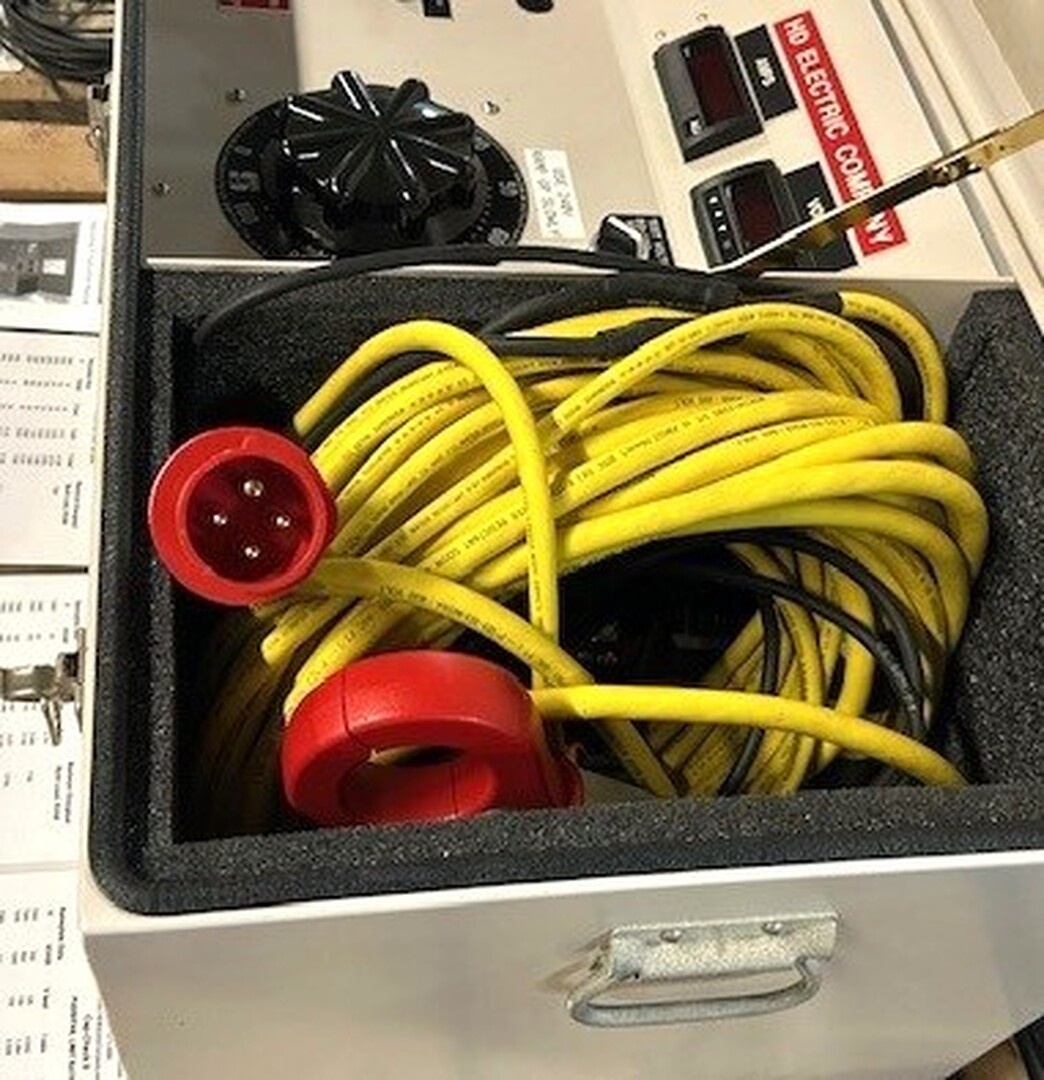

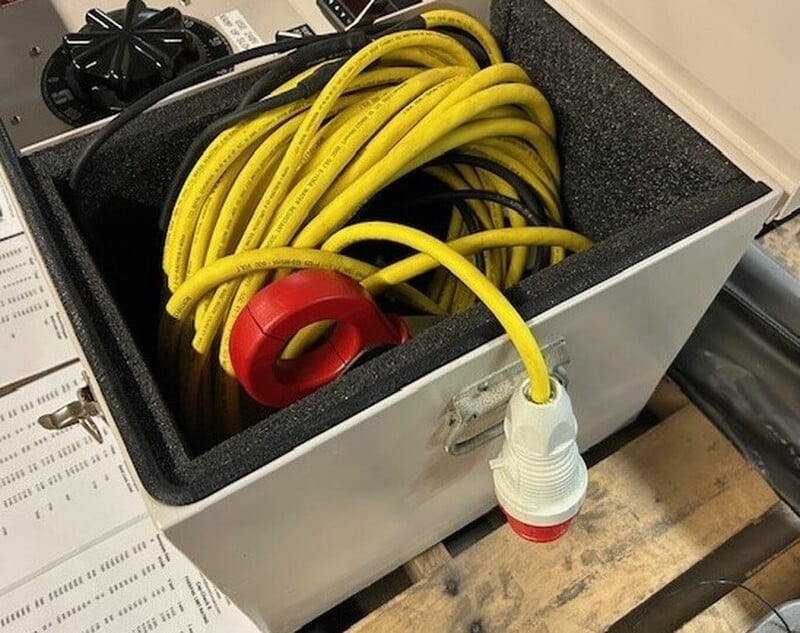

- Supplied with four sets of 15m cords, a current probe, and modified hot-stick
- Designed to be operated by a two-man crew
- Powered by a 120V external supply
- Check up to five-hundred substation capacitors per day
- Individual capacitors do not have to be disconnected to be tested
- Identify incipient faults, failures and ruptures
- Test voltage ranges from 50V to 480V AC
- 50V AC must be applied to capacitors to identify incipient faults caused by shorting between individual plates
- 480V AC allows the user to determine the 'true' internal condition of capacitors
- Can be used as a preventative maintenance tool for identifying failing or partially failing components
- Faulty capacitors can be identified and changed preventing the unnecessary replacement of functional capacitors
- Removal and replacement of faulty capacitors prevent forced outages
- Accurately and reliably test new capacitors on receipt from the factory, preventing the installation of faulty units
- Eliminate and/or significantly reduce clean-up costs and downtime
- Identify and prevent dangerous situations
- Provides excellent accuracy and repeatability
- Suitable for use in the field and in laboratories
- Test individual capacitors as well as banks of capacitors
- Ideal for maintaining pole-mounted and substation capacitors
