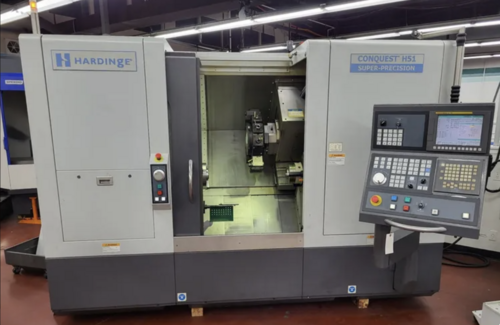

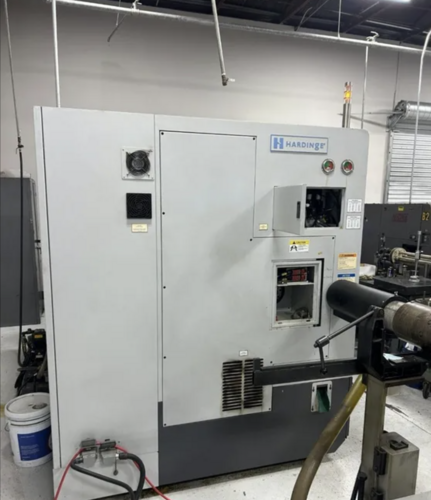

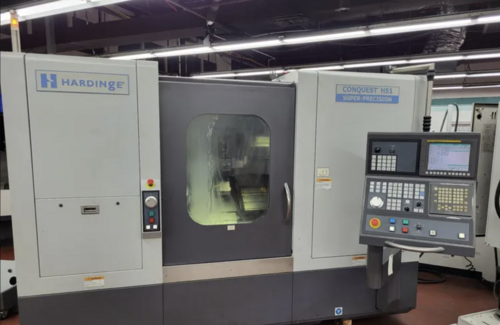

Hardinge #Conquest-H51MSY, CNC Lathe, 4-Axis, 27.8" Swing, 2" Bar, 12.34" Machining diameter, 20 HP, 4700 RPM, 2015

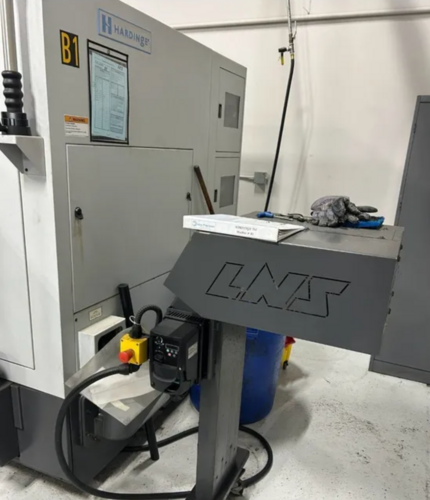

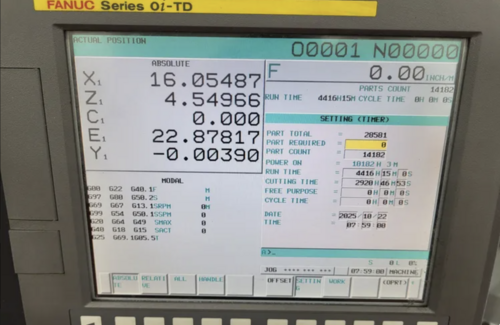

2015 Hardinge Conquest H51MSY CNC Lathe with Fanuc Oi-TD Control. Features 4-axis, 27.87" swing, 2" bar capacity, 4,700 RPM, live tooling, and sub spindle. Includes Y-axis, C-axis, parts catcher, tool setter, chip conveyor, and LNS barfeed.
Specifications (subject to buyer verification):
Maximum Swing over Way Covers 27.87 (708mm)
Work Capacities
Maximum Bar Capacity 2 (51mm)
Maximum Machining Diameter (BMT-55) 12.34 (313.7mm)

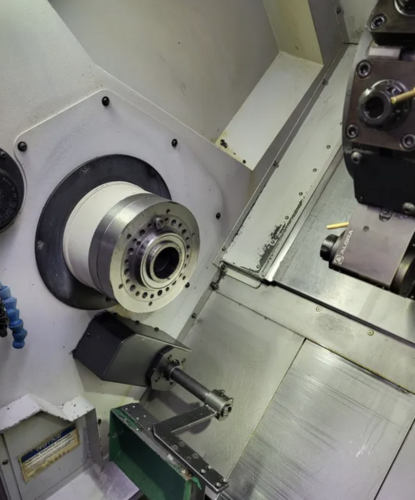

Spindle
Maximum Speed SP: 4,700rpm
Maximum Power Rating (30 mins) 20-hp (15 kW)
Spindle Nose A2-6 / 20 C
Spindle Orient 1.0 degree
Collet/Chuck Actuator Type Hydraulic
Travels and Feedrates
Maximum X-Axis Travel 7.75 (196mm)
Maximum Z-Axis Travel 28.15 (715mm)
Maximum Y-Axis Travel +2.56 to -1.0 (65mm to -25.4mm)
Continuous Z-Axis Thrust 1,691 lbs. (7,540N)
X-Axis Rapid Traverse Rates 1,100-ipm (28m/min)
Z-Axis Rapid Traverse Rates 1,500-ipm (38m/min)
Y-Axis Rapid Traverse Rates 236-ipm (6.0m/min)

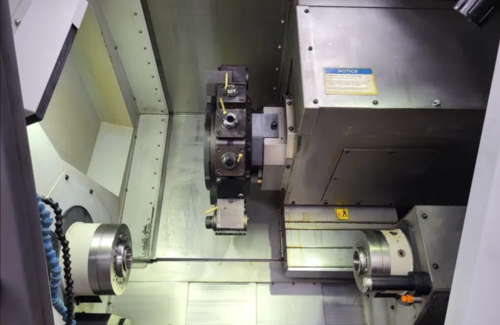

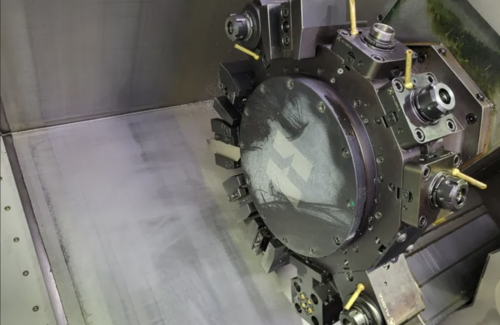

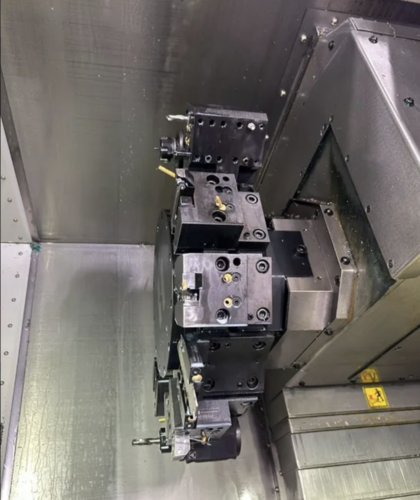

BMT-55 Live Tooling Top Plate
BMT-55 bi-directional 12-station + station index
Square Shank 1 (25mm)
Round Shank Tooling 1.50 (38mm)
Index Time (rotation/including clamp-unclamp) 0.40/1.45 Seconds
Tool Shank Diameter w/ER 25 Collets .04 .625 (1mm 16mm)
Live Tooling Power Rating (30 Min Rating) 7.5HP (5.5 kW)
Live Tooling Torque Rating (30 Min Rating) 24.3 ft-lb (34 Nm)
Live Tooling Max Speed 8,000-rpm
Sub Spindle
Maximum Speed 6,000-rpm
Maximum Power Rating (30 min) 10-hp (7.5 kW)
Spindle Nose A2-5/16C
Chuck Size (Chuck Not Included) 6 (150mm)
Spindle Bore (not bar capacity) 1.89 (48mm)
Spindle Orient (optional) 1.0 degree
Collet/Chuck Actuator Type Pneumatic
Maximum Travel 28.275 (718mm)
