1 / 7
Click to zoom in
1 / 7
For Sale by Prestige Equipment Corp
Surplus Record Dealer Since 1991
Location: Melville, NY
Contact Terry Lashin
Phone Number: 631...> Show Phone Number 631-249-5566
Let the seller know you found their listing on Surplus Record!
Description
CAPACITY:

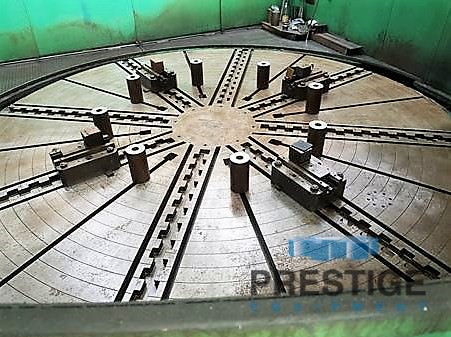

Table Diameter: 177.16"
Maximum Swing: 216.53"
Maximum Turning Height: 157.48"

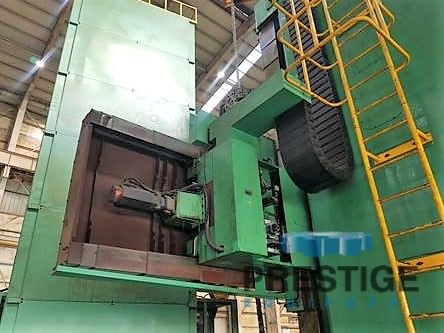

Ram Dimensions: 15.74" x 15.74"
Taper in Ram: BT-50
Table Speeds, 2-Range: 1 - 60 RPM
Table Weight Capacity: 110,000 Lbs
Z-Axis Travel, Ram Stroke: 78.74"
X-Axis Travel, Cross Travel: 111.81"
W-Axis Travel, Rail Vertical: 98.42"
Cutting Feed Rate, X/Z-Axes: Up to 236.22 IPM
Rapid Traverse Rate, X/Z-Axes: 236.22 IPM
Rapid Traverse Rate, W-Axis: 19.68 IPM
Table Motor: 174.33 HP
Approx. Machine Footprint: 551.18" x 355.90"
Approx. Machine Height: 433.07"
Approx. Machine Weight: 352,000 Lbs
Equipped With:

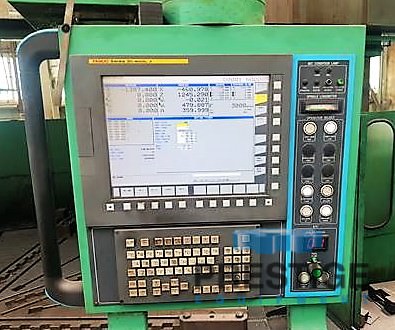

Fanuc 31i-A CNC Control
177.16" Independent Manual 4-Jaw Chuck
12 Station Automatic Tool Changer

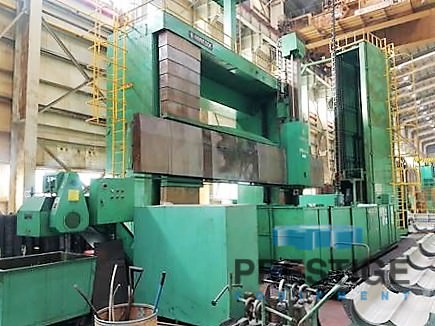

Double Column Design
Coolant System
Power Elevating Rail
Steel Sliding Way Covers
Splash Guard

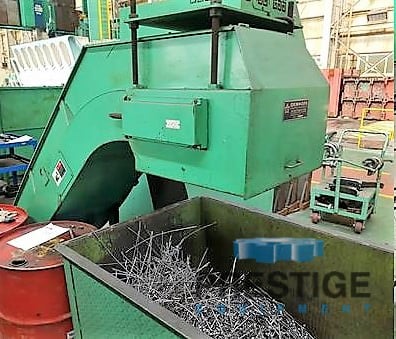

Chip Conveyor
Features:
Fanuc 31i-A CNC Control
177.16" Independent Manual 4-Jaw Chuck
12 Station Automatic Tool Changer
Double Column Design
Coolant System
Power Elevating Rail
Get Your Price from Prestige Equipment Corp!
