Haas #VF3, vertical machining center, 40" X, 20" Y, 25" Z, 20 HP, 7500 RPM, CT-40, liquid cooled, 24 automatic tool changer, rigid tap, Chip Conv., 16913 spindle hours

Description

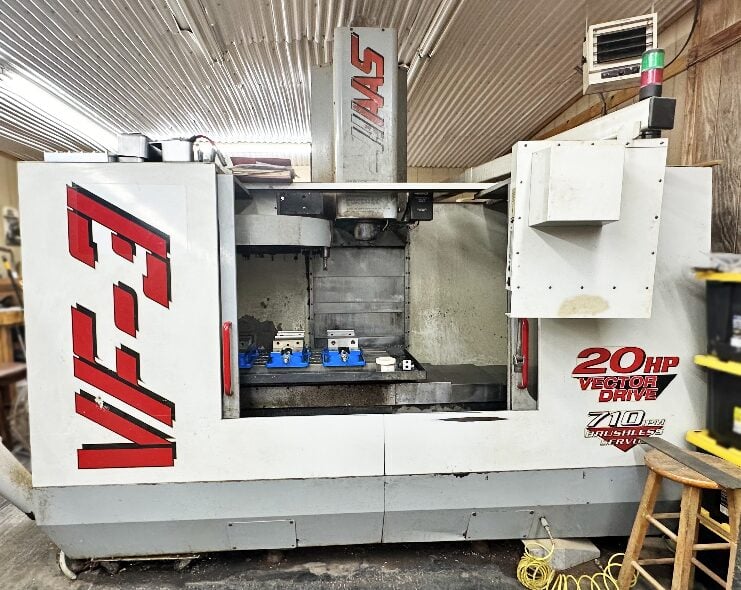

Haas VF3 Vertical CNC Machining Center

Inventory # 10151-C

Model: VF3

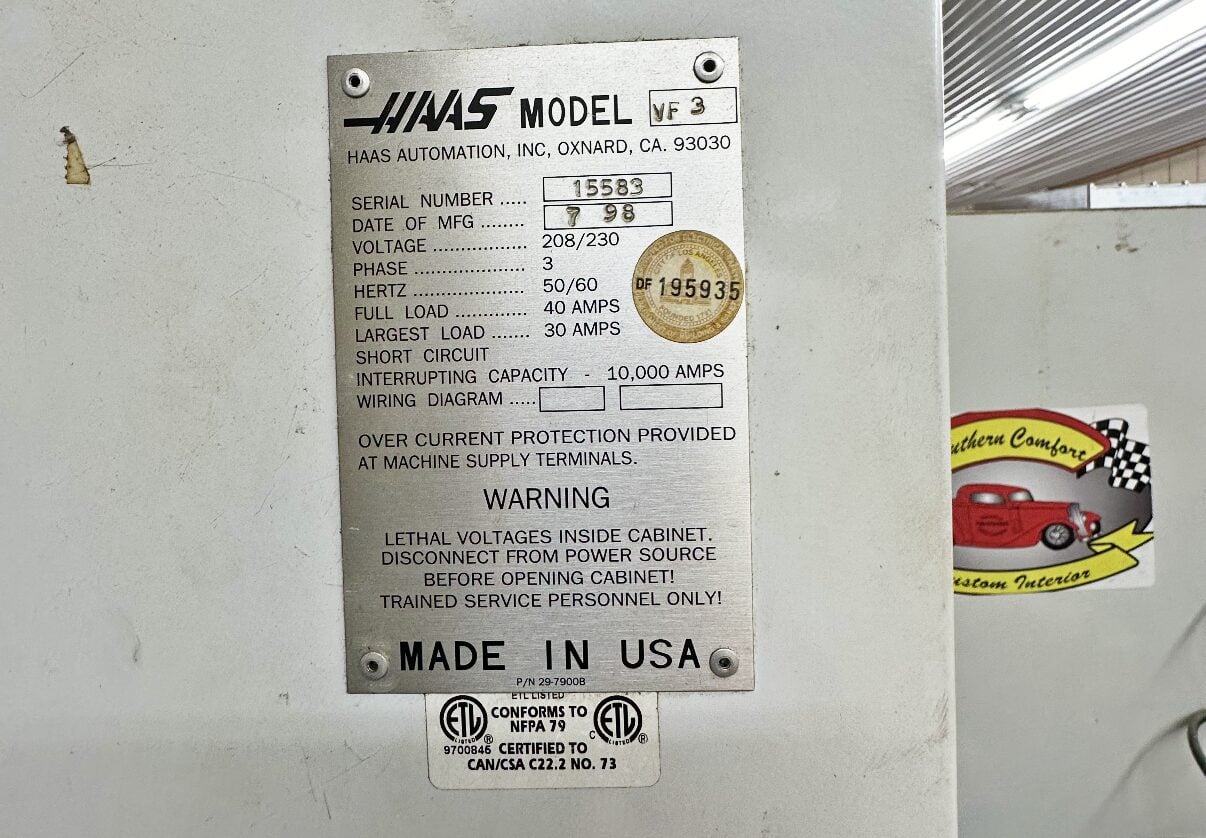

S/N: 15583

Hours:

Servo On: 5,937 Hours

In Motion: 16,156 Hours

Spindle On: 16,913 Hours

Specifications:

X-Axis Travel: 40″

Y-Axis Travel: 20″

Z-Axis Travel: 25″

Spindle Nose to Table: 4″ – 29″

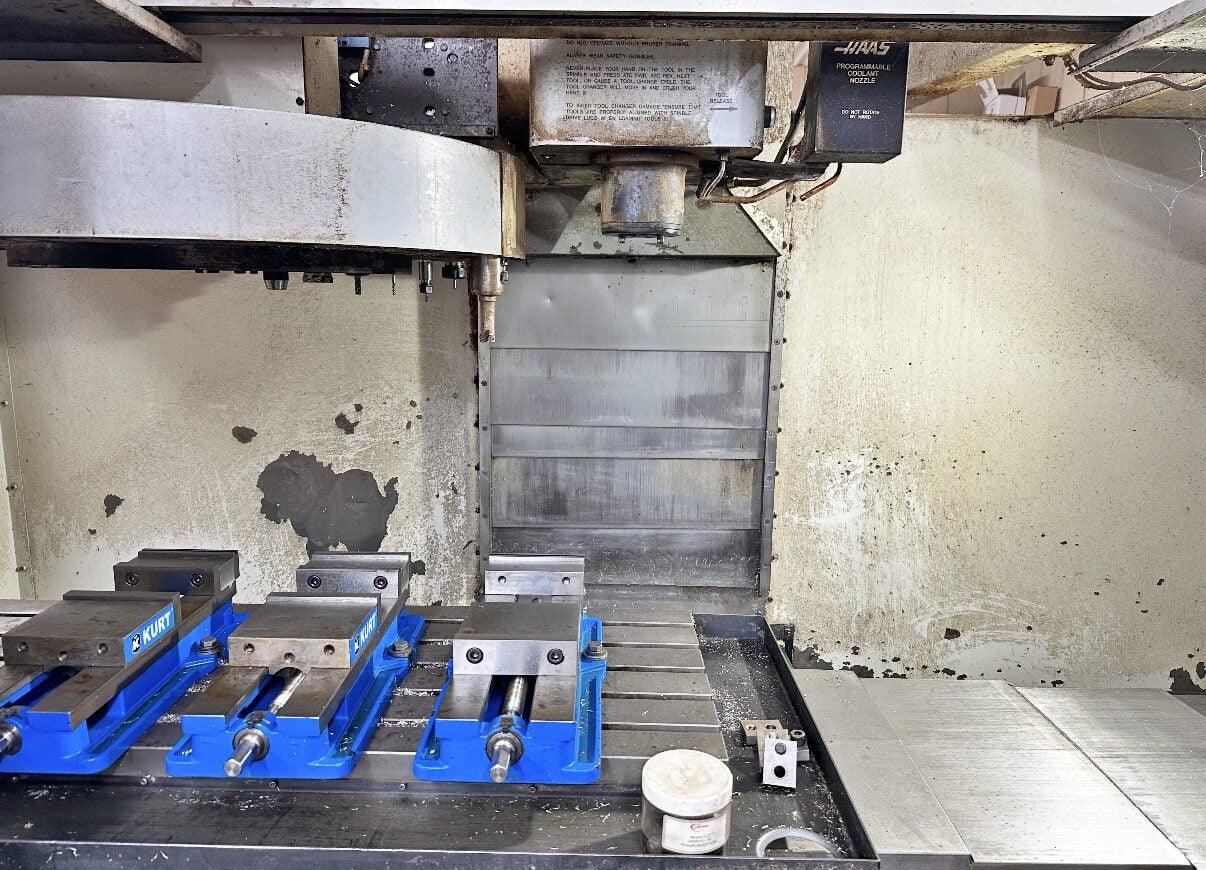

Table Size: 48″ L x 18″ W

T-Slot Center Distance: 3.15″

Standard T-Slots: (5) 5/8″ W

Spindle:

Rating: 20 HP Max.

Speed: 7,500 RPM Max.

Torque: 75′ /lbs. @ 1,400 RPM Max.

Drive System: Direct Speed Belt Drive

Taper: CT 40

Bearing Lubrication: Air/Oil Injection

Cooling: Liquid Cooled

Feed Rates:

Rapids on X/Y/Z: 1,000″ /Min.

Max. Cutting: 650″ /Min.

Axis Motors:

Max. Thrust X/Y: 2,550 lbs.

Max. Thrust Z: 4,200 lbs.

Tool Changer:

Capacity: 24

Tool Diameter (Full): 3 1/2″ Max.

Tool Weight: 12 lbs. Max.

Tool to Tool: 4.2 Seconds (Avg.)

Chip to Chip: 4.5 Seconds (Avg.)

Accuracy (1-Axis):

Positioning: +/- 0.0002″

Repeatability: +/- 0.0001″

Air Required: 4 SCFM, 100 PSI

Coolant Tank Capacity: 55 Gallons

Motor: 20 HP / 208v, 230v / 3ph

Equipment Included:

Side Mount Tool Change

Chip Conveyor

Brushless Servo Motors

4th Axis Brush

Programmable Coolant

Spindle Orientation

Rigid Tapping

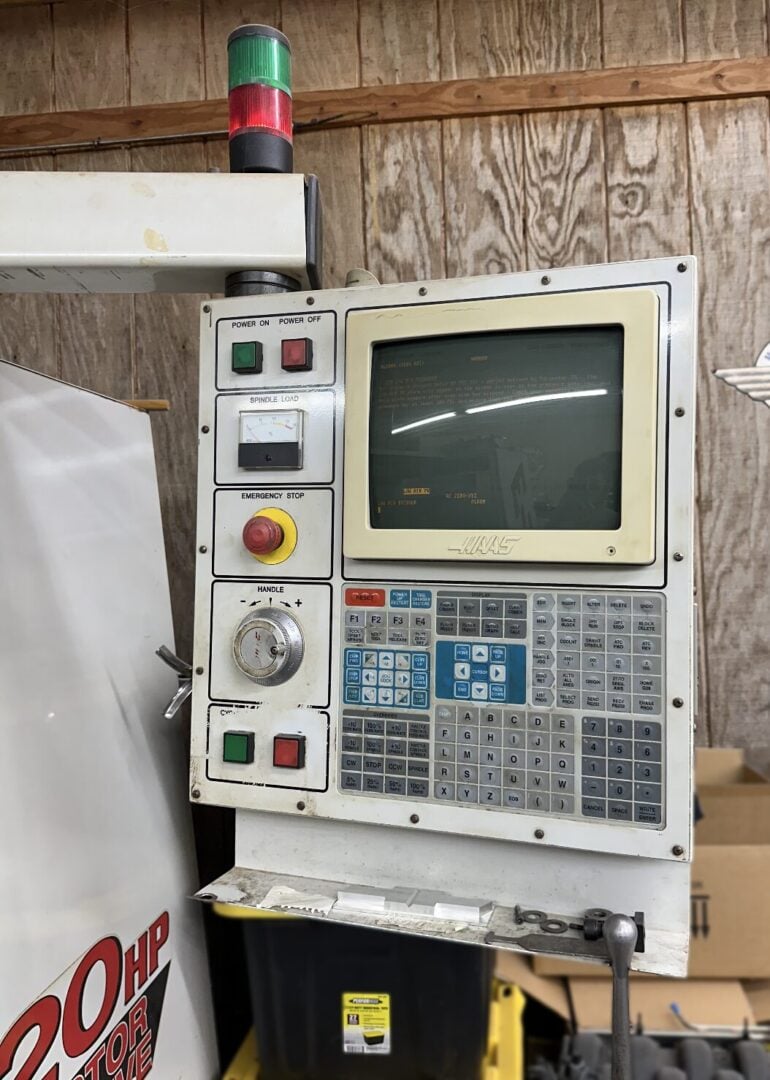

Jog Handle

Extended Memory 1MB

Floppy Disc Drive

Quick Code

Micro Code

Custom Macros

Coordinate Scale

Coordinate Rotation

Mechanical Specifications:

Dimensions: 152″ x 100″ x 106″ H

Weight: approx. 12,500 lbs.

New Replacement Cost: $87,995.00

FOB Ramseur, NC Facility
