Manufacturer: Haas
Model: VF-6/50
Year: 2022
Automatic Tool Changer: 30
Longitudinal" X: 64.0
Cross" Y: 32.0
Vertical" Z: 30.0
RPM: 7500
Stock # X4X4103
1 / 7
Click to zoom in
1 / 7
For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

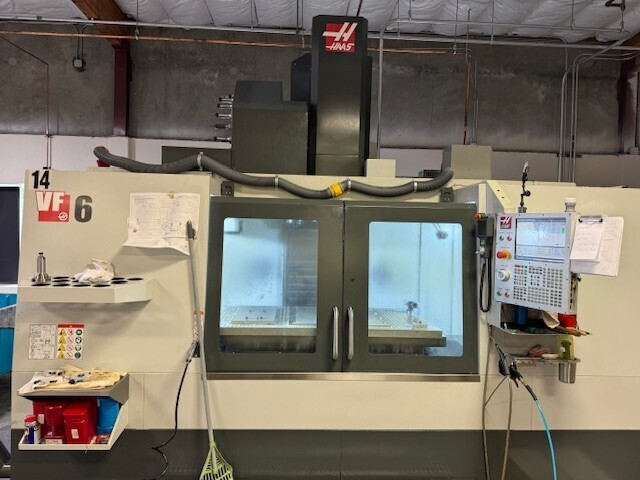

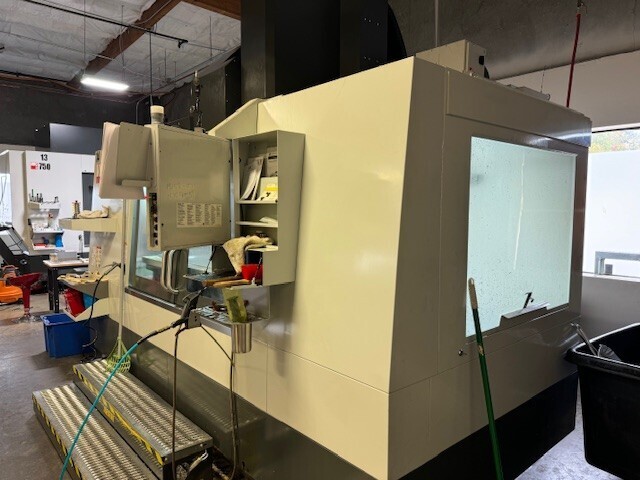

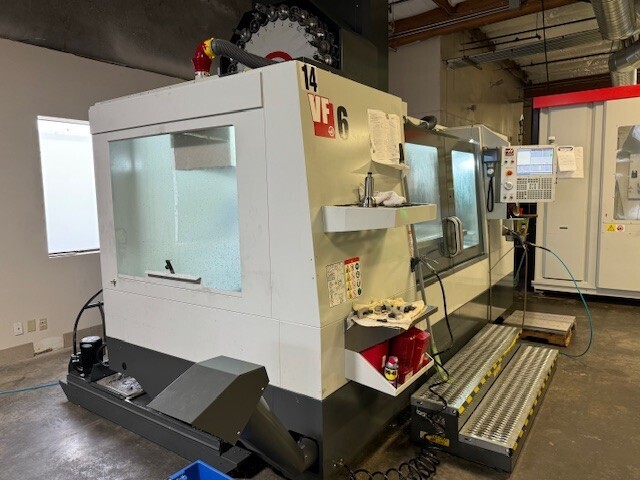

Used Vertical Machining Center equipped with Haas Next Generation Control. Features include 64 x 28 table, 30 HP spindle motor, 7,500 RPM speed, and 30+1 tool capacity.
Travels
X-Axis Travel: 64
Y-Axis Travel: 32
Z-Axis Travel: 30
Spindle Nose to Table: Approximately 535

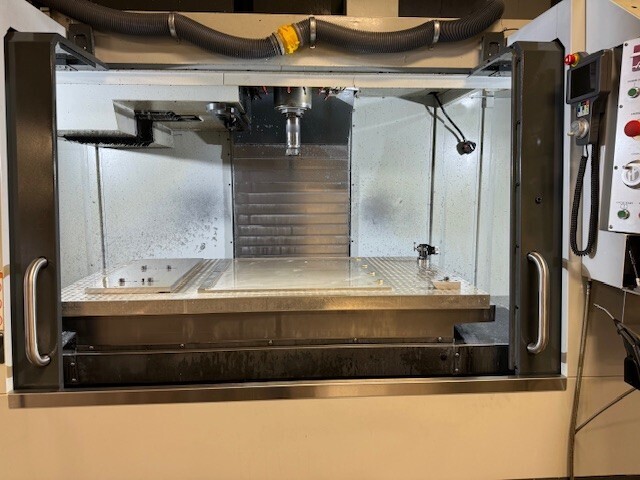

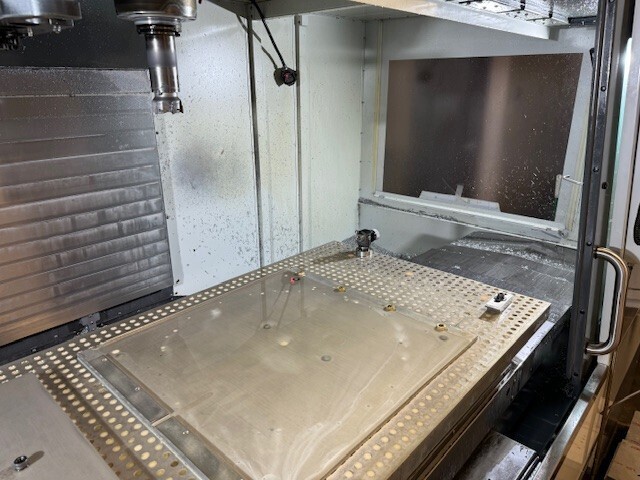

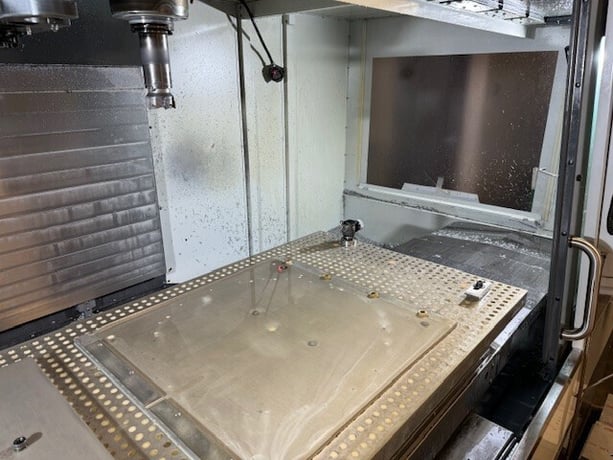

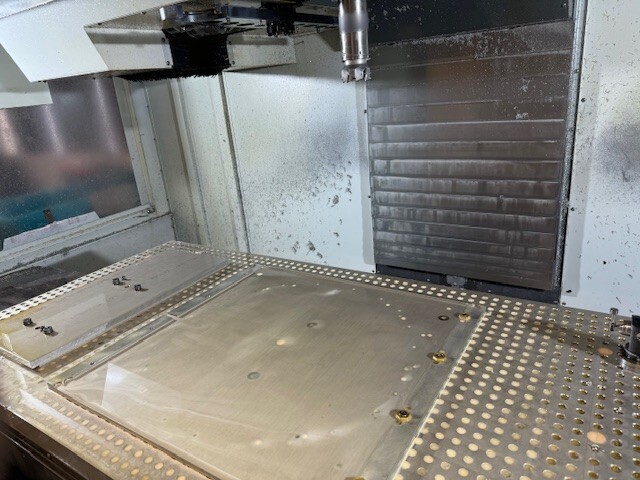

Table
Table Size: 64 x 28
Number of T-Slots: 5
Maximum Table Load: 4,000 lbs.
Spindle
Maximum Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP
Maximum Torque: 340 ft-lbs. at 700 RPM
Spindle Drive: Two-Speed Gearbox
Spindle Cooling: Liquid-Cooled

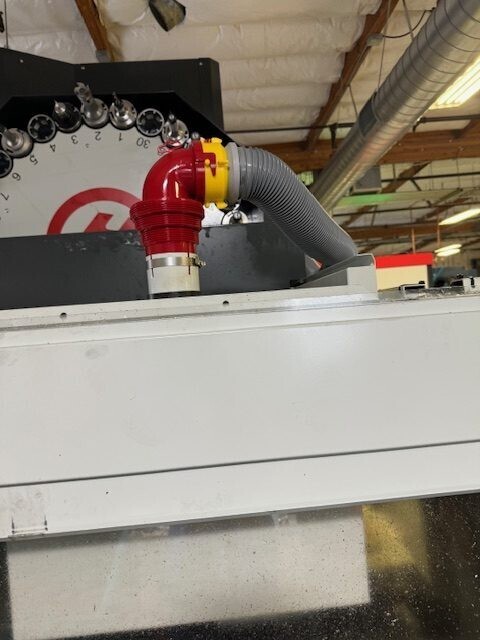

Tool Changer
Type: Side-Mount Automatic Tool Changer
Tool Capacity: 30+1
Maximum Tool Diameter: 4
Maximum Tool Diameter with Adjacent Pockets Empty: 10
Maximum Tool Length: 16
Maximum Tool Weight: 30 lbs.
Feed Rates
Maximum Cutting Feed Rate: 500 IPM
X-Axis Rapid Traverse: 600 IPM
Y-Axis Rapid Traverse: 600 IPM
Z-Axis Rapid Traverse: 600 IPM
Utilities and General
Coolant Tank Capacity: 95 gallons
Electrical Requirement: 220 VAC, three-phase, 70 amps
High-Voltage Configuration: 440 VAC, three-phase, 35 amps when factory equipped
Air Requirement: 4 SCFM at 100 PSI
Minimum Air Pressure: 80 PSI
Approximate Shipping Weight: 25,500 lbs.
Approximate Shipping Dimensions: 195 L x 102 W x 131.5 H
Travels
X-Axis Travel: 64
Y-Axis Travel: 32
Z-Axis Travel: 30
Spindle Nose to Table: Approximately 535
Table
Table Size: 64 x 28
Number of T-Slots: 5
Maximum Table Load: 4,000 lbs.
Spindle
Maximum Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP
Maximum Torque: 340 ft-lbs. at 700 RPM
Spindle Drive: Two-Speed Gearbox
Spindle Cooling: Liquid-Cooled
Tool Changer
Type: Side-Mount Automatic Tool Changer
Tool Capacity: 30+1
Maximum Tool Diameter: 4
Maximum Tool Diameter with Adjacent Pockets Empty: 10
Maximum Tool Length: 16
Maximum Tool Weight: 30 lbs.
Feed Rates
Maximum Cutting Feed Rate: 500 IPM
X-Axis Rapid Traverse: 600 IPM
Y-Axis Rapid Traverse: 600 IPM
Z-Axis Rapid Traverse: 600 IPM
Utilities and General
Coolant Tank Capacity: 95 gallons
Electrical Requirement: 220 VAC, three-phase, 70 amps
High-Voltage Configuration: 440 VAC, three-phase, 35 amps when factory equipped
Air Requirement: 4 SCFM at 100 PSI
Minimum Air Pressure: 80 PSI
Approximate Shipping Weight: 25,500 lbs.
Approximate Shipping Dimensions: 195 L x 102 W x 131.5 H
Get Your Price from Toolquip Inc!
