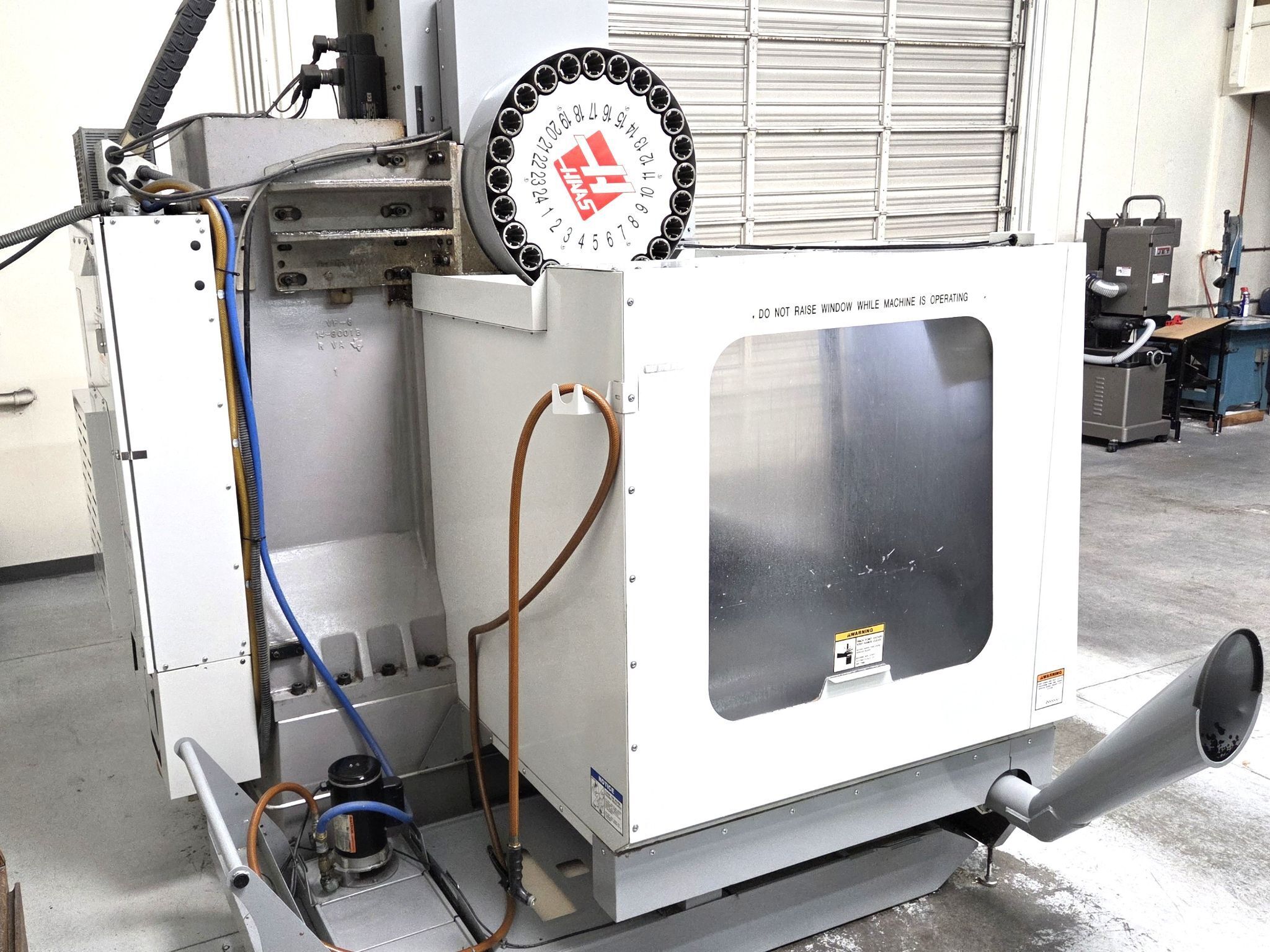

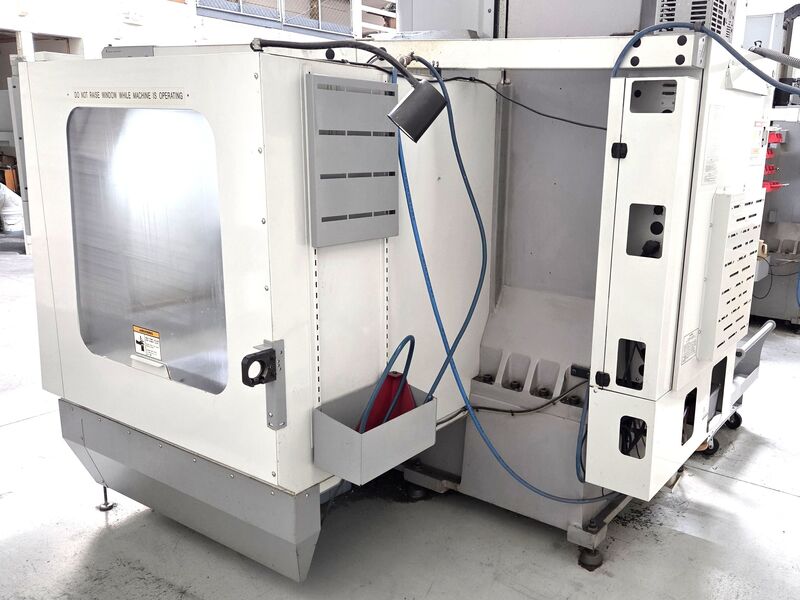

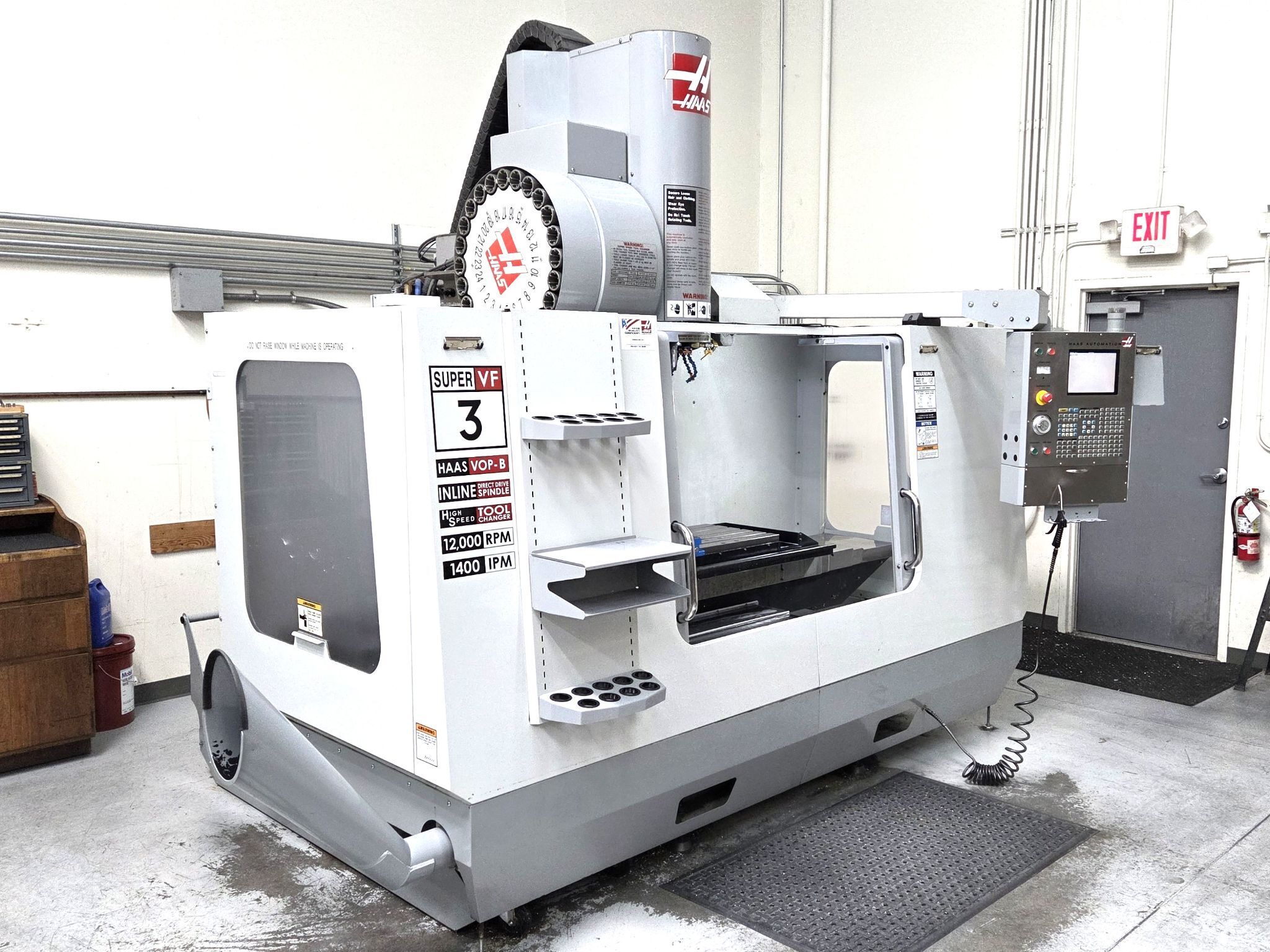

Haas #VF-3SS, 4-Axis precision CNC vertical machining center, 40" X, 20" Y, 25" Z, 12000 RPM, 24 side mount tool changer, programmable coolant, 2006

  Play Video

HAAS MODEL VF-3SS 4-AXIS PRECISION CNC VERTICAL MACHINING, 12,000 rpm,
24 position side mount tool changer, 16MB, 4th Axis ready, programable coolant
2006
Travels:
Maximum X axis 40"
Maximum Y axis 20"
Maximum Z axis 25"
Spindle nose to table (min.) 4"
Spindle nose to table (max.) 29"

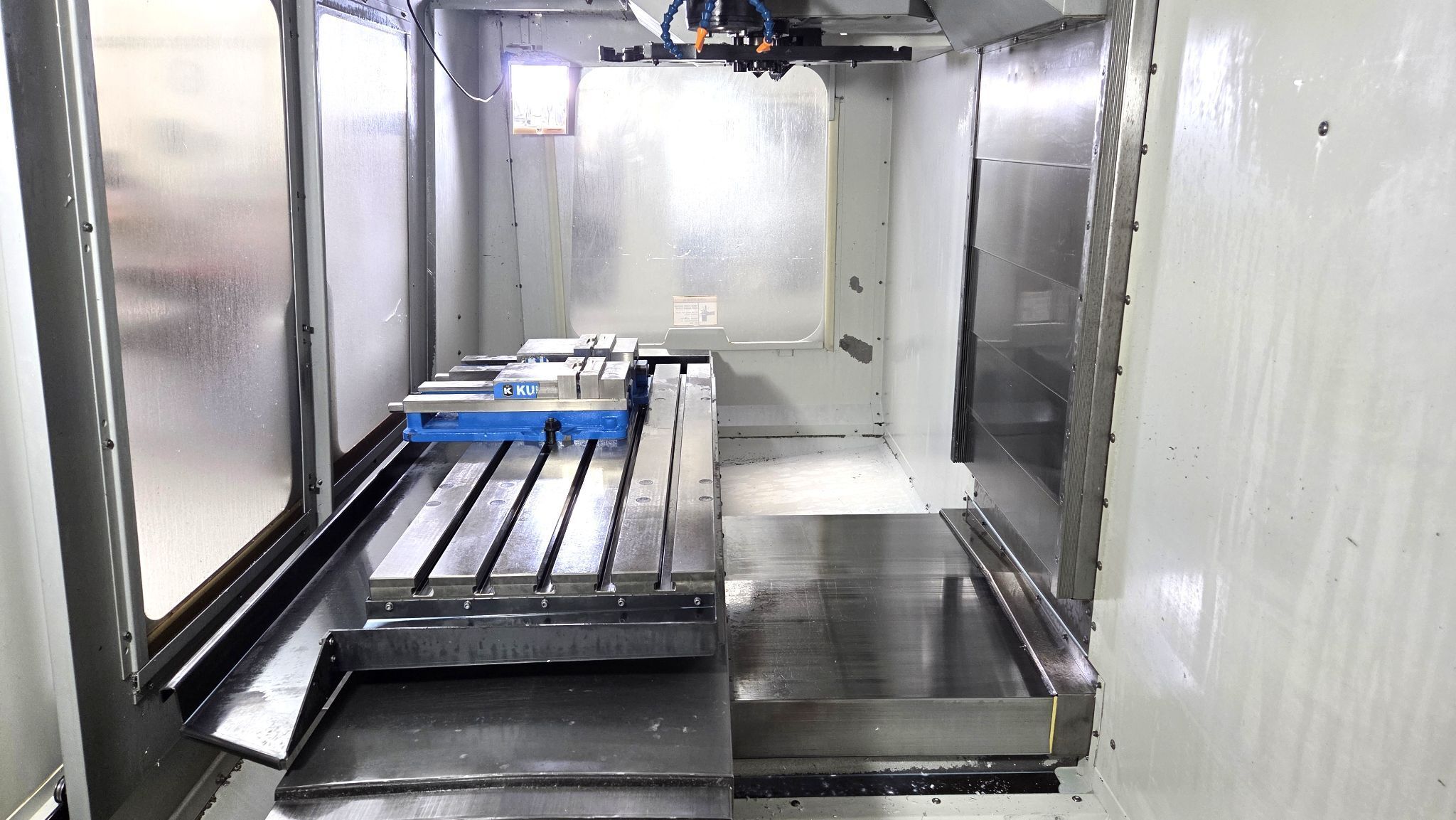

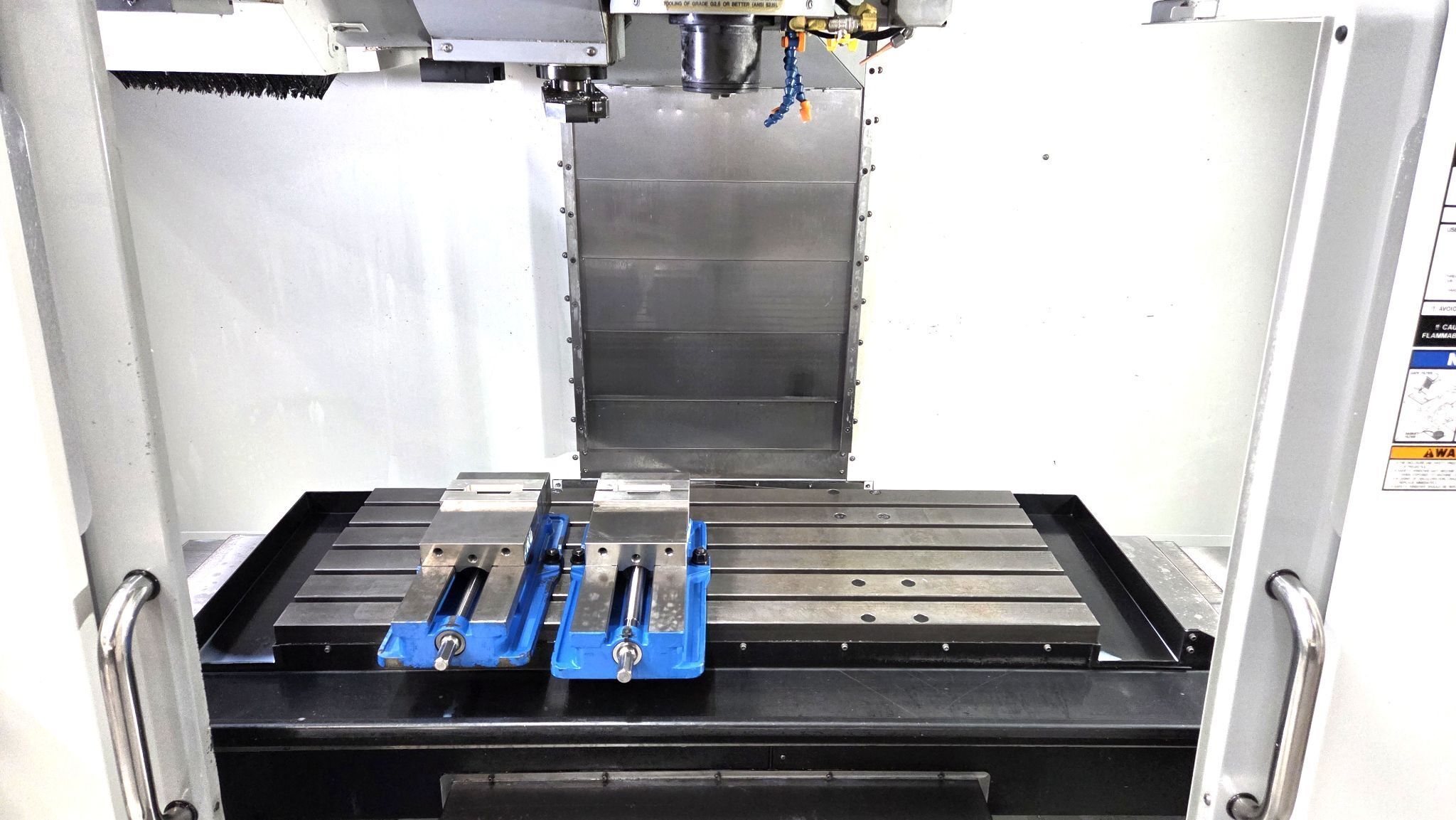

Standard table:
Length 48"
Width 18"
Max. weight on table 1,750 lb
T-slot width 0.625"
T-slot center distance 3.15"
Number of T-slots 5
Spindle:
Taper size #40 Taper
Spindle max speed 12,000 RPM
Drive system Inline direct drive
Max. torque standard 75 ft-lb @ 2,100 RPM
Spindle motor max. rating 30 HP
Bearing lubrication Air/Oil Injection
Cooling Liquid cooled
Axis Motors:
Max. thrust rating X 3,085 LB
Max. thrust rating Y 3,085 LB
Max. thrust rating Z 3,923 LB
Feedrates:
Rapids on X axis 1,400 IPM
Rapids on Y axis 1,400 IPM
Rapids on Z axis 1,400 IPM
Max. cutting 833 IPM
Cont. on Page 2
Tool changer:
Capacity standard 24 + 1
Tool type / taper CT 40
Max. tool diameter std (full) 3.0"
Max. tool weight 12 LB
Changer type standard (optional) SMTC
Tool-to-Tool (avg) 1.6 Sec.
Chip-to-Chip (avg) 2.2 Sec.
Accuracy (Single Axis):
Positioning (+/-) 0.0002"
Repeatability (+/-) 0.0001"
GENERAL
Door opening width 48.5"
Machine weight 12,500 LB
Air required 4 CFM @ 100 psi

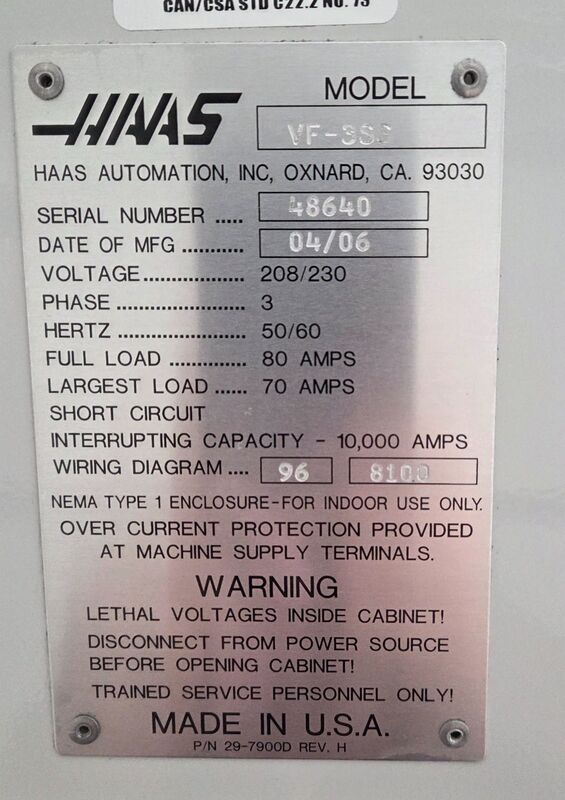

Power required 28 KVA
Note: New Replacement $150,000
