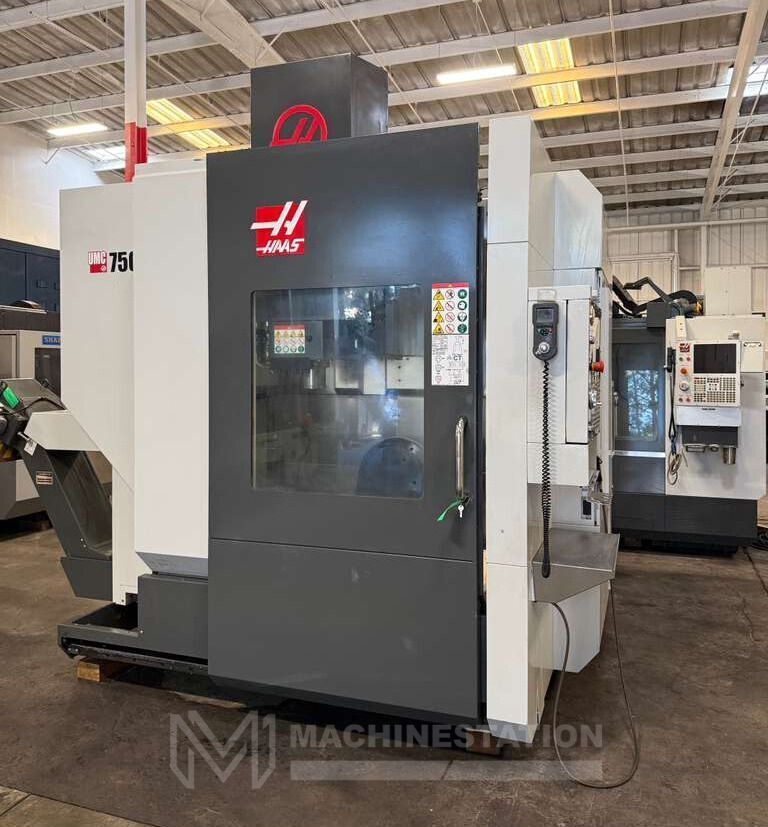

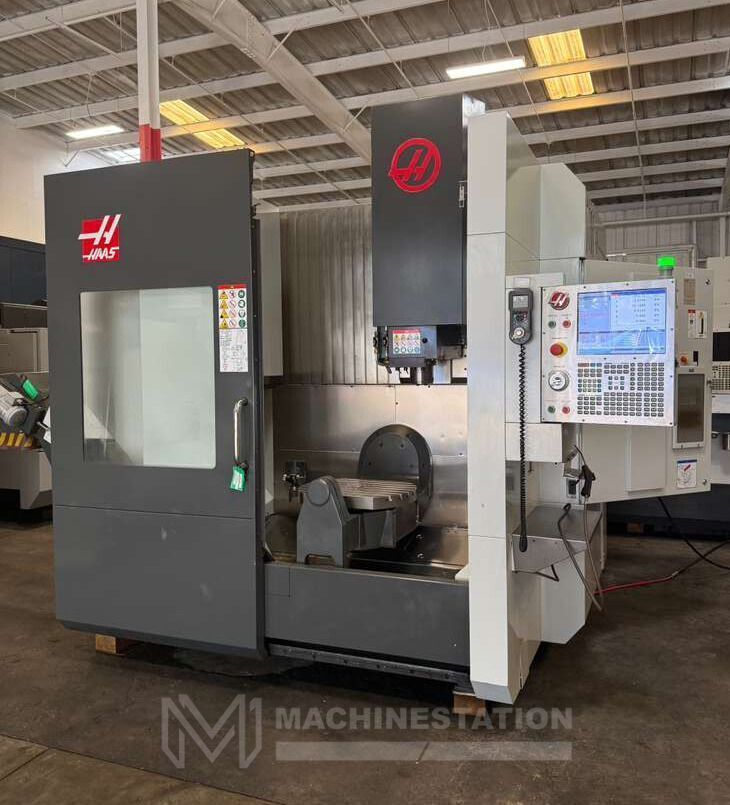

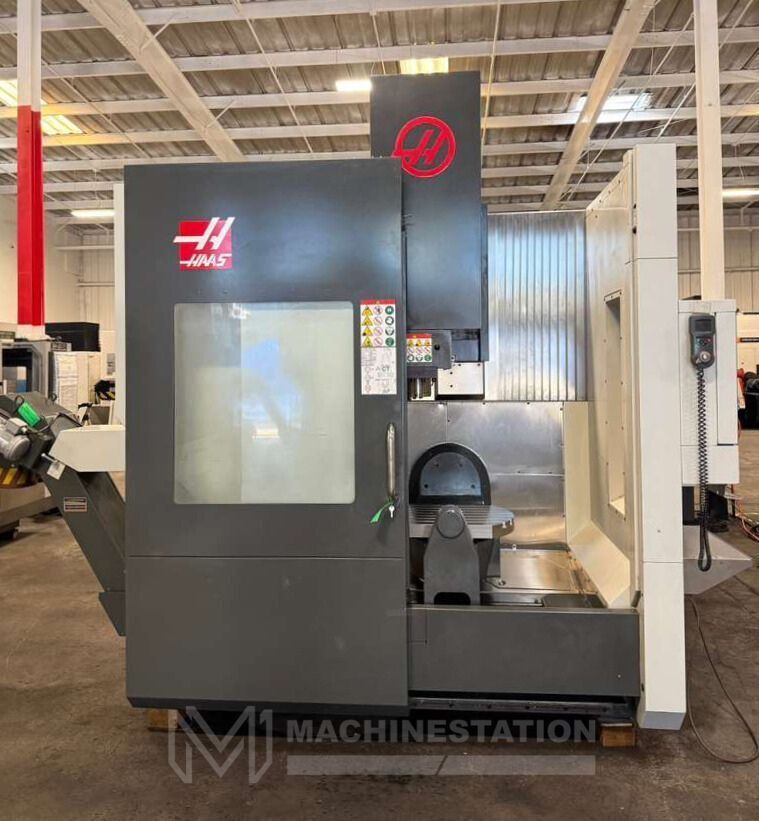

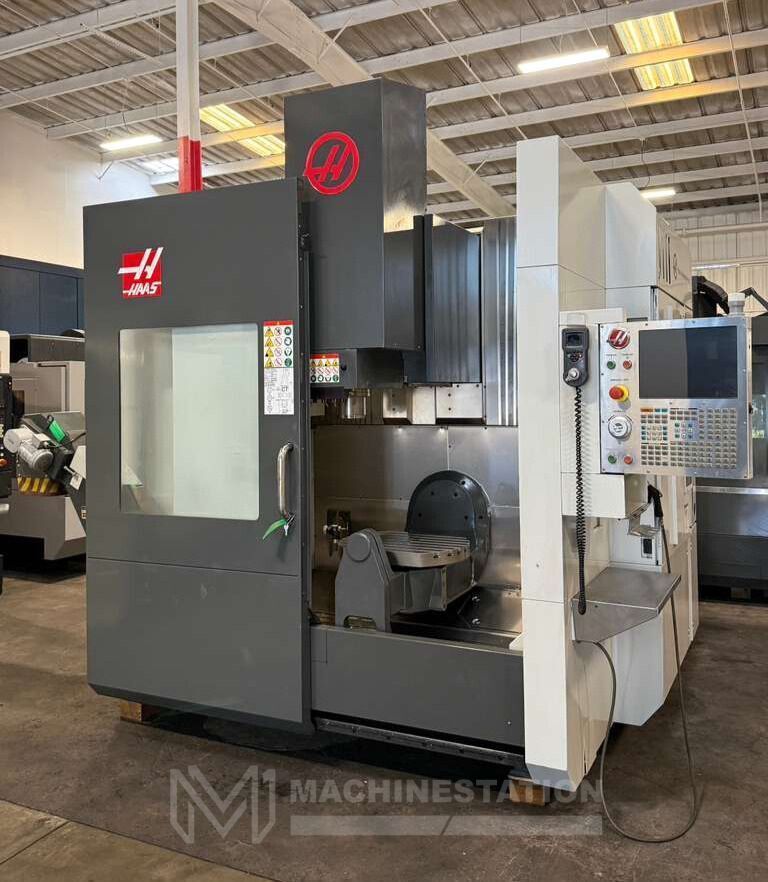

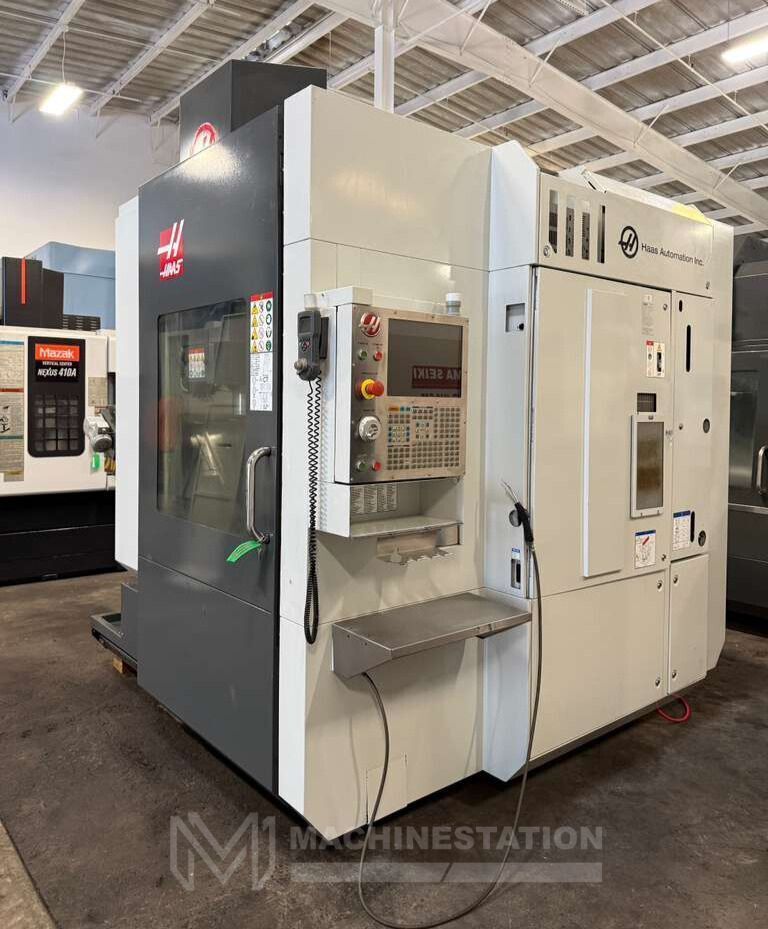

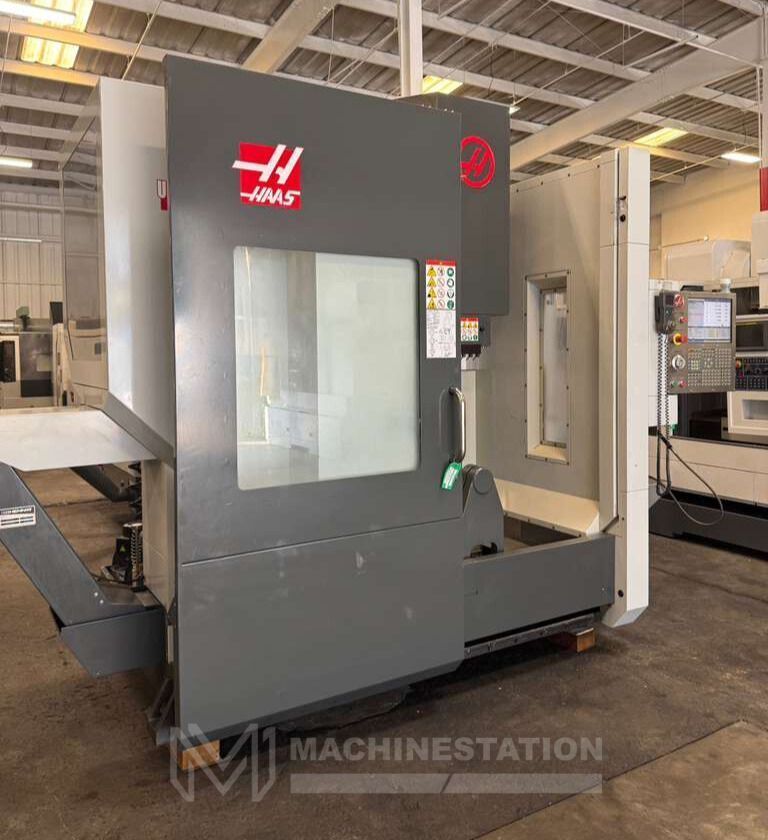

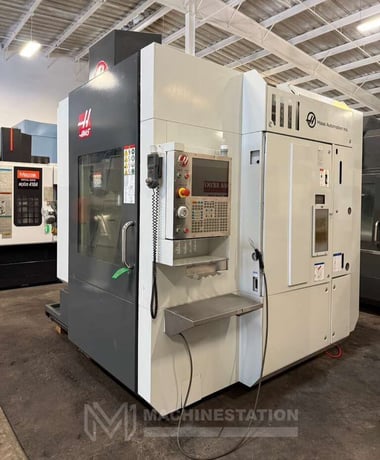

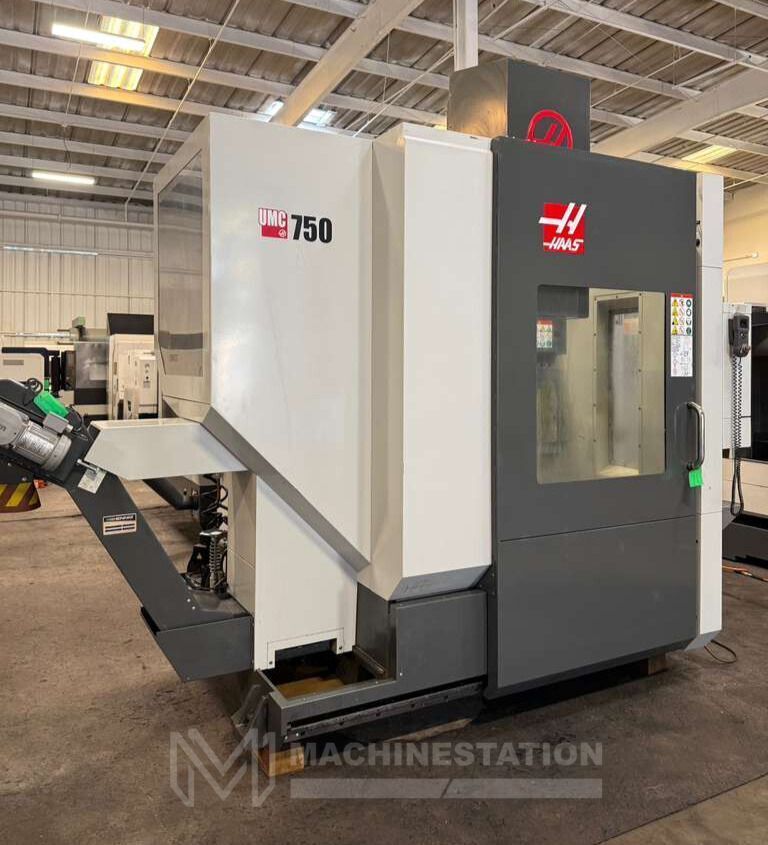

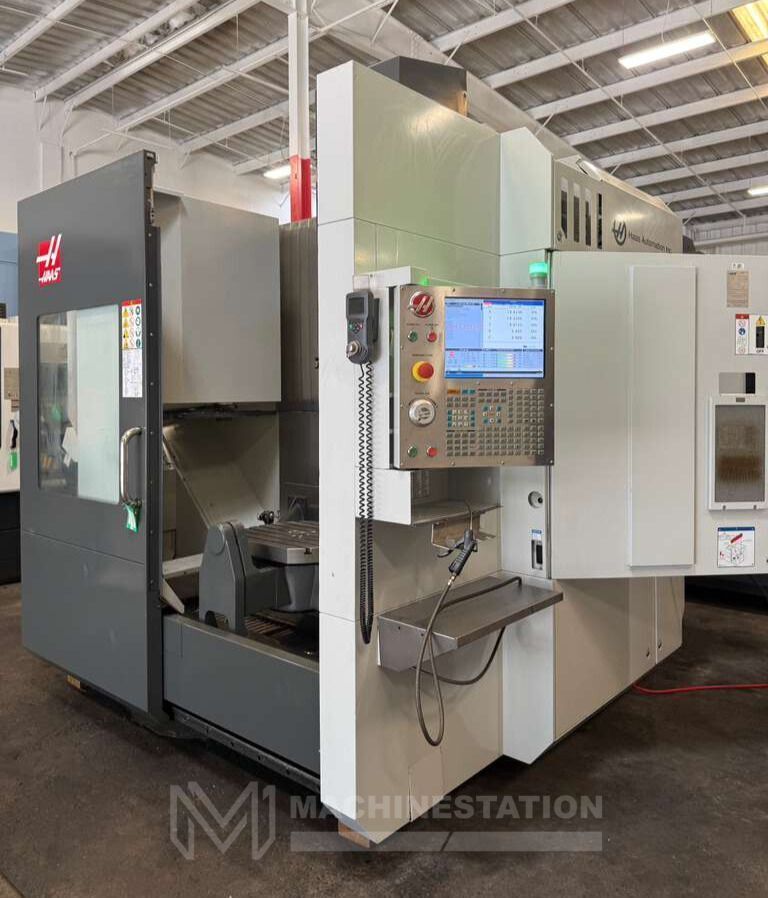

Haas #UMC-750, CNC vertical machining center, 40 automatic tool changer, 30" X, 20" Y, 20" Z, 12000 RPM, #40, 30 HP, Trunnion table, rigid tap, 300 psi thru spindle coolant, 2016

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

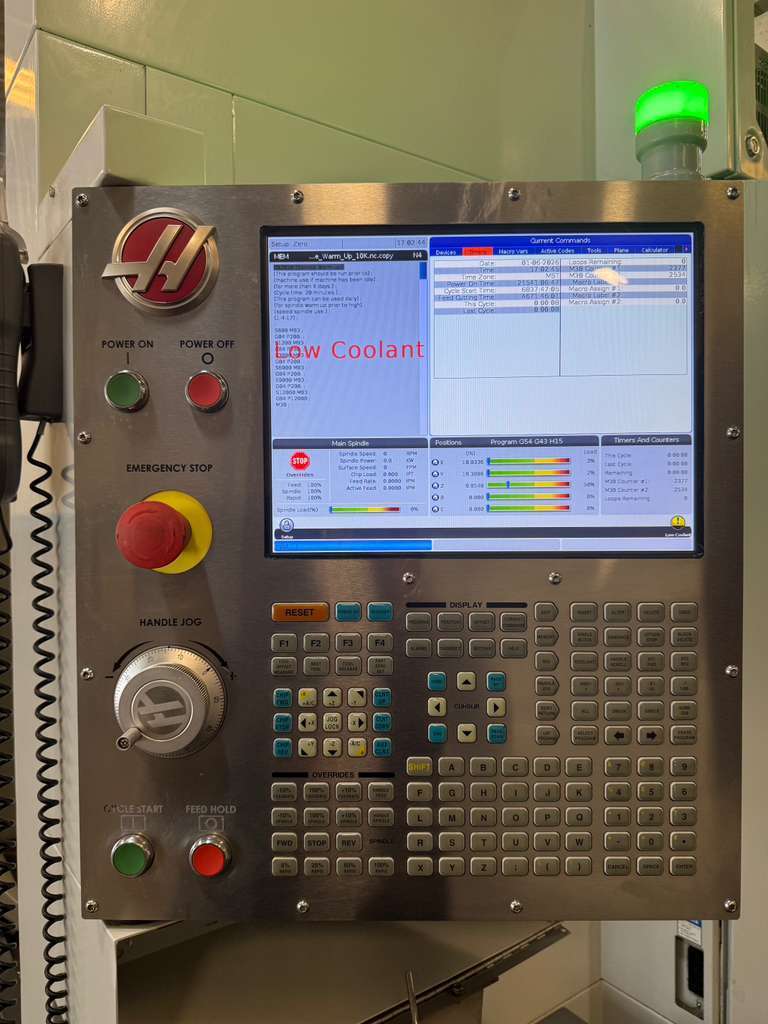

Haas CNC Control
4,671 Hours Cutting Time
Haas Trunnion Table
30 HP High Torque Spindle
Remote Jog Handle
Rigid Tapping
Spindle Orientation
Macros
Rotation and Scaling
VPS Editing
Media Display M-Code
Compensation Tables
Coolant Tank
Travels:
X-Axis: 30"
Y Axis: 20"
Z Axis: 20"
B-Axis (Table Tilt): + 120° 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 900 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4" 24"
Trunnion Table:
Platter Diameter: 19.70"
Max Weight on Platter: 660 lbs
T-Slot Width: 0.626" to 0.630"
Number of Std T-Slots: 7
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 40 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5"
Max Tool Diameter (adjacent empty): 5"
Max Tool Length: 12"
Tool-to-Tool Changing Time: 2.8 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 168" x 92.5" x 110" High
Weight: 14,250 lbs.

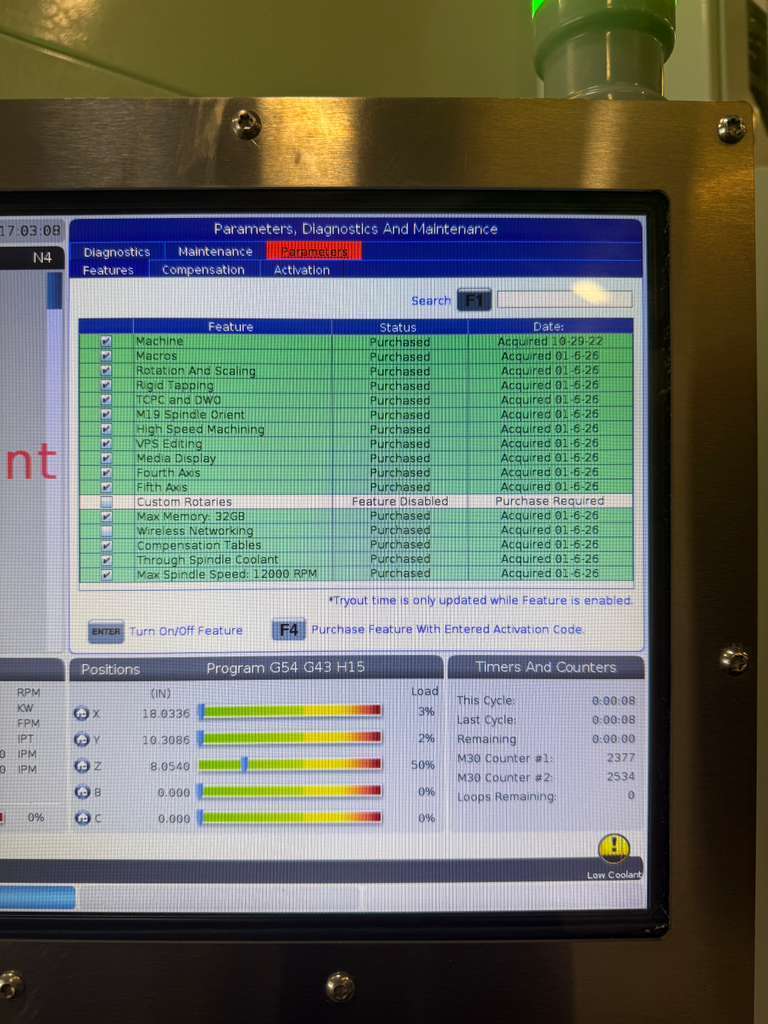

Avoid Paying More! New Haas prices just went up 5% as of May 1st plus, long lead times on new machines mean delays and higher costs. This 2016 Haas UMC-750 is fully equipped with 12,000 RPM Spindle, 40 Station Automatic Tool Changer, TSC, High Speed Machining, 32 GB Expanded Memory and Belt-Type Chip Conveyor.
