Description

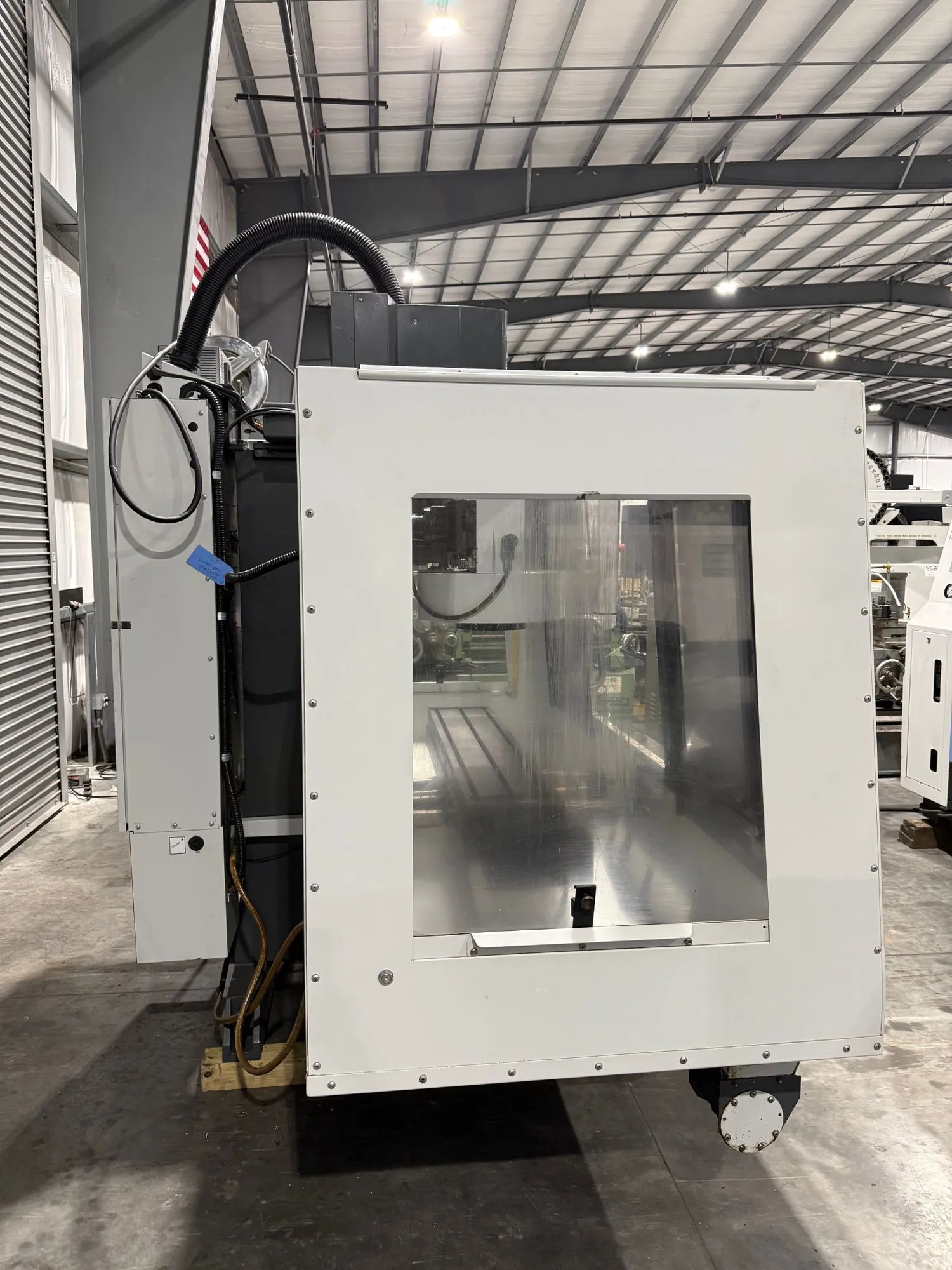

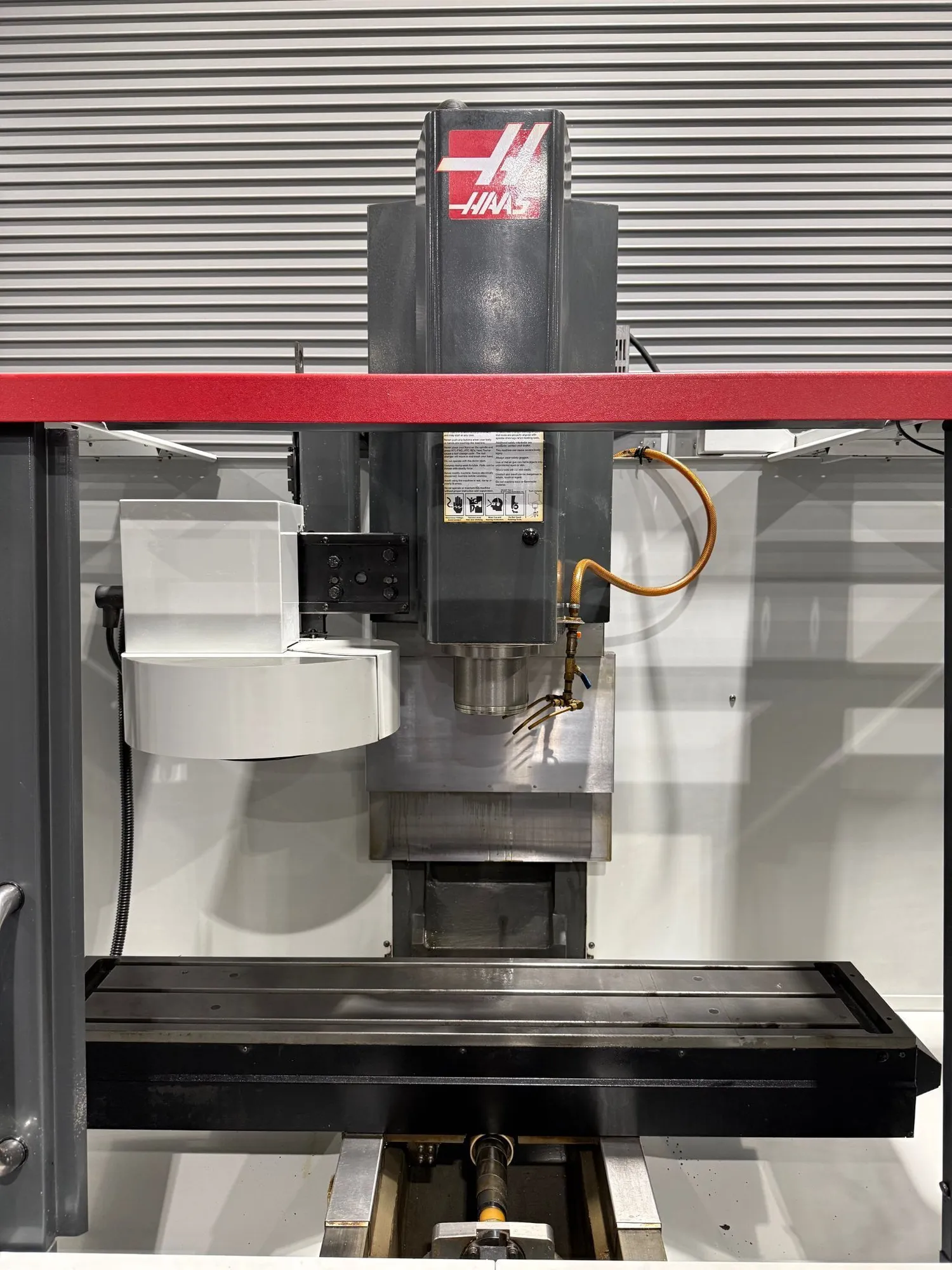

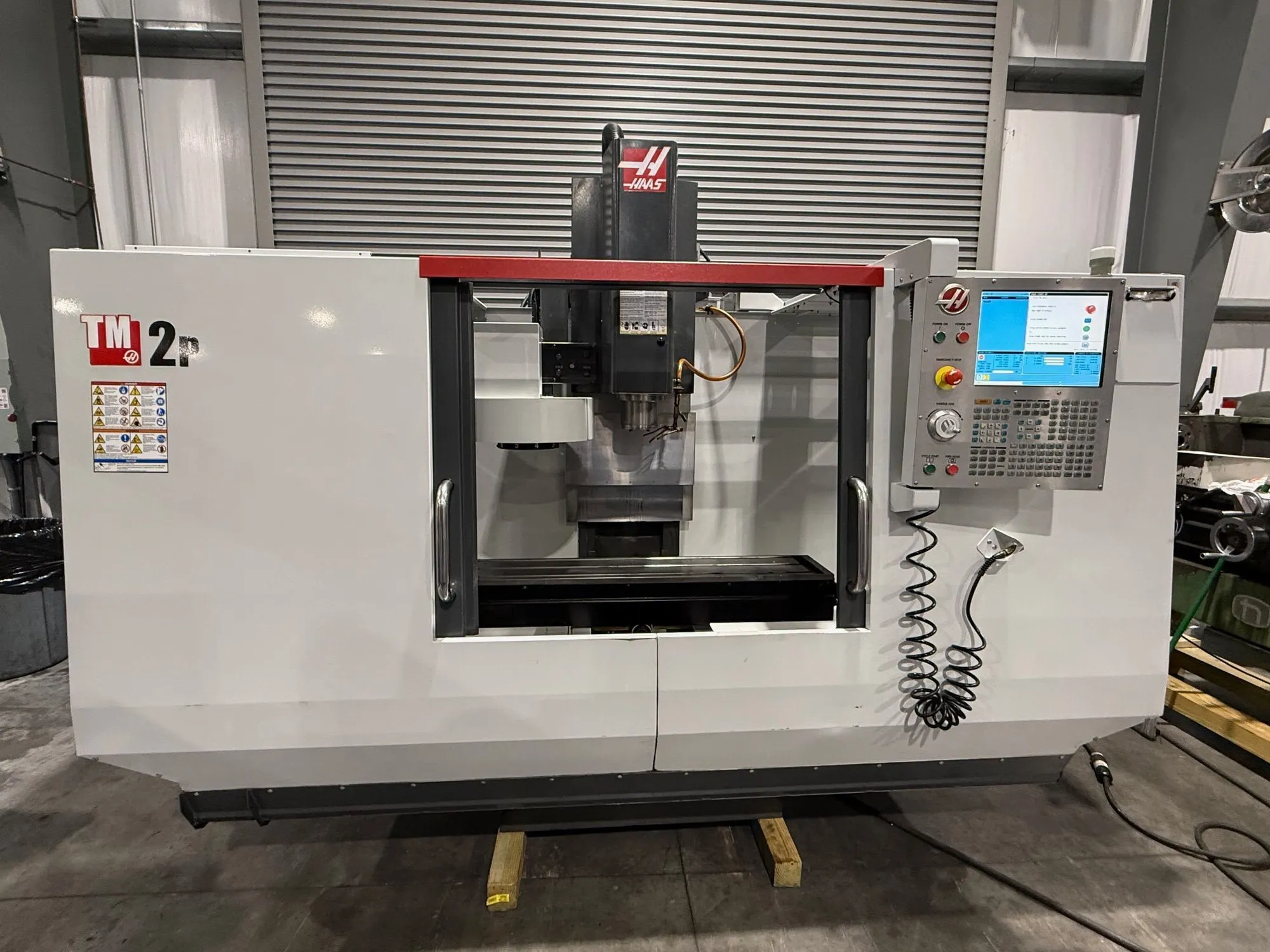

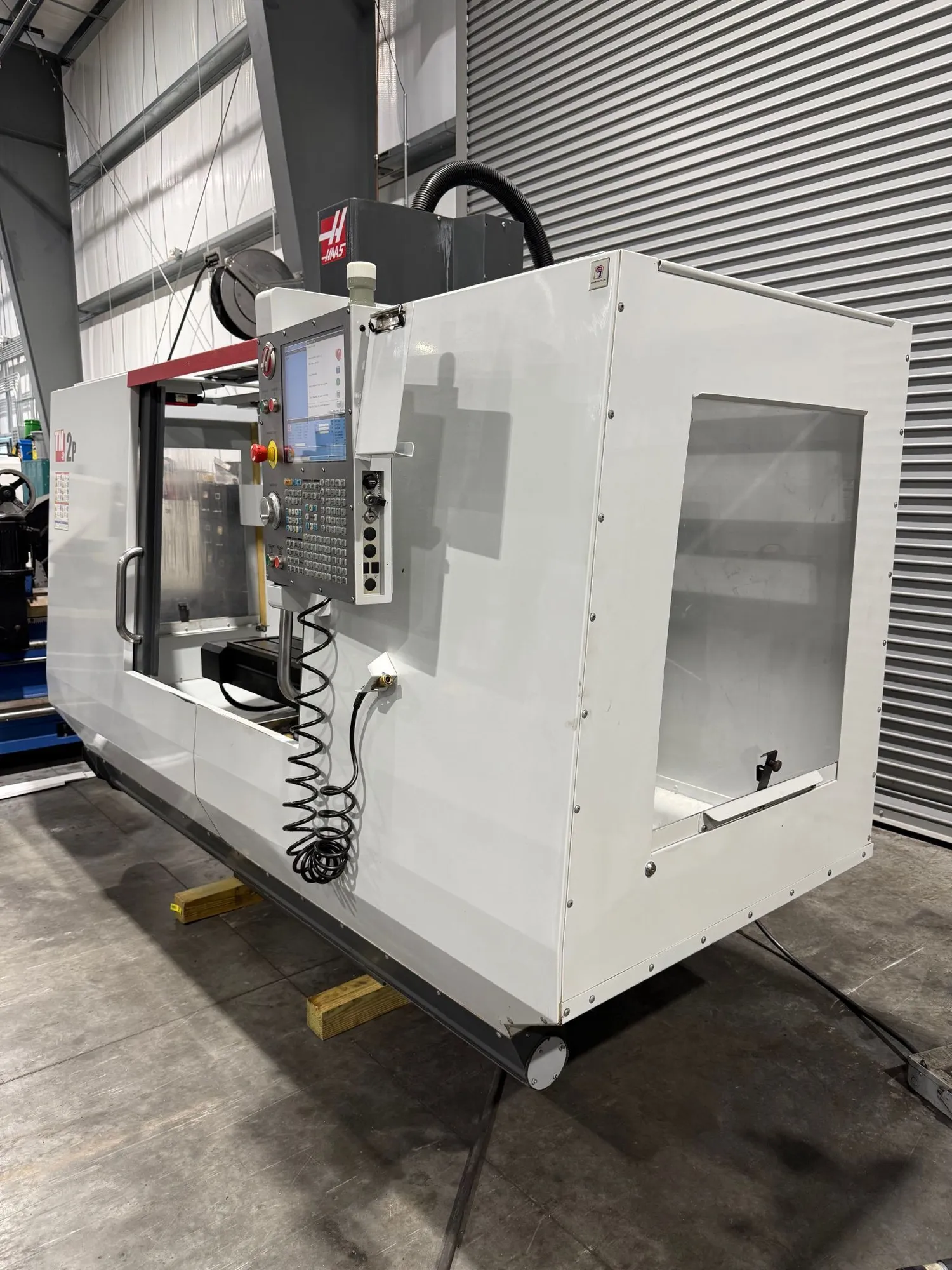

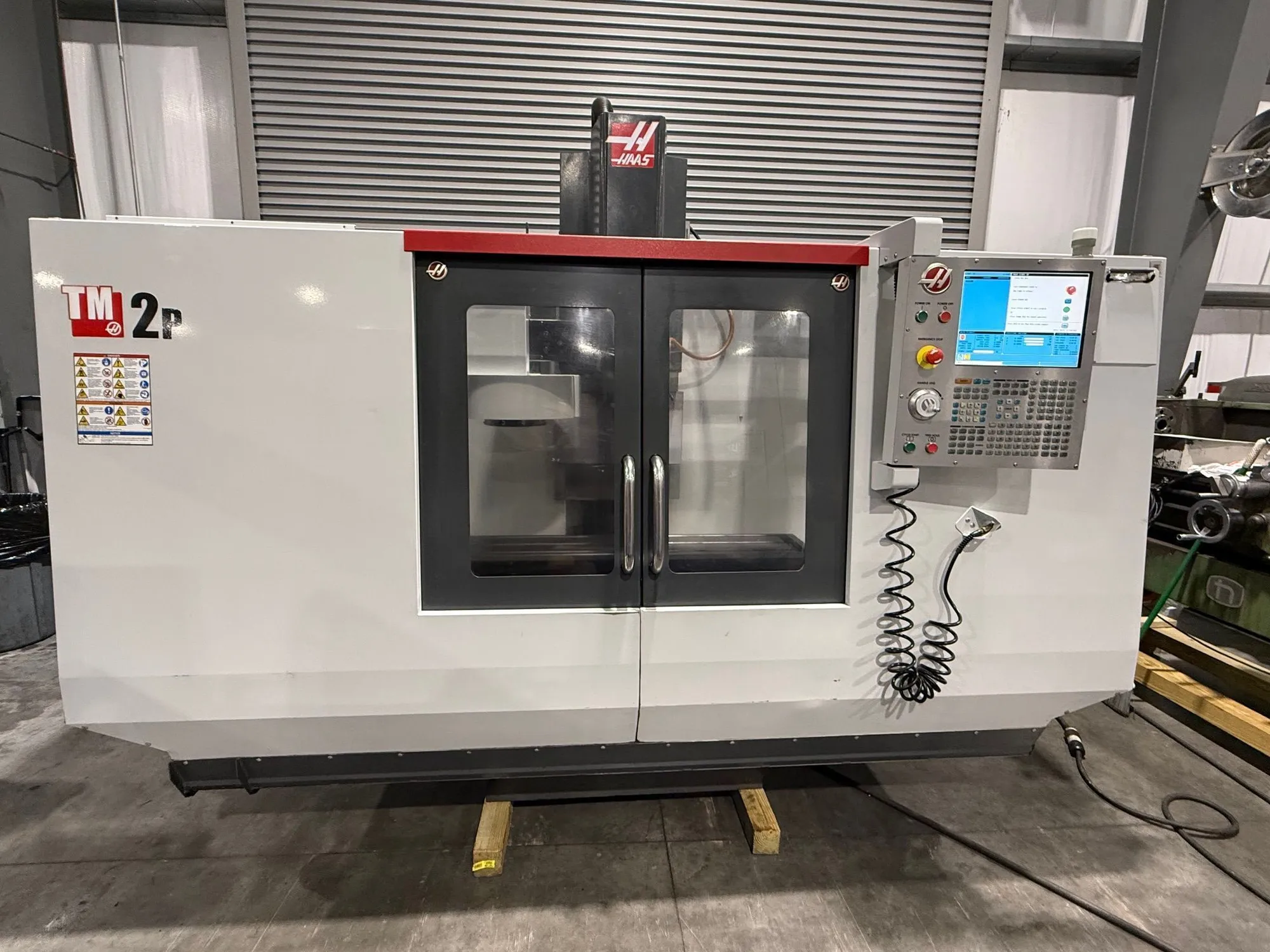

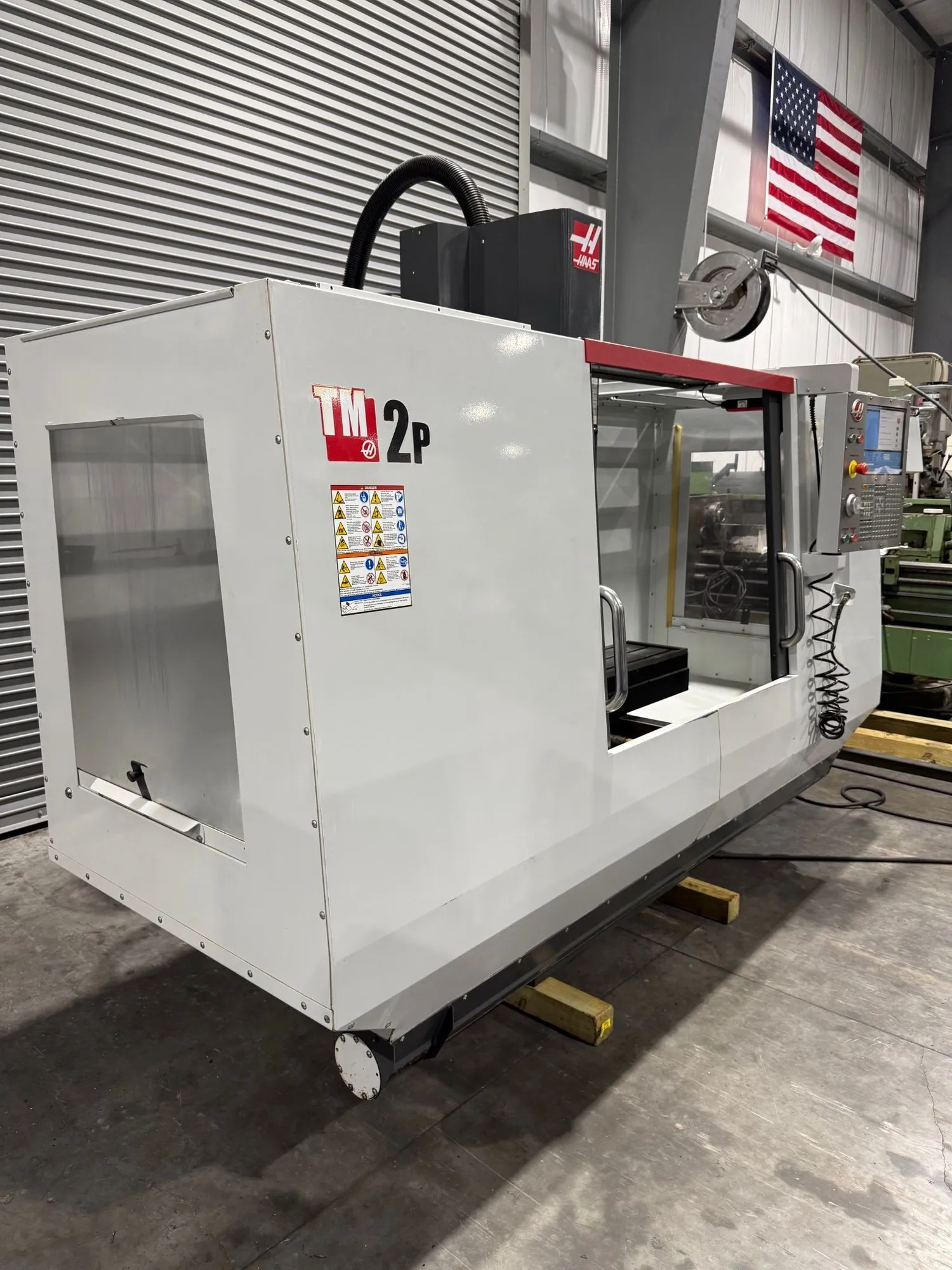

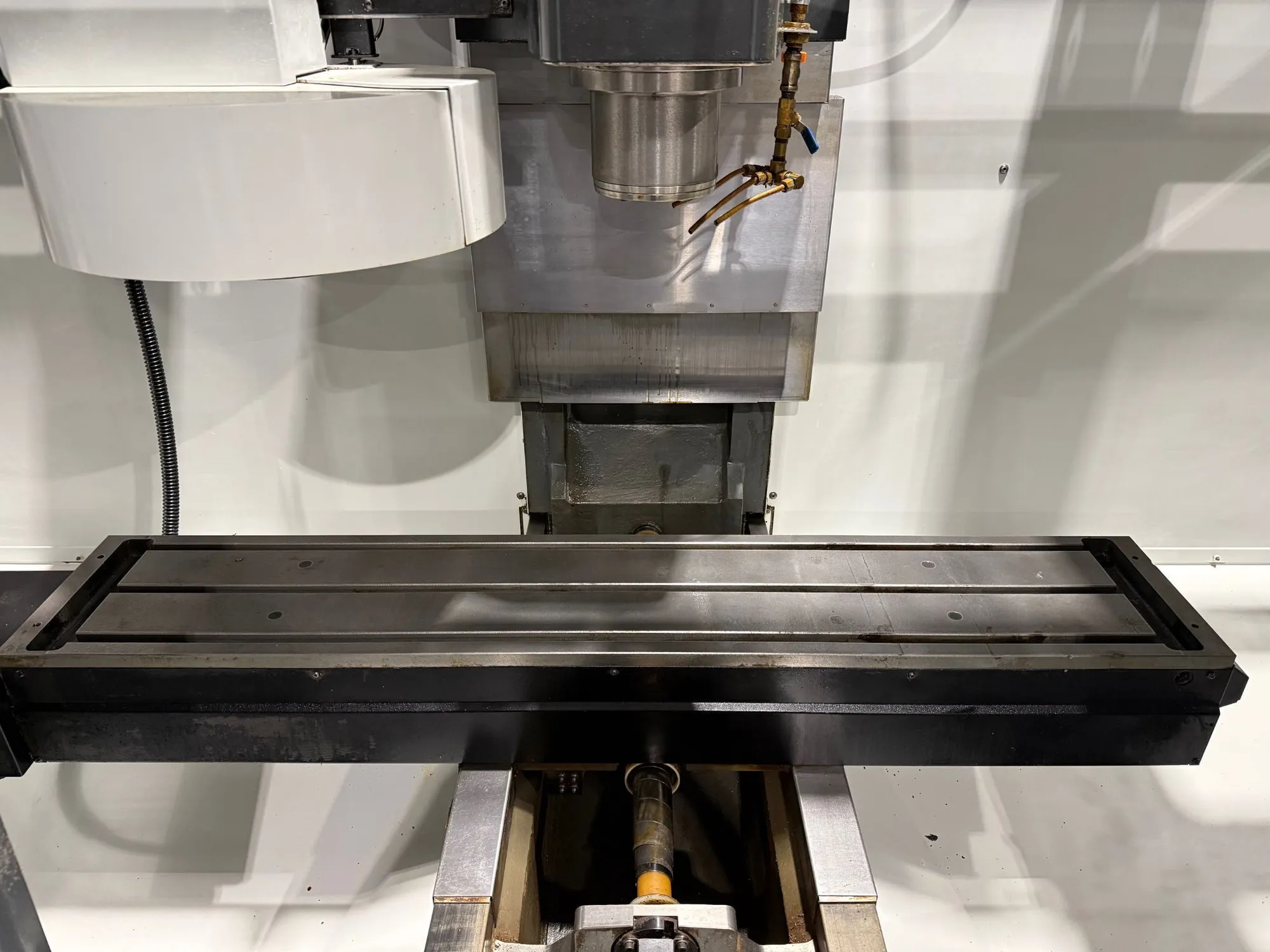

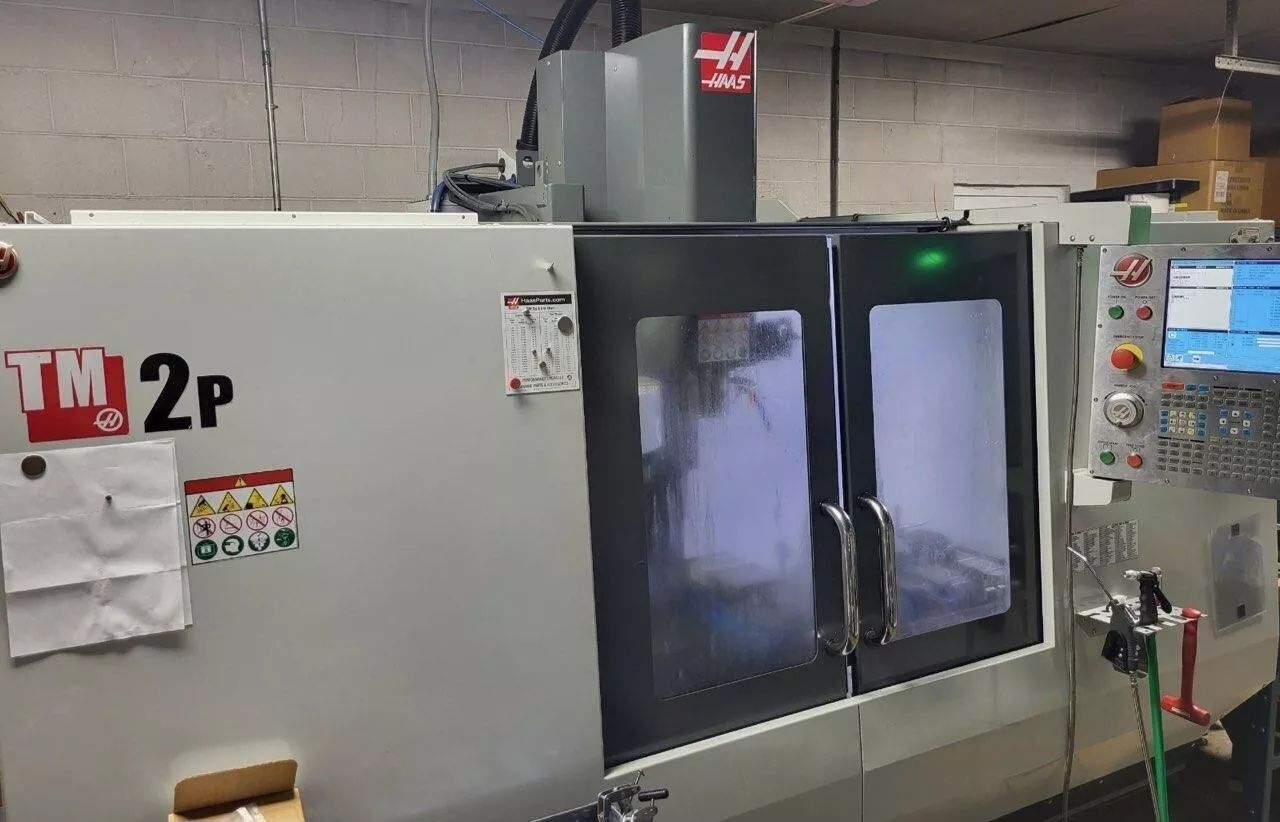

Description HAAS TM-2P CNC Vertical Machining Center 2012’ USA #8210 Specifications
X axis
40"
1,016 mm
Y axis
16"
406.4 mm
Z axis
16"
406.4 mm
Power
7.5 hp
5.6 kW
RPM
6,000 RPM
6,000 RPM
# ATC
10
10
Taper
CT or BT 40
CT or BT 40
Table-W
10.5"
266.7 mm
Table-L
57.75"
1,466.8 mm
Dimensions
121’’ L x 75’’ W x 91’’ H
121’’ L x 75’’ W x 91’’ H
Weight
5200 Lbs.
5200 Lbs.
HAAS TM-2P CNC Vertical Machining Center 2012’ USA #8210 Reference # 8210 Model # TM-2P Serial # 1099072 Year of manufacture- 10/2012’ Max Spindle speeds- 6000 R.P.M Spindle taper- Cat-40 Table size- 57.8” x 10.5” Max table weight- 1000 Lbs. (Evenly distributed) Number of T slots- (3) X axis travel- 40” Y axis travel- 16” Z axis travel- 16” Spindle nose to table- 4” min / 20” Max Max cutting feedrates- 400 I.P.M. Rapids X,Y,Z- 400 I.P.M. Tool changer capacity- 10 Tool to tool- 5.7 seconds Chip to chip- 6.5 seconds
Equipped With Machine lost its battery and had to had HFO Haas reload to the newest software (Version M18.29B), but lost its hour meter when reloaded Machine options- DNC, Quick code, Pre-Orient tap, Advanced tool management, Intuitive Programing systems (4) Leveling pads Coolant tank (less pump) 7.5 H.P. Spindle motor 220 volt single phase or 240 volt 3 phase Machine is currently wired for 240 3 phase Machine weight- 5200 Lbs. Machine dimensions- 121’’ L x 75’’ W x 91’’ H Machine location – F.O.B. Sarasota, Florida
