Description

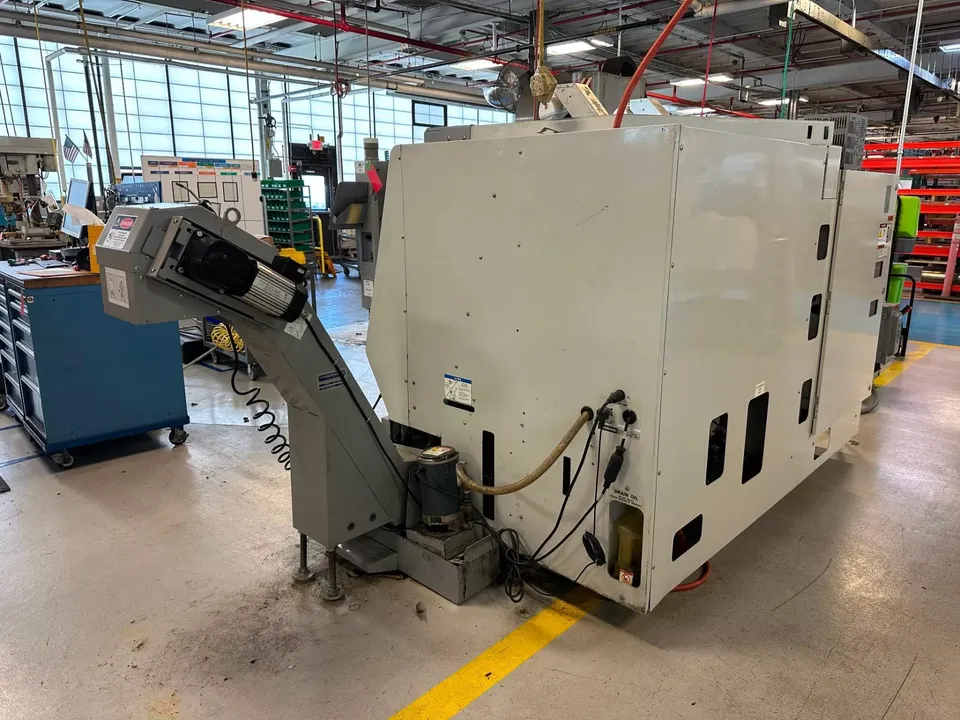

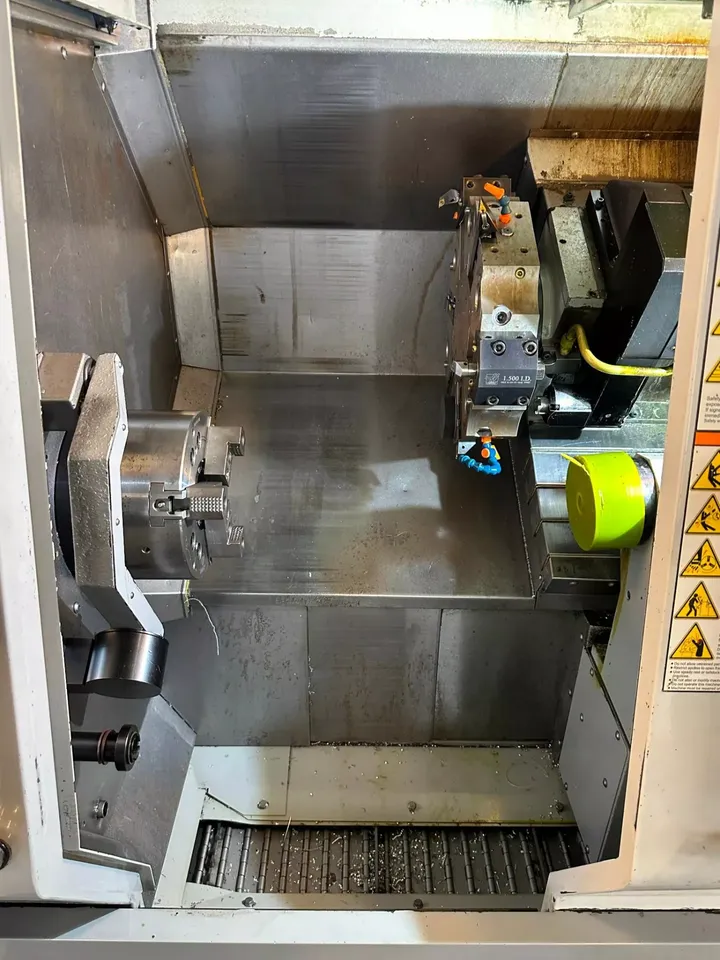

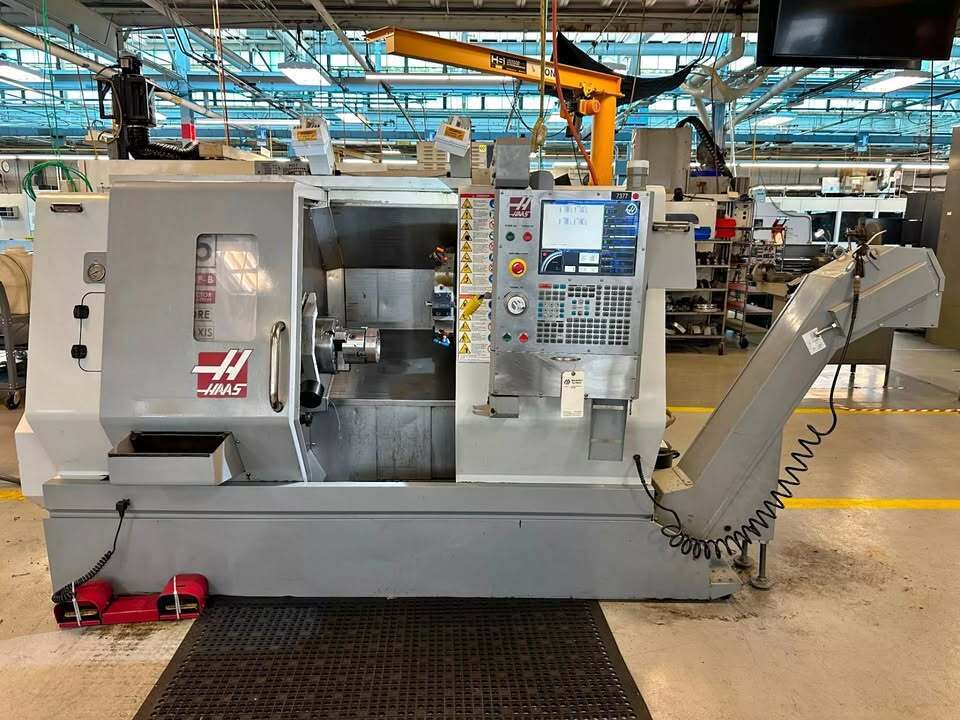

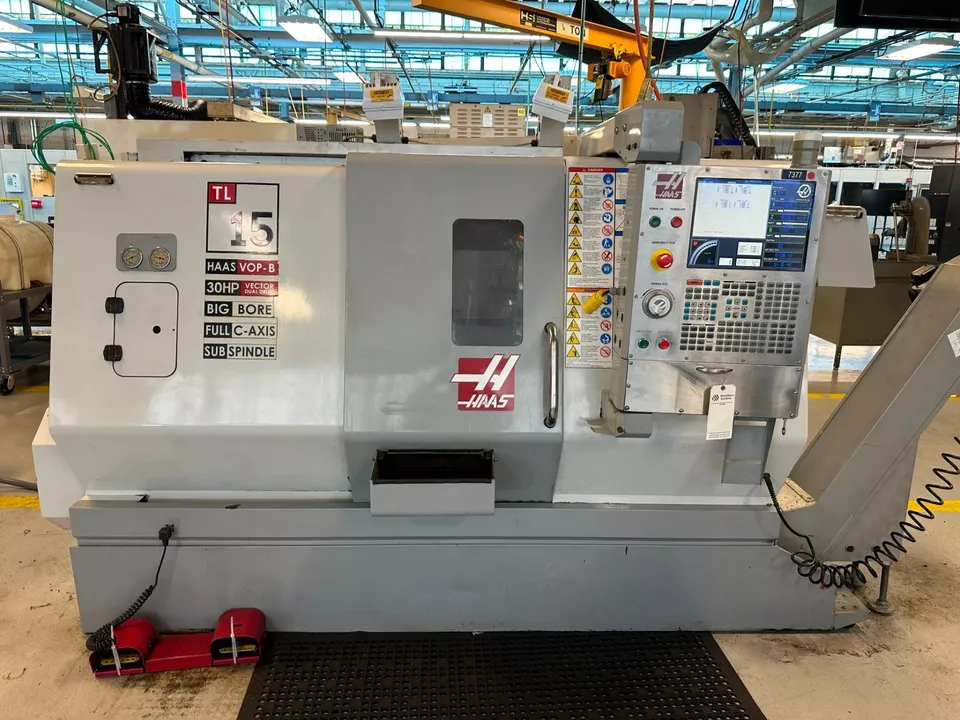

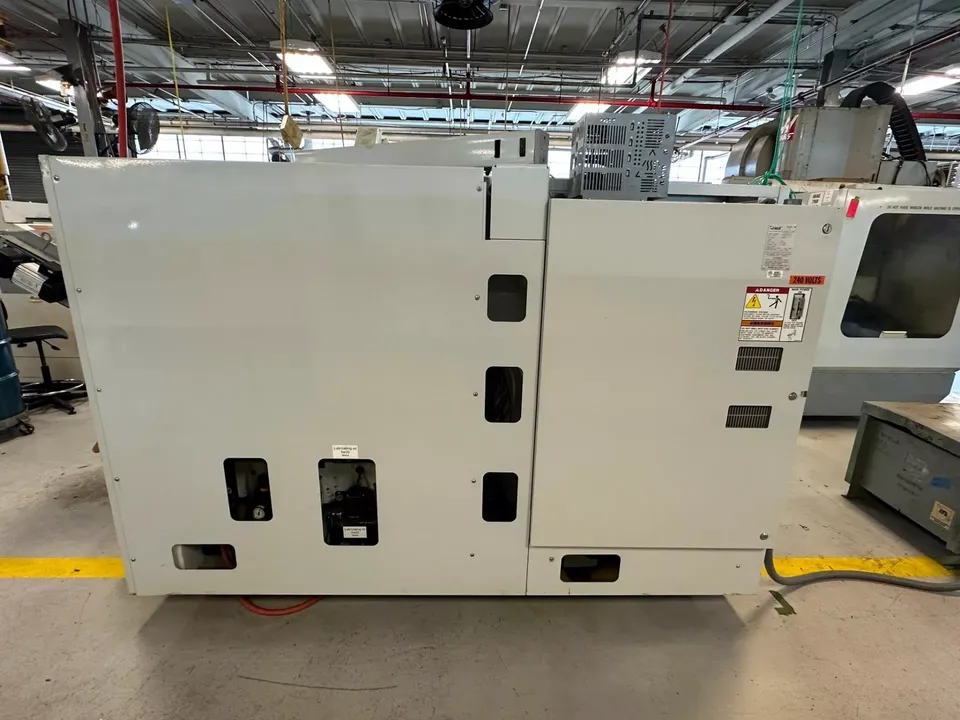

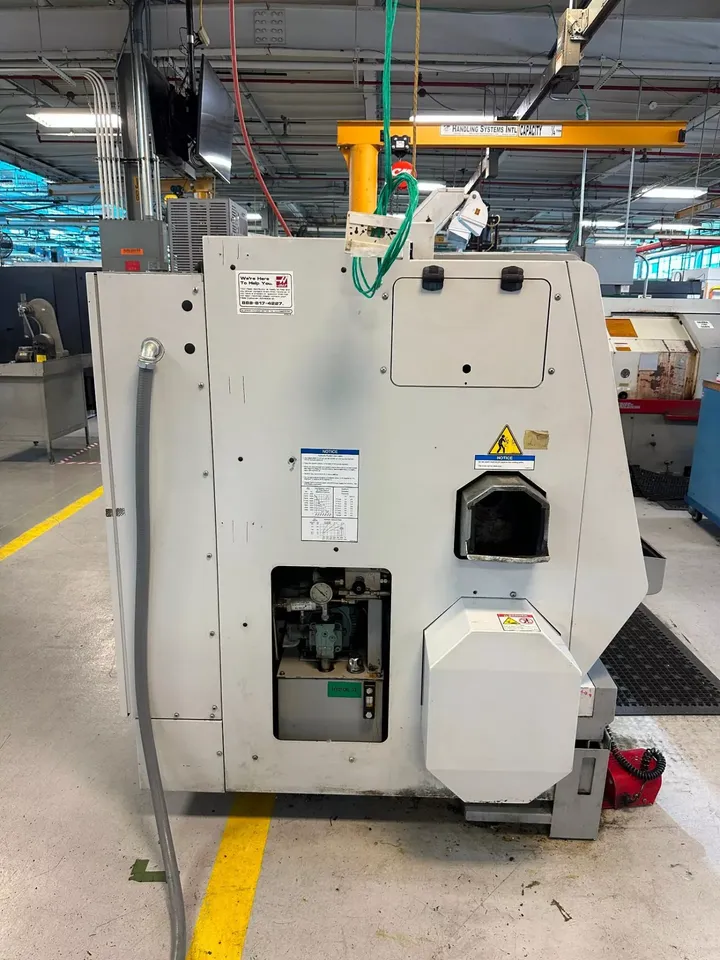

HAAS TL-15B CNC Lathe, used, featuring a HAAS automation control system, 30 HP spindle, max speed 3,400 RPM, 8-station turret with live tooling, and 3.0" bar capacity. Power on time: 11,895 hours. Equipped with Munk Power Chuck and hydraulic tailstock.
DATE OF MFG: 09 / 07
CONTROL TYPE: HAAS AUTOMATION CNC LATHE CONTROL SYSTEM
MAX SWING OVER SADDLE: 21.65" (550 MM)
MAX TURNING DIAMETER: 8.2" (208 MM)
MAX TURNING LENGTH: 17.5" (445 MM)
MAIN SPINDLE POWER: 30 HP VECTOR DUAL DRIVE SPINDLE SYSTEM
MAIN SPINDLE MAX SPEED: 3,400 RPM
MAIN SPINDLE NOSE: A2-6
BAR CAPACITY: 3.0" (76 MM) "BIG BORE" SPINDLE OPTION

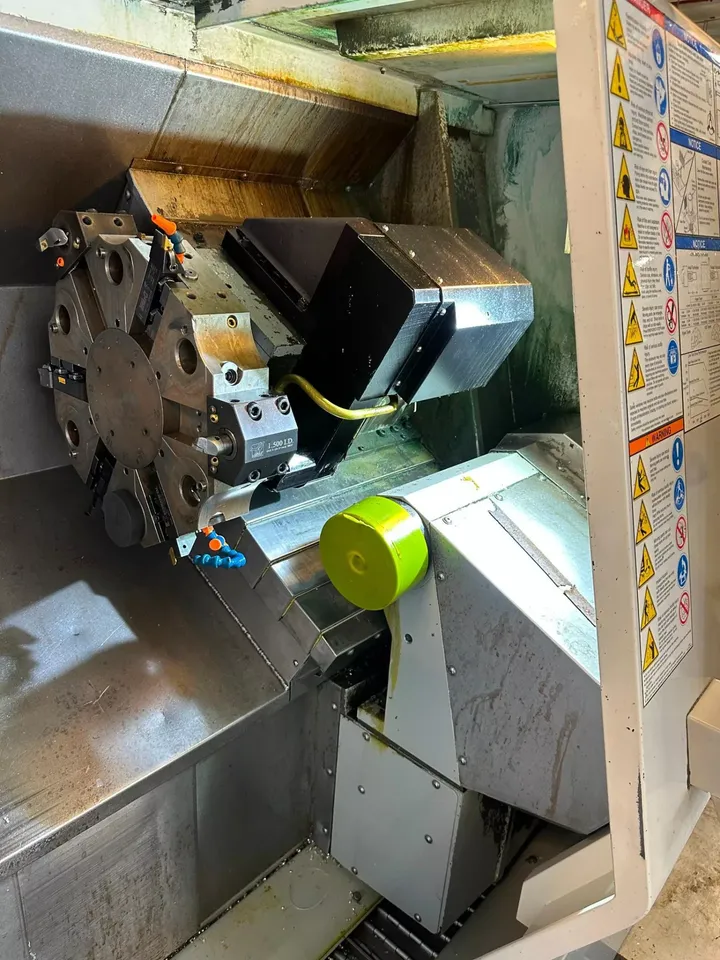

TURRET TYPE: AXIAL INDEXING DISK TYPE
TURRET CAPACITY: 8 STATIONS (SUPPORTS TURNING AND LIVE MILLING DRIVEN TOOLS)
LIVE TOOLING SPEED RANGE: 30 - 3,000 RPM
LIVE TOOLING POWER: 5 HP (3.7 KW)
X-AXIS TRAVEL: 7.5" (191 MM)
Z-AXIS TRAVEL: 17.5" (445 MM)
TAILSTOCK CONFIGURATION: PROGRAMMABLE HYDRAULIC POSITIONING BASE WITH QUILL LIVE TAPER
RAPID TRAVERSE RATES: 710 IPM (18.0 M/MIN)
INPUT VOLTAGE REQUIREMENTS: 208 / 230 VAC
PHASE: 3-PHASE
FREQUENCY: 50 / 60 HZ
FULL LOAD AMPERAGE: 80 AMPS
LARGEST LOAD AMPERAGE: 70 AMPS
SHORT CIRCUIT INTERRUPTING CAPACITY: 10,000 AMPS
WIRING DIAGRAM NO: 93-0284
APPROXIMATE MACHINE WEIGHT: 11,000 LBS (4,990 KG)
DATE OF MFG: 09 / 07
CONTROL TYPE: HAAS AUTOMATION CNC LATHE CONTROL SYSTEM
MAX SWING OVER SADDLE: 21.65" (550 MM)
MAX TURNING DIAMETER: 8.2" (208 MM)
MAX TURNING LENGTH: 17.5" (445 MM)
MAIN SPINDLE POWER: 30 HP VECTOR DUAL DRIVE SPINDLE SYSTEM
MAIN SPINDLE MAX SPEED: 3,400 RPM
MAIN SPINDLE NOSE: A2-6
BAR CAPACITY: 3.0" (76 MM) "BIG BORE" SPINDLE OPTION
TURRET TYPE: AXIAL INDEXING DISK TYPE
TURRET CAPACITY: 8 STATIONS (SUPPORTS TURNING AND LIVE MILLING DRIVEN TOOLS)
LIVE TOOLING SPEED RANGE: 30 - 3,000 RPM
LIVE TOOLING POWER: 5 HP (3.7 KW)
X-AXIS TRAVEL: 7.5" (191 MM)
Z-AXIS TRAVEL: 17.5" (445 MM)
TAILSTOCK CONFIGURATION: PROGRAMMABLE HYDRAULIC POSITIONING BASE WITH QUILL LIVE TAPER
RAPID TRAVERSE RATES: 710 IPM (18.0 M/MIN)
INPUT VOLTAGE REQUIREMENTS: 208 / 230 VAC
PHASE: 3-PHASE
FREQUENCY: 50 / 60 HZ
FULL LOAD AMPERAGE: 80 AMPS
LARGEST LOAD AMPERAGE: 70 AMPS
SHORT CIRCUIT INTERRUPTING CAPACITY: 10,000 AMPS
WIRING DIAGRAM NO: 93-0284
APPROXIMATE MACHINE WEIGHT: 11,000 LBS (4,990 KG)
Get Your Price from Toolquip Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Haas #ST-30L, CNC lathe with live tooling, 21" swing, 62.5" centers, 10" chuck, 3" bar, 3400 RPM, 30 HP, 12 station turret, 2023
Category: CNC Lathes and Turning Centers
Seller: Premier Equipment Inc
Location: Altamonte Springs, FL
Mfr: Haas
Model: ST-30L
Year: 2023
Haas ST30L CNC Lathe with Live Tooling, # Axis: 3, Swing: 21 in, Turning Diameter : 15 in, Center Distance: 62.5 in, Chuck Size : 10 in, Bar Capacity : 3 in, X Axis Travel : 9.4 in, Z Axis Travel : 62.5 in, Rapid Traverse: (X/Z), Spindle Nose: A2-6, Spindle Speed : 3,400 rpm, Main Motor : 30 hp, Live Tooling : yes ...more
JUST ADDED!
Okuma & Howa #ACT-35, CNC Lathe, 20" swing, 24" machining length, 12" chuck, 3" bar, 20 HP, 3500 RPM, tailstock, Fanuc 18T control, 1996
Category: CNC Lathes and Turning Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Okuma & Howa
Model: ACT-35
Year: 1996
Used CNC Lathe, featuring 20" swing, 24" machining length, 12" chuck size, 3.07" bar capacity, and 20 hp with max 3,500 RPM. Comes with FANUC 18T, chip conveyor, manuals, top jaws, and tailstock., 1996 OKUMA & HOWA ACT-35, Swing. 20", Machining Length. 24", # Axis. 2, Chuck Size. 12", Bar Capacity. 3.07", Power. ...more
JUST ADDED!

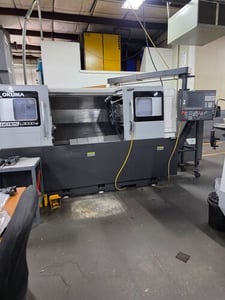

Okuma #Genos-L3000-E, CNC lathe, 20.4" swing, 11.81" diameter, 14" centers, 10" chuck, 2.7" bar, 3" bore, 3000 RPM, 20.47" X, 18.11" Z, 2019
