For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Mike DeRisi
973-49...> Show Seller's Phone Number 973-497-7540 Let the seller know you found their listing on Surplus Record!
Description

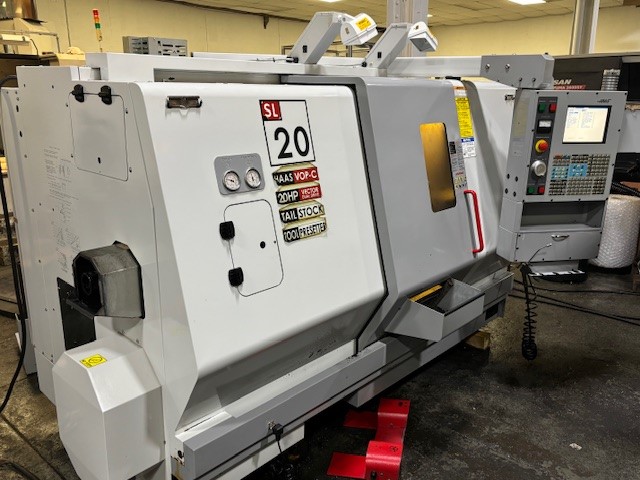

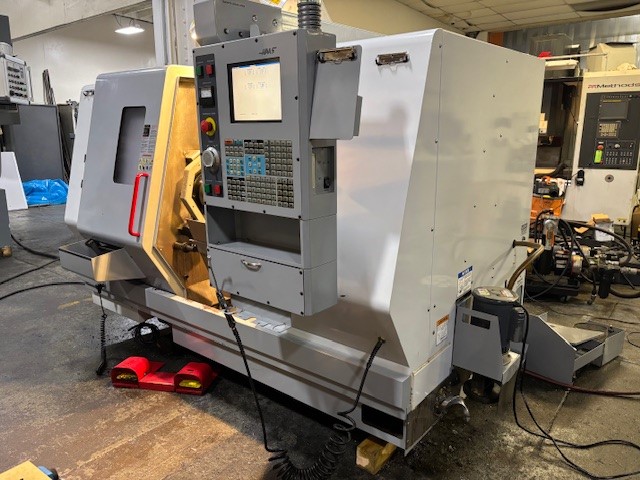

HAAS SL-20T CNC TURNING CENTER
NEW: 2004
VIDEO LINK: https://youtu.be/qIsyRh5XGRI?si=Z-KuDJX0QWx82pAN
SPECIFICATIONS:
MAXIMUM SWING OVER FRONT APRON ....... 20"
SWING OVER CROSS SLIDE ............... 9.5"
MAXIMUM TURNING DIAMETER ............. 10"
MAXIMUM TURNING LENGTH ............... 20"
X AXIS TRAVEL ........................ 8.45"
Z AXIS TRAVEL ........................ 20"
RAPID TRAVERSE RATE X AXIS ........... 710 IPM
RAPID TRAVERSE RATE Z AXIS ........... 710 IPM
SPINDLE BORE .........................″.0"
MAXIMUM BAR CAPACITY ................. 2.0"
SPINDLE SPEEDS ....................... 4,000 RPM
SPINDLE MOTOR ........................ 20 HP

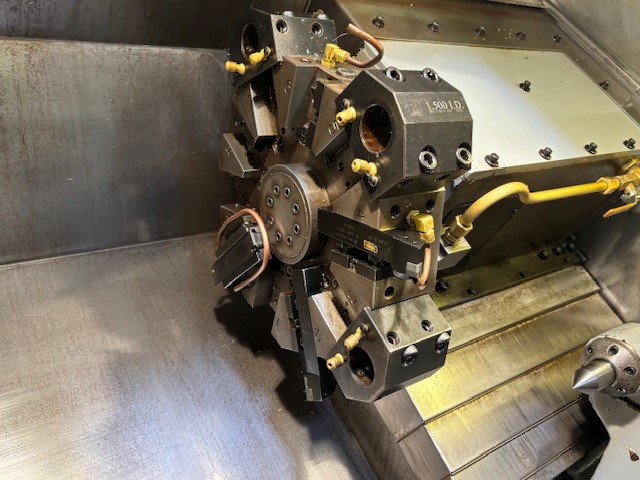

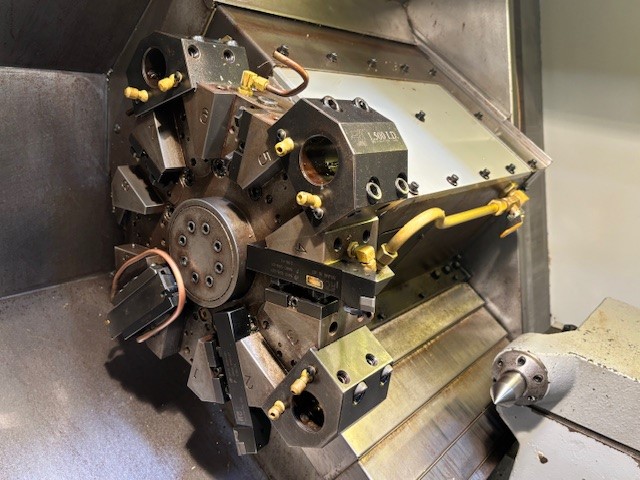

TURRET CAPACITY ...................... 10 STATION TURRET
TAILSTOCK BODY STROKE ................ 17.9"
TAILSTOCK QUILL STROKE ............... 4.7"
TAILSTOCK QUILL DIAMETER .............″.9"
TAILSTOCK QUILL TAPER ................ MT #3
APPROXIMATE DIMENSIONS ............... 124" x 70" x 74"
MACHINE WEIGHT (APPROXIMATE) ......... 9,000 LBS
EQUIPPED WITH:
- HAAS CNC CONTROL

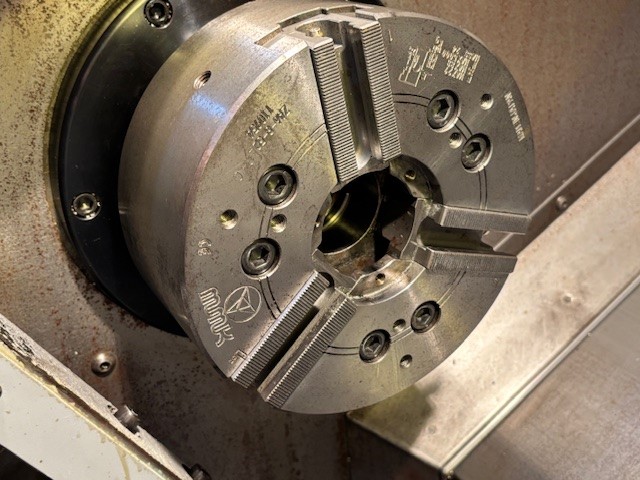

- 8"″-JAW HYD. CHUCK
- TOOLSETTER

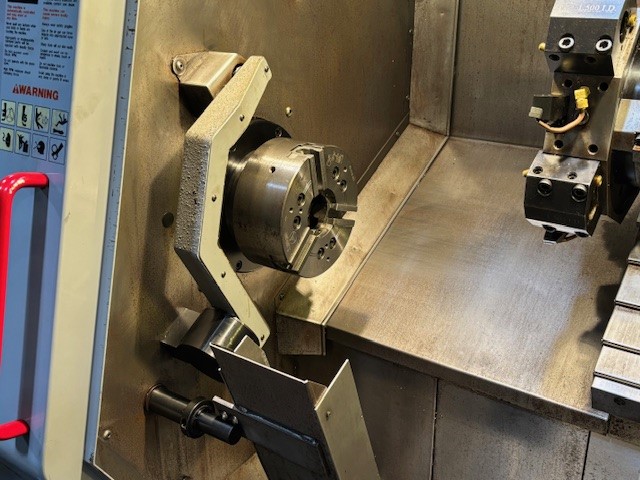

- PARTS CATCHER
- TAILSTOCK
- BOLT-ON TURRET
- CHIP AUGER
- HIGH INTENSITY LIGHTING
- BARFEED INTERFACE (FOR HAAS BRUSHLESS BARFEED)
- ALL AVAILABLE TOOLHOLDERS
Get Your Price from Machinery Values Inc!
