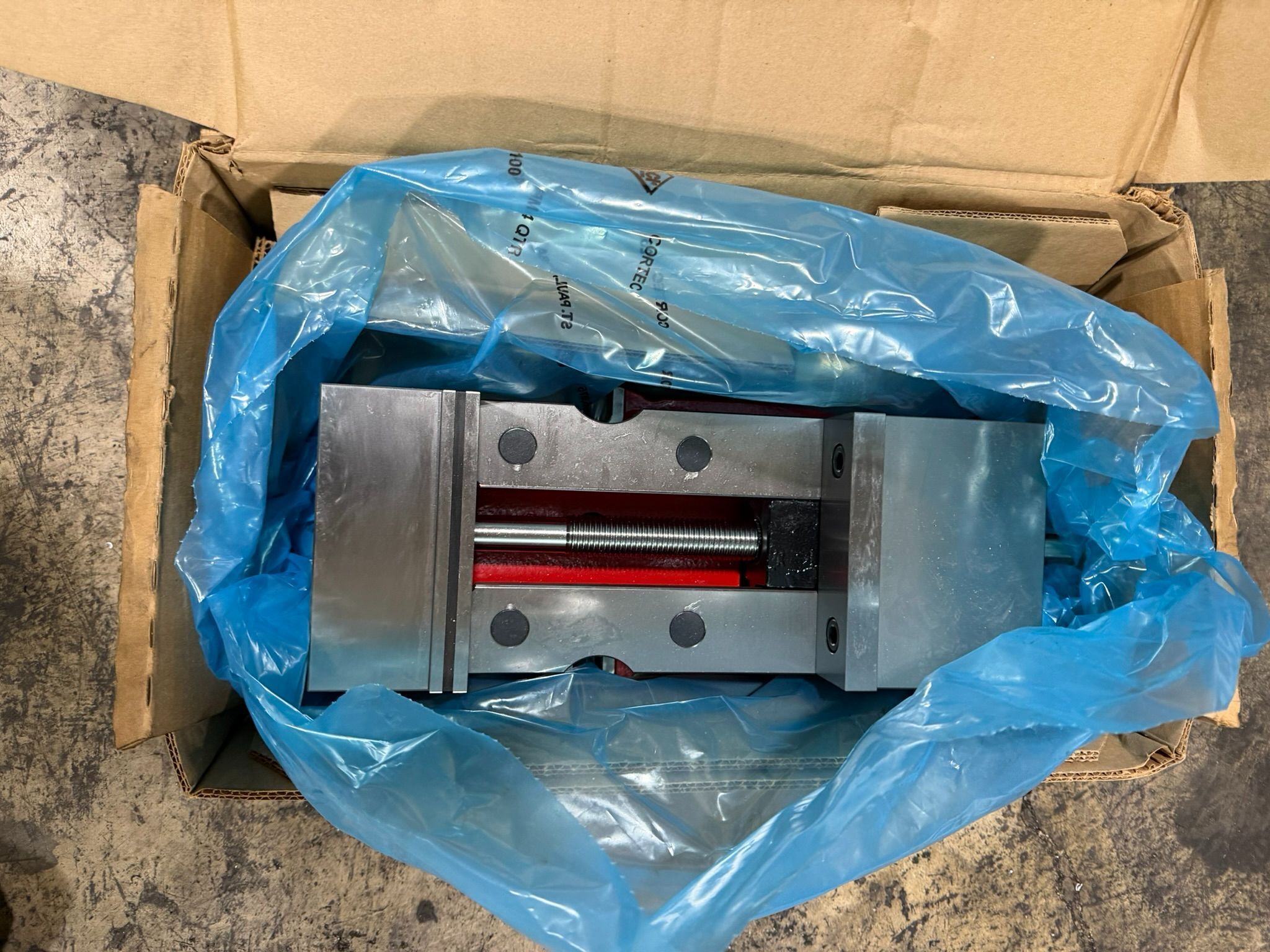

Haas/Kurt-Style, Pair of Single-Station Fixed-Jaw Vises, 6" jaw width, 9" opening

Haas Workholding by Kurt 6" single-station fixed-jaw vise is the same high-quality DX6 Kurt vise we all know and love branded specifically for Haas. This flange-style vise has a 9" maximum opening, and features a cast-in stationary jaw for less deflection and more stability during clamping. Proprietary AngLock design ensures alignment of the moving jaw, and reduces jaw lift for superior performance. The bolt-on jaws are easily changed or reversed, and machinable steel and aluminum soft jaws are available.
Technical specifications
System of Measurement
Inch - ANSI
Vise Type
Manual
Vise Holding Type
Fixed Jaw
Number of Stations
1
[BL] Body Length
16.81 in \ 426.97 mm
[BH] Body Height
2.875 in \ 73.03 mm
[H] Height of Screw Hole
0.94 in \ 23.88 mm
[JH] Jaw Height
1.735 in \ 44.07 mm
[JW] Jaw Width
6.0 in \ 150.0 mm
[a] Dimension
0.656 in \ 16.66 mm
[b] Dimension
5.972 in \ 151.69 mm
[OAL] Overall Length
18.258 in \ 463.75 mm
[OAH] Overall Height
4.36 in \ 110.74 mm
[OAW] Overall Width
7.391 in \ 187.73 mm
[J1] Inner Jaw Range
0.0-9.08 in \ 0.0-230.6 mm
[J3] Outer Jaw Range
7.76-16.84 in \ 197.1-427.7 mm
[VO] Vise Opening
9.0 in \ 225.0 mm
[BT] Base Thickness
0.82 in \ 20.83 mm
[S] Screw Spacing
3.875 in \ 98.43 mm
[ZPC] Zero Point Connections
0
[TP] Thread Pitch
1/2"-13
[W] Wrench Size
0.75 in \ 3/4"
Weight
78.0 lbs \ 35.0 kg
Country of Origin
USA
List Price $889.95 each
*(2) Vises Included
